Features：
1. Stroke 450mm
2. Payload 10Kg
3. Imported brand ACS, ELMO, Servotronix, Adtech driver for optional
4. Linear positioning stages maximum acceleration 1G,maximum speed 2m/s; rotating speed of Z-axis 500rpm
5. Optical grating positioning or magnetic grating positioning for optional
6. Suitable for semiconductor precision inspection equipment
Brand:
HAN'S MOTOROrder(MOQ):

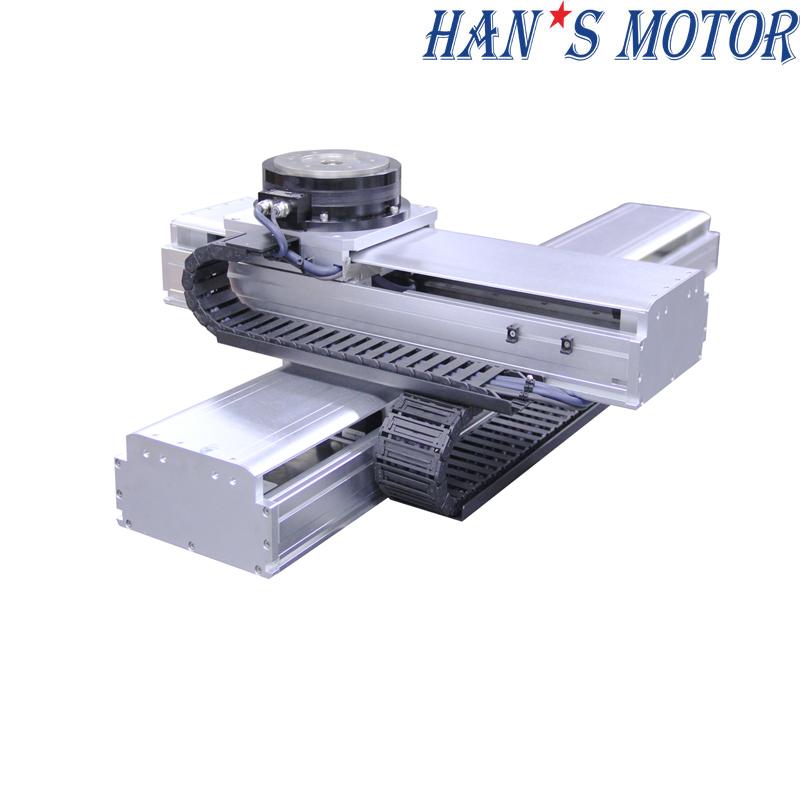

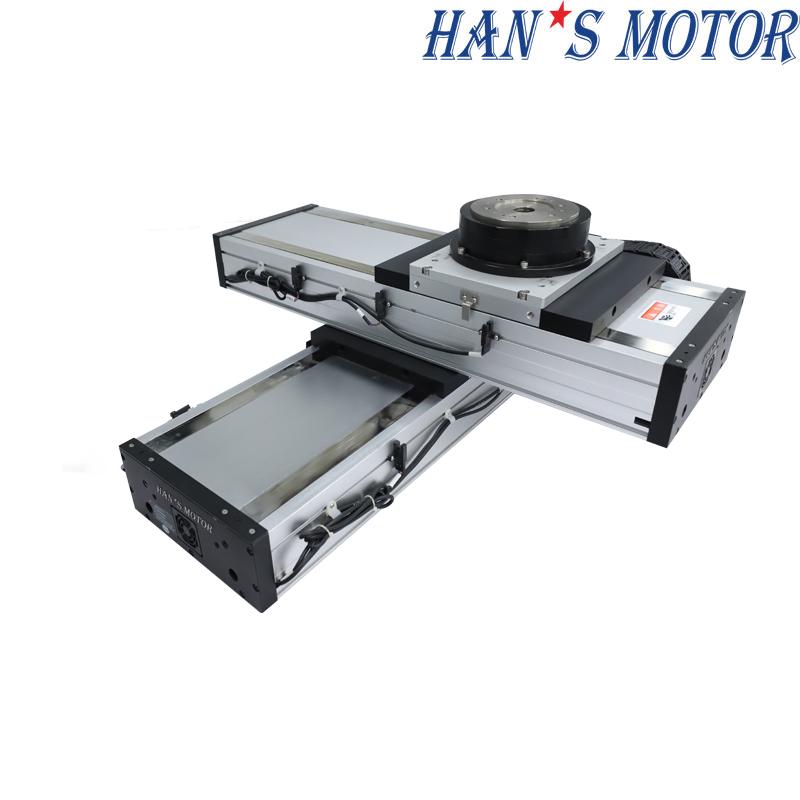

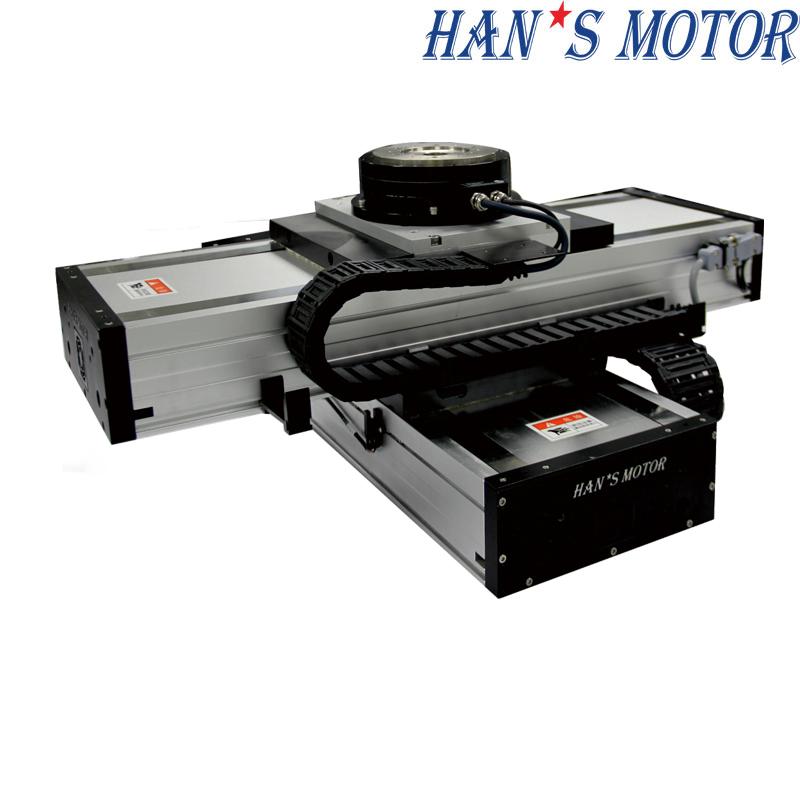

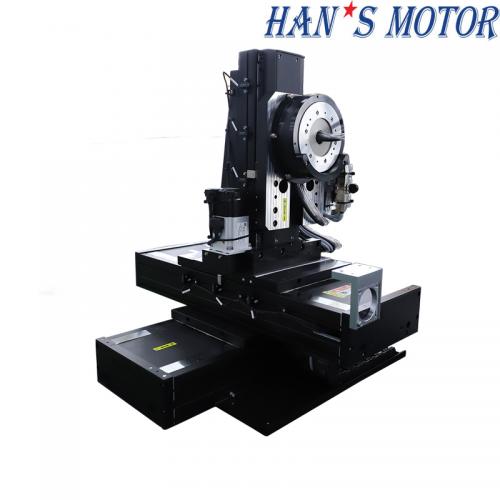

1Product name：Three-axis direct drive linear motor stage for laser marking machine
Characteristic:
• It is composed of a stardard cross-type stage and a DDR motor,which is fully protected and has good dust-proof etc
• Continuous current 2.6Arms, peak current 7.8Arms
• Adopt HAN’s self-developed encoders and adtech driver
• Base width is 230mm, stroke 450mm, which can be used in medium and large loads of machine
• High precision optical grating feedback system, repeatability position accuracy ±1um
• Han’s production capacity 5000-10000 pieces per month
Motor and Stage Specifications
|
Stage parameters |
X-axis |
Y-axis |
T-axis |
|
Effective stroke（mm） |
450 |
450 |
180° |
|
Limit stroke（mm） |
480 |
480 |
\ |
|
Max. speed（m/s） |
1 |
1 |
500rpm |
|
Acceleration(g) |
1 |
1 |
\ |
|
Repeatabiltiy postioning accuracy（μm） |
±5 |
±5 |
±5arcsec |
|
Payload（kg） |
\ |
\ |
10 |
|
Motor type |
FL22 |
FL21 |
HANS-H-005 |
|
Continuous force（N） |
196 |
118 |
5 |
|
Peak force（N） |
517 |
314 |
15 |
|
Continuous current（Arms） |
2.6 |
2.6 |
2.3 |
|
Peak Current（Arms） |
7.8 |
7.8 |
7 |
|
Polar distance (N-N) mm |
20 |
20 |
0.0021Kg*m2 |
Kindly instruct us your requirements of linear motion stage, and we would provide product manual and 3D model to you. Some parameters you can provide:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
6. Straightness
7. Stages structure
Free product manual and 3D model and good quality with a reasonable price can be provided.

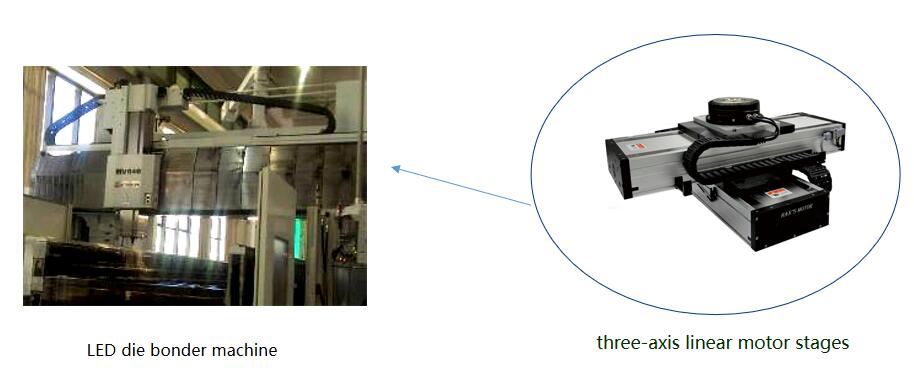

Industry Applications:
Laser marking machine motion system, automatic assembly, testing equipment, semiconductor precision inspection equipment, etc .
Laser Group Show
Production Center Show
Packaging & Delivery
Packaging Details.: plywood packing
