Features:
1.Adopt high quality ironlesslinear motor with peak force 1300-3500Nm;
2.Stable marble material;
3.Adopt imported ELMO driver and ACS controller;
4.Free product manual and 3D model and can be provided;
Brand:
HAN'S MOTOROrder(MOQ):
1Goods Stock:

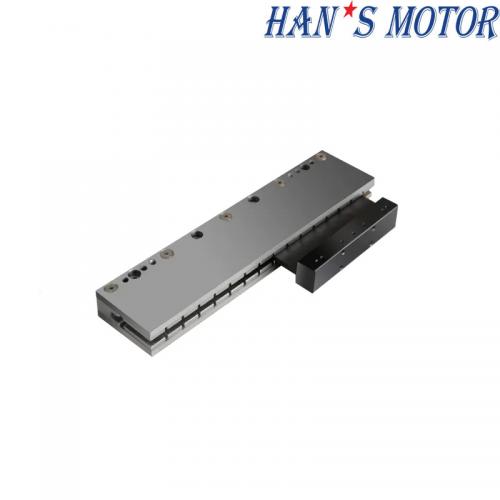

10000Products Name: Zero cogging force Ironless linear motor stages for high precision machine (LMH400 Series)
Characteristics:
• Low-noise, and insulation of high temperature
• High repeatability accuracy±1μm
• Continuous current 2.3Arms, peak current 13Arms
• AdoptImported RENNISHAW grating absolute feedback system (0.5μm）
• Han’sproduction capacity 5000-10000 pieces permonth
Product Specifications
Motor Model/Parameter
|
|
|
Ironless Motor |
|||
|
Parameter\ Motor Model |
Unit |
U62 |
U63 |
U64 |
U65 |
|
Continuous Force (Tmax） |
N |
221 |
331 |
442 |
552 |
|
Peak Force |
N |
1326 |
1988 |
2649 |
3311 |
|
Motor Constant |
N//SqrtW |
19 |
23.5 |
27.2 |
30.5 |
|
Max.Continuous Power Dissipation |
W |
135.2 |
199.5 |
263.8 |
328.1 |
|
Continuous Current (Tmax） |
Arms |
2.5 |
2.5 |
2.5 |
2.5 |
|
Peak Current (1S) |
Arms |
15 |
15 |
15 |
15 |
|
Force Constant (25℃，±5%） |
N/Arms |
88.4 |
132.5 |
176.6 |
220.7 |
|
Back EMF Constant (25℃，±5%） |
Vrms/rad/s |
29.5 |
44.2 |
58.9 |
73.6 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
10.3 |
15.2 |
20.1 |
25 |
|
Inductance(25℃，±20%）P-P |
mH |
19.0 |
28.5 |
38.0 |
47.5 |
|
Max Coil Temperature |
℃ |
120 |
120 |
120 |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
84 |
84 |
84 |
84 |
|
Magnetic Attraction |
KN |
0 |
0 |
0 |
0 |
|
Mover Mass |
Kg |
1.9 |
2.7 |
3.6 |
4.5 |
Linear Motor Stages Selection
|
LMH400-U62-xxx-xxx-A |
|
|
|
|
|
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
|
K |
6 |
6 |
6 |
10 |
10 |
|
N |
1 |
1 |
1 |
2 |
2 |
|
Stage Total Length (mm) |
400 |
500 |
600 |
700 |
800 |
|
Stage Weight (kg) |
44.9 |
53.6 |
62.3 |
71.1 |
79.8 |
|
Sliding Table M (mm) |
190 |
||||
|
A |
8 |
||||
|
B |
3 |
||||
|
Motion Parts Weight (kg) |
11.6 |
||||
|
LMH400-U63-xxx-xxx-A |
|
||||
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
|
K |
6 |
6 |
10 |
10 |
10 |
|
N |
1 |
1 |
2 |
2 |
2 |
|
Stage Total Length (mm) |
480 |
580 |
680 |
780 |
880 |
|
Stage Weight (kg) |
51.3 |
60.1 |
68.8 |
77.6 |
86.3 |
|
Sliding Table M (mm) |
260 |
||||
|
A |
12 |
||||
|
B |
5 |
||||
|
Motion Parts Weight (kg) |
15.4 |
||||
|
LMH400-U64-xxx-xxx-A |
|
||||
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
|
K |
6 |
10 |
10 |
10 |
14 |
|
N |
1 |
2 |
2 |
2 |
3 |
|
Stage Total Length (mm) |
570 |
670 |
770 |
870 |
970 |
|
Stage Weight (kg) |
58.6 |
67.4 |
76.1 |
84.9 |
93.6 |
|
Sliding Table M (mm) |
350 |
||||
|
A |
16 |
||||
|
B |
7 |
||||
|
Motion Parts Weight (kg) |
20.1 |
||||
|
LMH400-U65-xxx-xxx-A |
|
||||
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
|
K |
6 |
10 |
10 |
10 |
14 |
|
N |
1 |
2 |
2 |
2 |
3 |
|
Stage Total Length (mm) |
650 |
750 |
850 |
950 |
1050 |
|
Stage Weight (kg) |
65.2 |
74 |
82.7 |
91.5 |
100.2 |
|
Sliding Table M (mm) |
430 |
||||
|
A |
20 |
||||
|
B |
9 |
||||
|
Motion Parts Weight (kg) |
24.4 |
||||

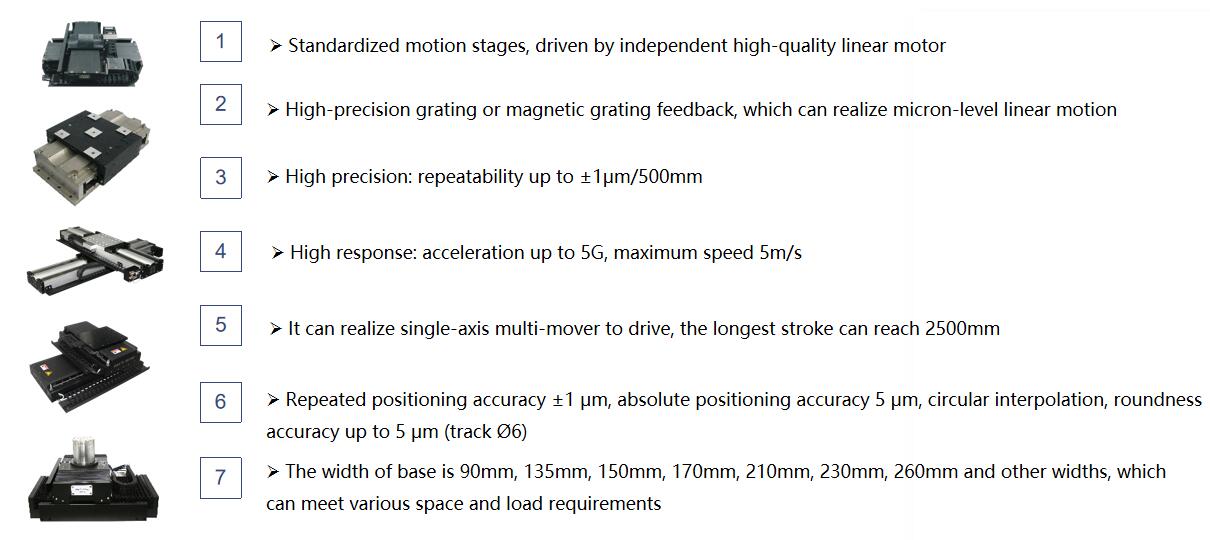

Module several types:

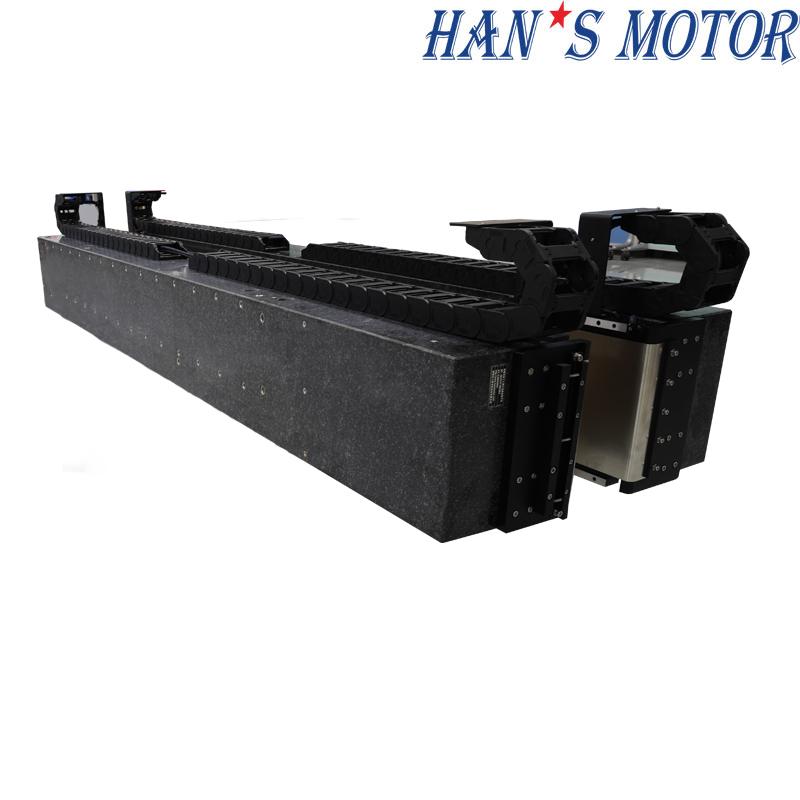

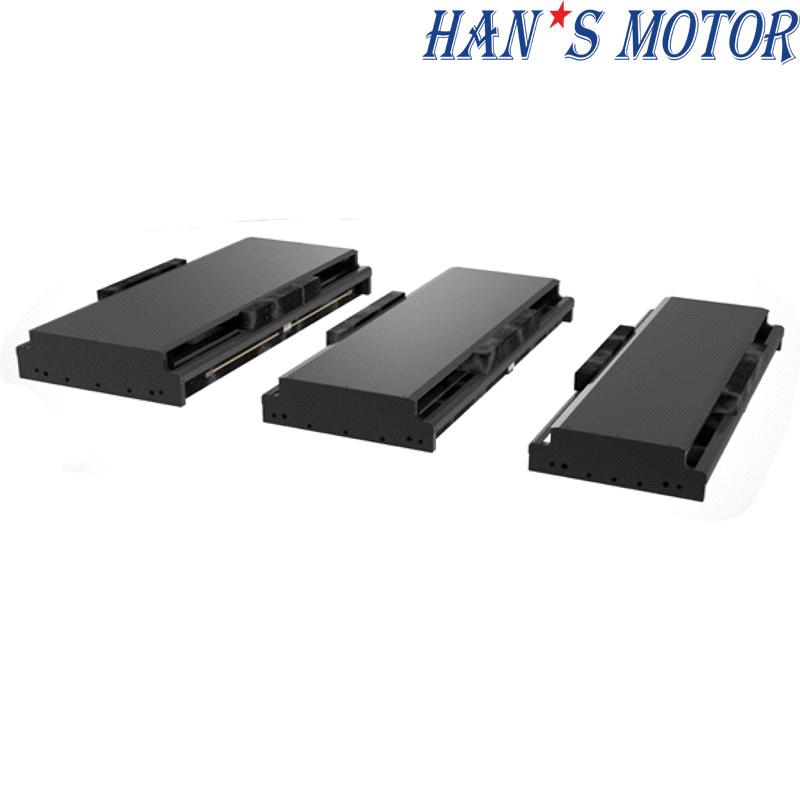

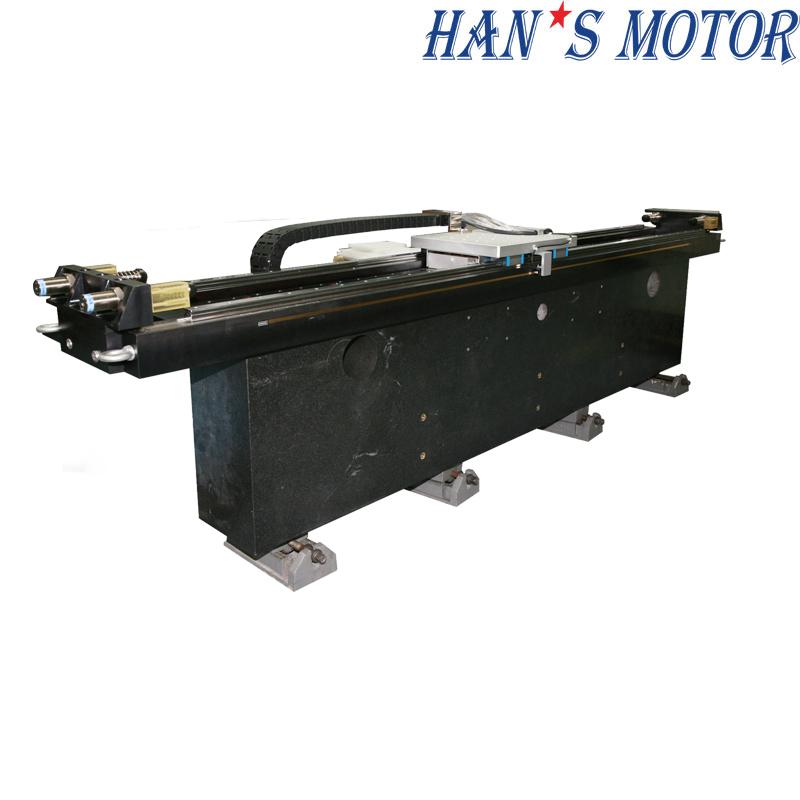

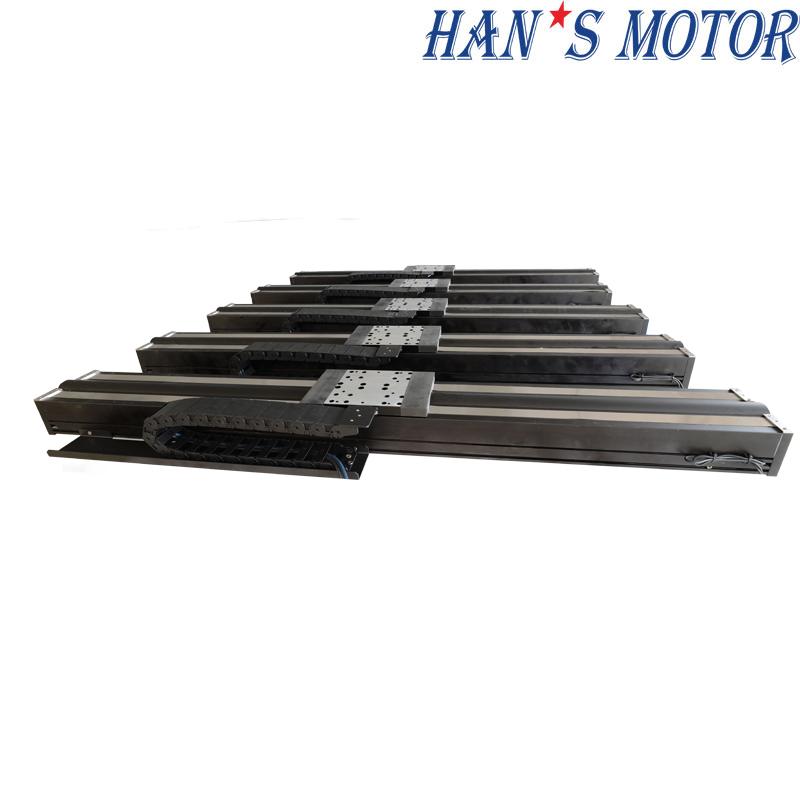

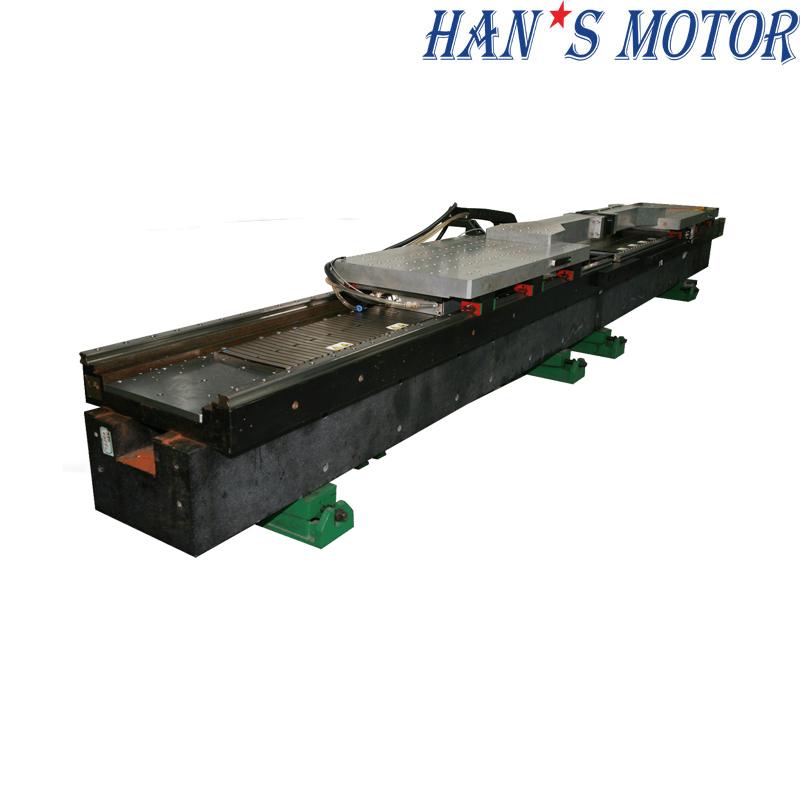

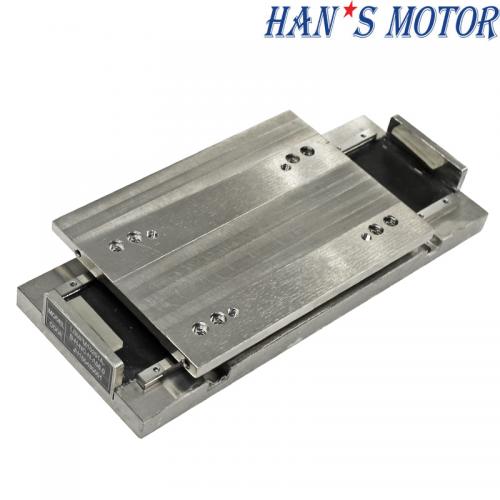

Miniature stages, single axis Stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages.
Kindly instruct us your requirements, you can provide below parameters to our engineer:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
Industry Applications:

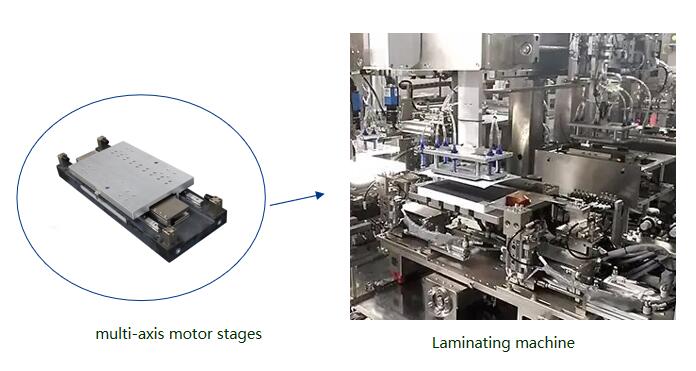

High accuracy multi-axis motion stages can be apply toLaminating machine for new energy industry
Remark:
Packaging Details.: plywood packing or 20GP container
Port.: Shenzhen ( BY SEA, AIR, TNT, UPS, FedEx, DHLand others.)
Leading time: According to the order quantity, 10-15 days for small order and 25-40 days for bulk order
Warranty: 12 months
Payment terms: T/T in advance
