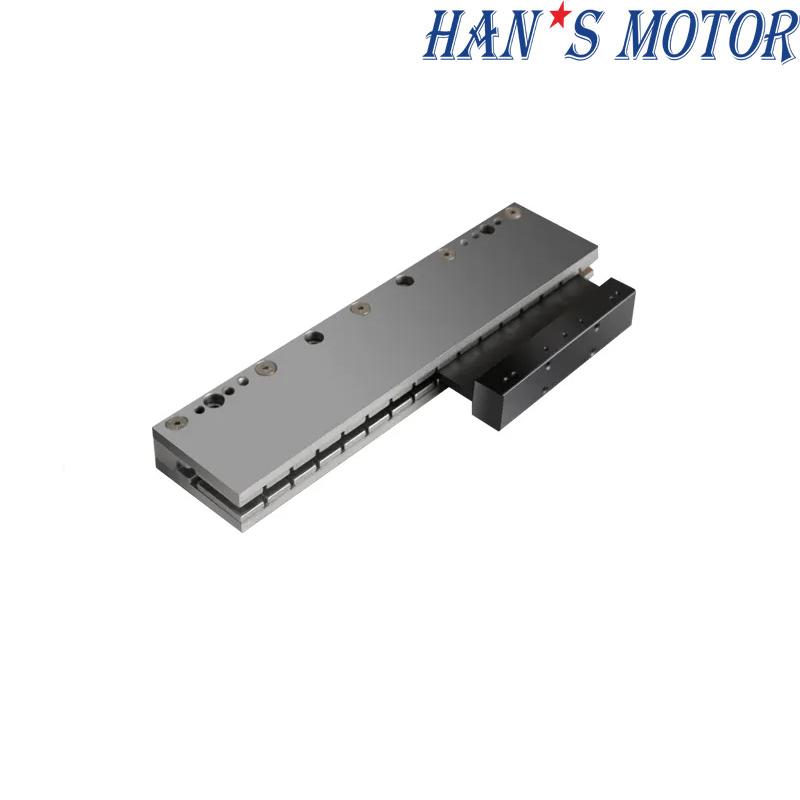

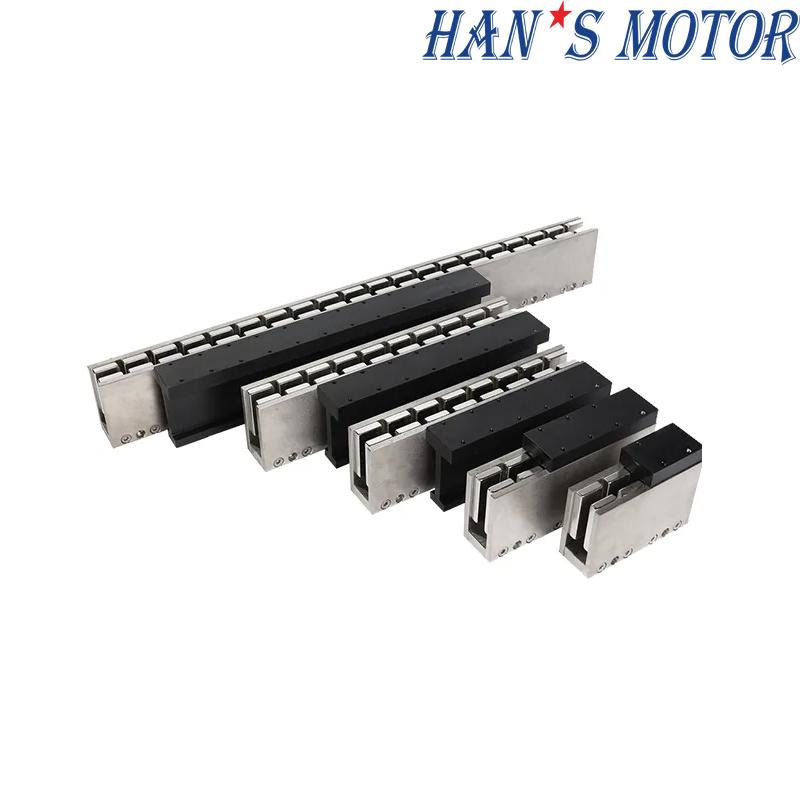

High Performance LSMU Series Ironless Linear Motor With Zero Cogging

Features:

1. Compact sturcture design

2. High acceleration values

3. No magnetic attraction

4. Maintenance-free


  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product nameHigh Performance LSMU Series Ironless Linear Motor With Zero Cogging


IRONLESS LINEAR MOTORS WITH ZERO COGGING

HAN’S MOTOR is a full subsidiary of HAN’S LASER GROUP, has been established on the market as a linear motor manufacturer for almost 20 years. With numbers of invent patent technology and won many national high-tech awards. Innovative strength, quality and technical support and service are the guiding principles of our partner. Our linear motors offer high force density, high rigidity and do not require any maintenance.



Our ironless linear motors, which are ideally suited for applications with extreme synchronization requirements due to their cogging-free behavior. Applications for high-end machine tool, laser cutting, semiconductor technology, healthcare industry and other industry required high precision. The ironless linear motor of the LSMU series are characterized by their compact design and the very good price-performance ratio.



The most important features of the LSMU series ironless linear motors are:

Optimized design for best performance due to high motor constant

Perfect and smooth moving also at low speed due to zero detent force (zero cogging)

High acceleration values

No magnetic attraction

Peak forces from 12N to 5,300N, continuous forces from 3N to 883N


Specifications

Mover Spec: LSMU510xxxx-x-H-NC-N-D00.5
101A-S 201A-S 201A- P 301A-S 301A- P 402A-S 402A- P 108A-S
501A- S 501A- P 601A-P 601A- P
Performance Parameters
Symbol
 Unit   Series Series
Parallel
Series
Parallel
Series
Parallel
Series
Series
Parallel
Series
Parallel
Continuous Force (Tmax)
Fc N 56 112 112 168 168 224 224 249 280 280 336 336
Peak Force
Fp N 317 624 624 936 936 1248 1248 1387 1560 1560 1872 1872
Motor Constant
Km25 N//Sqrt (W)
10.2 14.4 14.4 17.7 17.8 20.5 20.4 21.6 22.9 22.9 24.9 25.2
Max.Continuous Power Dissipation
Pc W 41.4 82.8 82.8 124.2 122.0 163.4 165.6 181.9 204.8 204.8 250.6 244.0
Continuous Current (Tmax)
Ic Arms 2.3 2.3 4.6 2.3 4.6 2.3 4.6 2.3 2.3 4.6 2.3 4.6
Peak Current (1S)
Ip Arms 13.0 13.0 26.0 13.0 26.0 13.0 26.0 9.2 13.0 26.0 13.0 26.0
Force Constant (25℃,±5%)
Kf N/Arms
24.4 48.7 24.4 73.0 36.5 96.0 48.0 108.0 120.0

60.0

144.0 72.0
Back EMF Constant (25℃,±5%)
Ke Vrm/rad /s
8.1 16.2 8.1 24.3 12.2 32.0 16.0 36.0 40.0 20.0 48.0 24.0
Electrical Resistance (25℃,±5%)P-P
R Ω
3.8 7.6 1.9 11.4 2.8 15.0 3.8 16.7 18.8 4.7 23.0 5.6
Inductance          (25℃,±20%)P-P
L mH 3.6 7.0 1.8 9.5 2.6 14.0 3.5 17.2 17.5 4.4 21.0 5.3
Max Coil Temperature
Tmax

120 120 120
120
120
120
120
120 120 120 120
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 60 60
60
60
60 60 60 60 60 60 60
60
Magnetic Attraction
Fa kN 0.0 0.0
0.0
0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Max.DC Bus Voltage
Ubus V 330 330
330
330
330
330
330
330 330 330 330
330
Vmax,Fc@Vbus=310Vdc
Vmax,Fc
m/s 14.6 6.9 14.6 4.4 9.5 3.1 7.0 2.7 2.3 5.5 1.8 4.4
Vmax,Fp@Vbus=310Vdc
Vmax,Fp
m/s
10.8 3.4 10.8 0.8 5.9 0.0 3.4 0.4 0.0 1.9 0.0 0.9
Vmax,0@Vbus=310Vdc
Vmax,0
m/s
15.4 7.7 15.4 5.1 10.3 3.9 7.8 3.4 3.1 6.2 2.6 5.2
Mover Mass
Mp Kg 0.4 0.7 0.7 1.0 1.0 1.3 1.3 1.3 1.7 1.7 2.0 2.0
Stator Mass within unit length
Ms Kg/m 15.0 15.0
15.0
15.0 15.0 15.0 15.0 15.0
15.0
15.0
15.0 15.0


Dimension

LSMU5 series ironless linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMU510101A-S-H-NC-N-D00.5
61 1 3
LSMU510201A-S-H-NC-N-D00.5
121
3
7
LSMU510201A-P-H-NC-N-D00.5
7
LSMU510301A-S-H-NC-N-D00.5
181
5
11
LSMU510301A-P-H-NC-N-D00.5
11
LSMU510402A-S-H-NC-N-D00.5
241
7
15
LSMU510402A-P-H-NC-N-D00.5
15
LSMU510501A-S-H-NC-N-D00.5
301
9
19
LSMU510501A-P-H-NC-N-D00.5
19
LSMU510601A-S-H-NC-N-D00.5
361
11
23
LSMU510601A-P-H-NC-N-D00.5
23

Remark:  1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
              2. optional temperature sensor.


Stator Length
  Stator model   Stator length TL       N       Stator mounting hole B Stator mounting hole C
LSMU5208A 239.5 4 5 5
LSMU5209A
239.5 3 4 4
LSMU5210A
179.5 2 3 3
LSMU5211A
119.5 1 2 2

Suitable for any mover of this series, stator installation mode can be selected.
