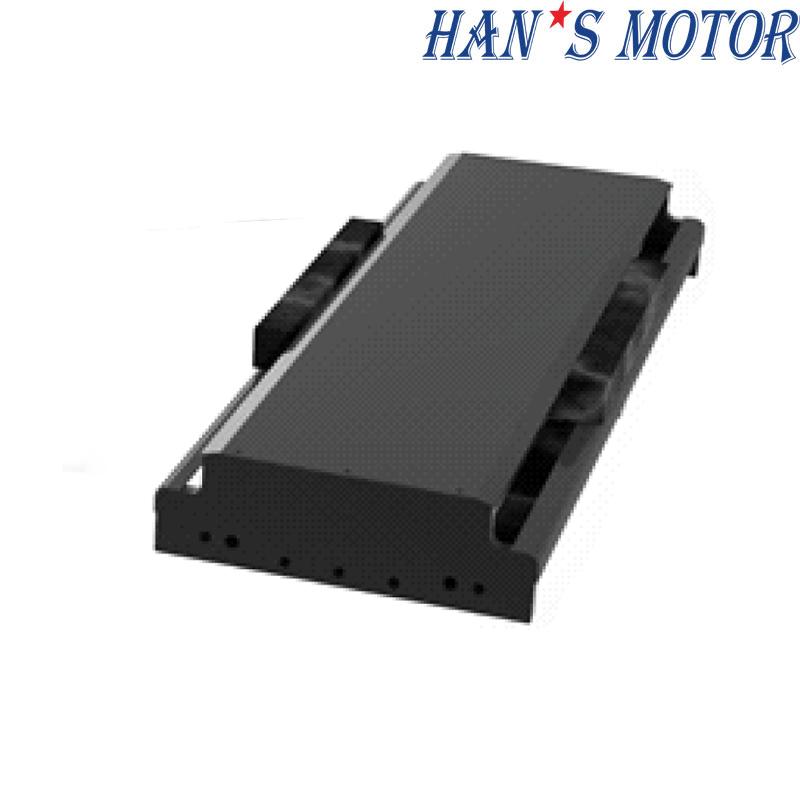

High precision 1μm Linear Motor stages Magnet and Assembly

Features:

1. The base is made of marble with modular design, good rigidity and good stability;

2. Adopt high-end linear motor and grating encoder;

3. Adopt an incremental optical scale feedback system;

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:  High precision 1μm Linear Motor stages Magnet and Assembly (LMH300 Series)


Characteristics:

• Standardmarble materials with good rigidity and good stability

• High precision, high acceleration, high moving speed

• Zero backlash error

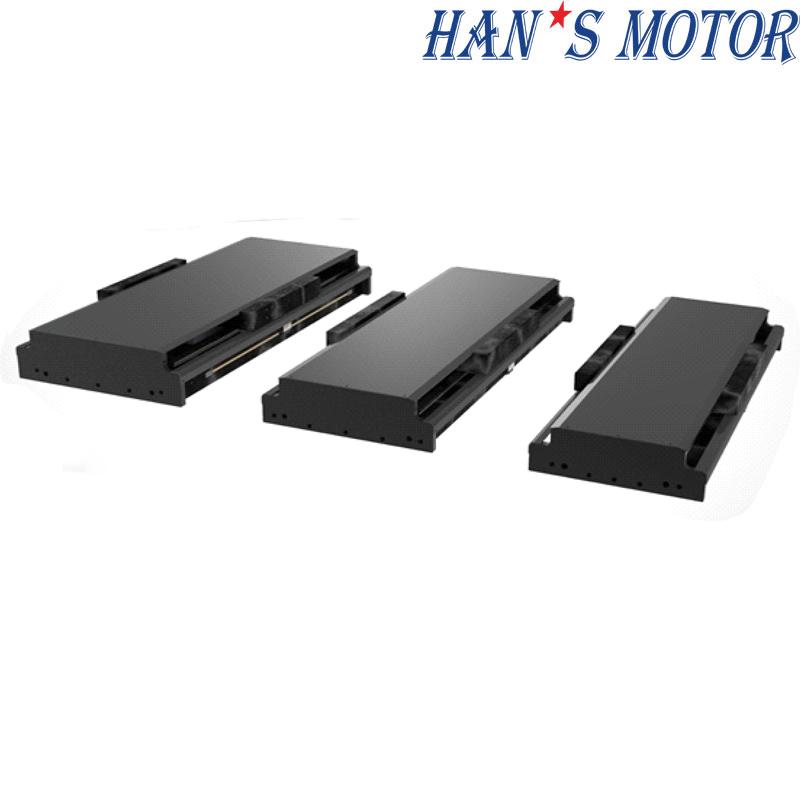

High precision 1μm Linear Motor stages

Product Specifications

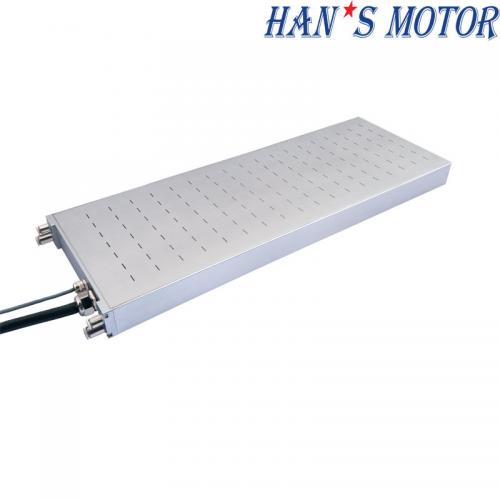

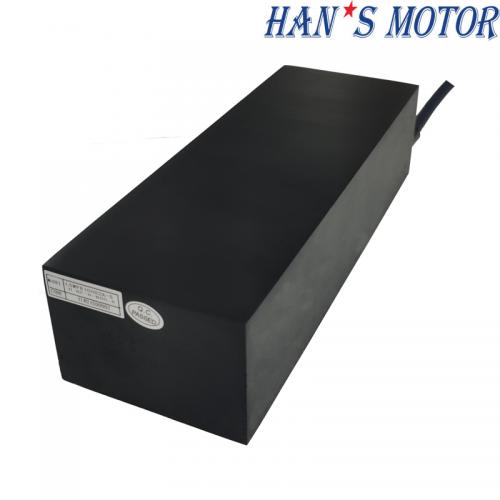

Motor Model/Parameter

Parameter\ Motor Model

Unit

U42

U43

U44

U46

Continuous Force (Tmax)

N

72

108

144

216

Peak Force

N

288

432

576

864

Motor Constant

N//SqrtW

8.8

11

12.8

15.8

Max.Continuous Power Dissipation

W

66.7

96.6

126.6

186.6

Continuous Current (Tmax)

Arms

2.3

2.3

2.3

2.3

Peak Current (1S)

Arms

9.2

9.2

9.2

9.2

Force Constant (25℃,±5%)

N/Arms

31.4

47.1

62.8

94.2

Back EMF Constant (25℃,±5%)

Vrms/rad/s

10.5

15.7

20.9

31.3

Electrical Resistance(25℃,±5%)P-P

Ω

6

8.7

11.4

16.8

Inductance(25℃,±20%)P-P

mH

4.0

6.0

8.0

10

Max Coil Temperature

120

120

120

120

Polar Distance (N-N) (360℃ Electrical cycle)

mm

60

60

60

60

Magnetic Attraction

KN

0

0

0

0

Mover Mass

Kg

0.6

0.9

1.2

1.8


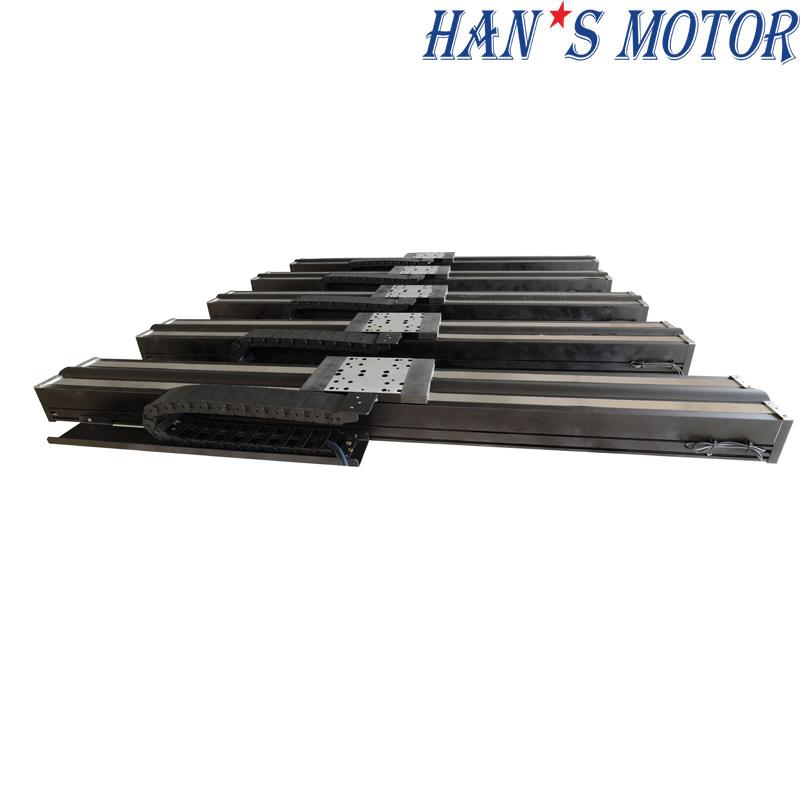

Linear Motor Stages Selection

LMH300-U42-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

K

6

6

6

10

10

N

1

1

1

2

2

Stage Total Length (mm)

410

510

610

710

810

Stage  Weight (kg)

28.2

33.1

38.1

43.1

48

Sliding Table M (mm)

190

A

8

B

3

Motion Parts Weight (kg)

8


LMH300-U43-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

K

6

6

6

10

10

N

1

1

1

2

2

Stage Total Length (mm)

410

510

610

710

810

Stage  Weight (kg)

28.5

33.4

38.4

43.4

48.3

Sliding Table M (mm)

190

A

8

B

3

Motion Parts Weight (kg)

8.3

LMH300-U44-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

K

6

6

10

10

10

N

1

1

2

2

2

Stage Total Length (mm)

470

570

670

770

870

Stage  Weight (kg)

31.4

36.4

41.3

46.3

51.3

Sliding Table M (mm)

250

A

12

B

5

Motion Parts Weight (kg)

10.4


LMH300-U46-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

K

6

10

10

10

14

N

1

2

2

2

3

Stage Total Length (mm)

590

690

790

890

990

Stage  Weight (kg)

37.2

42.2

47.2

52.1

57.1

Sliding Table M (mm)

370

A

16

B

7

Motion Parts Weight (kg)

14.6

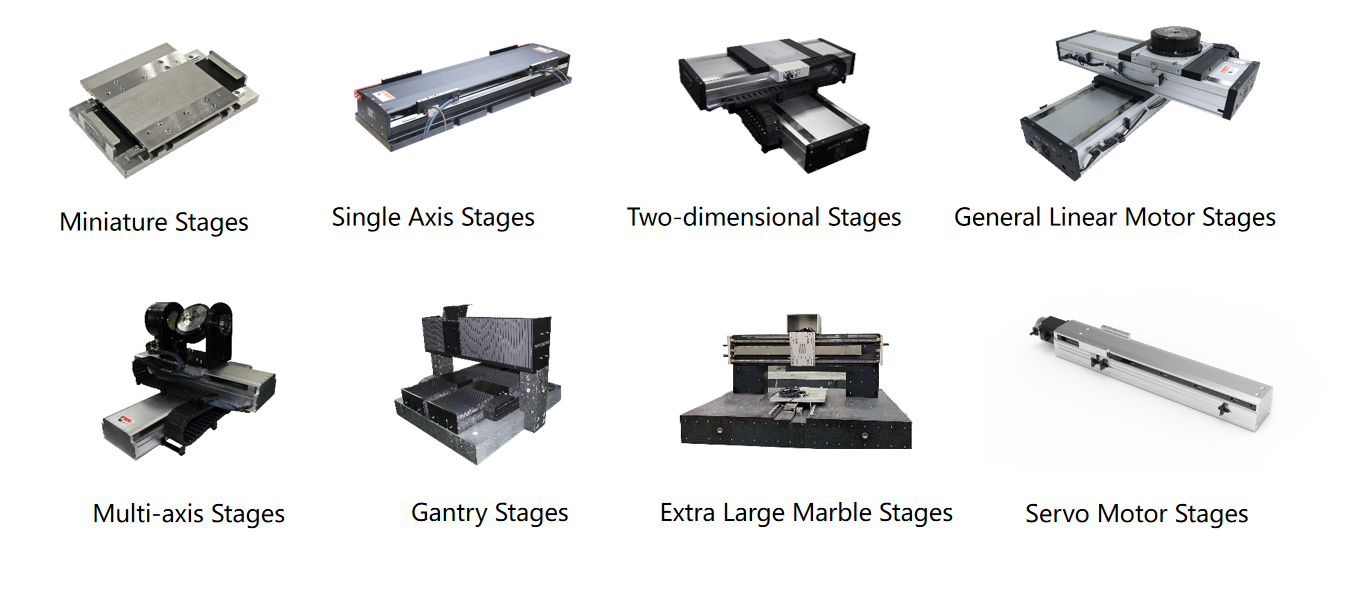

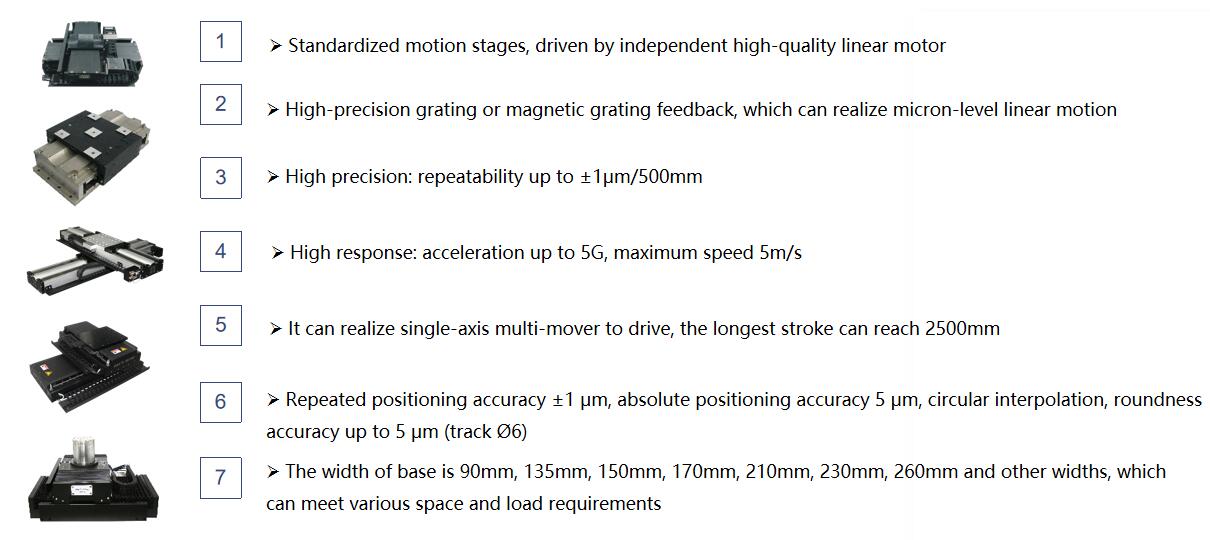

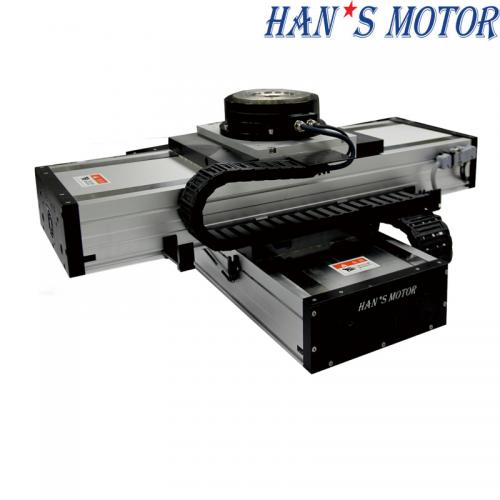

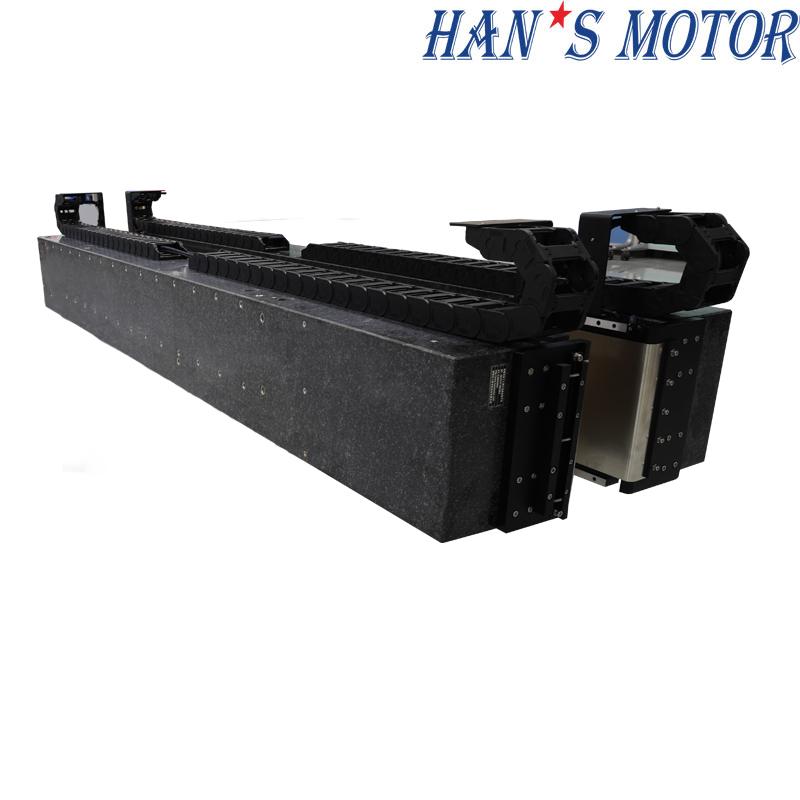

Module several types: miniature stages, single axis Stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages.

motorised linear stage

Kindly instruct us your requirements, you can provide  below parameters to our engineer, free product manual and 3D model and  a reasonable price will send to you anytime.

1. Effective stroke

2. Maximum speed

3. Maximum acceleration

4. Load

5. Repeatability accuracy


Industry Applications:

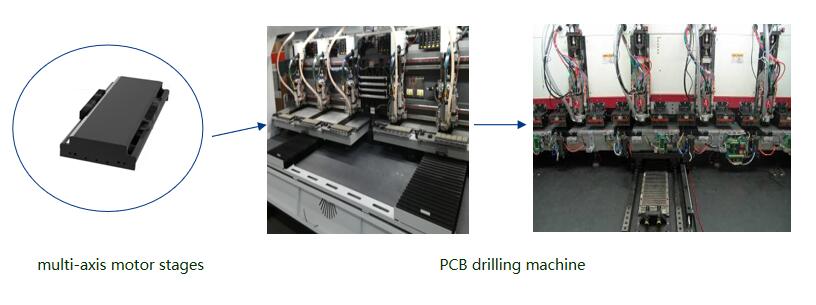

It is suitable for high precision, high straightness PCB drilling machine,wafer cutting machine, glass scribing machine.


PCB drilling machine

Packaging & Delivery:

Packaging Details.: plywood packing

Price terms: FOB Shenzhen

Leading time: According to the order quantity, 5-7 days for sample order and 20 days for bulk order
