Compact linear stage with coreless motor

Miniature linear stages for limited space applications

Features:

1. Fast positioning

2. Space-saving and light

3. High guiding accuracy

4. Low-noise operation


  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:Miniature linear stages for limited space applications


Introduce

Miniature stages are essential in positioning tasks where available space is limited. HAN'S Motor solutions like LMA series allow for the most compact stages due to their direct drive principle.


Welcome to inquiry for your customization!


Application fields

Micromanipulation, automation, biotechnology, sample manipulation, sample positioning, applications with limited space and so on.


Motor and Stage Specifications

Model: LMA38-10-XXX-A
G01
Grating feedback, resolution: 0.1μm
G05
Grating feedback, resolution: 0.5μm
Motor specifications

            Units                     Value
Continuous Force (Tmax)
N 0.6
Peak Force
N 3
Motor Constant
N√W
0.5
Max.Continuous Power Dissipation
W 1.42
Continuous Current (Tmax)
Arms 0.15
Peak Current (1S)
Arms
0.8
Force Constant (25℃,±5%)
N/Arms
4
Back EMF Constant (25℃,±5%)
Vrms/m/s 1.3
Electrical Resistance(25℃,±5%)P-P
Ω
30
Inductance(25℃,±20%)P-P
μm
0.25
Max Coil Temperature

120
Polar Distance (N-N) (360℃ Electrical cycle)
mm 24
Magnetic Attraction
N 11


Stage specifications

        Units               Value
Max. Load
kg 1
Effective Stroke
mm 10
Resolution
μm
0.1
Max.Speed(1)
mm/s 200
Repeat accuracy
μm
±0.5
Weight
kg 0.1
Working environment temperature
and humidity
0-40℃、20-80%RH


Dimensions

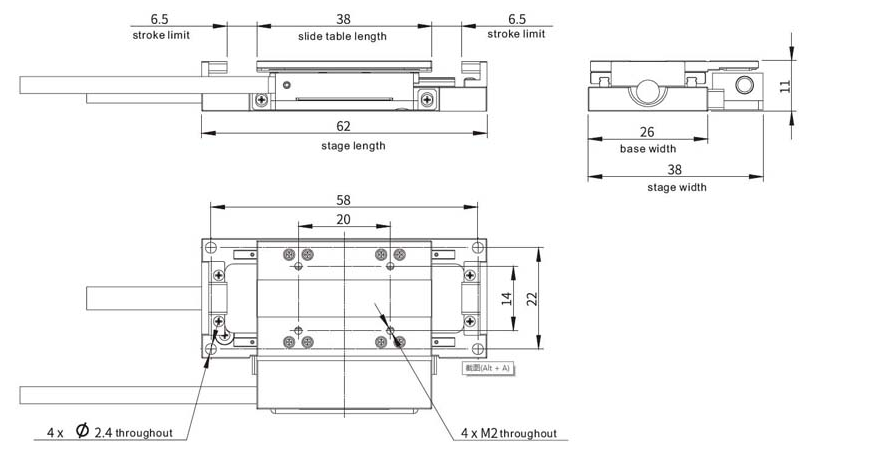

Compact linear stage with coreless motor


Laser Group Show

High precision linear stage

Our Company Show

High precision linear stage

Company Qualification

High precision linear stage

Inventive Patent

High precision linear stage

Honor

High precision linear stage


Packaging & Delivery

Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Contact Us
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
High-speed and high-precision Micro Linear Motion System Stages
Features: 1. Modular design 2. High precision 3. High speed 4. Cross stage can be built arbitrarily
details
Standard Micro Single-Axis Industrial Robot LMA55-25-G01-A High-quality Iron Core Miniature Linear Motor Stage
Features: 1. Customized as required 2. High precision, high thrust 3. High speed, high acceleration 4. XY and multi-axis stages can be assembled arbitrarily
details
Linear Slider Motion System Positioning Stage Robot Arm LMB130
HAN'S MOTOR High Load Linear Module Motorized Linear Stage LMB130 series Features: 1. A linear motor actuator that is developed to respond to the long-stroke, high-speed, and high-precision requirements as the manufacture equipment is made larger and the speed of the transfer equipment is made faster. 2. It can be used in a wide variety of applications, such as semiconductor equipment, 3D printer, laser machines,CNC machines, glue dispenser, soldering machine, screw machine, laser cutting & engraving machines,CNC machining center, material handling equipment etc. Advantages: 1. High rigidity and heavy load, energy consumption 2. Smooth running, low noise and high speed 3. High accurancy and easy setting up 4. High positioning accuracy and repeat positioning accuracy
details
Linear motor direct drive miniature stage for short travel and fast repetitive motion
Features: 1. Short travel 2. Fast speed 3. high precision 4. Quickly assemble to XY cross stage
details
Linear Guide High Precision CNC Motorized Platform Direct Drive Motion Stage LMB100
HAN'S MOTOR High Precision Linear Module Motorized Linear Stage LMB100 series Features: 1. Linear Stages consists of a platform and a base joined by a linear bearing,which restricts the platform to a single axis; 2. Positioning of the platform is controlled by a linear actuator equipped with a lead screw or a toothed belt; 3. Adopt an open structure, which is convenient for disassembly and maintenance; 4. Built-in grating or magnetic grating feedback system, the resolution is 0.1um, 0.5um, 1um, 5um for optional; Repeat accuracy up to ±1um Advantages.: 1. Strong low-speed stability and setting of positioning 2. Built-in aluminum mounting plate for excellent heat dissipation
details
XY micro linear positioning platform miniature square linear motor stage for semiconductor equipment
Features: 1. Continuous thrust: 3.5N.m 2. Max. load: 2.4kg 3. Effective travel: 10mm 4. Max. speed: 270mm/s 5. Repeated accuracy: ±0.5
details
XYθ three aixs mininature high precision motion system micro linear motor tage
Features: 1. XYθ aixs stage 2. High precision 3. High speed 4. Long service life
details
120x120mm square linear moving stage slide table cnc kit XY miniature stage
Features: 1. 120x120mm size 2. High speed 3. High precision 4. High frequency response
details
