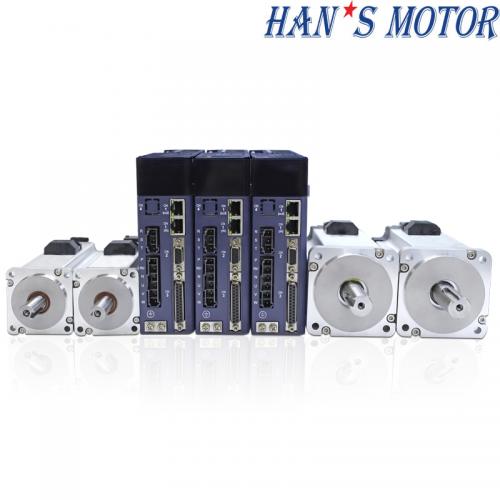

HAN'S AC Servo Motor With Driver

80mm Flange High Cost Effective 1.0KW AC Servo Motor And Servo Driver For CNC Milling Machine

Industrial AC Servo Motor Driver HSSS-AL-E10FL-AAP


Product description:


Both servo motor types operate in a continuous torque range as well as a peak torque range. Which is much higher than continuous torque, but it can only be achieved for short periods of time.

By comparison, continuous torque can be reached throughout the regular operation of a servo motor.


Features:


Precise position control, precise speed control, easy configuration, low noise

High speed and excellent performance


  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:      1.0KW 3000RPM Servo Motor Kits (Motor Set AC Servo Motor With Drive)  80mm flange size  HSAL-A10FL-B02



Product Specifications

RATED PERFORMANCE

Motor Model

Unit

HSAL-A10FL-B02

absolute photoelectric encoder ( 23bits)

Rated output power

W

1000

Votalge

VAC

220

 Rated torque

N.m

3.18

Max.torque

N.m

9.54

Rated current

A

6

Max.current

A

18

Rated speed

RPM

3000

Max. speed

RPM

6000

torque constant

N.m/A

0.54

Back EMF Constant 25,±10%

mV/RPM

32

inertia of rotor

1.26

Resistance (25,±5%) p-p

0.88

Inductance (25,±20%) p-p

mH

7.7

Brake(rated voltage)

VDC

-

Brake (static torque)

N.m

-

Weight

Kg

2.9

Motor pole pairs

10

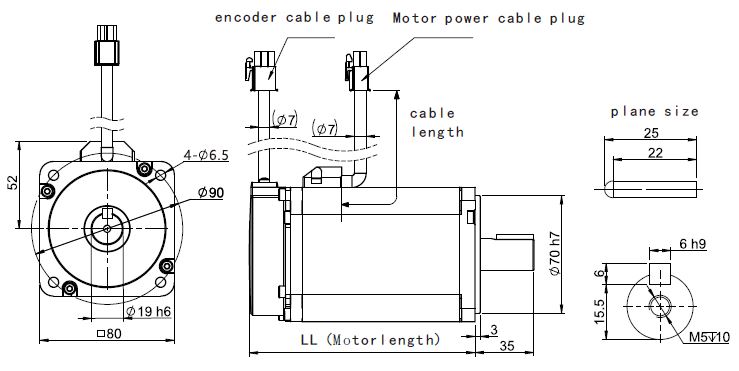

Dimension

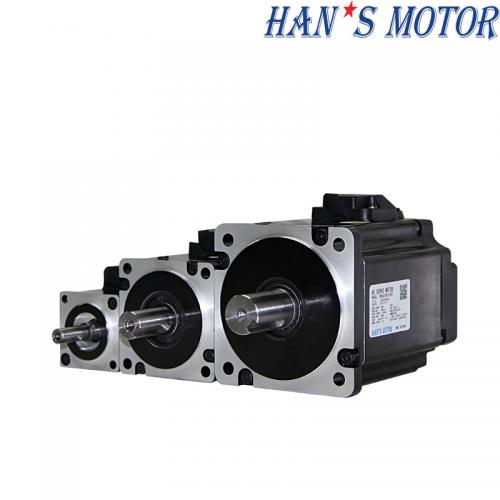

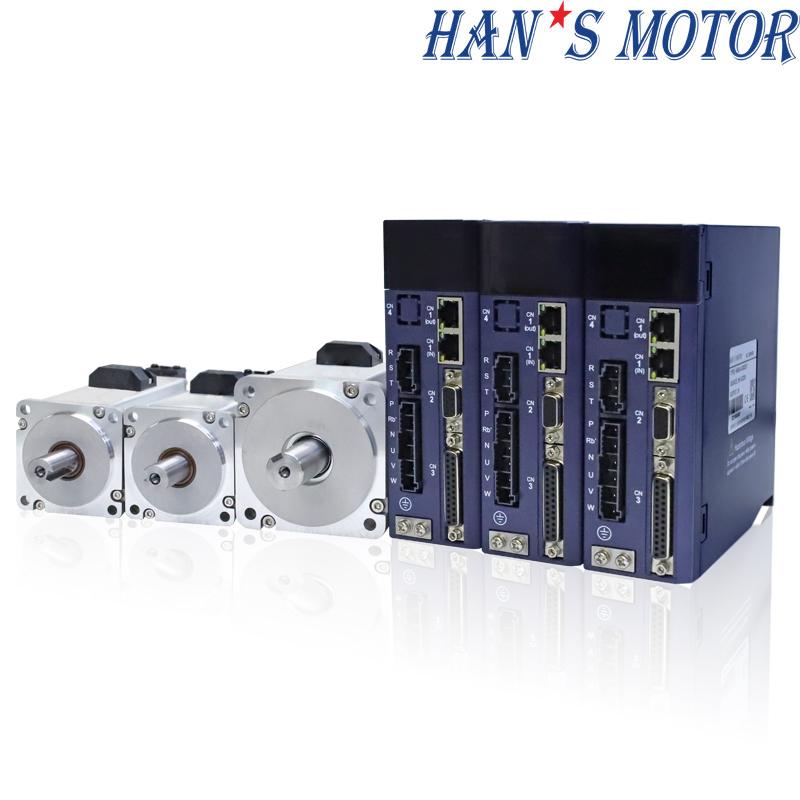

AC servo motor with driver HAN'S MOTOR



Characteristics:

1) Good performance, low inertia, fast response, which can meet most of the market demand.
2) 23bits encoder, high precision, accurate positioning;
3) Protection grade IP65, suitable for all kinds of harsh environment.

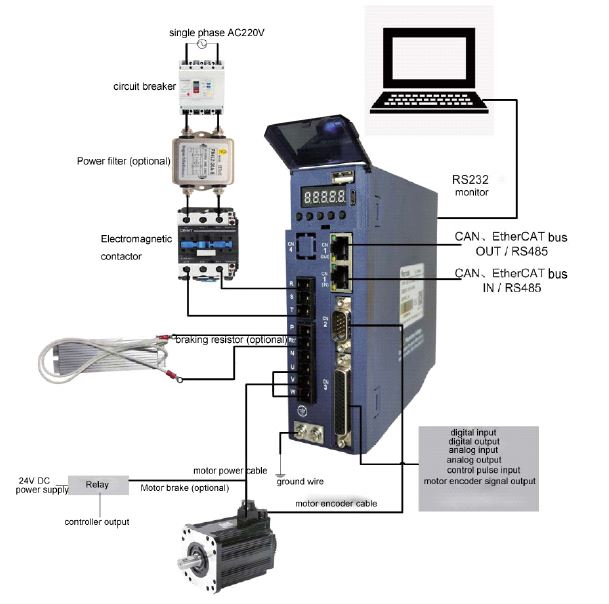

4) Servo systems consist of a motor coupled to a sensor for position feedback with a servo drive to complete the system,and the driver uses the feedback sensor to precisely control the rotary position of the motor.



AC Rotary Motor Supplier


Why choose us?



1. Q: How about the service?

A: Professional technical engineer team: fast response and immediate support to customer’s applications request.



2. Q: What about the delivery time?

A: Sufficient stock for fast delivery in 10 days



3. Q: How about the shipping methods?

A: Fast and reliable international delivery: Flexible and low cost delivery solution for clients.

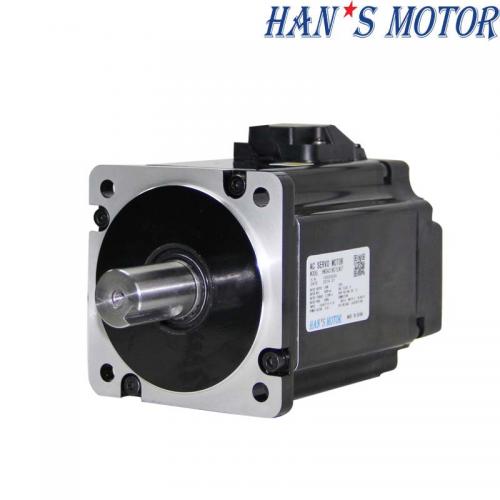

AC servo motor with driver

HAN'S LASER Motor Supplier

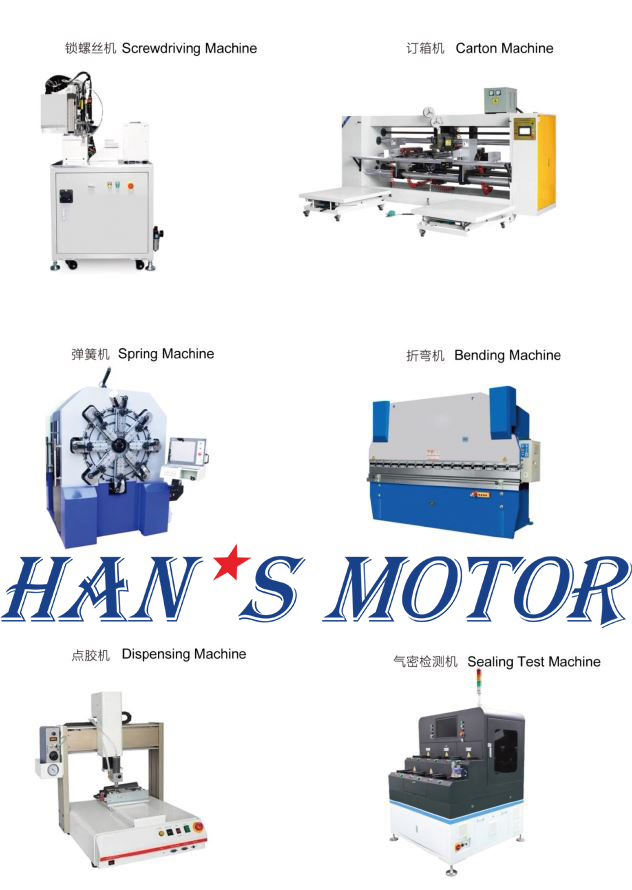

Applications:


engraving machine, laser machine, engraving machine, plasma cutting machine,

woodworking engraving machine, packing machine, CNC machining equipment and other industries.


 HAN'S LASER Motor Supplier

HAN'S MOTOR direct drive linear motor

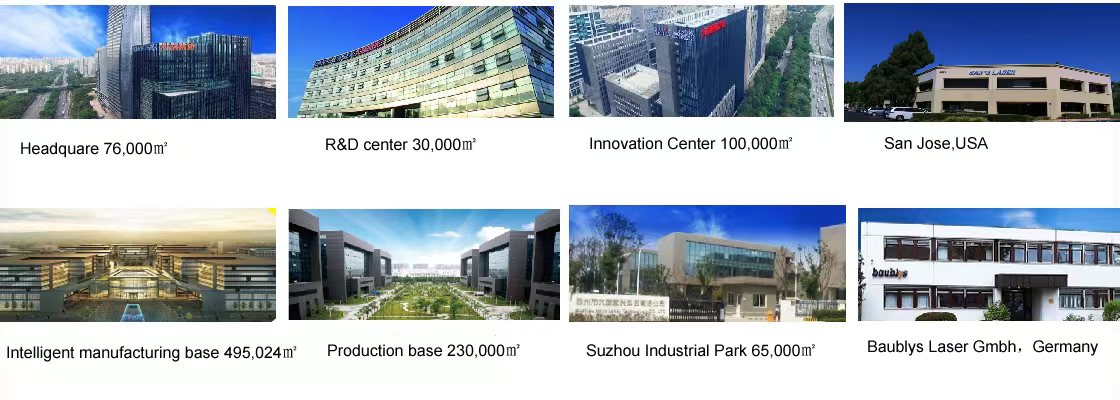

Exhibitions & International market

HAN'S LASER Motor Supplier

HAN'S LASER Motor Supplier


HAN'S LASER Motor Supplier


Packaging & Delivery:



Packaging Details.: Carton box packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: 15 days for the small order and 20 days for the bulk order
