High Power Frame Inner Rotor Torque Motor

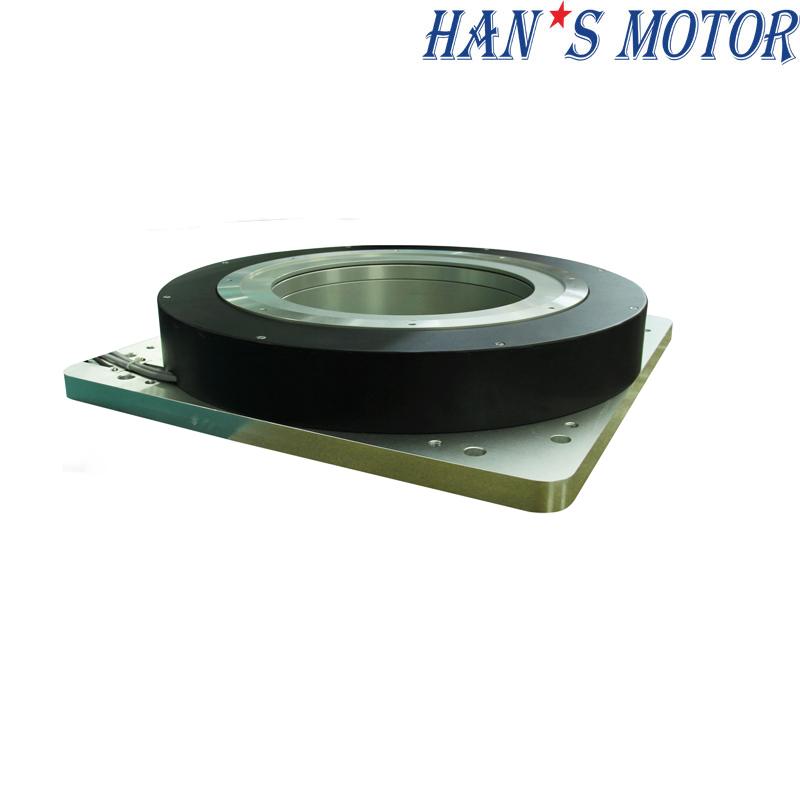

High Power Frame Inner Rotor Torque Motor

FI5 Series Frame Inner Rotor High Precision Direct Drive Torque Motors

HAN'S High Precision Frame Inner Rotor Torque Motors


Features:

1. Direct drive, high dynamic response;
2. Inner rotor/outer rotor structure;
3. High speed/low speed winding design;
4. Integrated precise optical grating/magnetic grid,bearing;
5. Reliable performance, mature process, fast delivery


Advantages.:

Torque motors are permanent-magnet direct drive motors that rotate along an axis,they can be used wherever a rotary movement is required.

Wide applications in markets such as semiconductor, medical, machine tool, printing, rotary tables,

factory automation, and robotics.

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:       HAN'S FI5 Series High Precision Frame Inner Rotor Torque Motors



Product Specifications

Frame Rotor Torque Motor FI Series Specification

Motor Model No.:FI5-xxx-S-B-1

020-S-B-1

Performance Parameters

Symbol

Unit

Continuous torque (Tmax)

Tc

Nm

20

Peak torque

Tp

Nm

60

Vmax,Tc@Vbus=310Vdc

Nmax,Tc

Rpm

300

Vmax,Tp@Vbus=310Vdc

Nmax,Tp

Rpm

180

Vmax,0@Vbus=310Vdc

Nmax,0

Rpm

360

Encoder (Incremental 1Vpp Sine Wave)

line number/270°

P/rev

55029

Repeat Accuracy


arc sec

±2

Positioning Accuracy


arc sec

±25

Continuous current (Tmax)

Ic

Arms

2.2

Peak Current (1s)

Ip

Arms

6.6

Torque Constant (25℃,±5%)

Kt

Nm/Arms

9.00

Electromotive constant (25℃,±5%)

Ke

Vrms/rad/s

3.00

Resistance (within 25℃±5℃)

R

Ω(p-p)

14.0

Inductance (within 25℃±5℃)

L

mH(p-p)

4.2

Pole pairs

p


16

Max.coil temperature

Tmax

120

Motor Mass


KG

13.5

Mover Mass

Mr

KG

3.0

Rotor Moment of Inertia

Jm

Kg*m2

0.072

Axial Runout


mm

0.01

Radial Runout


mm

0.01

Motor cable's length (extendable)

L

M

3.2

Minimum bending radius of cable

R

mm

37.5

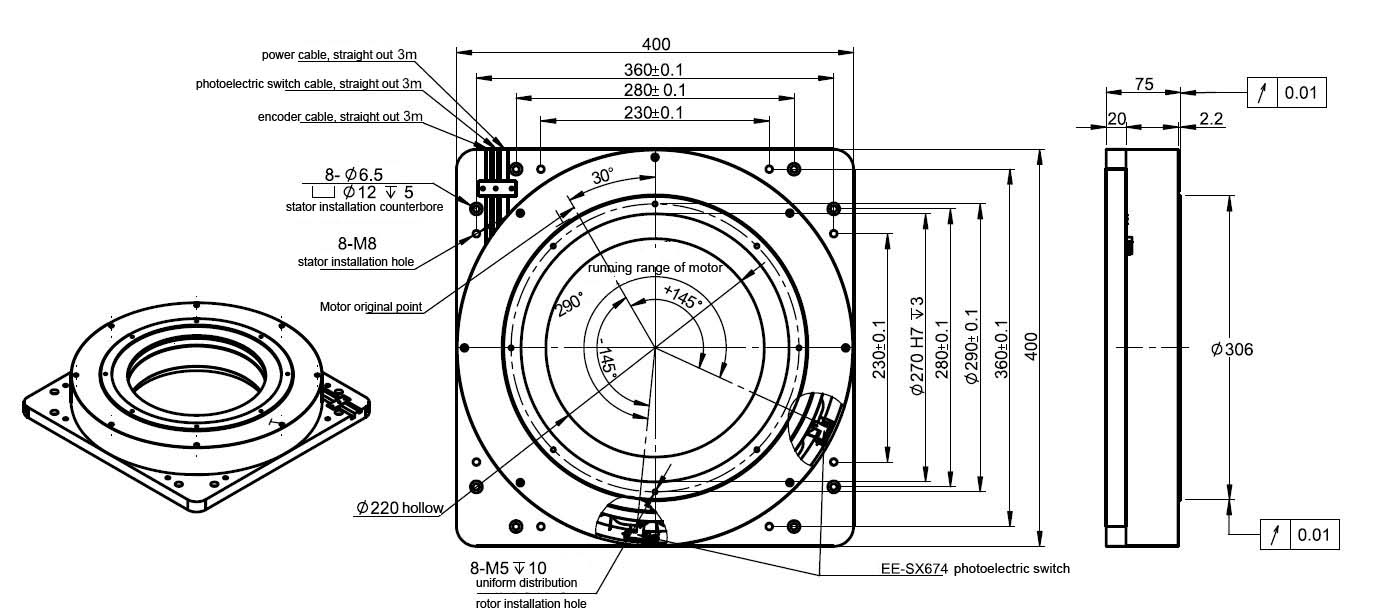

Dimension
direct drive torque motor



Characteristics:

Cost-effective

Easy integration

Dynamic performance

Wide torque-speed range

Cost Optimized Solution

High Dynamic Performance

High Torque Power Ratio and High Position Accuracy

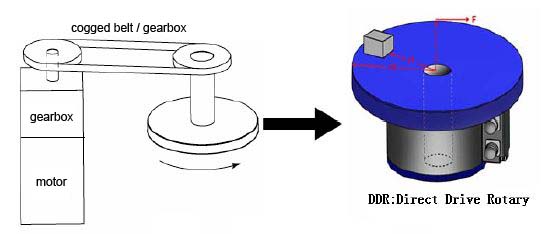

Torque motors are used in a wide variety of products: From rotary tables to robotic arms.

 HAN'S LASER DDR torque motors

Why choose us?



High precision: It can reach ±10/±5 arcsec before/ after compensation.

Simple usage: Absolute encoder, needn’t change phase of Hall, power on without shake.

Fast delivery time: Major materials are made in China.

Standardization:Single interface and good universality.

Customization: Satisfactions of high-end and cost-effective requirement

HAN'S LASER DDR torque motors

Production Line & Quality Test.:

HAN'S MOTOR DDR torque motors

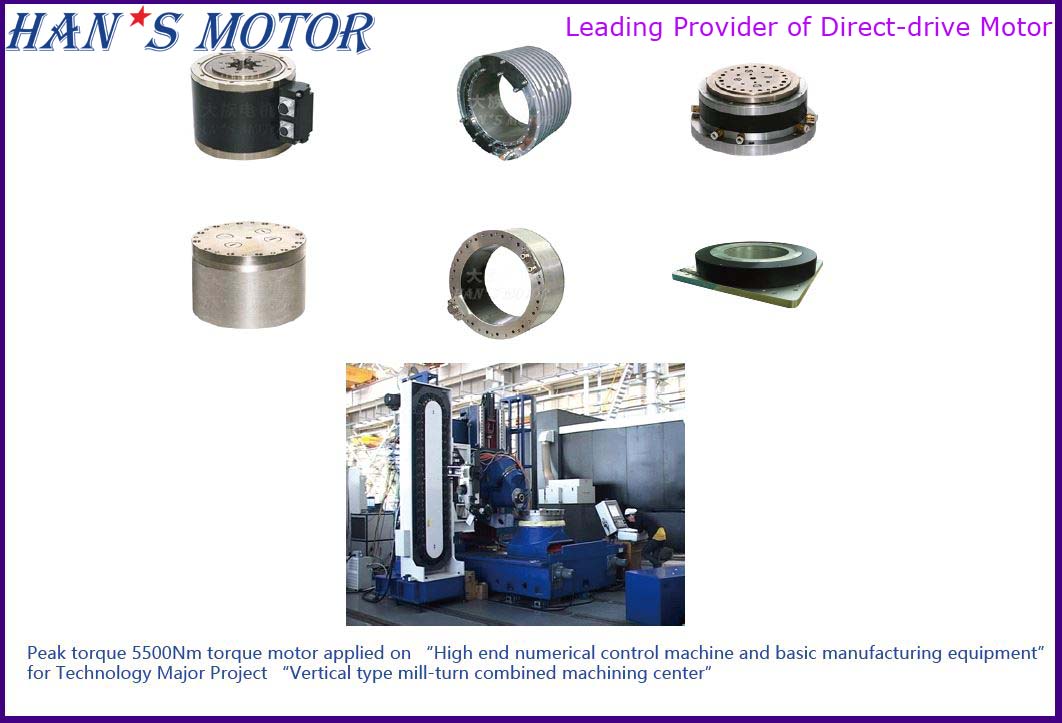

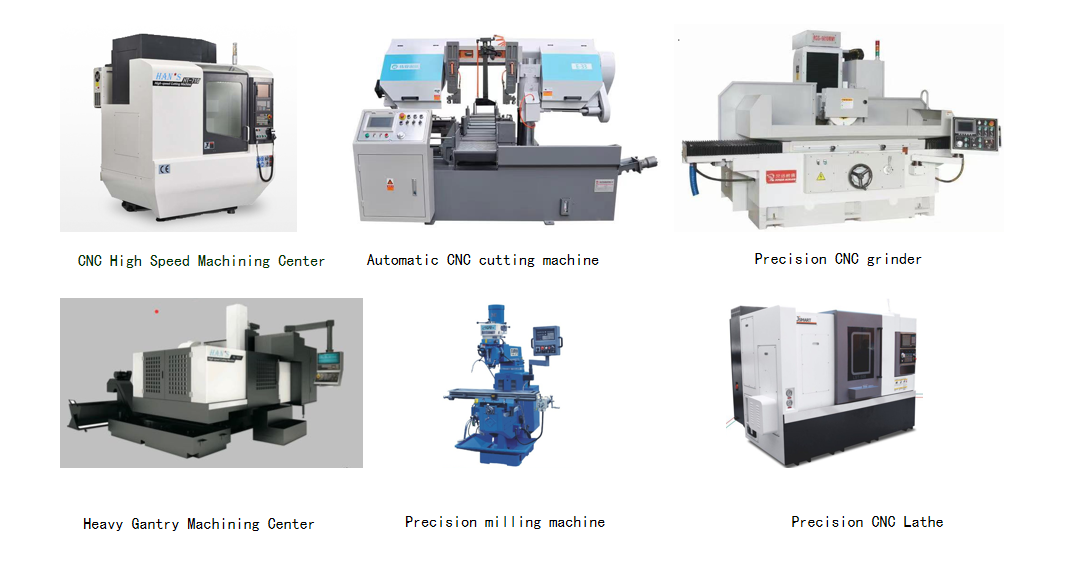

Applications:

Use of modern digital control technology our devices are highly productive and flexible,

providing effective automated solutions across many of the major industrial markets.

HAN'S LASER DDR torque motors   HAN'S MOTOR DDR torque motors

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order



Contact Us
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
208mm Outer Diameter G Series Frame Inner Rotor High Frequency Torque Motors
High Power Frame Inner Rotor Torque Motor HAN'S-G Series Features: 1. Direct drive, high dynamic response; 2. High accuracy; 3. Integrated BISS-C interface absolute position feedback; 4. Inner rotor/outer rotor structure; 5. High speed/low speed winding design; 6. Reliable performance, mature process, fast delivery Applications.: Widely used in Industrial Automation、semiconductor、medical indutries etc.
details
H Series Frame Inner Rotor Large Torque Motors
High Power Frame Inner Rotor Torque Motor HAN'S-H Series Features: 1. Direct drive, high dynamic response; 2. High accuracy; 3. Integrated BISS-C interface absolute position feedback; 4. Inner rotor/outer rotor structure; 5. High speed/low speed winding design; 6. Reliable performance, mature process, fast delivery Advantages.: Compact design, low inertia, light weight, portable size, easy installation, suit for high speed and high frequency motion
details
145mm Outer Diameter Cost-Effective TX Series Direct Drive 5Nm High Reliability Frame Inner Rotor Torque Motors
TX Series High Dynamic Performance Frame Inner Rotor Torque Motor TX-005-D145-H62-T25-1-A Product description: 1. High dynamic performance and high reliability; 2. High dynamic response and high drive control; 3. Simplified mechanical designandSimple installation; 4. Outer diameter 145mm, continuous torque 5Nm, peak torque 15Nm, Max. speed 300RPM and 23bit absolute encoder, positioning accuracy:±15 arc sec and 2.1A continuous current. Features: 1. The Direct Drive Rotary or DDR motor technology eliminates the mechanical transmissions and many of the negative aspects associated with conventional servo systems. 2. They are rigid, more compact, provide high dynamic performance, reduce cost of ownership, simplify the design of the machine and reduce wear and maintenance.
details
FID Series Low Noise Long Life Inner Rotor Frame Torque Motor Solutions
HAN'S Frame Inner Rotor High Torque Motor For Automatic Applications Features: 1. Design: Direct drive, high dynamic response with high level of control; 2. Size: Powerful motor in a small space/ Hollow shaft/ Power density 3. Performance: High speed/precision/efficiency 4. Durability: Reliable performance, maintenance free, encapsulated design Advantages.: Torque motors (also known as direct drive rotary motors (DDR) ) Torque motors have benefitted greatly from the design,they can provide even greater efficiency and power, especially at low rpm.Meanwhile minimizing maintenance requirements,which are used in a wide variety of products from rotary tables to robotic arms.
details
China Best DDR motor Supplier High Torque DDR High Speed Frame Rotor Torque Motor FI Series
Frame Inner Rotor High Precision Torque Motor direct drive rotation(DDR) Product description: Torque motors supply high torque at low speeds, increased rigidity and greater accuracy. Provided in a range of frameless kits and standard constructions, our direct drive torque motors can be used to replace traditional gearbox-based systems in many applications. It is designed with the aim of ensuring excellent performance with high quality, through the use of modern digital control technology our devices are highly productive and flexible, providing effective automated solutions across many of the major industrial markets. Features: Size.: Powerful motor in a small space/ Hollow shaft/ Power density,Low mass.  Performance.: High rigidity,high precision,high speed,high acceleration and small noise Durability.: Smooth motion even at low speeds and excellent efficiency
details
Low Noise High Torque DDR Torque Motor Industrial Robot Arm Joints HANS-G Series
HAN'S High-Precision Large Hollow Frame Inner Rotor Torque Motor Product description: Highly integrated precision design, easier to use Large hollow frame torque motor, more powerful Features: Small volume, high torque, high precision, standardization,Simplification, low cost
details
DD Motor Direct Drive Motor Torque Motor For A Patch Machine
Features: 1. High torques in low speed 2. Direct drive, high dynamic response 3. High rigidity, compact structure 4. Maintenance-free
details
China Best Arc Motor Supplier High Power Frame Inner Rotor Torque Motor HAN'S MOTOR H-Series Direct Drive Wide Applications
High Speed Large Torque Motor HANS-H Series HAN'S Linear Motion Motors Product description: Direct drive rotary motors (DDR)is being designed to respond to the market requirements while it is evaluated as excellent usagefor various applications with high positioning accuracy.: industrial Automation、semiconductor、medical indutries etc. Features: More precise, more responsive High static, dynamic stiffness High accuracy and smooth operation
details
