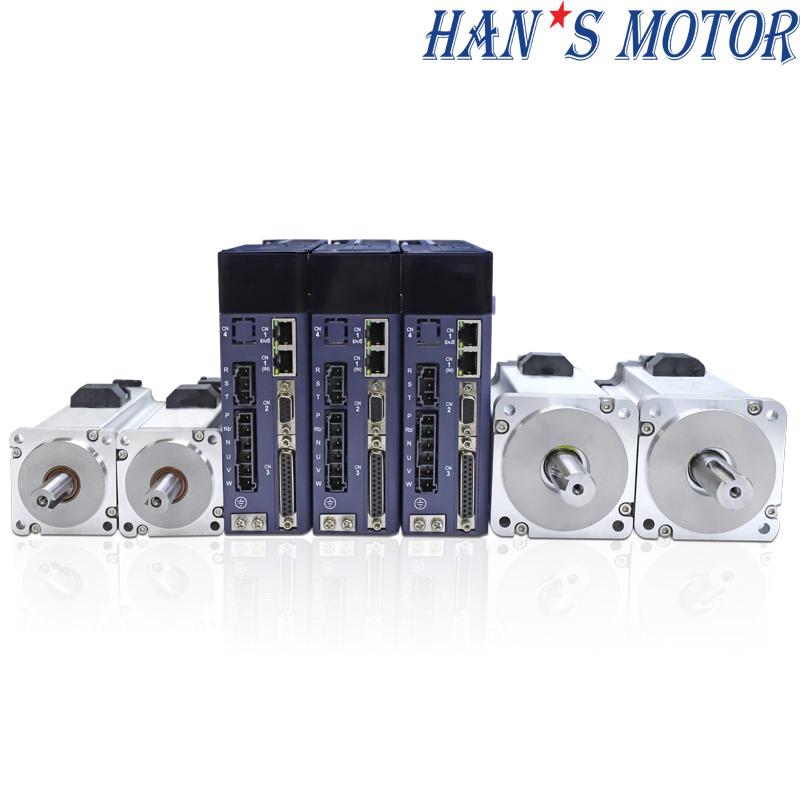

AC Servo Motor Driver for CNC Milling Lathe Machine HSAL-A02FL-B0.2 + HA-SVD-H5-ER1R6S2C
Product description:
Control mode: position control (position, speed, torque control modes);
Small volume, strong overload capacity, high reliability;
Adapt to frequent starting and stopping occasions;
Simple operation, power: 0.5-1.0kw
Features:
1) Instantaneous high torque；
2) Low heat and low noise；
3) Good performance and strong resistance to overload；
4) High precision and smooth running；
5) Stable operation, suitable for a variety of automation equipment.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: 60mm Flange 220V 0.2KW 3000rpm Industrial Machine AC Synchronous Servo Motor
Product Specifications
|
RATED PERFORMANCE |
||
|
Motor Model |
Unit |
HSAL-A02FL-B0.2 |
|
absolute photoelectric encoder ( 23bits single loop) |
||
|
Rated output power |
W |
200 |
|
Votalge |
VAC |
220 |
|
Rated torque |
N.m |
0.64 |
|
Max.torque |
N.m |
1.91 |
|
Rated current |
A |
1.2 |
|
Max.current |
A |
3.6 |
|
Rated speed |
RPM |
3000 |
|
Max. speed |
RPM |
6000 |
|
torque constant |
N.m/A |
0.54 |
|
Back EMF Constant （25℃,±10%） |
mV/RPM |
32 |
|
inertia of rotor |
10-4 kg.m2 |
0.18 |
|
Resistance (25℃,±5%) p-p |
Ω |
8.2 |
|
Inductance (25℃,±20%) p-p |
mH |
27 |

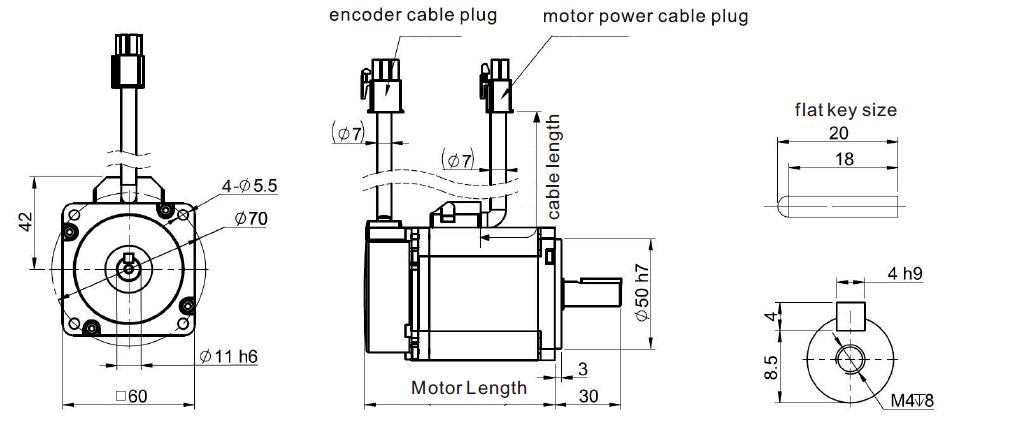

Dimension
Characteristics:
1. It can achieve precise flow and pressure control, the dynamic response is fast,
it supports multi pump confluence with excellent energy-saving performance and simple maintenance.
2. High precision, high response, cost-effective, superior technology and comprehensive operation efficiency.
3. High efficiency, energy-saving, high starting
torque and easy maintenance.
4. Precise position control, precise speed control, easy configuration, low noise.
5. High efficiency, energy-saving, high starting
torque and easy maintenance.
Why choose us?
1) Are you a manufacturer?
We are factory, it’s integrated from researching & designing, production, assembly, quality inspection, and delivery of one-stop products and service, linear motors, DDR torque motors, motor modules, motion stages, AC servo motor/driver etc.
2) Where is your factory located?
Han's Laser Production Base, No.128, Chongqing Rd., Fuyong Street, Bao’an District, Shenzhen City, Guangdong Province, China
3) Do you have a CE certificate?
Yes, all products passed CE report.
4) How does your factory do regarding quality control?
"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them.
5) What’s the application filed?
Scope of application: food packaging machinery,precision engraving machine, printing equipment, textile Equipment Etc.
Applications:
Robotic arm, mechanical arm, electronic assembly, textile equipment, CNC lathe, laser cutting machine,
3D printing, CNC machine, automatic assembly and engraving machine etc.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: Carton box packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: 15 days for the small order and 20 days for the bulk order
