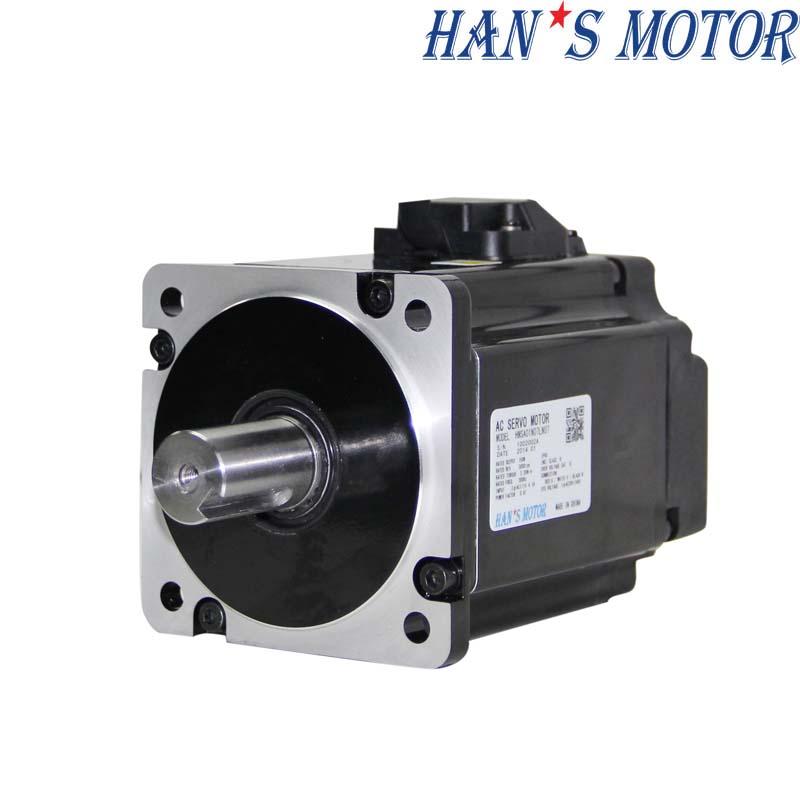

Pulse Direction Speed Control AC Servo Motor Driver HSSS-AL-A01FK-AAP
Product description:
Servo motors are applicable for occasions with high-speed response requirements
Accuracy: position control to realized speed.
Adaptability: Strong overload-proof ability for occasions with instantaneous load fluctuation.
Features:
1) Good performance, low inertia, fast response, which can meet most of the market demand.
2) 23bits encoder, high precision, accurate positioning;
3) Protection grade IP65, suitable for all kinds of harsh environment.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: 0.3N.m 100W 3000RPM servo motor kits (Motor Set AC Servo Motor With Drive) 40mm flange size HSALA01FKB02
Product Specifications
|
RATED PERFORMANCE |
||
|
Motor Model |
Unit |
HSALA01FKB02 |
|
|
|
absolute photoelectric encoder ( 23bits) |
|
Rated output power |
W |
100 |
|
Votalge |
VAC |
220 |
|
Rated torque |
N.m |
0.32 |
|
Max.torque |
N.m |
0.95 |
|
Rated current |
A |
0.6 |
|
Max.current |
A |
1.8 |
|
Rated speed |
RPM |
3000 |
|
Max. speed |
RPM |
6000 |
|
torque constant |
N.m/A |
0.54 |
|
Back EMF Constant （25℃,±10%） |
mV/RPM |
32 |
|
inertia of rotor |
|
0.05 |
|
Resistance (25℃,±5%)p-p |
Ω |
28.1 |
|
Inductance (25℃,±20%)p-p |
mH |
43 |
|
Brake(rated voltage) |
VDC |
- |
|
Brake (static torque) |
N.m |
- |
|
Weight |
Kg |
0.5 |
|
Motor pole pairs |
|
10 |

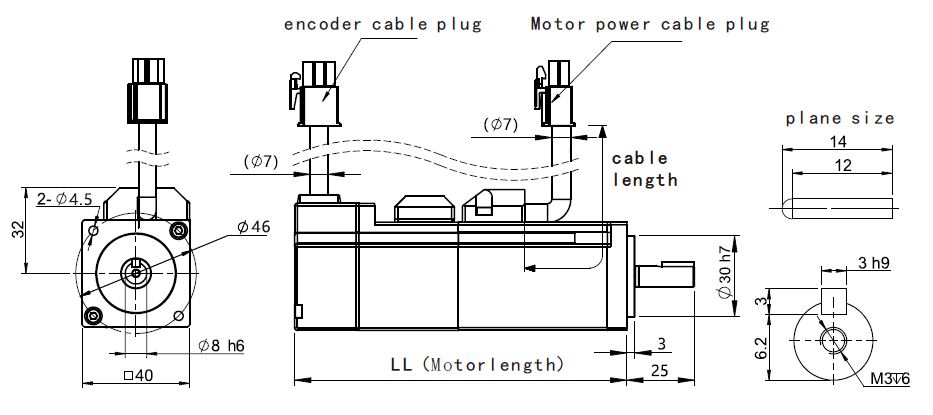

Dimension
Characteristics:
1. General-purpose type imported feedback components, original imported low-noise motor
2. Protection function: overcurrent, overvoltage, error tolerance protection
3. Control method: Position control, speed control, torque control (Position control: pulse+direction, CW/ CCW rotation)
4. Installation: Flange mounting
Why choose us?
1. Q: Who are we?
A: Located in Shenzhen, established in 2005, It’s a subsidiary of Han’s Laser (Stock Code: 002008), a public company is the flagship of Chinese national laser industry and the world's famous laser equipment manufacturer.
Which providing direct drive solutions for wide ranges of products: linear motors, torque motors, motor modules, motion platforms, AC servo systems, variable frequency drives and so on.
2. Q: How can we guarantee quality?
A: 100% inspection before shipment
3. Q: Are you trading company or manufacturer?
We’re manufacturer.
4. Q: Are you willing to be our distributor in your country?
A: Glad to talk with you to be our distributor, please contact us for more details.
Applications:
Servo motor is applied in large wide fields, which may be involved as long as the power source is needed and the accuracy is required.:
machine tools, printing equipment, packaging equipment, textile equipment, laser processing equipment, robots, automatic production lines and other equipment that requires relatively high process accuracy, processing efficiency and reliability.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: Carton box packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: 15 days for the small order and 20 days for the bulk order
