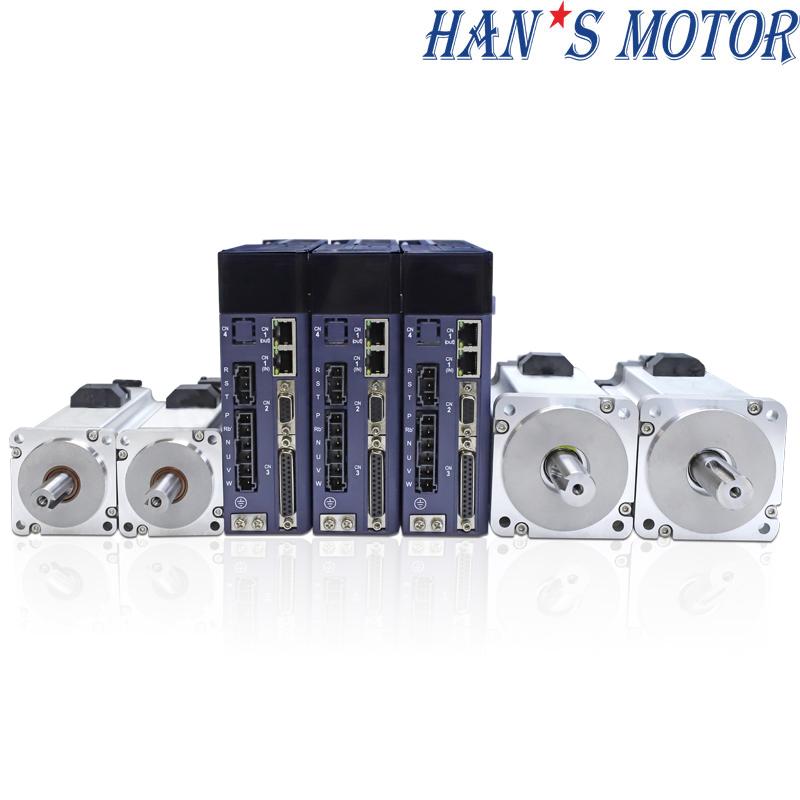

High-Speed AC Servo Motor Driver Kit
Product description:
High efficiency, energy-saving, high starting torque and easy maintenance
Features:
Leading technology in research and development capabilities of direct drive products.
Excellent product quality, excellent product delivery, adequate supply of goods, wide range of products.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: 1.0KW Power Rated High torque AC servo motor for printing machines
Product Specifications
|
RATED PERFORMANCE |
||
|
Motor Model |
Unit |
HSAL-A10FL-B02 |
|
|
|
absolute photoelectric encoder ( 23bits) |
|
Rated output power |
W |
1000 |
|
Votalge |
VAC |
220 |
|
Rated torque |
N.m |
3.18 |
|
Max.torque |
N.m |
9.54 |
|
Rated current |
A |
6 |
|
Max.current |
A |
18 |
|
Rated speed |
RPM |
3000 |
|
Max. speed |
RPM |
6000 |
|
torque constant |
N.m/A |
0.54 |
|
Back EMF Constant （25℃,±10%） |
mV/RPM |
32 |
|
inertia of rotor |
|
1.26 |
|
Resistance (25℃,±5%) p-p |
Ω |
0.88 |
|
Inductance (25℃,±20%) p-p |
mH |
7.7 |
|
Brake(rated voltage) |
VDC |
- |
|
Brake (static torque) |
N.m |
- |
|
Weight |
Kg |
2.9 |
|
Motor pole pairs |
|
10 |
Dimension
Characteristics:
1) High-inertia servo motor, high smoothness operation
2) Waterproof, dustproof and greaseproof
3) High precision, large power range, power range from 0.1KW-1.0KW
4) Position control: pulse+direction
5) Operate steadily and strong overload resistance
6) High speed and excellent performance
Why choose us?
1. Q: When can you receive our order?
A: All goods will be produced well within 10 workdays, except the customized products.
2. Q: What about the history of Shenzhen Han's Motor S&T Co.,Ltd?
A: It was established in 2005.
Professionally engaged in direct drive products development, manufacturing, marketing & service high-tech modern enterprise. Including.: linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives,and so on.
3. Q: Are you manufacturer?
A: Yes, we’re manufacturer. Integrating R&D, production, sales and technical services.
Technical talents: Professional technician service and engineers, response within 1 hour.
Applications:
CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: Carton box packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: 15 days for the small order and 20 days for the bulk order
