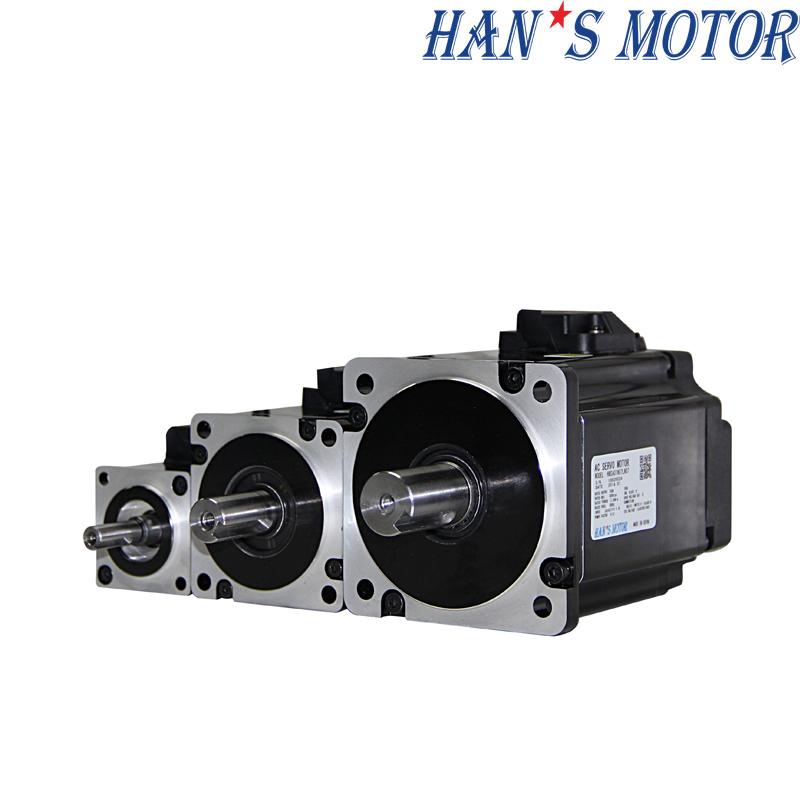

1.0KW Servo Motor 3Nm 3000rpm HAN’S MOTOR Driver for CNC machine
Product description:
Servo motor is an electric motor, which enable precise positions, speeds and torque via servo driver, built-in servo software also allows precise parameterization and programming for actuation of the motor, which provides a high performance of dynamics.
Features:
Servo motors have a special individuality in control for the torque, speed and position.
It controlled precisely and therefore very fine and dynamic movements work well.
Connected to a servo controller,which converts the signals of a control unit for digital precise programming.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name:

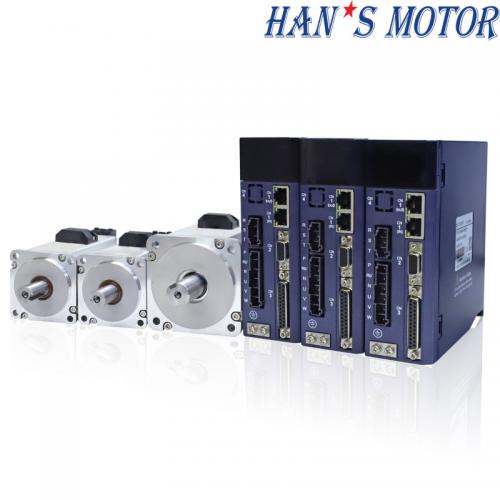

1KW AC Servo Engine Motor CNC Servos Driver With Cable Kit HA-SVD-H5-PR7R6S2C
Product Specifications
|
RATED PERFORMANCE |
||
|
Motor Model |
Unit |
HSAL-A10FL-B02 |
|
|
|
absolute photoelectric encoder ( 23bits) |
|
Rated output power |
W |
1000 |
|
Votalge |
VAC |
220 |
|
Rated torque |
N.m |
3.18 |
|
Max.torque |
N.m |
9.54 |
|
Rated current |
A |
6 |
|
Max.current |
A |
18 |
|
Rated speed |
RPM |
3000 |
|
Max. speed |
RPM |
6000 |
|
torque constant |
N.m/A |
0.54 |
|
Back EMF Constant （25℃,±10%） |
mV/RPM |
32 |
|
inertia of rotor |
|
1.26 |
|
Resistance (25℃,±5%) p-p |
Ω |
0.88 |
|
Inductance (25℃,±20%) p-p |
mH |
7.7 |
|
Brake(rated voltage) |
VDC |
- |
|
Brake (static torque) |
N.m |
- |
|
Weight |
Kg |
2.9 |
|
Motor pole pairs |
|
10 |
Dimension
Characteristics:
1) Precise velocity regulation and excellent dynamic
accuracy
2) High peak torque, high
continuous torque and high rated speed
3) Compact, high-power, rugged design
4) Servo motor works offers a great deal of flexibility, precision and reliability with high efficiency.
Why choose us?
1. Q: Are you manufacturer?
A: Yes, we're manufactuer, Shenzhen Han's Motor S&T Co.,Ltd was established in 2005,Which has specialized in direct drive system in the domestic research, development, promotion, application for 16 years.
2. Q: What about the application filed?
A: In the manufacturing industry, servo motors are used in all types of automation solutions,
e.g. for printing machine roll control and any form of robotics.
3. Q: How about the function?
A: Fast responsive, make moves with rapid settling time, precise velocity regulation, and excellent dynamic accuracy.
Applications:
Robotic arm, laser cutting machine, 3D printing, CNC machine, Automatic assembly, Engraving machine.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: Carton box packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: 15 days for the small order and 20 days for the bulk order
