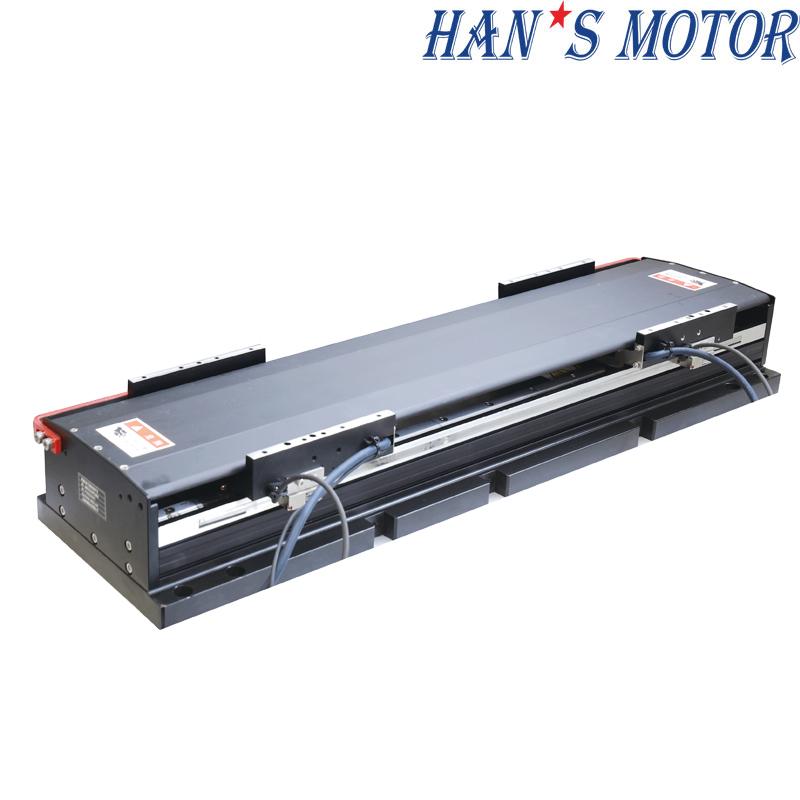

High Precision Linear Guide Slide Table Ball Screw Motion Rail CNC Linear Guide Stage
Features:
Standard aluminum base
Adopt an incremental optical scale feedback system
Assemble to XY cross stages
It is suitable for high-precision inspection and assembly equipment
Repeat accuracy up to ±1um
Advantages:
1. Experienced professional in mechanical
transmission and automation industry, and focus on development of direct drive
for manufacturing, marketing and solution provider of lithium electricity &
photovoltaic, semi-conductor, medical treatment & life sciences.
after-sales service and technical assistance as per customer's requirement and needs
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: High Load Linear Module Ball Screw Motorized Linear Stage Multi-axis Linear Motor Stages (LML150 Series ) LML150-U44-100 (200,300,400,500)-G05/C10-A
Product Specifications
Motor Model/Parameter
|
Parameter\ Motor Model |
Unit |
U44 |
|
Continuous Force (Tmax） |
N |
144 |
|
Peak Force |
N |
576 |
|
Motor Constant |
N//SqrtW |
12.8 |
|
Max.Continuous Power Dissipation |
W |
126.6 |
|
Continuous Current (Tmax） |
Arms |
2.3 |
|
Peak Current (1S) |
Arms |
9.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
62.8 |
|
Back EMF Constant (25℃，±5%） |
Vrms/rad/s |
20.9 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
10.6 |
|
Inductance(25℃，±20%）P-P |
mH |
8.0 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
60 |
|
Magnetic Attraction |
KN |
0 |
|
Mover Mass |
Kg |
1.2 |
Multi-axis Linear Motor Stages Parameters
LML150-U44-___-G05/C10-A
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
|
K |
14 |
14 |
18 |
18 |
22 |
|
N |
4 |
4 |
6 |
6 |
8 |
|
Stage Total Length (mm) |
460 |
560 |
660 |
760 |
860 |
|
Dowel Pin D1 (mm) |
16.1 |
19 |
21.8 |
24.1 |
27 |
|
Stage Weight (kg) |
250 |
||||
|
A |
12 |
||||
|
B |
5 |
||||
|
Motion Parts Weight (kg) |
4.2 |
||||

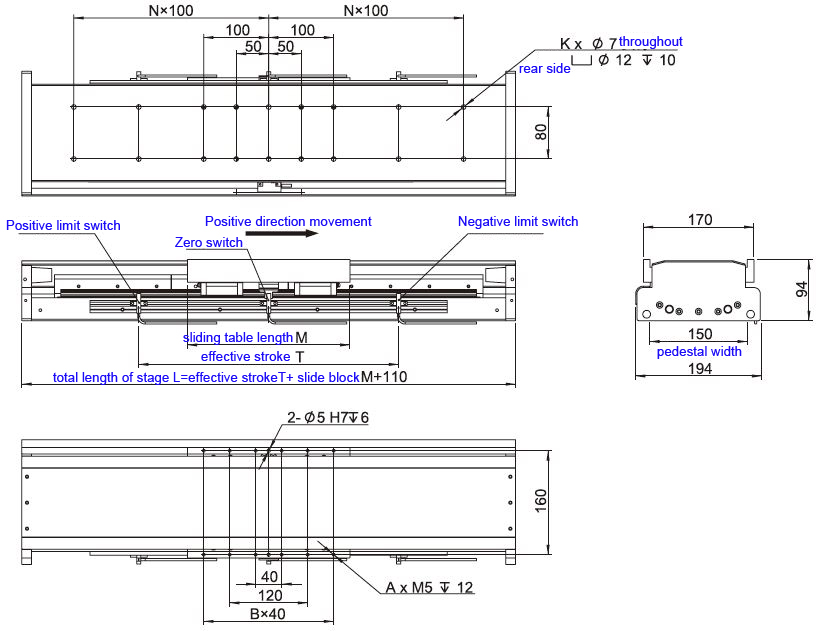

Dimension
Characteristics:
1. Optimal design/ complete specifications / High precision/ High rigidity
2. Professional production team, high precision production equipment, focused on motor of direct drive for 18 years
Why choose us?
Q: What's your main products?
A: Our main products including linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives and so on.
Q: When can I get the quotation?
A: Usually quote within 24 hours after we get
your inquiry, please inform us for any emergency.
We have won Guangdong Provincial and municipal science and technology projects in many times, and won the Government science and Technology Awards.
Passed ISO 9001 and ISO 14001 management system certification and CE certificate.
Warranty Statement:
Packing: Firm wooden package to protect the damage during transportation
Transport: Ship it in fast and easy way to shorten the delivery time
Quality assurance: Manufactured in clean workshop to ensure the performance of products
Applications:
Automatic machine, Semi-conductor industry, General industry machinery, Medical equipment, Solar energy equipment, Machine tool
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
