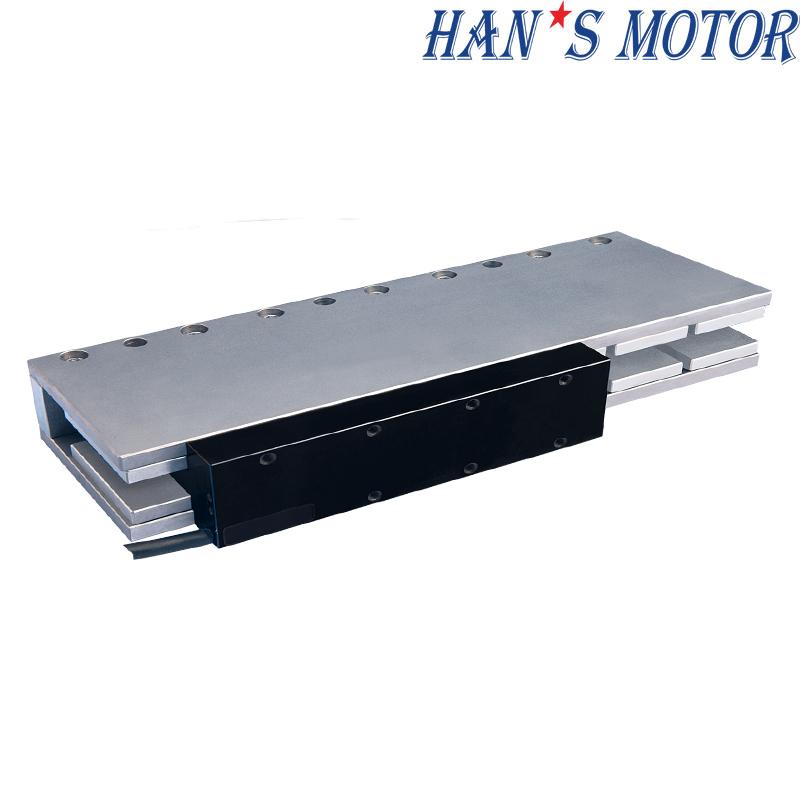

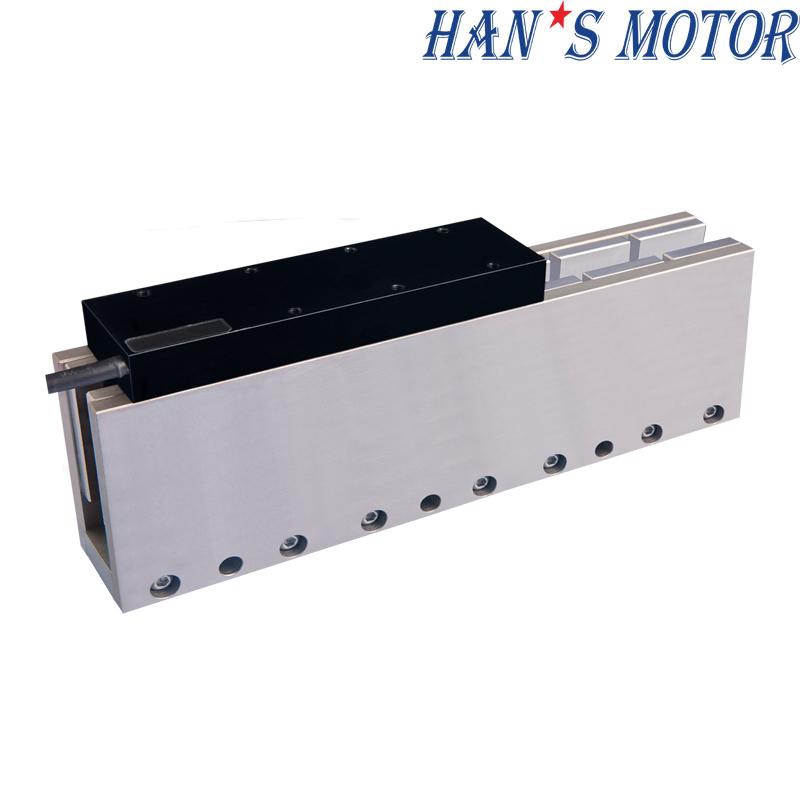

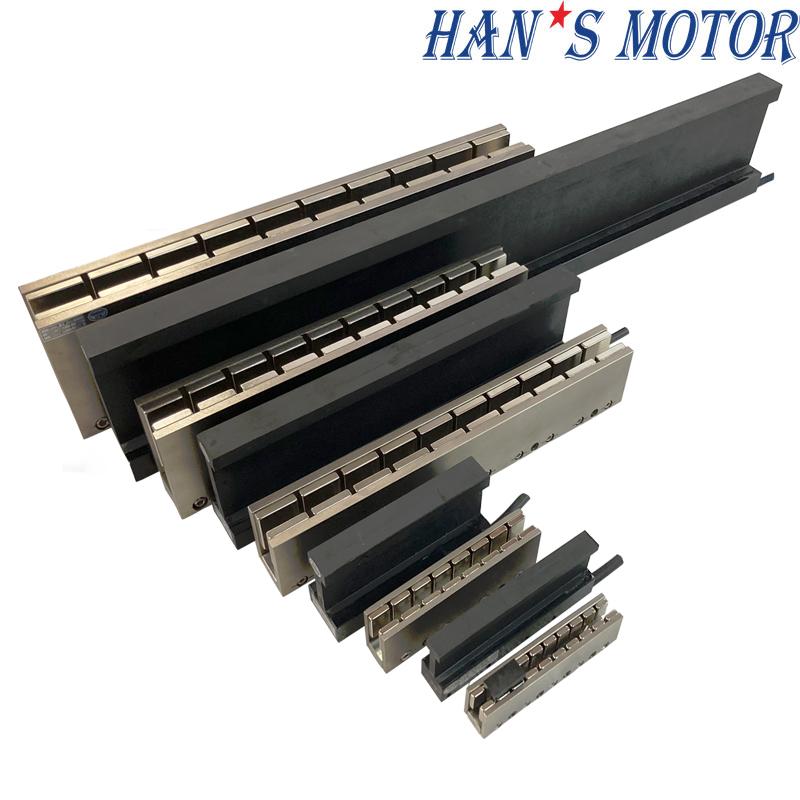

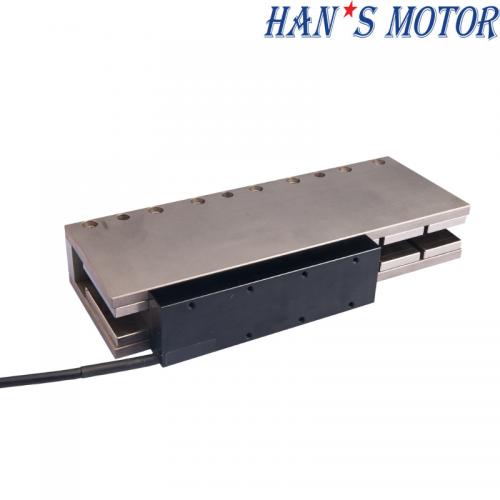

high precision linear ironless core motor linear fast no backlash motor

Features:

1. High precision

2. High speed

3. Unlimited travel

4. Smooth movement

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product namehigh precision linear ironless core motor linear fast no backlash motor


Introduce

Ironless linear motor with no wear, zero backlash, no force and low speed chain wave, plus no attraction between forcer and stator. It can be applied to the installation platform without deformation, light payload and demand continuous motion curve. For example: high speed light load automation equipment, dust-free environment automation equipment, flat plate equipment, optical testing equipment, scanning electron microscopy equipment, semiconductor equipment, machine tool wire cutting equipment, CAM lathe equipment etc.

Maximum speed 5m/s

Maximum acceleration 5G

No noise, 0dB

Direct drive (no rotating motion component to convert straight motion)


Specifications

Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5
101A-S 201B-S 201B- P 301A-S 301A- P 401A-S 401A- P 501A-S
501A- P 601A- S 601A-P 801A- S 801A- P
Performance Parameters
Symbol
 Unit   Series Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Continuous Force (Tmax)
Fc N 110 221 221 331 332 442 442 552 552 662 662 883 883
Peak Force
Fp N 660 1326 1326 1988 1989 2649 2649 3311 3309 3972 3972 5300 5300
Motor Constant
Km25 N//Sqrt (W)
16.1 22.8 23.3 27.9 28.5 32.2 32.9 36.2 36.8 39.7 40.0 45.9 46.6
Max.Continuous Power Dissipation
Pc W 64 129 124 193 185 257 247 319 309 382 376 508 494
Continuous Current (Tmax)
Ic Arms 2.5 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0
Peak Current (1S)
Ip Arms 15.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0
Force Constant (25℃,±5%)
Kf N/Arms
44.0 88.4 44.2 132.5 66.3 176.6 88.3 220.7 110.3

264.8

132.4 353.3 176.7
Back EMF Constant (25℃,±5%)
Ke Vrm/rad /s
14.7 29.5 14.8 44.2 22.1 58.9 29.5 73.6 36.8 88.3 44.2 117.8 58.9
Electrical Resistance (25℃,±5%)P-P
R Ω
5.0 10.0 2.4 15.0 3.6 20.0 4.8 24.8 6.0 29.7 7.3 39.5 9.6
Inductance (25℃,±20%)P-P
L mH 9.5 19.0 4.8 28.5 7.1 38.0 9.5 47.5 11.9 57.0 14.3 76.0 19.0
Max Coil Temperature
Tmax

120 120 120
120
120
120
120
120 120 120 120 120
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 84 84
84
84
84 84 84 84 84 84 84 84
84
Magnetic Attraction
Fa kN 0.0 0.0
0.0
0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Max.DC Bus Voltage
Ubus V 330 330
330
330
330
330
330
330 330 330 330 330
330
Vmax,Fc@Vbus=310Vdc
Vmax,Fc
m/s 7.9 3.6 7.9 2.2 5.1 1.5 3.6 1.1 2.8 0.8 2.2 0.4 1.5
Vmax,Fp@Vbus=310Vdc
Vmax,Fp
m/s
4.8 0.6 4.9 0.0 2.2 0.0 0.8 0.0 0.0 0.0 0.0 0.0 0.0
Vmax,0@Vbus=310Vdc
Vmax,0
m/s
8.5 4.2 8.5 2.8 5.6 2.1 4.2 1.7 3.4 1.4 2.8 1.0 2.1
Mover Mass
Mp Kg 1.0 1.9 1.9 2.7 2.7 3.6 3.6 4.5 4.5 5.4 5.4 7.2 7.2
Stator Mass within unit length
Ms Kg/m 24.0 24.0
24.0
24.0 24.0 24.0 24.0  24.0
  24.0
 24.0
24.0 24.0 24.0

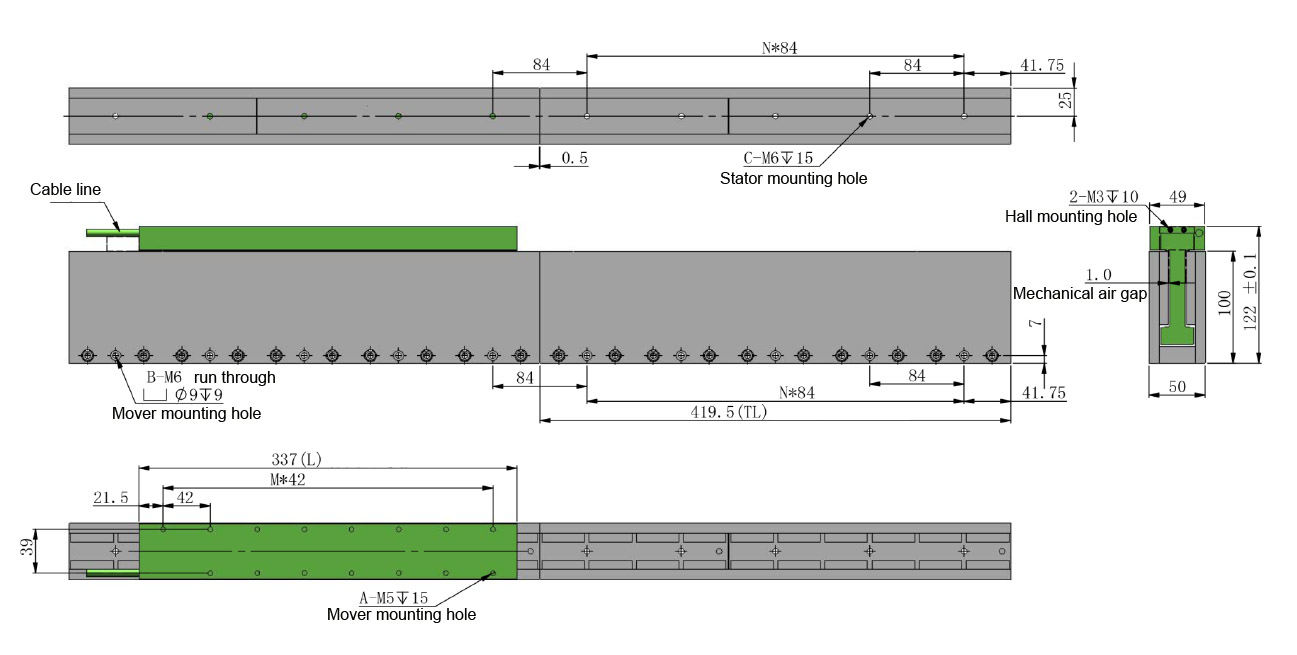

Dimension

linear ironless core motor

Mover Length
Mover model
  Mover length L
      M       Mover mounting hole A
LSMU610101A-S-H-NC-N-D00.5
85 1 3
LSMU610201B-S-H-NC-N-D00.5
169
3
7
LSMU610201B-P-H-NC-N-D00.5
7
LSMU610301A-S-H-NC-N-D00.5
253
5
11
LSMU610301A-P-H-NC-N-D00.5
11
LSMU610401A-S-H-NC-N-D00.5
337
7
15
LSMU610401A-P-H-NC-N-D00.5
15
LSMU610501A-S-H-NC-N-D00.5
421
9
19
LSMU610501A-P-H-NC-N-D00.5
19
LSMU610601A-S-H-NC-N-D00.5
505 11 23
LSMU610601A-P-H-NC-N-D00.5
23
              LSMU610801A-S-H-NC-N-D00.5
673
15
31
LSMU610801A-P-H-NC-N-D00.5
31

Remark:  1. 0.5m standard cable with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
              2. optional temperature sensor.


Stator Length
  Stator model   Stator length TL       N       Stator mounting hole B Stator mounting hole C
LSMU6202A 167.5 1 2 2
LSMU6203A
251.5 2 3 3
LSMU6204A
419.5 4 5 5

Suitable for any mover of this series, stator mounting mode can be selected.

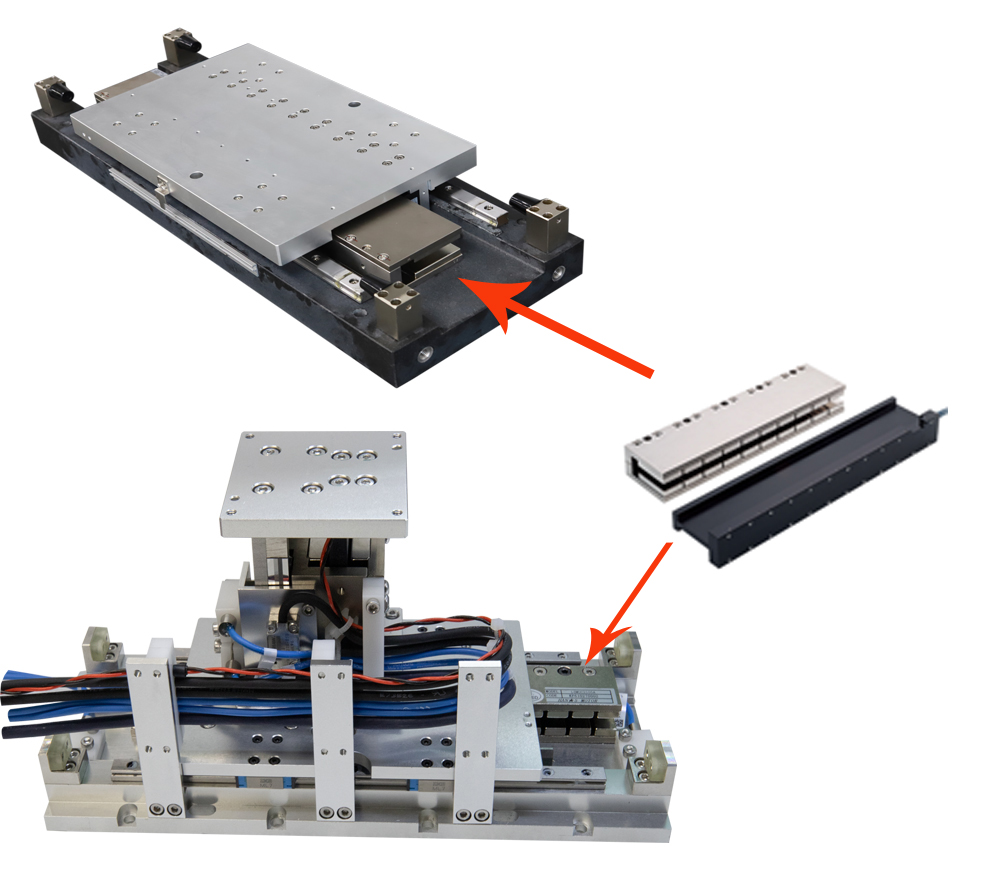

Appliaction Case: Compose to any linear platform or module

linear ironless core motor

Laser Group Show

linear ironless core motor

Our Company Show

linear ironless core motor

Production Center Show

linear ironless core motor


Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
