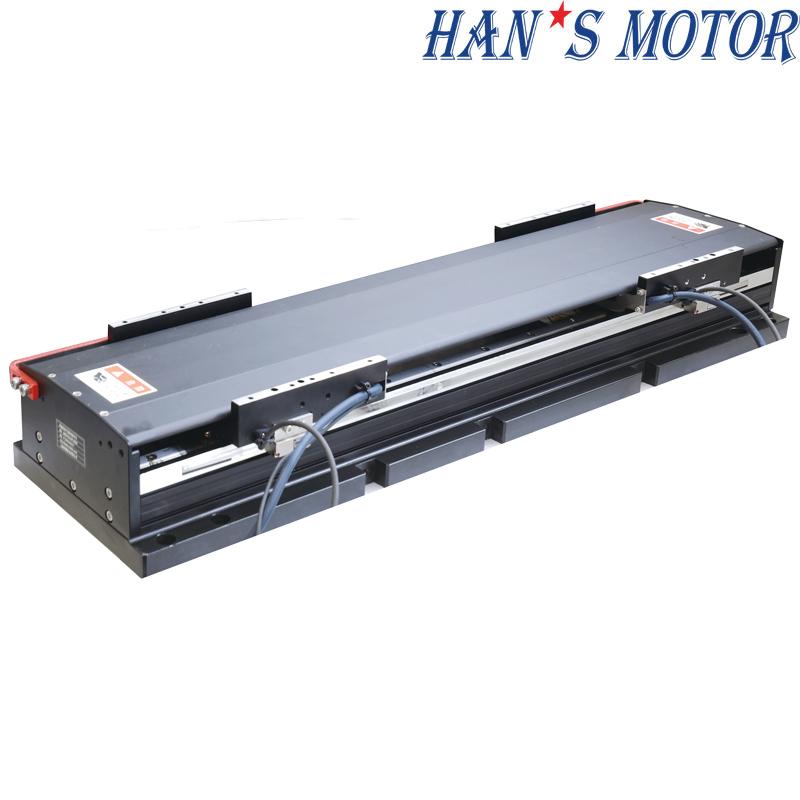

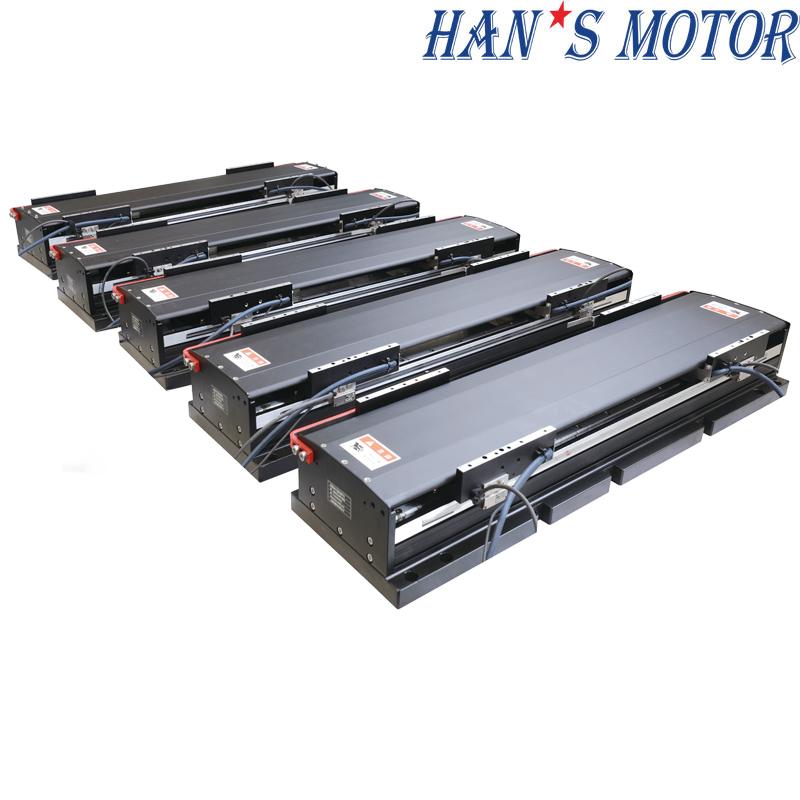

iron core linear motor stage
iron core linear motor stage

Single-axis linear module with iron core linear motor and high precision grating

Features:

1. Low Profile

2. High Rigidity

3. Large Payload Carriage

4. Easliy combine to cross or gantry stage

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:  Single-axis linear module with iron core linear motor and high precision grating


From Single-Axis to Multiple-Axis

At HAN'S MOTOR, We can design a wide range of Linear Stages. We have many years of experience in the linear motion control field. Over the years we have expanded our product line to provide better solutions for our customer's needs. Our technical and sales staff are always available here to assist with your design problems.


Model Selection


Single linear module with linear motor

Stage Dimension

iron core linear motor stage


Motor Model And Parameter


Iron Core Linear Motor

Parameter\ Motor Model

Unit

FL21

FL31

FL41

FJ21

Continuous Force (Tmax)

N

118

176

236

125

Peak Force

N

314

466

628

498

Motor Constant

N//SqrtW

13.6

16.5

19.4

13.6

Max.Continuous Power Dissipation

W

75.2

114.2

147.8

84.2

Continuous Current (Tmax)

Arms

4

4

4

2.2

Peak Current (1S)

Arms

12

12

12

9

Force Constant (25℃,±5%)

N/Arms

29.5

44

59

56.8

Back EMF Constant (25℃,±5%)

Vrms/rad/s

9.8

14.7

19.7

18.8

Electrical Resistance(25℃,±5%)P-P

Ω

2.4

3.4

4.4

8.2

Inductance(25℃,±20%)P-P

mH

9.0

13.5

18

26

Max Coil Temperature

120

120

120

120

Polar Distance (N-N) (360℃ Electrical cycle)

mm

20

20

20

20

Magnetic Attraction

KN

0.68

0.98

1.3

0.75

Mover Mass

Kg

1.6

2.3

3

1


Linear Motor Stages Specifications

LM135-FL21-XXX-XXX-A:

Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

360

460

560

660

760

860

960

1060

1160

1260

1360

1460

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

8.7

10.1

11.5

12.8

14.2

15.7

16.9

18.4

19.8

21.1

22.5

24.0

Sliding Table M (mm)

170

A

8

B

3

Motion Parts Weight (kg)

3.6


LM135-FL31-XXX-XXX-A:

Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

2

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

430

530

630

730

830

930

1030

1130

1230

1330

1430

1530

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

10.7

12.2

13.6

14.9

16.3

17.8

19.0

20.5

21.9

23.2

24.7

26.1

Sliding Table M (mm)

240

A

12

B

5

Motion Parts Weight (kg)

4.7


LM135-FL41-XXX-XXX-A:

Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

500

600

700

800

900

1000

1100

1200

1300

1400

1500

1600

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

13.2

14.4

15.9

17.2

18.6

20.0

21.3

22.7

24.2

25.5

26.9

28.3

Sliding Table M (mm)

310

A

12

B

5

Motion Parts Weight (kg)

5.9


LM135-FJ21-XXX-XXX-A:

Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

380

480

580

680

780

880

980

1080

1180

1280

1380

1480

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

8.7

10.2

11.6

12.8

14.3

15.6

17.8

18.5

19.9

21.1

22.6

23.9

Sliding Table M (mm)

190

A

8

B

3

Motion Parts Weight (kg)

3.3

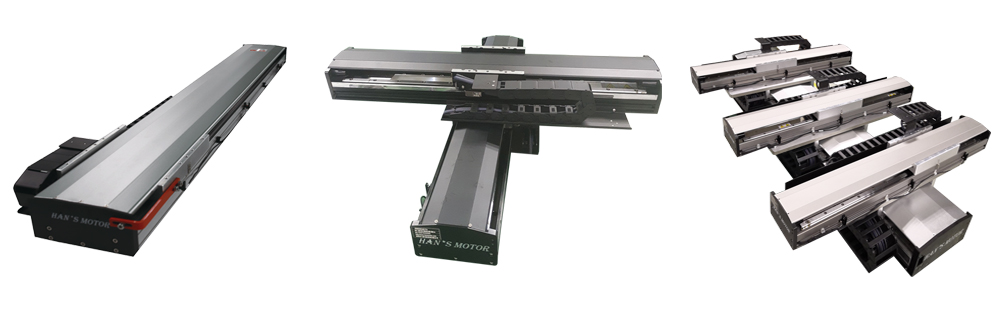

Multiple combinations are available

iron core linear motor stage

Laser Group Show

High precision linear stage

Our Company Show

High precision linear stage

Company Qualification

High precision linear stage

Inventive Patent

High precision linear stage

Honor

High precision linear stage


Packaging & Delivery

Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
