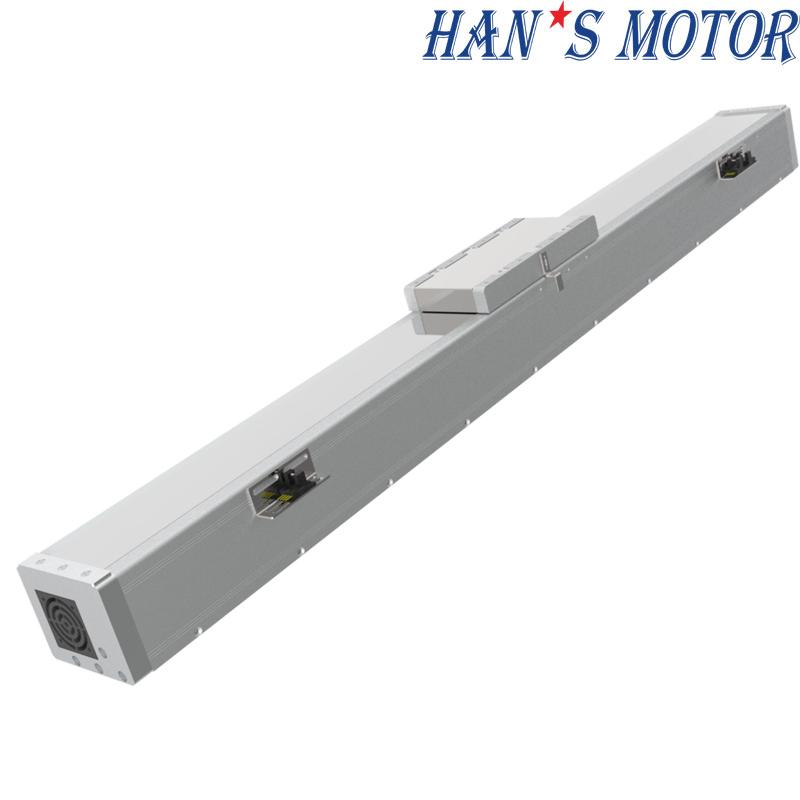

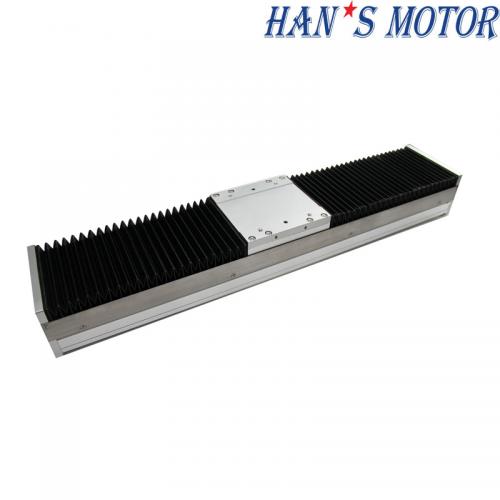

Fully-protective motor module for laser welding machine

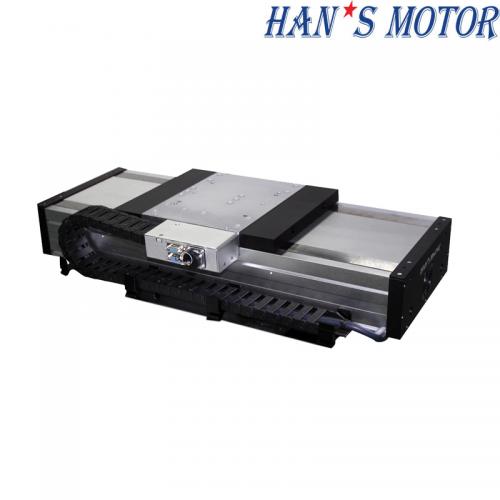

Fully-protective motor module for laser welding machine

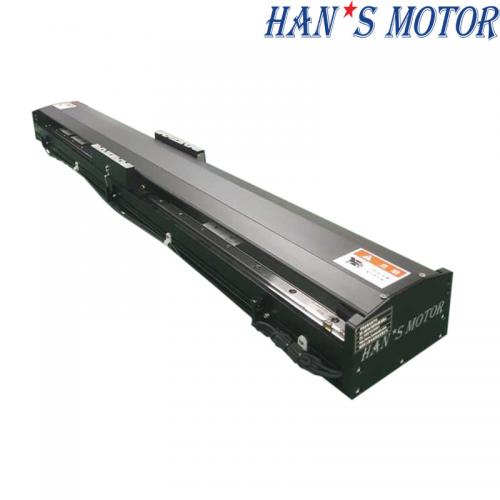

Fully-protective motor module for laser welding machine

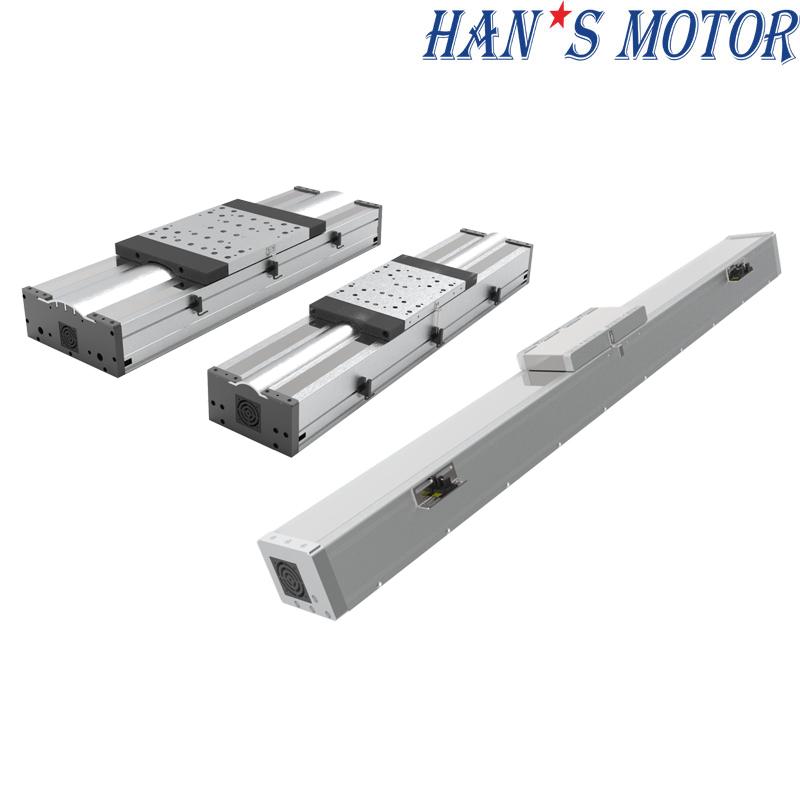

Fully-protective compact Linear Guide System motion stages

Features:

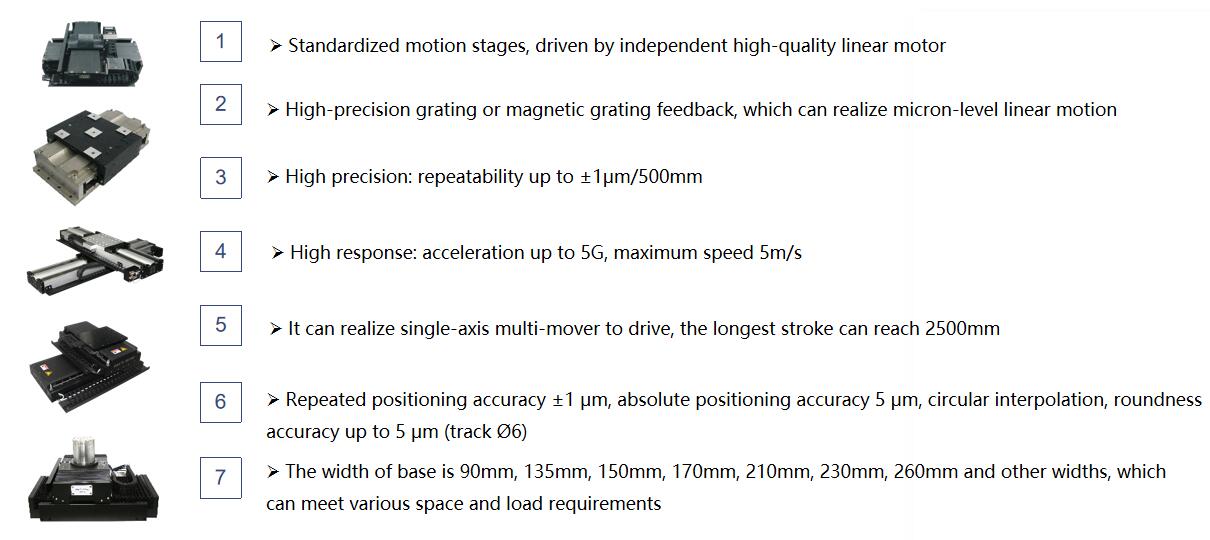

1. High accuracy up to±1μm;

2. It can realize single-axis multi-mover to drive, the longest stroke can reach 2500mm;

3. Quickly assemble to XYZ-axis cross stages and gantry stages;

4. Apply to laser cutting industry;

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

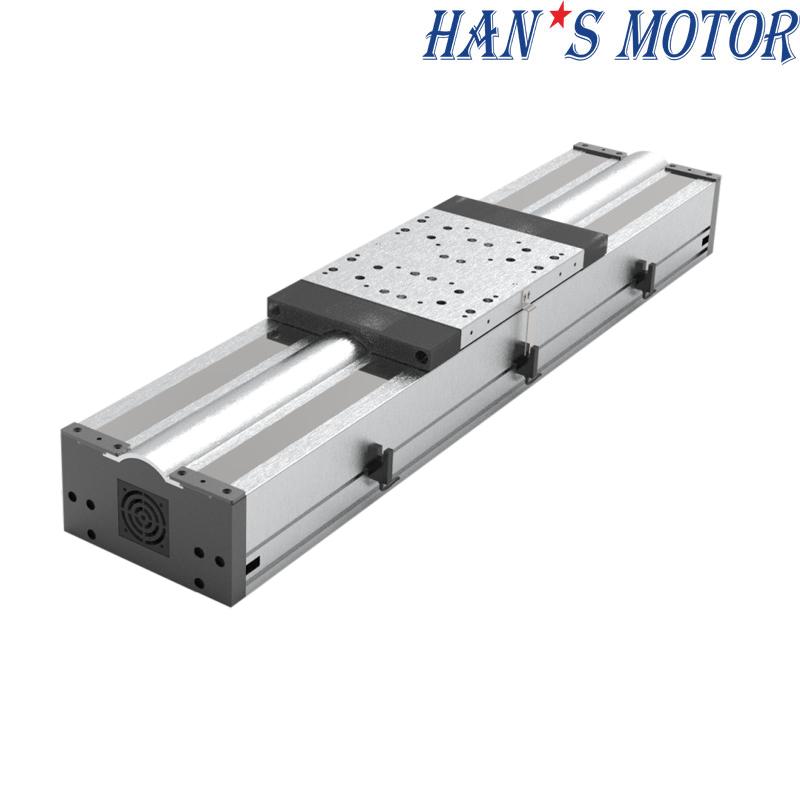

Products Name:  Fully-protective compact Linear Guide System motion stages (LMP150 Series )


Characteristics:

• Grating positioning or magnetic grating positioning feedback system

• High precision, high acceleration, high moving velocity

• Imported brand ACS, ELMO, Servotronix driver for optional

• Free product manual and 3D model can be provided

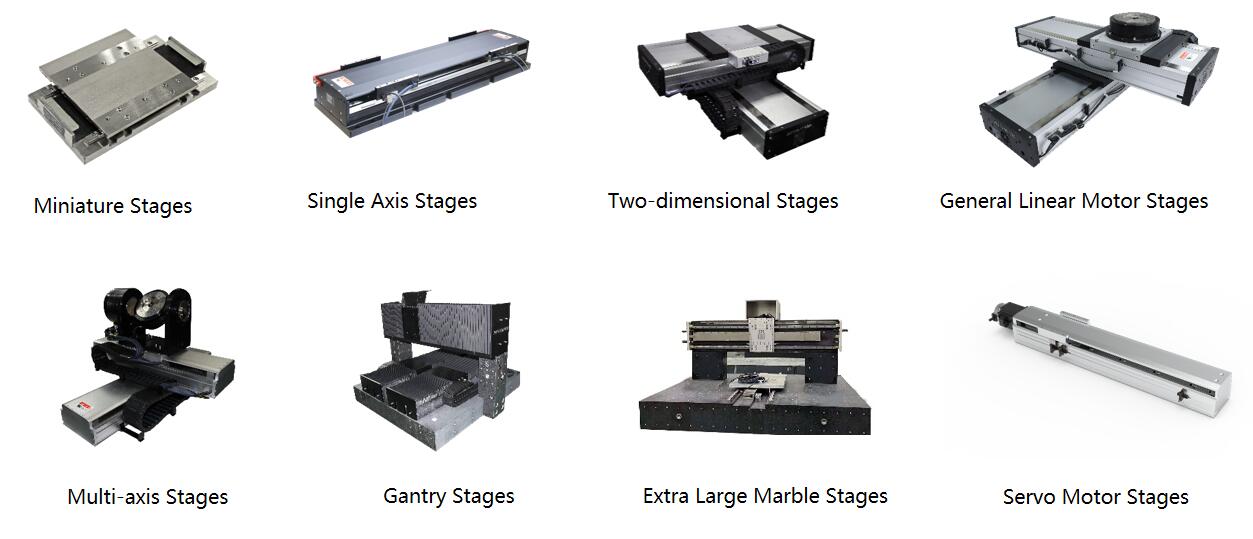

• Motion motor stage types

Fully-protective compact Linear Guide System motion stages

Product Specifications

Motor model/Parameter


U-type Motor

Flat type Motor

Parameter\ Motor Model

Unit

U74

U78

FL21

FL31

FL41

FJ21

Continuous Force (Tmax)

N

28.8

57.5

118

176

236

125

Peak Force

N

144

288

314

466

628

498

Motor Constant

N//SqrtW

4.7

6.6

13.1

16.5

19.4

13.6

Max.Continuous Power Dissipation

W

38.2

76.3

80.6

114.2

147.8

84.2

Continuous Current (Tmax)

Arms

1.15

1.15

4

4

4

2.2

Peak Current (1S)

Arms

5.8

5.8

12

12

12

9

Force Constant (25℃,±5%)

N/Arms

25

50

29.5

44

59

56.8

Back EMF Constant (25℃,±5%)

Vrms/rad/s

8.2

16.4

9.8

14.7

19.7

18.8

Electrical Resistance(25℃,±5%)P-P

Ω

12.8

25.6

2.4

3.4

4.4

8.2

Inductance(25℃,±20%)P-P

mH

3.2

6.4

9.0

13.5

18

26

Max Coil Temperature

120

120

120

120

120

120

Polar Distance (N-N) (360℃ Electrical cycle)

mm

30

30

20

20

20

20

Magnetic Attraction

KN

0

0

0.68

0.98

1.3

0.75

Mover Mass

Kg

0.23

0.46

1.6

2.3

3.1

1


Linear Motor Stages Selection

LMP150-U74-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

360

460

560

660

760

860

960

1060

1160

1260

1360

1460

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

12.4

13.6

14.8

16

17.2

18.4

19.6

20.8

22

23.2

24.4

25.6

Sliding Table M (mm)

190

A

1

B

50

Motion Parts Weight (kg)

3.6


LMP150-U78-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

470

570

670

770

870

970

1070

1170

1270

1370

1470

1570

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

12.6

13.8

15

16.2

17.4

18.6

19.8

21

22.2

23.4

24.6

25.8

Sliding Table M (mm)

300

A

12

B

70

Motion Parts Weight (kg)

5.2


LMP150-FL21-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

390

490

590

690

790

890

990

1090

1190

1290

1390

1490

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

11.5

12.7

13.9

15.1

16.3

17.5

18.7

19.9

21.1

22.3

23.5

24.7

Sliding Table M (mm)

220

A

1

B

50

Motion Parts Weight (kg)

4


LMP150-FL31-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

450

550

650

750

850

950

1050

1150

1250

1350

1450

1550

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

13.2

14.4

15.6

16.8

18

19.2

20.4

21.6

22.8

24

25.2

26.4

Sliding Table M (mm)

280

A

2

B

60

Motion Parts Weight (kg)

4.8

LMP150-FL41-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

520

620

720

820

920

1020

1120

1220

1320

1420

1520

1620

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

14.7

15.9

17.1

18.3

19.5

20.7

21.9

23.1

24.3

25.5

26.7

27.9

Sliding Table M (mm)

350

A

2

B

90

Motion Parts Weight (kg)

6


LMP150-FJ21-xxx-xxx-A

























Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

390

490

590

690

790

890

990

1090

1190

1290

1390

1490

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

11.5

12.7

13.9

15.1

16.3

17.5

18.7

19.9

21.1

22.3

23.5

24.7

Sliding Table M (mm)

220

A

1

B

50

Motion Parts Weight (kg)

4


Product advantages

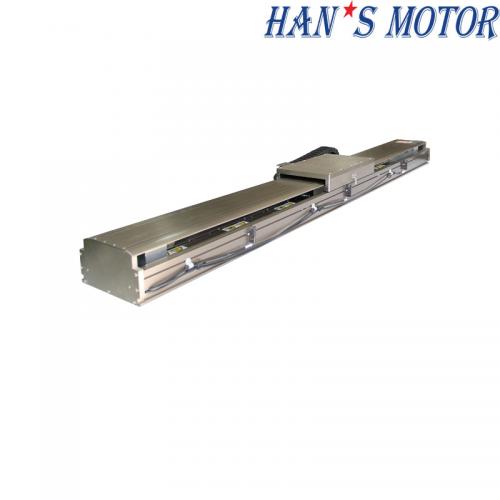

Fully-protective motion stages


Industry Applications:

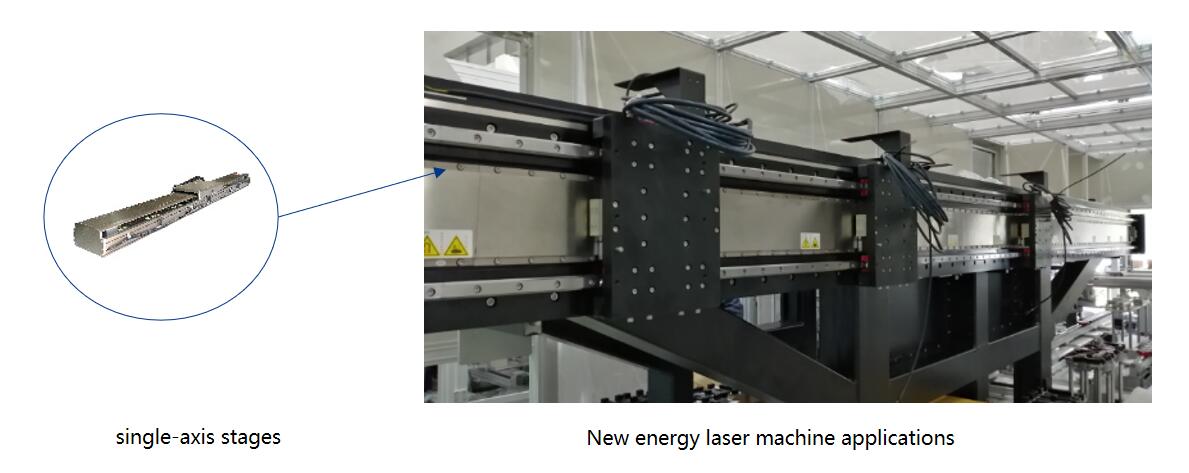

Long stroke, high speed, high reliability, rennishaw encoder single-axis motor stages which apply to lithium battery new energy machine applications.

 motion stages application


Packaging & Delivery:

Packaging Details.: plywood packing

Port: Shenzhen, Guangzhou, Xiamen

Leading time: According to the order quantity, 10-15 days for the small order and 20-35 days for bulk order

Contact Us
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
