single-axis stages for laser industry
single-axis stages for laser industry

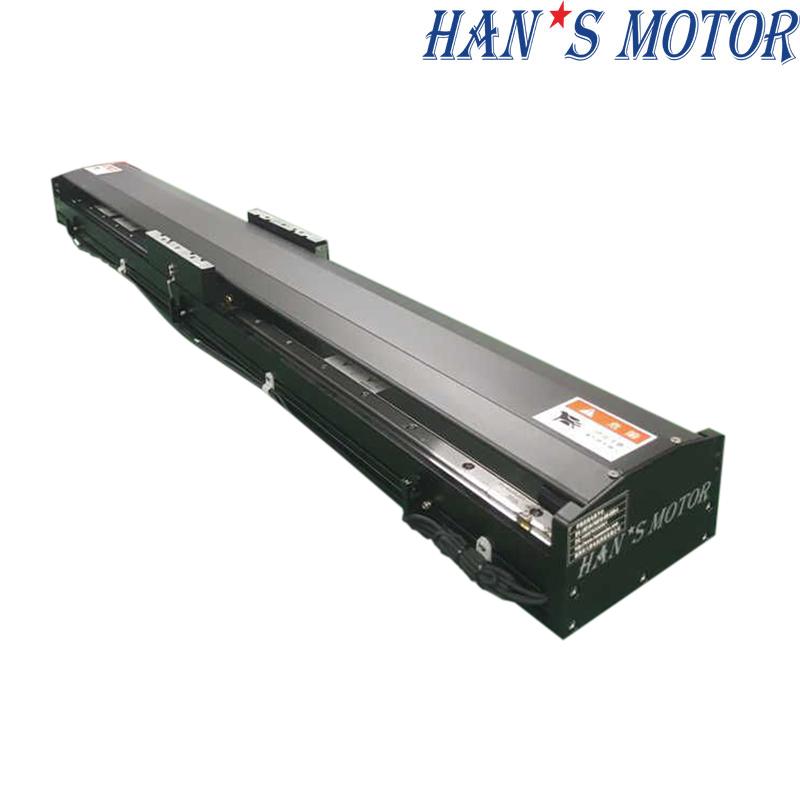

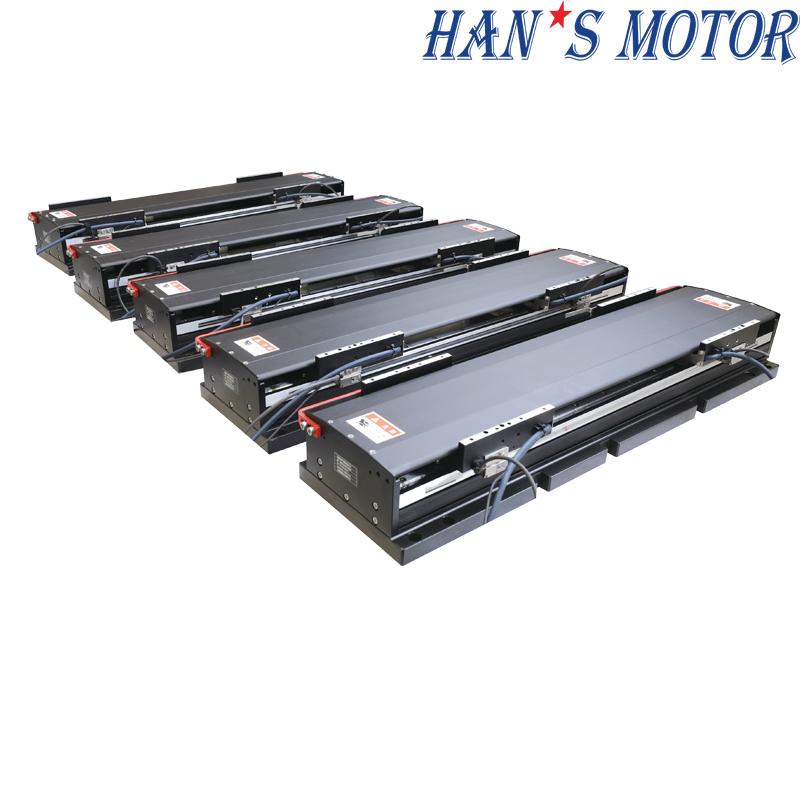

Linear motor motion stages manufacturers for laser industry

Features:

1. High precision, high acceleration, high moving speed;

2. Zero backlash error;

3. Repeatability accuracy up to±2um (within any 500mm stroke);

4. Absolute grating feedback;

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:  Linear motor motion stages manufacturers for laser industry(LM170 Series )



Product Specifications

Motor parameter


Ironless Linear Motor

Iron core Linear Motor

Parameter\ Motor Model

Unit

U42

U43

U44

FL22

FL32

FL42

FJ22

Continuous Force (Tmax)

N

72

108

144

196

294

392

208

Peak Force

N

288

432

576

517

776

1035

831

Motor Constant

N//SqrtW

8.8

11

12.8

18.9

23.4

27.2

27.5

Max.Continuous Power Dissipation

W

66.7

96.6

126.6

107.5

157.9

208.3

57.1

Continuous Current (Tmax)

Arms

2.3

2.3

2.3

4

4

4

2.2

Peak Current (1S)

Arms

9.2

9.2

9.2

12

12

12

9

Force Constant (25℃,±5%)

N/Arms

31.4

47.1

62.8

49

73.5

98

94.8

Back EMF Constant (25℃,±5%)

Vrms/rad/s

10.5

15.7

20.9

16.3

24.5

32.7

31.6

Electrical Resistance(25℃,±5%)P-P

Ω

5.9

8.7

10.6

3.2

4.7

6.2

11.8

Inductance(25℃,±20%)P-P

mH

4.0

6.0

8.0

15

22.5

30

40

Max Coil Temperature

120

120

120

120

120

120

120

Polar Distance (N-N) (360℃ Electrical cycle)

mm

60

60

60

20

20

20

20

Magnetic Attraction

KN

0

0

0

1.1

1.6

2.1

1.23

Mover Mass

Kg

0.6

0.9

1.2

2.5

3.7

4.9

1.7


Linear Motor Stages Selection

LM170-U42-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

360

460

560

660

760

860

960

1060

1160

1260

1360

1460

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

11

13.6

16.2

18.8

21.4

24

26.6

29.2

31.8

34.4

37

39.6

Sliding Table M (mm)

140

A

8

B

3

Motion Parts Weight (kg)

2.5


LM170-U43-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

410

510

610

710

810

910

1010

1110

1210

1310

1410

1510

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

13.4

16.2

18..8

21

23.8

26.4

28.6

31.4

33

35.2

38

40.6

Sliding Table M (mm)

240

A

12

B

5

Motion Parts Weight (kg)

4.7


LM170-U44-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

470

570

670

770

870

970

1070

1170

1270

1370

1470

1570

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

15.8

18.6

21.2

23.4

26.2

28.8

31

33.8

35.4

37.6

40.4

43.0

Sliding Table M (mm)

250

A

12

B

5

Motion Parts Weight (kg)

4.3


LM170-FL22-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

390

490

590

690

790

890

990

1090

1190

1290

1390

1490

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

12

14

16

18

20

22

24

26

28

30

32

34.0

Sliding Table M (mm)

170

A

8

B

3

Motion Parts Weight (kg)

3.8


LM170-FL32-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

460

560

660

760

860

960

1060

1160

1260

1360

1460

1560

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

15

17

19

21

23

25

27

29

31

33

35

37.0

Sliding Table M (mm)

240

A

12

B

5

Motion Parts Weight (kg)

5.4


LM170-FL42-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

14

14

18

18

22

22

26

26

30

30

34

34

N

2

2

3

3

4

4

5

5

6

6

7

7

Stage Total Length (mm)

530

630

730

830

930

1030

1130

1230

1330

1430

1530

1630

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

17.6

19.6

21.6

23.6

25.6

27.6

29.6

31.6

33.6

35.6

37.6

39.6

Sliding Table M (mm)

310

A

16

B

7

Motion Parts Weight (kg)

6.5


LM170-FJ22-xxx-xxx-A



Parameter\ Stroke (mm)

100

200

300

400

500

600

700

800

900

1000

1100

1200

K

10

14

14

18

18

22

22

26

26

30

30

34

N

1

2

2

3

3

4

4

5

5

6

6

7

Stage Total Length (mm)

410

510

610

830

810

910

1010

1110

1210

1310

1410

1510

Dowel Pin D1 (mm)

50

100

150

200

250

300

350

400

450

500

550

600

Stage Weight (kg)

12.5

14.5

16.5

23.6

20.5

22.5

24.5

26.5

28.5

30.5

32.5

34.5

Sliding Table M (mm)

190

A

8

B

3

Motion Parts Weight (kg)

4.2

Kindly instruct us your requirements, and we would provide product manual and 3D model to you.  Some parameters you can provide:

1. Effective stroke

2. Maximum Velocity

3. Maximum acceleration

4. Payload

5. Repeatability accuracy

6. Straightness

7. Protective fully sealed or semi-protected for optional

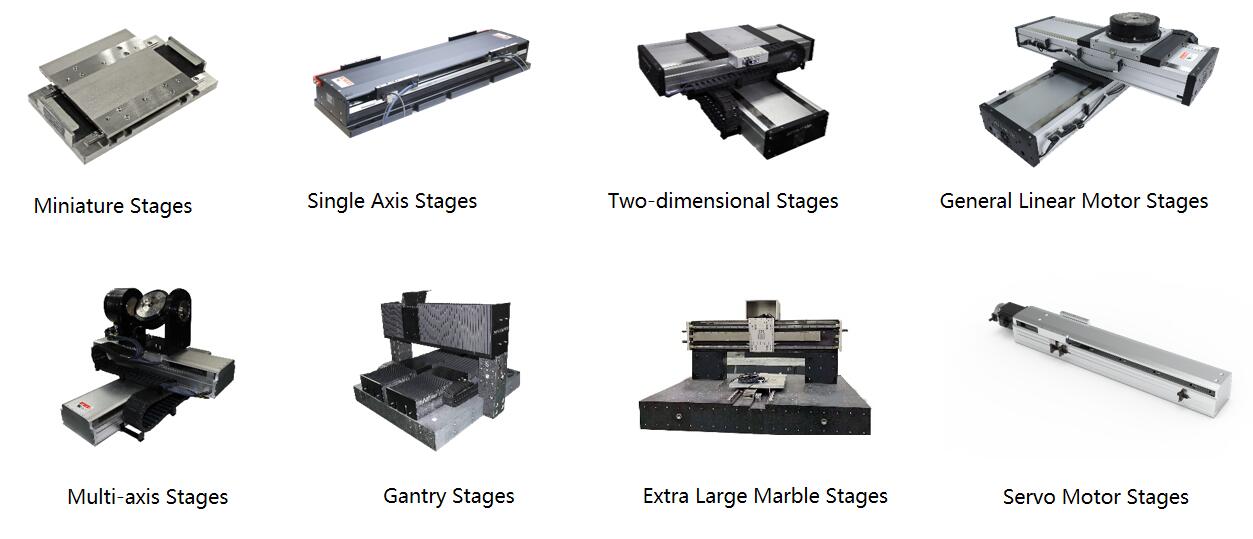

Motion Stage types:

Linear motor motion stages manufacturers for laser industry

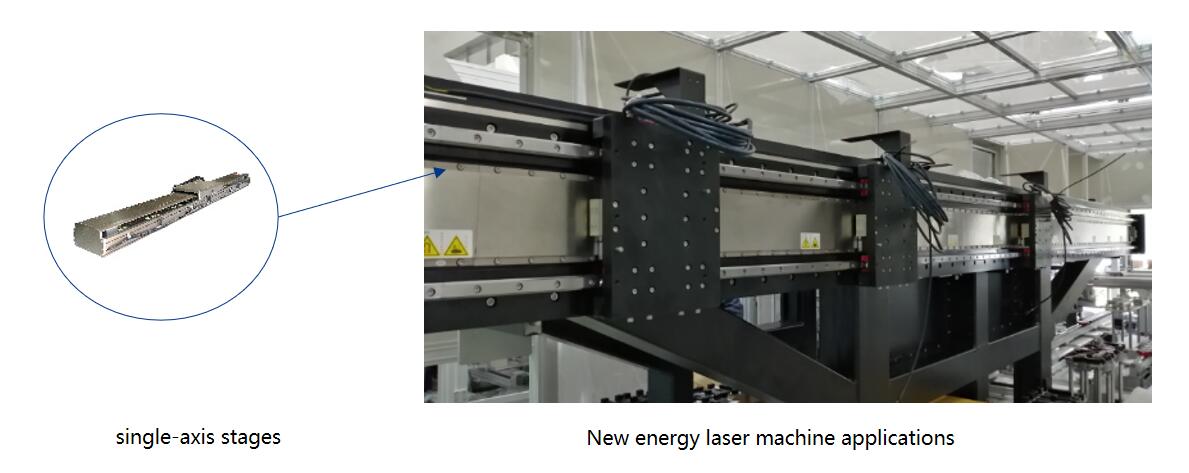

Industry Applications:

LM semi-protection and LMP full-protection motion stages series, which the full-protection series LMP are apply to the dusty laser industry.

aerotech linear stages laser industry


Packaging & Delivery:

Packaging Details.: plywood packing or carton packing

Port.: Shenzhen ( BY SEA, AIR,TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 5-10 days for trial order and 30-40 days for huge order
