Features:
1. Aluminum base;
2. Driven by linear motor, the mover and stator operates without contact;
3. Grating feedback with resolution 0.5μm, magnetic gratingwith resolution 1μm;
4. The fully protective motor module, which is suitable for cleanroom environment;
Brand:
HAN'S MOTOROrder(MOQ):

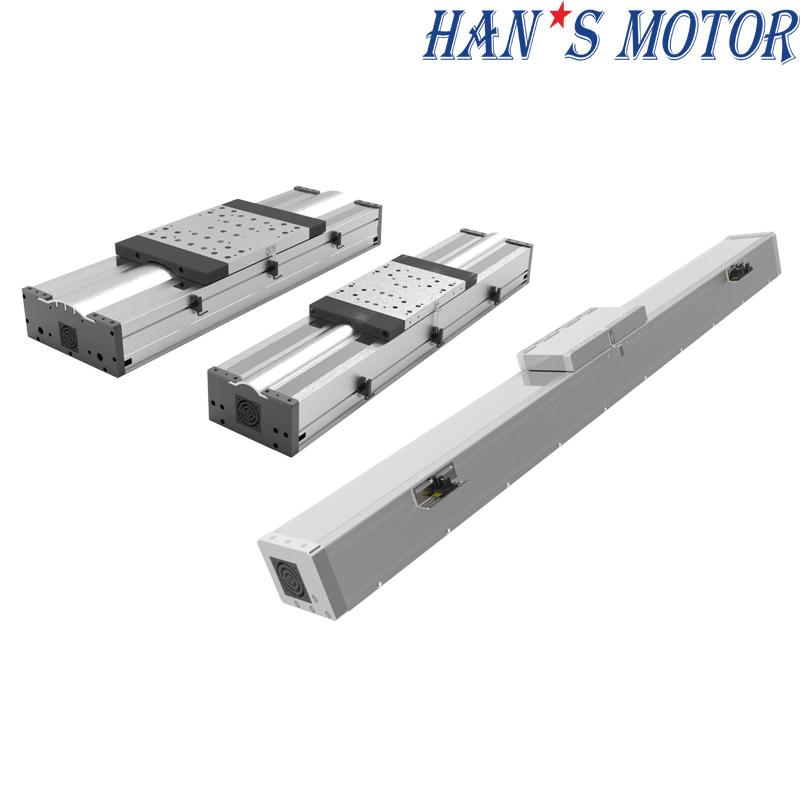

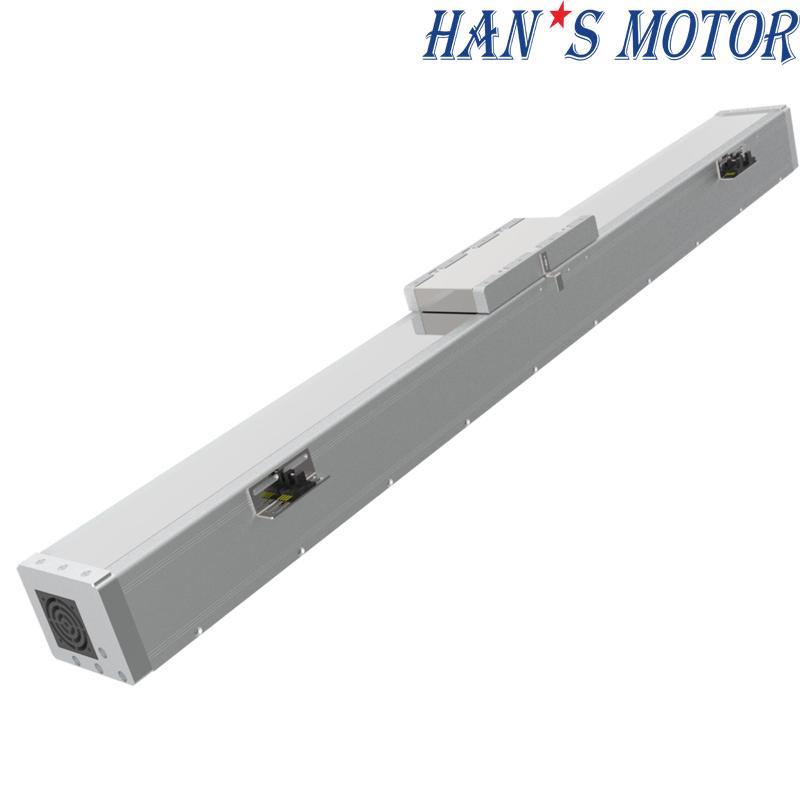

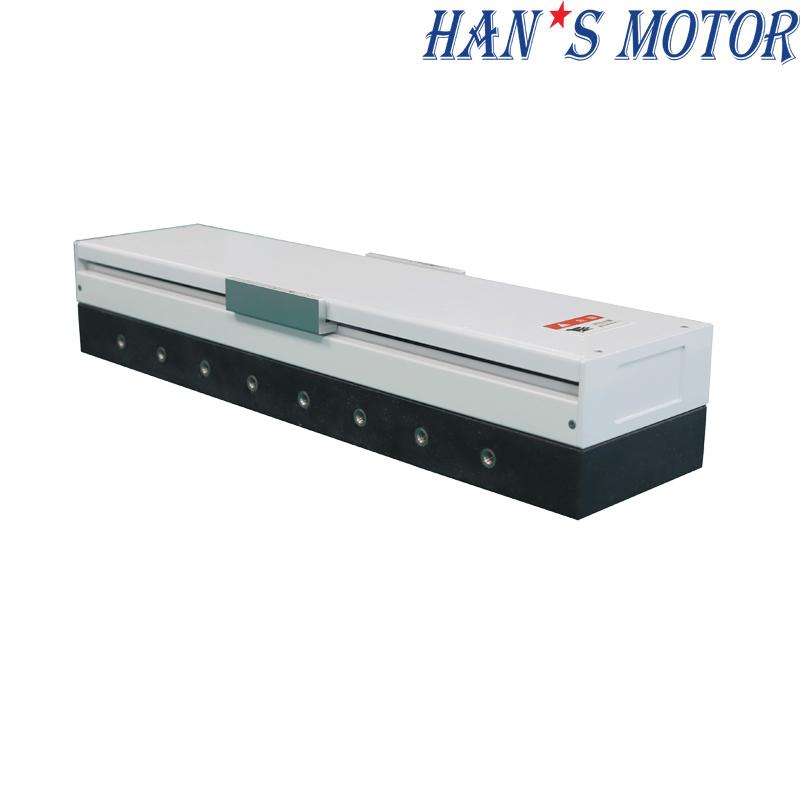

1Products Name: 50-1200mm stroke ball screw linear motion platform （LMP90 Series)
Product Specifications
Motor Model/Parameter
|
Parameter\ Motor Model |
Unit |
F521 |
|
Continuous Force (Tmax） |
N |
96.5 |
|
Peak Force |
N |
441.2 |
|
Motor Constant |
N//SqrtW |
10.9 |
|
Max.Continuous Power Dissipation |
W |
77.8 |
|
Continuous Current (Tmax） |
Arms |
4.2 |
|
Peak Current (1S) |
Arms |
19.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
23.1 |
|
Back EMF Constant (25℃，±5%） |
Vrms/rad/s |
7.7 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
1.9 |
|
Inductance(25℃，±20%）P-P |
mH |
4.4 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
20 |
|
Magnetic Attraction |
KN |
0.67 |
|
Mover Mass |
Kg |
1.05 |
Linear Motor Stages Selection
|
LMP90-F521-xxx-xxx-A |
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
10 |
10 |
14 |
14 |
18 |
18 |
22 |
22 |
26 |
26 |
30 |
|
N |
1 |
2 |
2 |
3 |
3 |
4 |
4 |
5 |
5 |
6 |
6 |
7 |
|
Stage Total Length (mm) |
405 |
505 |
605 |
705 |
805 |
905 |
1005 |
1105 |
1205 |
1305 |
1405 |
1505 |
|
Stage Weight (kg) |
7.4 |
8.5 |
9.7 |
10.9 |
12.0 |
13.2 |
14.4 |
15.5 |
16.7 |
17.9 |
19.0 |
20.2 |
|
Sliding Table M (mm) |
175 |
|||||||||||
|
Motion Parts Weight (kg) |
3.1 |
|||||||||||
Product advantages:
Kindly instruct us your requirements, and we would assist you in the product selection. Some parameters you can provide:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
6. Stages structure
Free product manual and 3D model and good quality with a reasonable price can be provided.
Industry Applications:
Multiple movers, long stroke, high speed, high reliability single-axis stages apply to New energy laser machine applications.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect)
Production capacity 3000 pieces per month
Delivery time: According to the order quantity, 10-15 days for trial order and 20-45 days for bulk order
