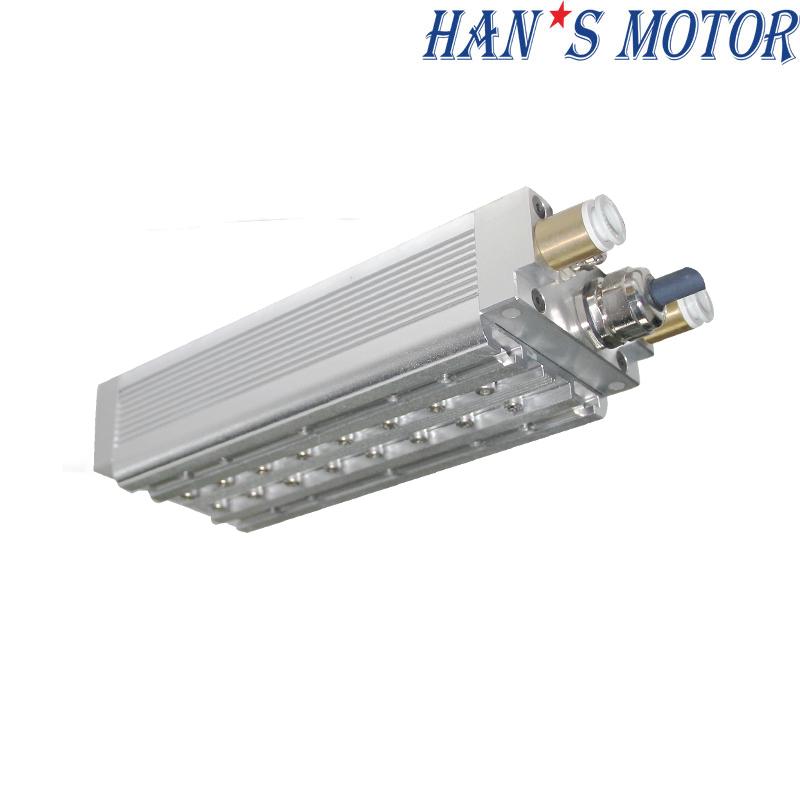

water-cooled linear motor
water-cooled linear motor

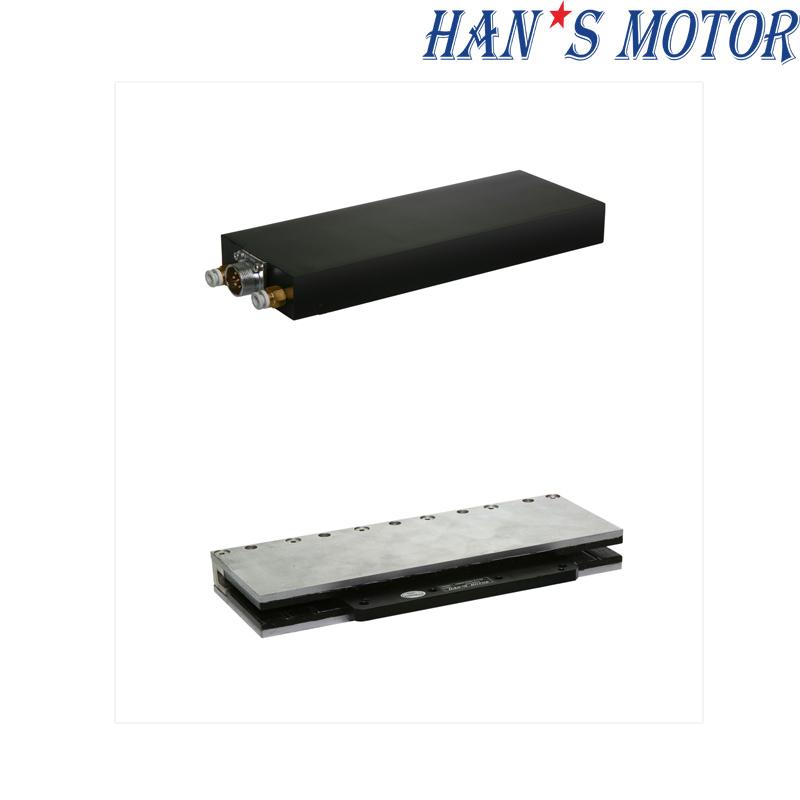

Iron core linear motor thrust range 1030~2100N with water cooling for CNC machine tool

Features:

1. Core technology

2. Low cogging effect

3. Water cooling/Natureal cooling structure

4. Standardization, modularization, high reliability

5. Multi-series, maximum specification peak thrust 20000N

6. Optional hall sensor

7. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name: Iron core linear motor thrust range 1030~2100N with water cooling for CNC machine tool


Specifications

Mover Spec.:LSMF510xxxx-x-H-WC
      201C-S             401C-S
PERFORMANCE PARAMETERS
    Symbol
    Units


Continuous Force (Tmax)
Fc N 505 1030
Peak Force
Fp N 1200 2100
Motor Constant (25℃)
Km25
N/Sqrt(W)
29.1 42.5
Max.Continuous Power Dissipation
Pc W 302 586
Continuous Current (Tmax)
Ic Arms
7.3 7.3
Peak Current (1S)
Ip Arms
14.6 14.6
Force Constant (25℃,±5%)
Kf N/Arms
71.0 141.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
23.7 47.0
Electrical Resistance(25℃,±5%)P-P
R
2.7 5.2
Inductance(25℃,±20%)P-P
L mH 30.0 57.0
Max Coil Temperature
Tmax
120 120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 47.6 47.6
Minimum flow of cold water
Wmin
L/min
4.0 4.0
Temperature difference between inlet and outlet
△T

2.1 2.1
Pressure drop (stator loop series)
△P
Bar
0.2 0.2
Magnetic Attraction
Fa
kN 2.5 5.0
Max.DC Bus Voltage
Ubus
V 600 600
Vmax,Fc@Vbus=310Vdc

m/s
7.4 3.5
Vmax,Fp@Vbus=310Vdc

m/s
5.3 2.4
Vmax,0@Vbus=310Vdc

m/s
9.2 4.6
Vmax,Fc@Vbus=537Vdc

m/s
4.6 2.1
Vmax,Fp@Vbus=537Vdc

m/s
3.2 1.4
Vmax,0@Vbus=537Vdc

m/s
5.9 3.0
Mover Mass
Mp Kg 8.0 14.5
Stator Mass within unit length
Ms Kg/m 10.5 10.5

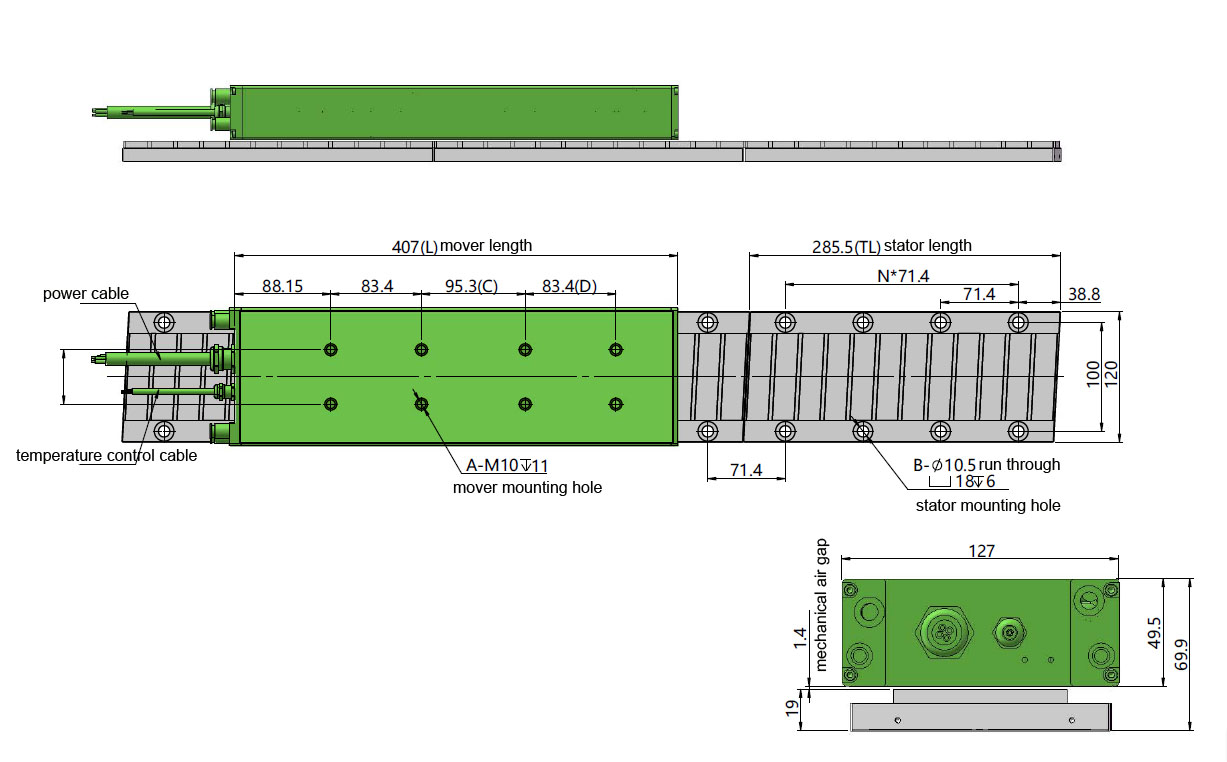

Dimension

linear induction motor

Mover Length
Mover model
Mover length L
C D Mover mounting hole A
LSMF510201C-S-H-WC
228
0 0 4
LSMF510401C-S-H-WC
407 95.3 83.4 8

Remarks:  1. Standard cable length is 5m, maximum outer diameter(d) of motor cable is d= 12mm, minimum bending radius within chain is 90mm, the length can be customized if there are special requirements.
                 2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF5201A
285.5 3 8
LSMF5203A
142.8 1 4

Suitable for any mover of this series.


Application Case:PCB Drilling industry

Advantages: large thrust, excellent acceleration performance, unique water-cooling technology, built-in overheat protection.

Cumulative usage of iron core linear motors exceeds 100,000 axes. The customer's market share of drilling machine is No. 1 in the world.

linear induction motor


Industry Applications:

it is widely used in wafer cutting, glass scribing, UV printingmachine and measurement system,six-axis drilling machine, single-axis drilling machine, two-axis drilling machine, forming machine, laser direct imaging machine (LDI), automatic optical inspection machine (AOI), reinforcement machine (FPC).

HANS MOTOR applications


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
