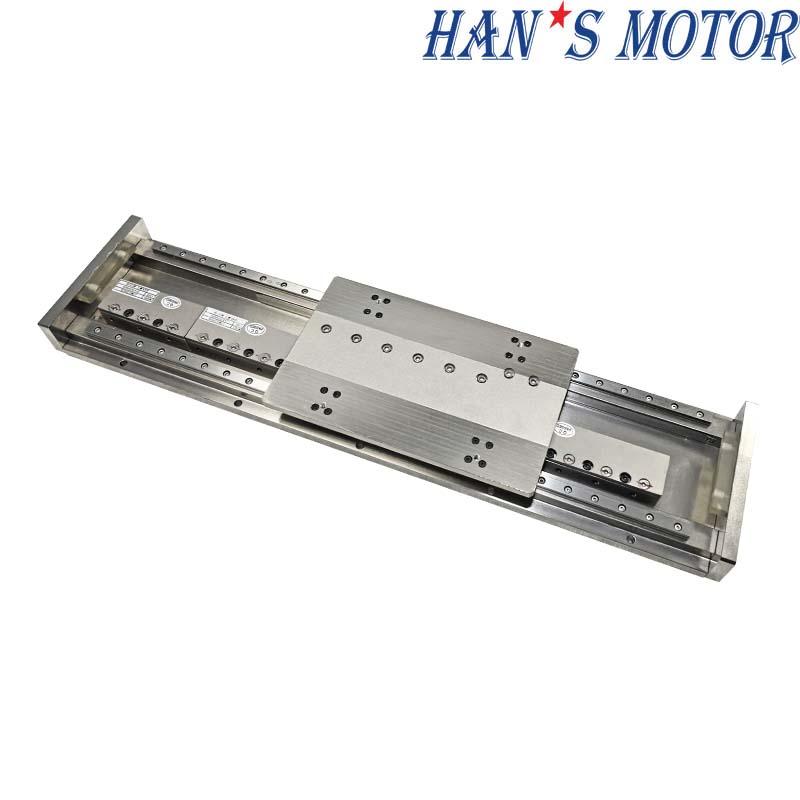

HAN'S MOTOR Long Travel Miniature Precision Direct Drive Motor Linear Stage LMB170 series
Features:
Flat-type motion stage ;Open-type construction, easy for disassembly and maintenance ;
Built-in time grating or magnetic grating with optional resolution rate 0.1um，0.5um，1um，5um. ；
Repeatability accuracy ±1um ；
Compact size and suit for light loading and high precision applications ;
Cross platform can be constructed in X/Y .
Advantages:
1) High load slider in fast and smooth motion.
2) Strict production standards ISO9001 for accurate and precise positioning.
3) Special design of bottom and side sliding nuts for simple disassembly.
4) Low energy-consumption and environmental conservation.
widely used in machinery manufacturing, electronics, semiconductors, optoelectronics, medical treatment, factory automation and other fields.
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: HAN'S MOTOR CNC Kit Cross Slide Table Linear Stage Module LMB170 series
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
120 |
|
Peak Force |
N |
900 |
|
Max. Load |
kg |
90 |
|
Effective Stroke |
mm |
100-2500 |
|
Resolution |
μm |
0.5 |
|
Max.Speed（1） |
mm/s |
2000 |
|
Repeat accuracy |
μm |
±1 |
|
Weight |
kg |
4.5 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
Stage Performance Paramater
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
8 |
8 |
10 |
10 |
12 |
14 |
14 |
16 |
18 |
18 |
20 |
|
N |
2 |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
8 |
9 |
|
Stage Total Length (mm) |
470 |
570 |
670 |
770 |
870 |
970 |
1070 |
1170 |
1270 |
1370 |
1470 |
1570 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

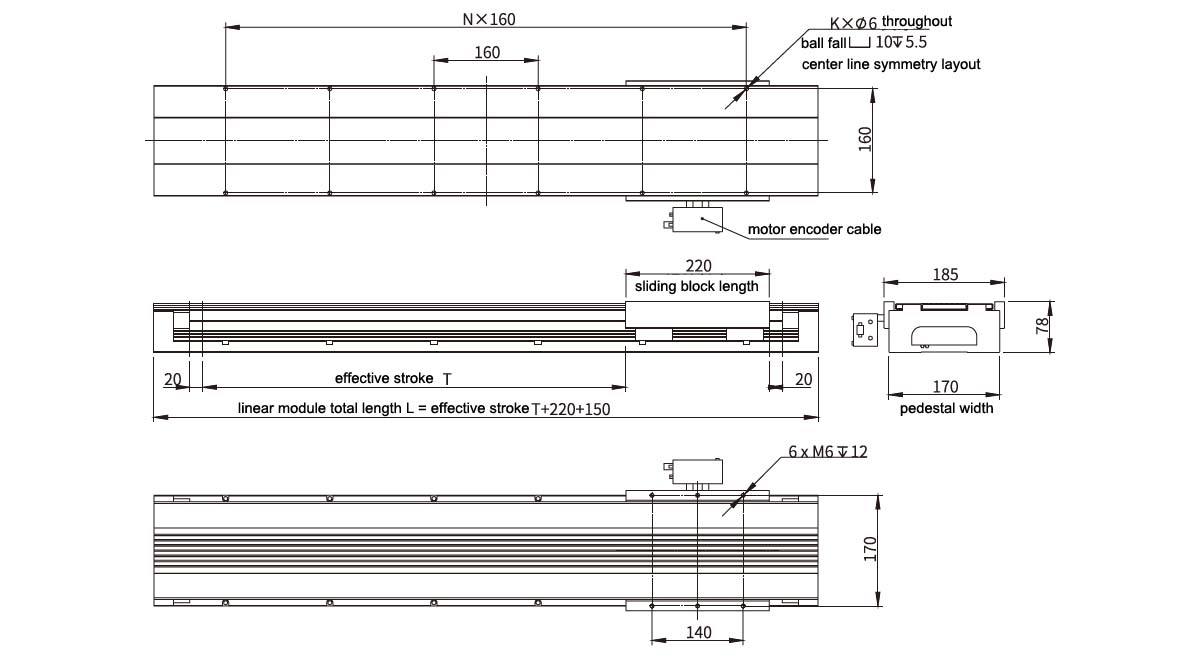

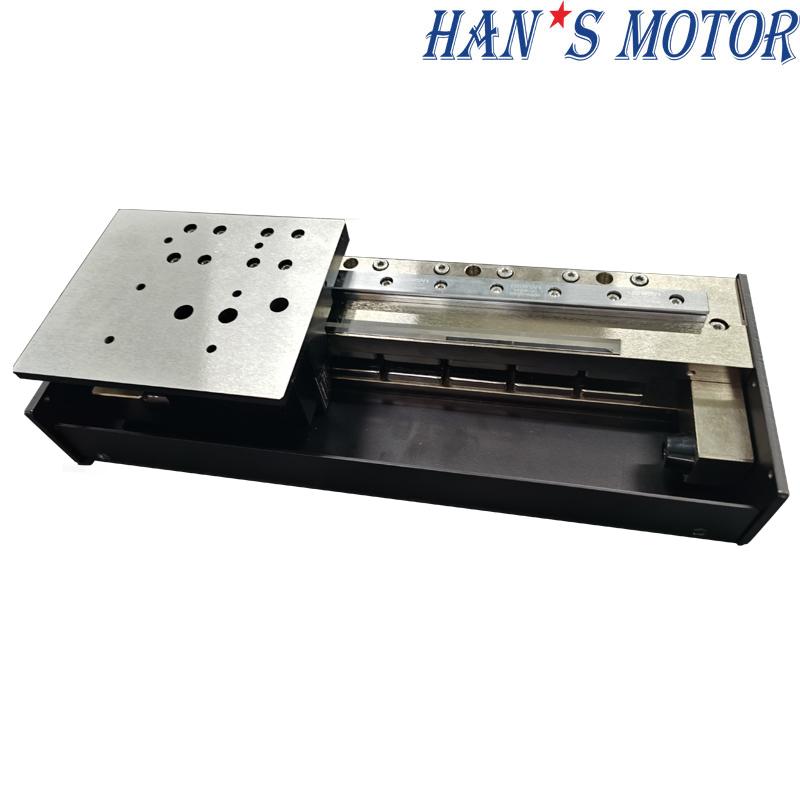

Dimension
Characteristics:
1. Linear bearings and guides provide low friction, smooth, accurate motion for nearly any moment or normal loading condition.
2. High positioning accuracy and repeat positioning accuracy by increasing the preload,
also the rigidity is greatly enhanced
3. Easy to measure the function of positioning accuracy, positioning repeatability and moving parallelism.
4. Professional processing and outstanding design,
it shows the specialty of high precision and strong stiffness.
5. Superior materials selection and easy maintenance: Sand blasting and anodic oxidation on machine parts.
Dust-proof and moisture-proof which make the maintenance easily and increase the usage life greatly.
Why choose us?
Q1: What’s property of your company?
A: We are an integrated company specializing in manufacturing linear motors, DDR
torque motors,
motor modules, motion stages, AC servo systems, variable frequency drives and so on.
And share the global marketing system of Han's Group.
Q2: What about the technical design?
A: This linear motor motion stage is being developed
continuously to respond to the market requirements while it is evaluated as
excellent direct acting actuator and the results are built up as drive shaft of
the automated production equipment.
Q3: How about your company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production
capabilities and excellent service team based on Quality Management System
Certification.:ISO9001:2000
Applications:
Mainly used in precision positioning, glue dispensing, rubber coating, painting, oil-spraying, handling & palletizing, grasping& moving, cutting & welding, CNC machining, automatic assembly, cleaning equipment etc.
Exhibitions & Global Market Mapping:

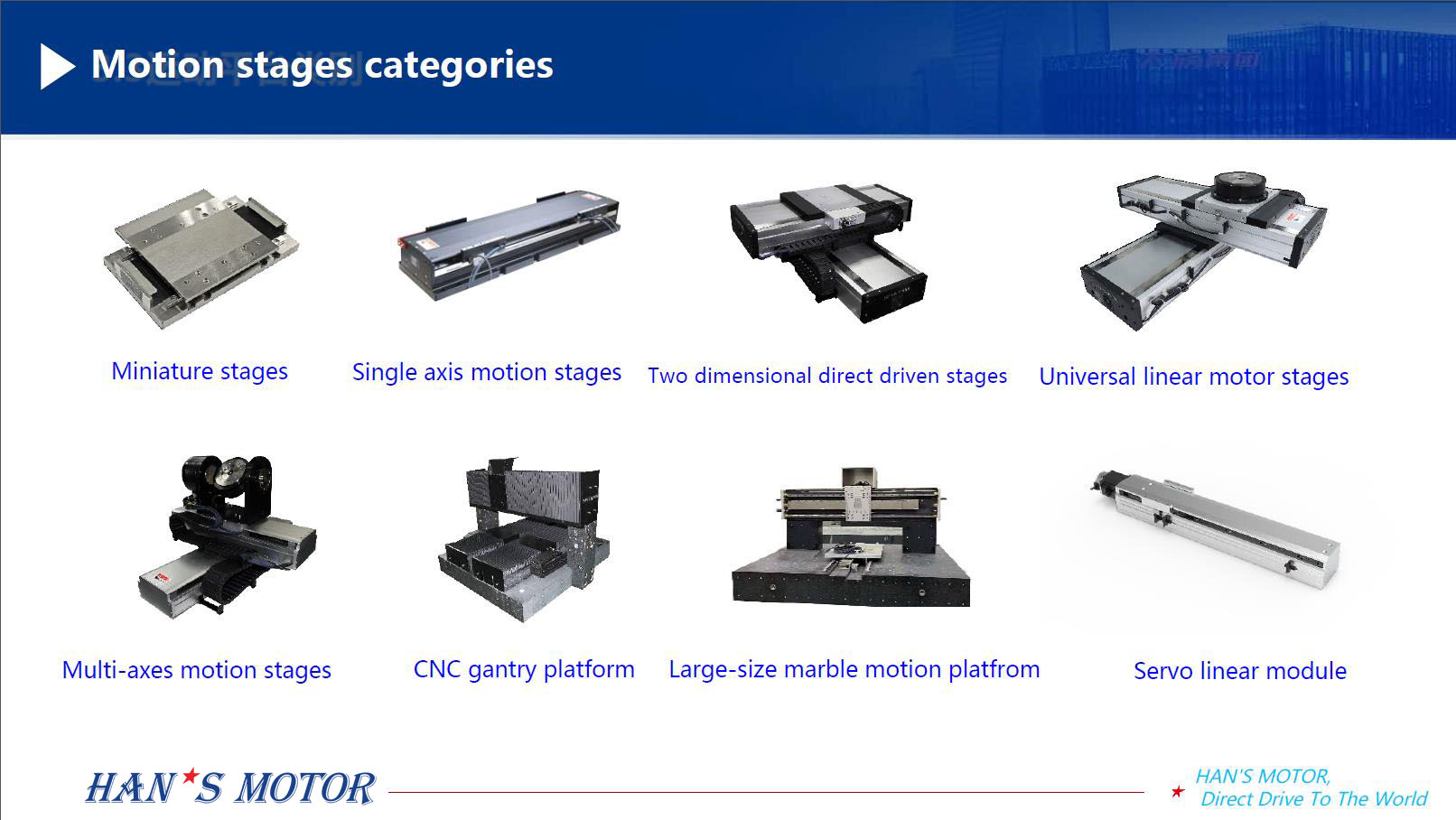

HAN'S MOTOR Motion Stages Products Series.:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
