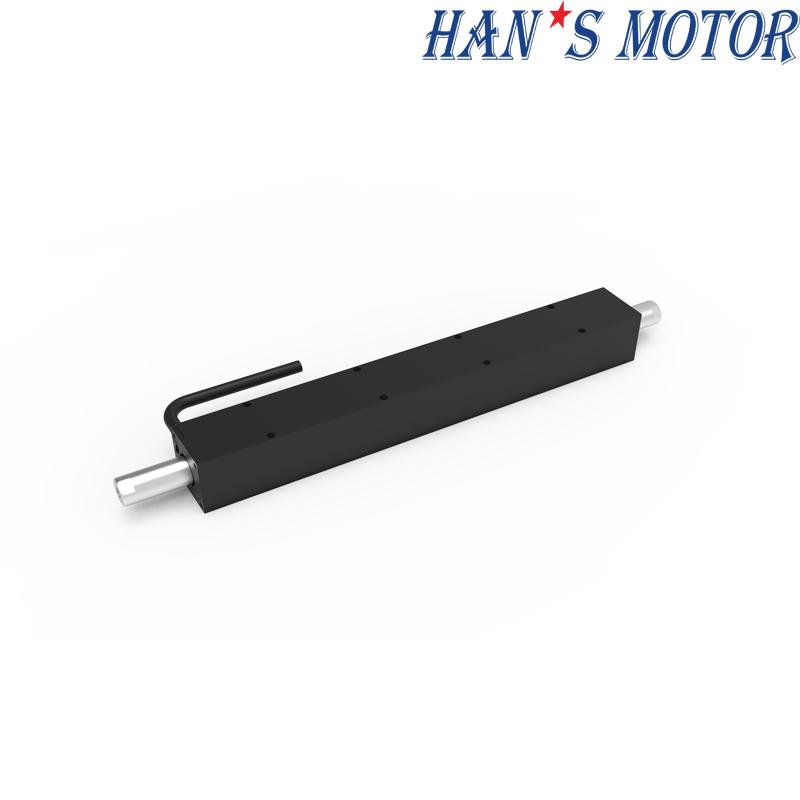

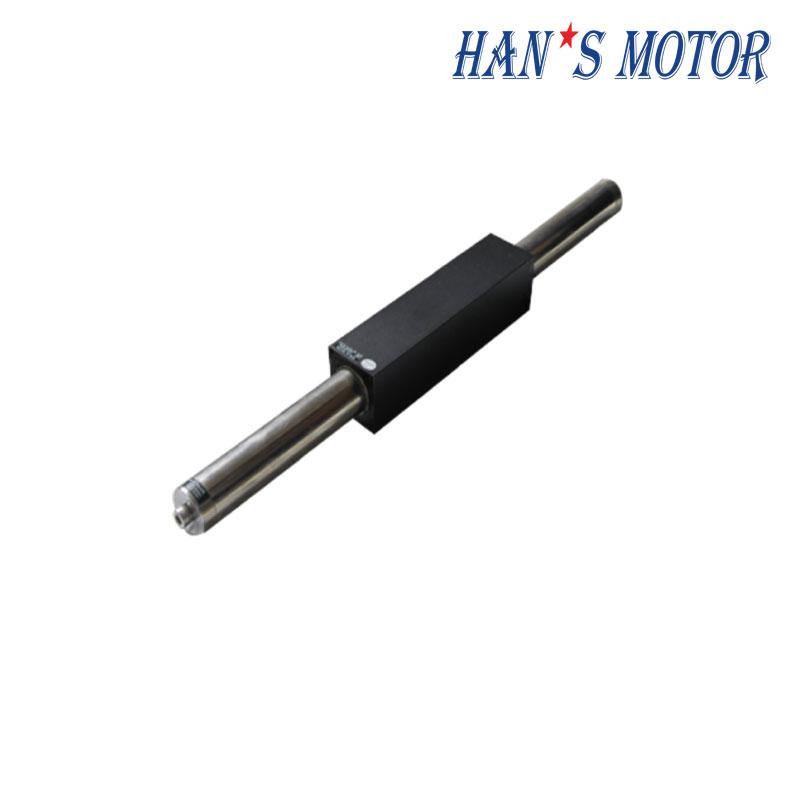

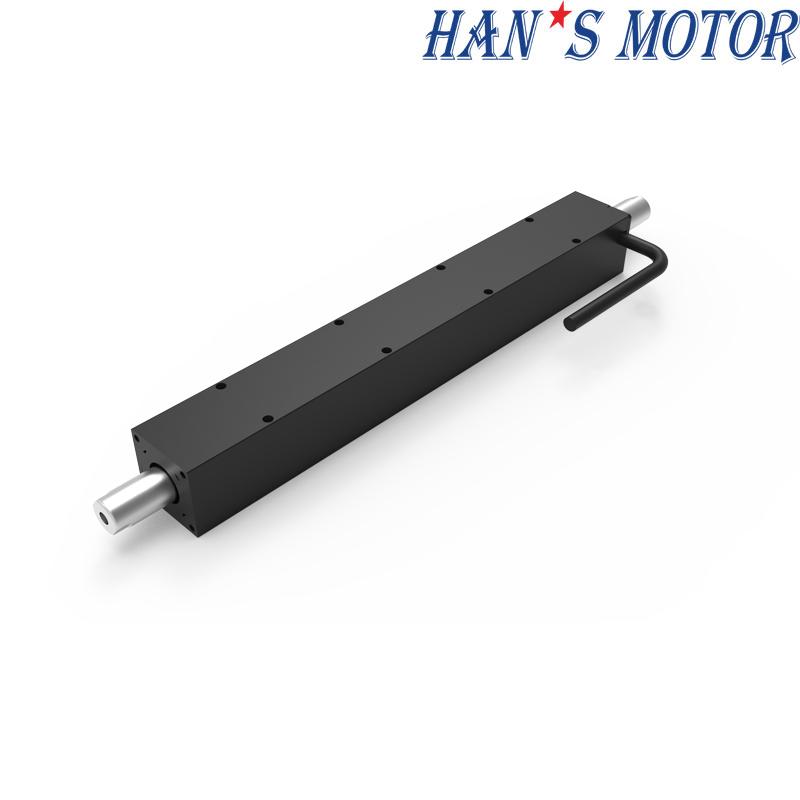

Natural Cooling Tubular Linear Motor For Roller Garage Door

Features:

1. Thrust characteristic smoothness

2. Small inertia and big velocity

3. Strong overload capacity

4. No cogging force and electromagnetic suction

5. Module design

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product nameNatural Cooling Tubular Linear Motor For Roller Garage Door


Specifications

Mover Spec.
     LSMSS02-12-36-01
PERFORMANCE PARAMETERS
Symbol
Units
Continuous Force (Tmax)
Fc N 2
Peak Force (1S)
Fp N 6
Motor Constant (25℃)
Km25
N/Sqrt(W)
5.5
Max.Continuous Power Dissipation
Pc W 8.4
Continuous Current
Ic Arms
1.5
Peak Current (1S)
Ip Arms
9.0
Force Constant (25℃,±5%)
Kf N/Arms
11.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
11.0
Electrical Resistance(25℃,±5%)P-P
R
2.7
Inductance(25℃,±20%)P-P
L mH 2
Max Coil Temperature
Tmax

120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 18
Magnetic Attraction
Fa kN 0
Max.DC Bus Voltage

Ubus

V 330
Vmax,Fc@Ubus=310Vdc
Vmax,Fc
m/s
71.7
Vmax,Fp@Ubus=310Vdc
Vmax,Fp
m/s
67.0
Vmax,0@Ubus=310Vdc
max,0
m/s
73.8
Mover Mass
Mp Kg 0.045
Stator Mass within unit length
Ms Kg 0.03

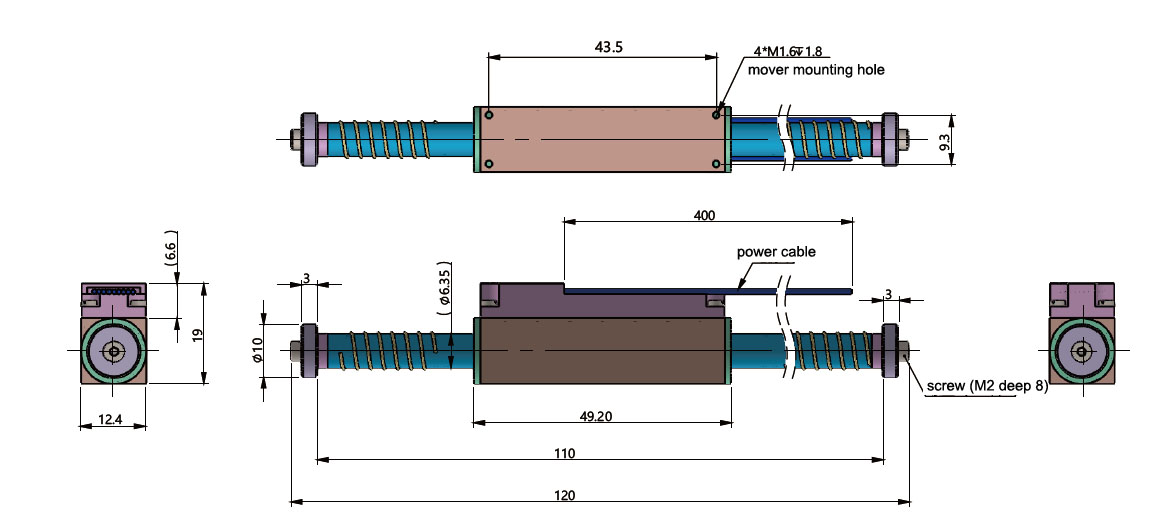

Dimension

tubular linear motor


Advantages:

1. Compact structure, easy to maintenance

2. High acceleration, maximum up to 10g

3. Wide speed range, can from a few microns to a few meters per second

4. High repetition accuracy. The accuracy depends on the position detection element, with appropriate feedback device can up to sub-micron level


Industry Applications:

custom tubular motor


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order


Contact Us
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
