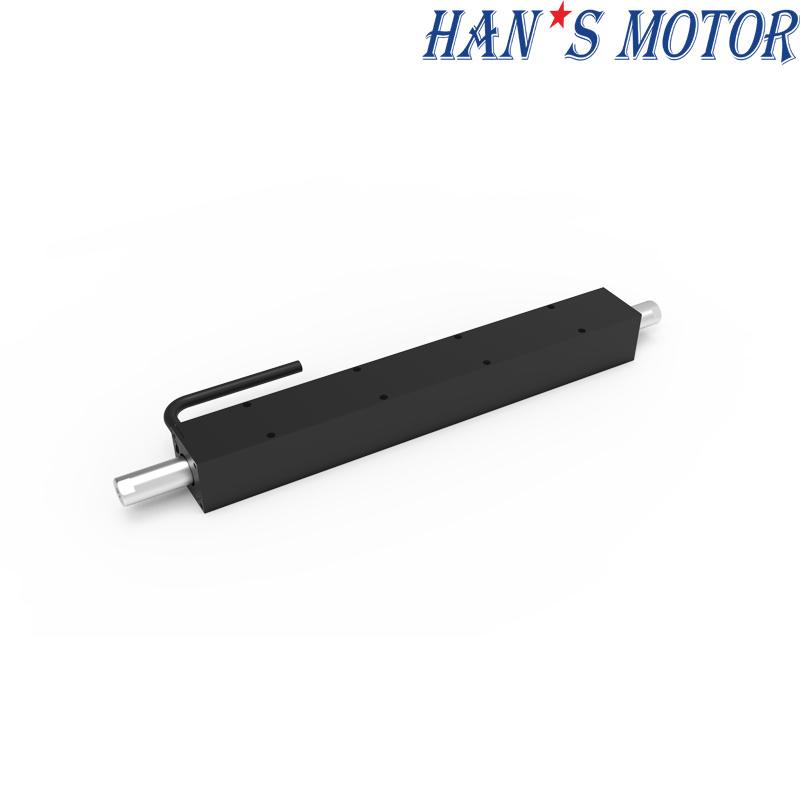

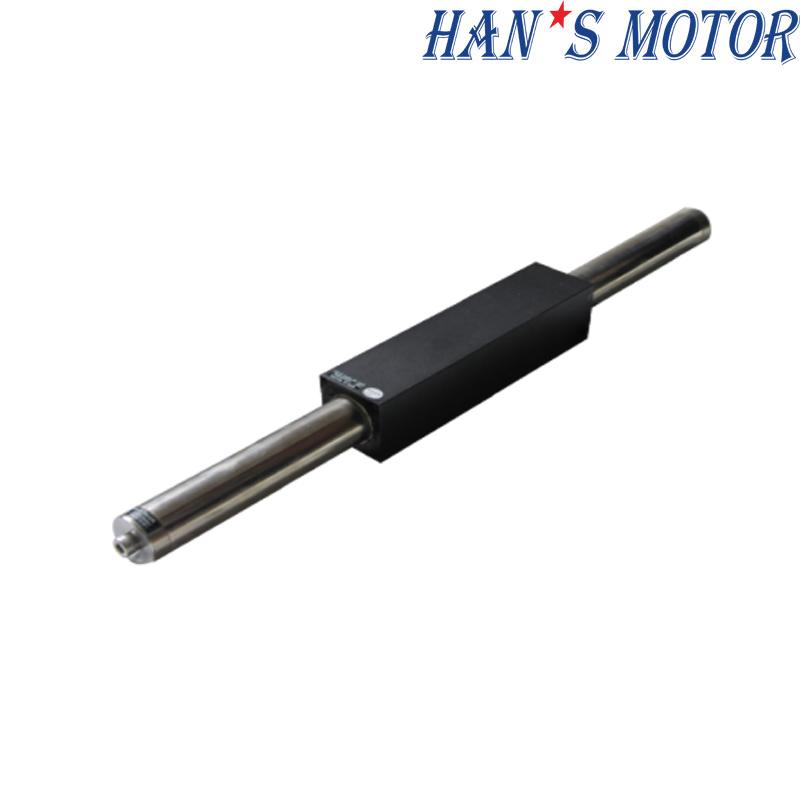

Full Magnetic Seal Compact Tubular Linear Motor LSMS38

Features：
1. High thrust and acceleration
2. Simple structure, electromagnetic force directly achieves linear motion
3. High efficiency, super quiet, 360° heat dissipation design, no forced cooling
4. Zero cogging effect, no eddy current loss, easily achieve sub-micron high positioning accuracy

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Product name: Full Magnetic Seal Compact Tubular Linear Motor LSMS38

Specifications

Mover Spec.：LSMSS01-38-xxx-xx			96-01	144-01	144-02	192-01
PERFORMANCE PARAMETERS	Symbol	Units
Continuous Force (Tmax）	Fc	N	28	42	42	56
Peak Force (1S）	Fp	N	112	167	167	223
Motor Constant (25℃)	Km25	N/Sqrt(W)	4.8	5.8	5.7	6.8
Max.Continuous Power Dissipation	Pc	W	48	72	75	93
Continuous Current (Tmax）	Ic	Arms	1.7	1.7	3.9	1.7
Peak Current (1S)	Ip	Arms	6.8	6.8	15.6	6.8
Force Constant (25℃，±5%）	Kf	N/Arms	16.4	24.6	10.8	32.8
Back EMF Constant (25℃，±5%）	Ke	Vrms/m/s	5.5	8.2	3.6	10.9
Electrical Resistance(25℃，±5%）P-P	R	Ω	8.0	12.1	2.4	15.6
Inductance(25℃，±20%）P-P	L	mH	2.6	4.3	0.8	5.2
Max Coil Temperature	Tmax	℃	120	120	120	120
Polar Distance (N-N) (360℃ Electrical cycle)	2τ	mm	48	48	48	48
Magnetic Attraction	Fa	kN	0.0	0.0	0.0	0.0
Max.DC Bus Voltage	Ubus	V	330	330	330	330
Vmax,Fc@Vbus=310Vdc		m/s	21.2	13.5	33.0	9.7
Vmax,Fp@Vbus=310Vdc		m/s	15.7	8.1	27.0	4.6
Vmax,0@Vbus=310Vdc		m/s	22.9	15.3	34.8	11.4
Mover Mass	Mp	Kg	0.5	0.7	0.7	1.0
Stator Mass within unit length	Ms	Kg/m	0.5	0.5	0.5	0.5

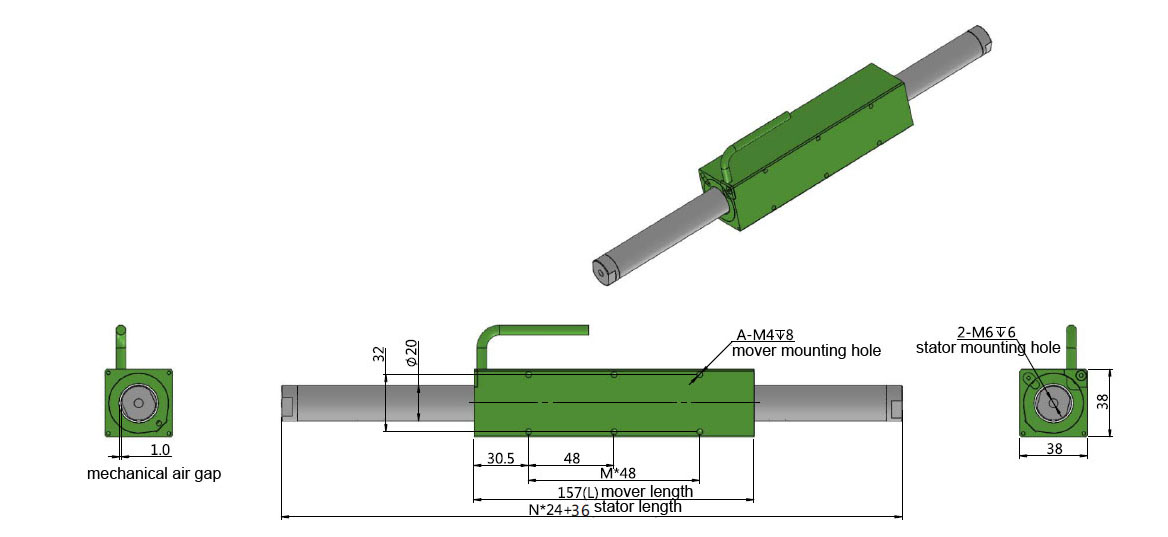

Dimension

Rod linear motor

What is tubular linear motor？

Tubular linear motor, the mover and stator are use closed cylindrical structure, no lateral edge effect. Hall sensor and the circuit integrated in the mover, do signal feedback to achieve positioning, compact structure. External position sensors can also be connected to achieve higher precision requirements.

Features: Compact structure, high protection grade, long service life, low cost, convenient maintenance, easy to achieve mass production.

Applications：It widely used in packaging, assembly, handling, semiconductor, electronics, automation, printing and other industries.
