Features：
1. Compact structure
2. Strong overload capacity
3. Low cost and easy maintenance
4. Modular design, the stator can be arbitrarily extended
Brand:
HAN'S MOTOROrder(MOQ):

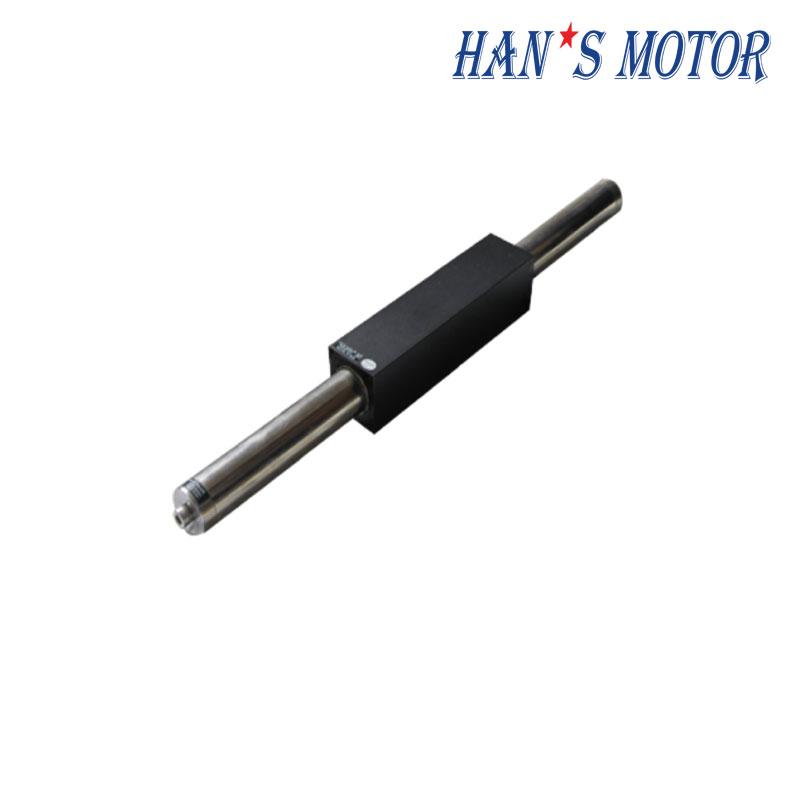

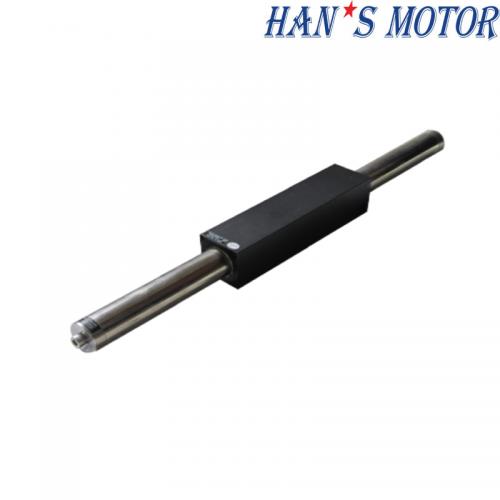

1Product name：Smoothly Thrust Enclosed Tubular Linear Motor LSMS27 For Precision Fluid Measurement
Specifications
|
Mover Spec.：LSMSS01-27-xxx-xx |
96-01 | 96-02 | 192-01 | ||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
|||
|
Continuous Force (Tmax） |
Fc | N | 13 | 12 | 26 |
|
Peak Force (1S） |
Fp | N | 52 | 48 | 104 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
2.9 | 3.2 | 4.3 |
|
Max.Continuous Power Dissipation |
Pc | W | 27 | 19 | 50 |
|
Continuous Current (Tmax） |
Ic |
Arms |
2.4 | 0.7 | 2.4 |
|
Peak Current (1S) |
Ip |
Arms |
9.6 | 2.8 | 9.6 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
5.5 | 17.0 | 11.0 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
1.8 | 5.7 | 3.7 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
2.3 | 19.0 | 4.2 |
|
Inductance(25℃，±20%）P-P |
L | mH | 0.4 | 19.2 | 0.8 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 48 | 48 | 48 |
|
Magnetic Attraction |
Fa |
kN | 0.0 | 0.0 | 0.0 |
|
Max.DC Bus Voltage |
Ubus |
V | 330 | 330 | 330 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
66.3 | 20.2 | 32.3 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
59.5 | 13.8 | 26.3 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
68.4 | 22.1 | 34.2 |
|
Mover Mass |
Mp | Kg | 0.3 | 0.3 | 0.5 |
|
Stator Mass within unit length |
Ms | Kg/m | 0.2 | 0.2 | 0.2 |

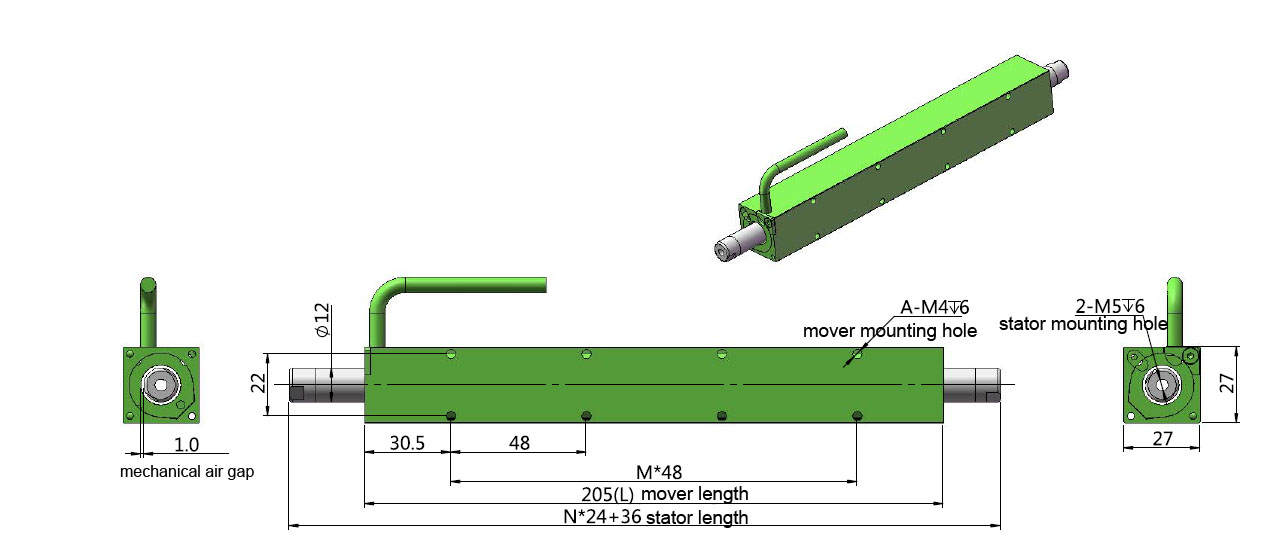

Dimension

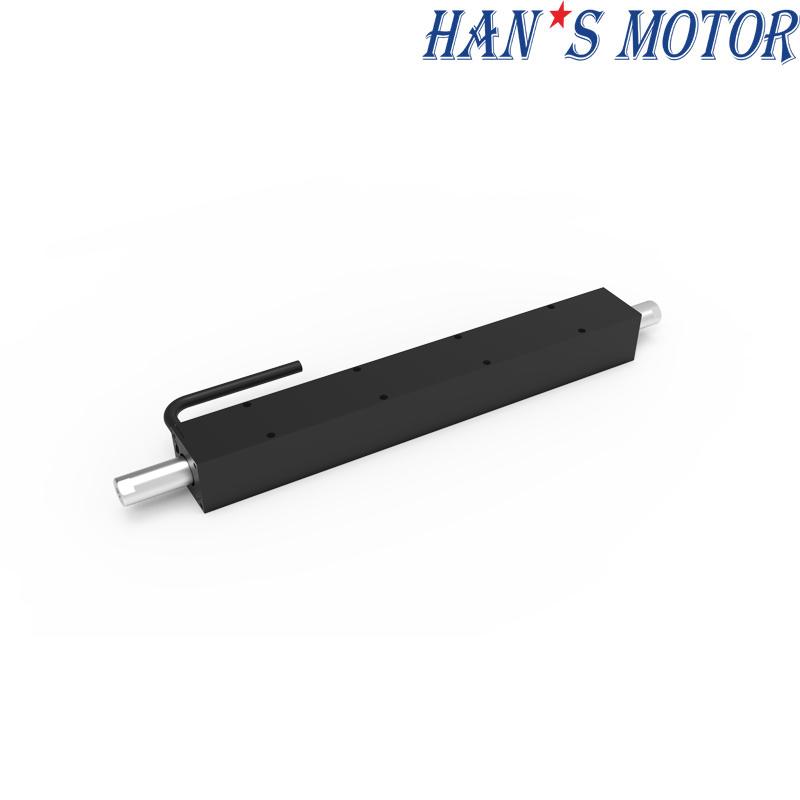

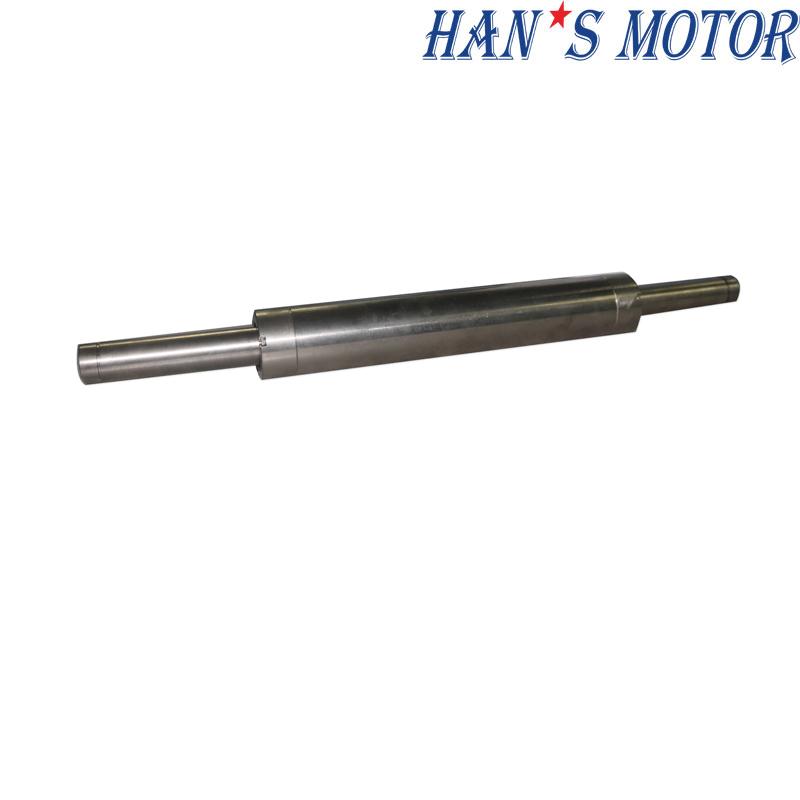

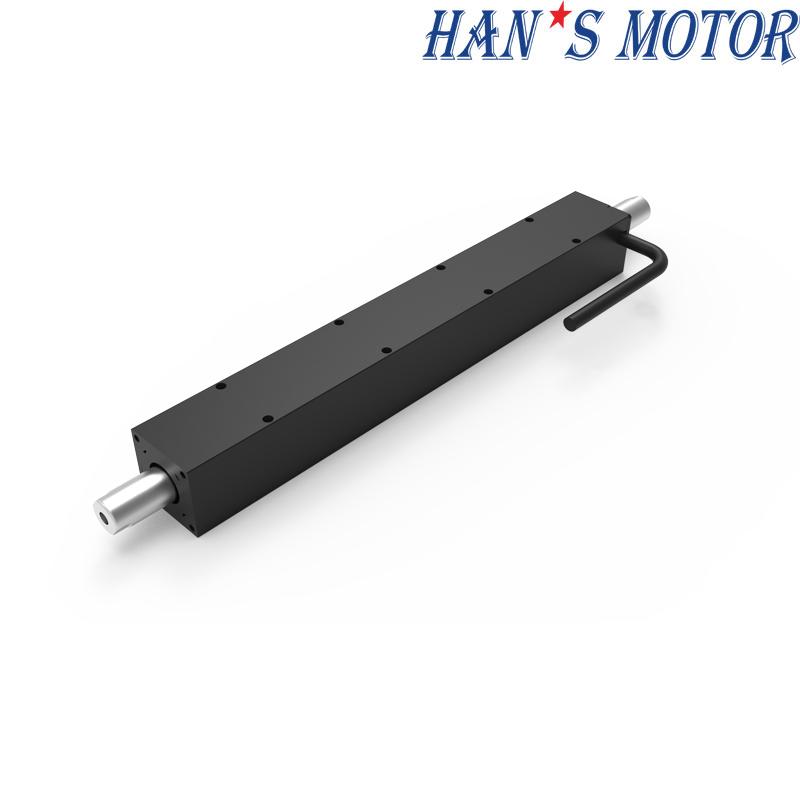

What is tubular linear motor？
A: the mover and stator are use closed cylindrical structure, no lateral edge effect. Hall sensor and circuit integrated in the mover, through signal feedback to achieve positioning. External position sensors can also be connected to achieve higher precision requirements.
Features:
1. Compact structure, smooth movement
2. High acceleration, maximum up to 10g
3. easy to maintenance, long service life
4. High repetition accuracy. The accuracy depends on the position detection element, with appropriate feedback device can up to sub-micron level
