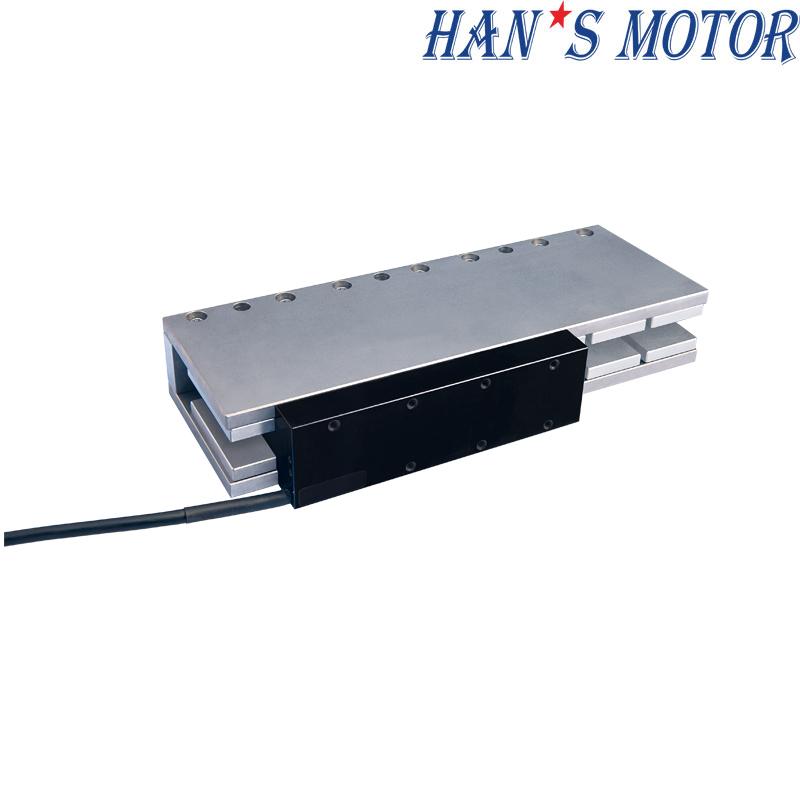

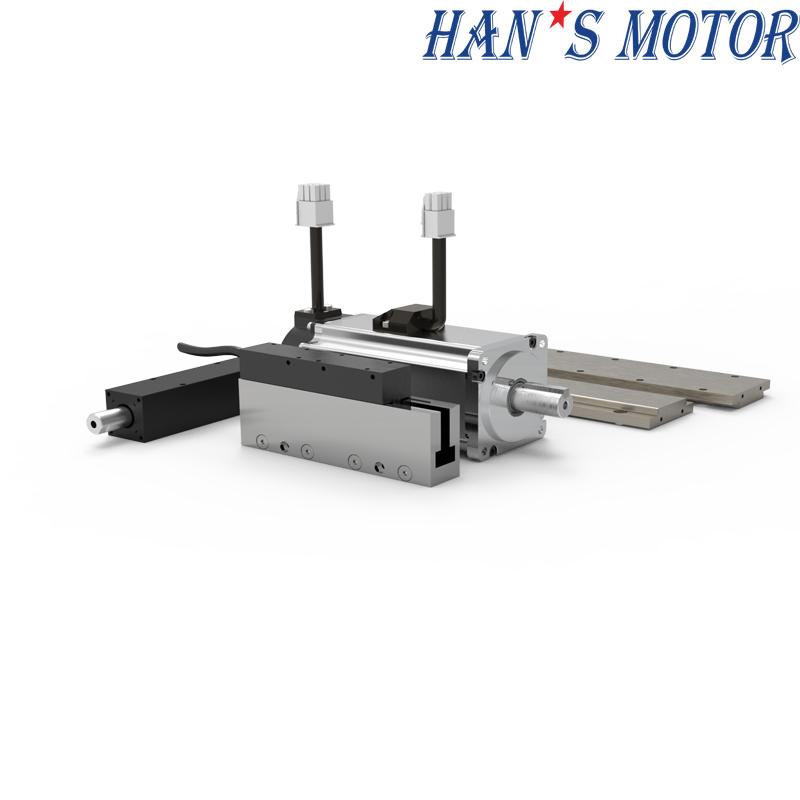

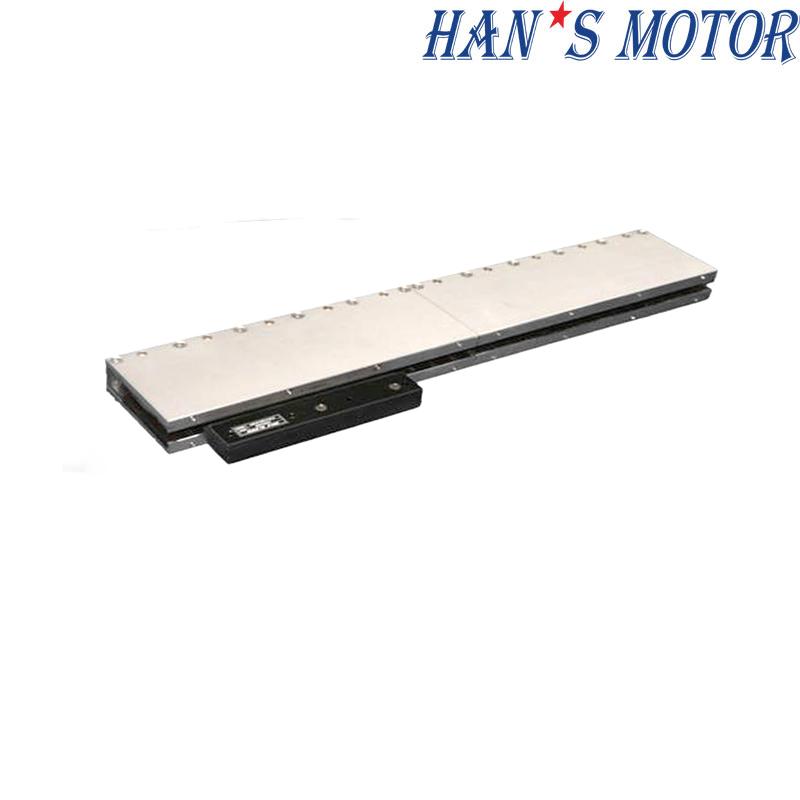

High precision u-type 1872N peak force coreless linear motor LSMU5 for semiconductor industry

Features:

1. Coreless,zero cogging effect

2. Winding compact design, high thrust density

3. High acceleration, zero maintenance

4. Optional hall sensor

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product nameHigh precision u-type 1872N peak force coreless linear motor LSMU5 Appied to semiconductor industry


Specifications

Mover Spec: LSMU510xxxx-x-H-NC-N-D00.5
101A-S 201A-S 201A- P 301A-S 301A- P 402A-S 402A- P 108A-S
501A- S 501A- P 601A-P 601A- P
Performance Parameters
Symbol
 Unit   Series Series
Parallel
Series
Parallel
Series
Parallel
Series
Series
Parallel
Series
Parallel
Continuous Force (Tmax)
Fc N 56 112 112 168 168 224 224 249 280 280 336 336
Peak Force
Fp N 317 624 624 936 936 1248 1248 1387 1560 1560 1872 1872
Motor Constant
Km25 N//Sqrt (W)
10.2 14.4 14.4 17.7 17.8 20.5 20.4 21.6 22.9 22.9 24.9 25.2
Max.Continuous Power Dissipation
Pc W 41.4 82.8 82.8 124.2 122.0 163.4 165.6 181.9 204.8 204.8 250.6 244.0
Continuous Current (Tmax)
Ic Arms 2.3 2.3 4.6 2.3 4.6 2.3 4.6 2.3 2.3 4.6 2.3 4.6
Peak Current (1S)
Ip Arms 13.0 13.0 26.0 13.0 26.0 13.0 26.0 9.2 13.0 26.0 13.0 26.0
Force Constant (25℃,±5%)
Kf N/Arms
24.4 48.7 24.4 73.0 36.5 96.0 48.0 108.0 120.0

60.0

144.0 72.0
Back EMF Constant (25℃,±5%)
Ke Vrm/rad /s
8.1 16.2 8.1 24.3 12.2 32.0 16.0 36.0 40.0 20.0 48.0 24.0
Electrical Resistance (25℃,±5%)P-P
R Ω
3.8 7.6 1.9 11.4 2.8 15.0 3.8 16.7 18.8 4.7 23.0 5.6
Inductance          (25℃,±20%)P-P
L mH 3.6 7.0 1.8 9.5 2.6 14.0 3.5 17.2 17.5 4.4 21.0 5.3
Max Coil Temperature
Tmax

120 120 120
120
120
120
120
120 120 120 120
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 60 60
60
60
60 60 60 60 60 60 60
60
Magnetic Attraction
Fa kN 0.0 0.0
0.0
0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Max.DC Bus Voltage
Ubus V 330 330
330
330
330
330
330
330 330 330 330
330
Vmax,Fc@Vbus=310Vdc
Vmax,Fc
m/s 14.6 6.9 14.6 4.4 9.5 3.1 7.0 2.7 2.3 5.5 1.8 4.4
Vmax,Fp@Vbus=310Vdc
Vmax,Fp
m/s
10.8 3.4 10.8 0.8 5.9 0.0 3.4 0.4 0.0 1.9 0.0 0.9
Vmax,0@Vbus=310Vdc
Vmax,0
m/s
15.4 7.7 15.4 5.1 10.3 3.9 7.8 3.4 3.1 6.2 2.6 5.2
Mover Mass
Mp Kg 0.4 0.7 0.7 1.0 1.0 1.3 1.3 1.3 1.7 1.7 2.0 2.0
Stator Mass within unit length
Ms Kg/m 15.0 15.0
15.0
15.0 15.0 15.0 15.0 15.0
15.0
15.0
15.0 15.0


Dimension

u channel linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMU510101A-S-H-NC-N-D00.5
61 1 3
LSMU510201A-S-H-NC-N-D00.5
121
3
7
LSMU510201A-P-H-NC-N-D00.5
7
LSMU510301A-S-H-NC-N-D00.5
181
5
11
LSMU510301A-P-H-NC-N-D00.5
11
LSMU510402A-S-H-NC-N-D00.5
241
7
15
LSMU510402A-P-H-NC-N-D00.5
15
LSMU510501A-S-H-NC-N-D00.5
301
9
19
LSMU510501A-P-H-NC-N-D00.5
19
LSMU510601A-S-H-NC-N-D00.5
361
11
23
LSMU510601A-P-H-NC-N-D00.5
23

Remark:  1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
              2. optional temperature sensor.


Stator Length
  Stator model   Stator length TL       N       Stator mounting hole B Stator mounting hole C
LSMU5208A 239.5 4 5 5
LSMU5209A
239.5 3 4 4
LSMU5210A
179.5 2 3 3
LSMU5211A
119.5 1 2 2

Suitable for any mover of this series, stator installation mode can be selected.


Advantages:

1. No gravity, more safe and easy to operate.
2. The stroke can be extended indefinitely.
3. Higher acceleration and deceleration.

4. Zero cogging effect, movement will be more stable and maintain higher accuracy.


Application Case:Visual Inspection

Using linear motor and CCD image detection system, machine vision detection is used to replace manual detection, product images are collected by moving, and various defects are identified by image recognition algorithm. The precise movement of linear motor is very important to ensure the accuracy of image, and the high-speed movement of linear motor can improve the efficiency of detection.

u channel linear motor


Industry Applications:

u channel linear motor


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
