Features:
1. Customized as required
2. High precision, high thrust
3. High speed, high acceleration
4. XY and multi-axis stages can be assembled arbitrarily
Brand:
HAN'S MOTOROrder(MOQ):

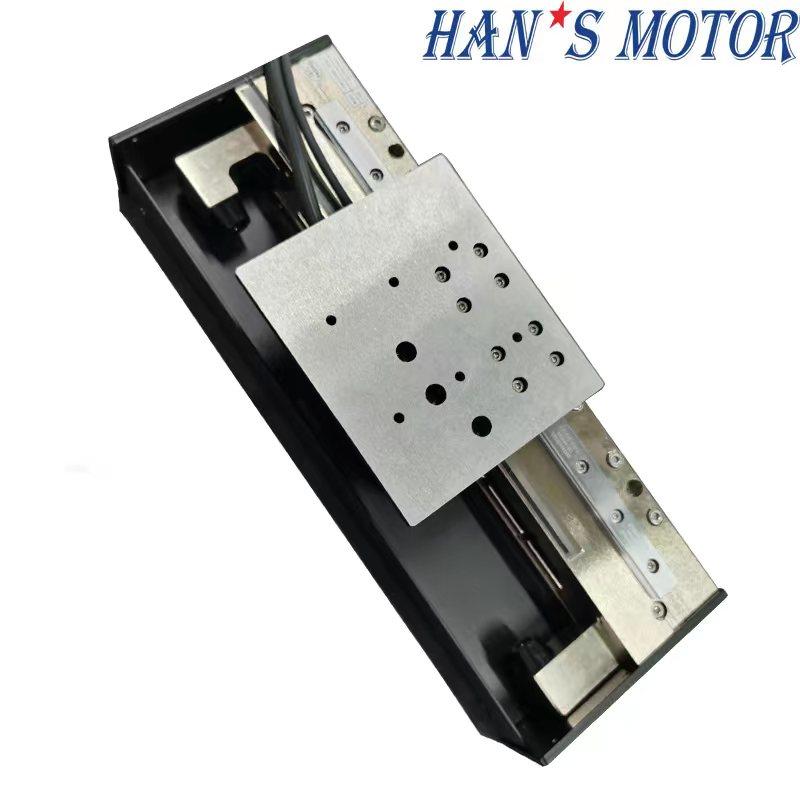

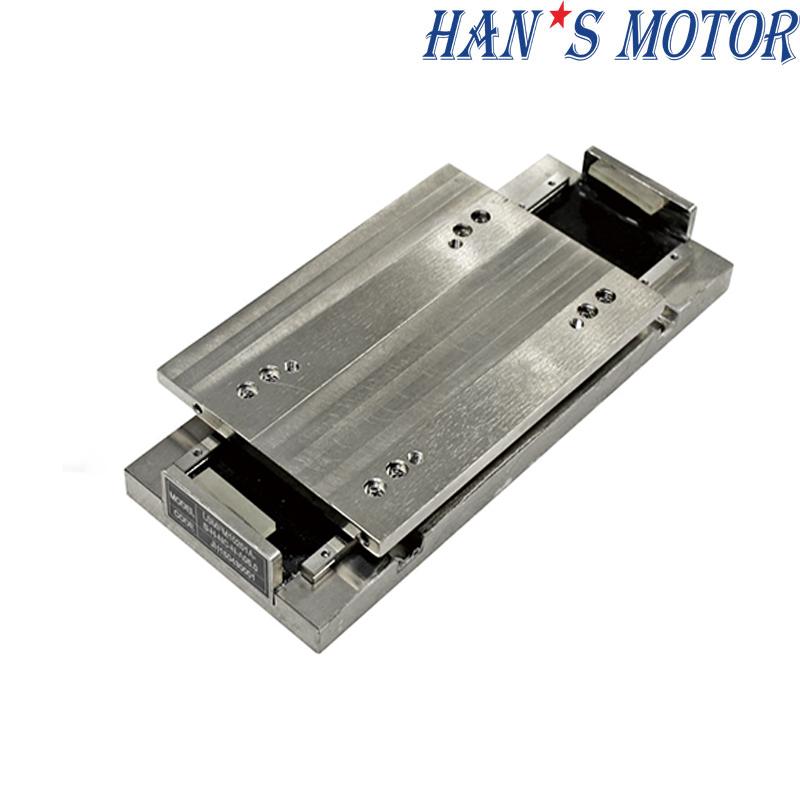

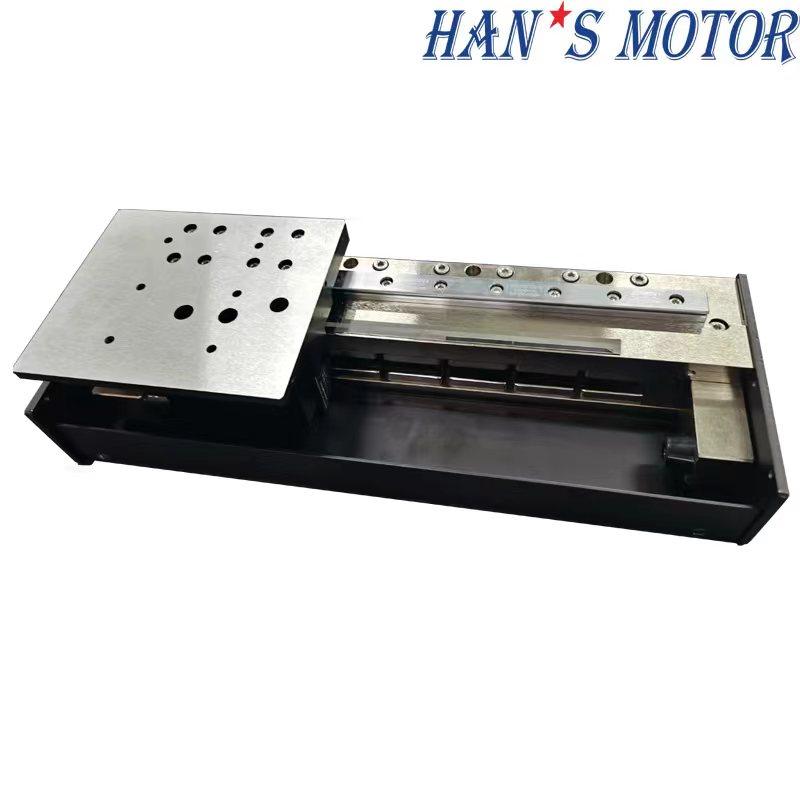

1Product name：Standard Micro Single-Axis Industrial Robot LMA55-25-G01-A High-quality Iron Core Miniature Linear Motor Stage
Characteristic:
1. Adopt open structure, convenient disassembly and maintenance;
2. Built-in grating or magnetic grating feedback system, 0.1μm, 0.5μm, 1μm, 5μm resolutions for optional;
3. Repeat accuracy up to ±1um;
4. Small size and simple structure, suitable for light load and high precision occasions;
5. XY cross stage can be assembled;
What is linear precision stage？
Linear precision stage generally adopts multiple linear motors or linear modules to drive, which directly converts electrical energy into mechanical energy of linear motion, without intermediate transmission device, and directly transfers linear motion to driving parts. It has become the main trend of the development of high speed and high precision motion system to adopt direct linear motor drive system.
Linear precision stages has been widely used in the field of electronic processing, such as polishing machine, lithography, etching machine, large area of liquid crystal display panel manufacturing and testing, optical scanning etc. Those working stages all need to meet the positioning accuracy, moving speed, travel distance and fast reaction ability and so on.
| Model: | LMA55-25-XXX-A |
| G01 | Grating feedback, resolution: 0.1μm |
| G05 |
Grating feedback, resolution: 0.5μm |
Motor and Stage Specifications
|
Motor specifications |
||
|
|
Units | Value |
|
Continuous Force (Tmax） |
N | 6.5 |
|
Peak Force |
N | 26 |
|
Motor Constant |
N√W |
1.65 |
|
Max.Continuous Power Dissipation |
W | 15.46 |
|
Continuous Current (Tmax） |
Arms | 0.8 |
|
Peak Current (1S) |
Arms |
3.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
8.1 |
|
Back EMF Constant (25℃，±5%） |
Vrms/m/s | 2.7 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
11.5 |
|
Inductance(25℃，±20%）P-P |
μm |
0.31 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm | 36 |
|
Magnetic Attraction |
N | 51 |
|
Stage specifications |
||
|
|
Units | Value |
|
Max. Load |
kg | 2.5 |
|
Effective Stroke |
mm | 25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s | 300 |
|
Repeat accuracy |
μm |
±0.5 |
|
Weight |
kg | 0.35 |
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH |
|

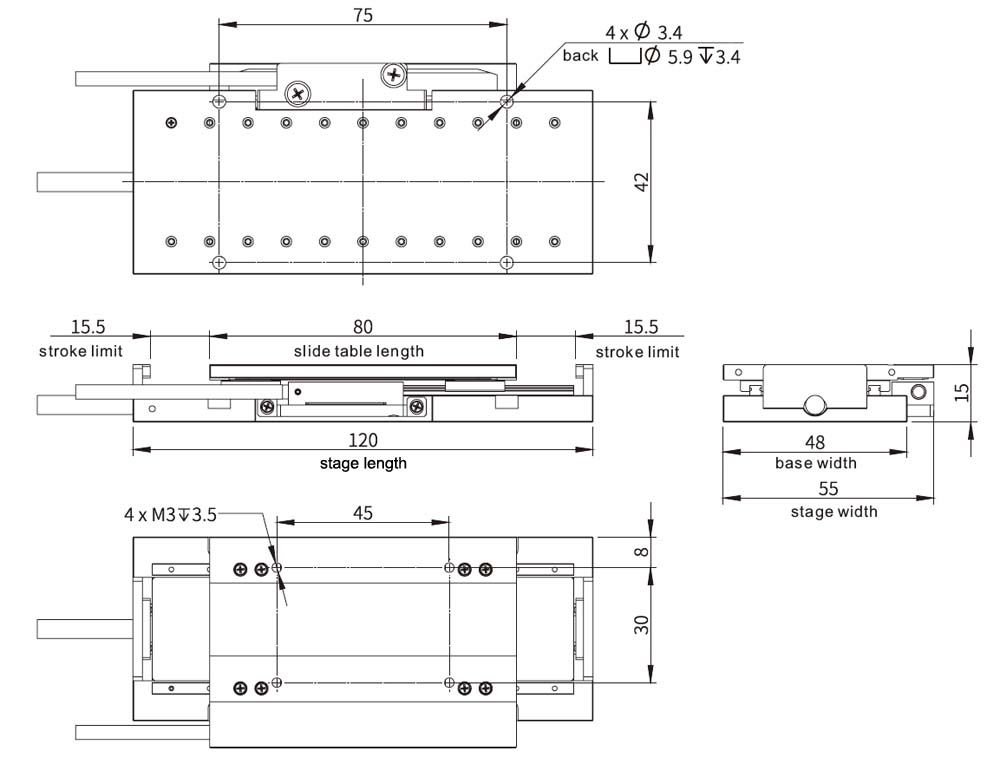

Installation dimensions
Laser Group Show

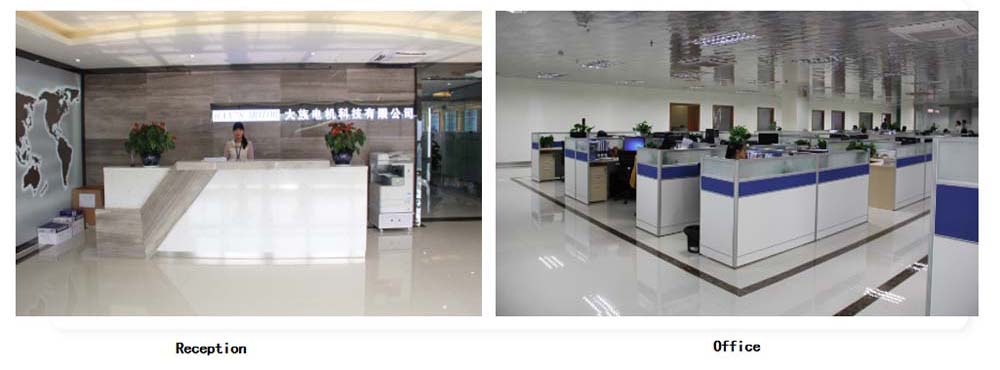

Our Company Show

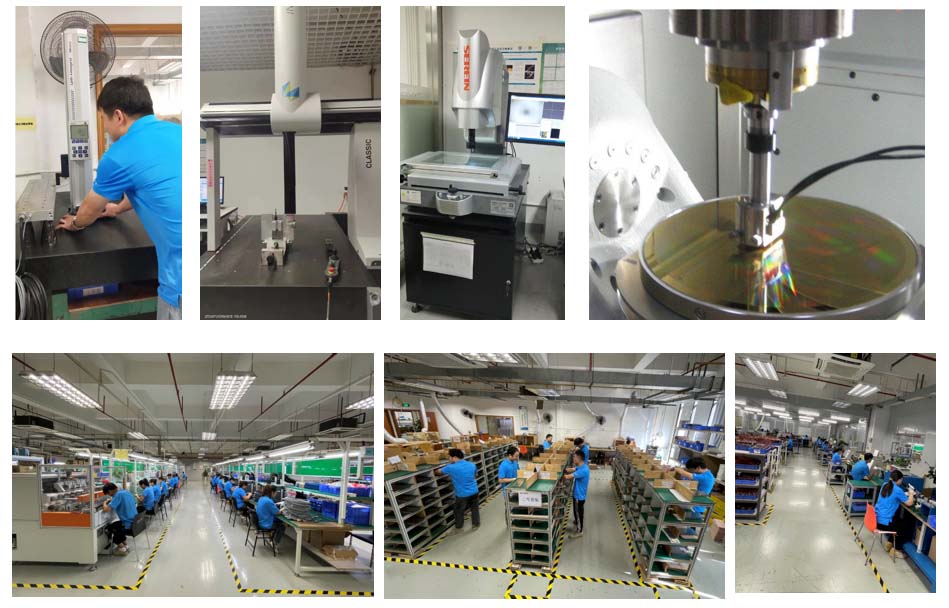

Production Center Show
Packaging & Delivery
Packaging Details.: plywood packing
