Features：
1. Big thrust, high rigidity
2. Good heat dissipation
3. Maintenance-free, low cost
Brand:
HAN'S MOTOROrder(MOQ):

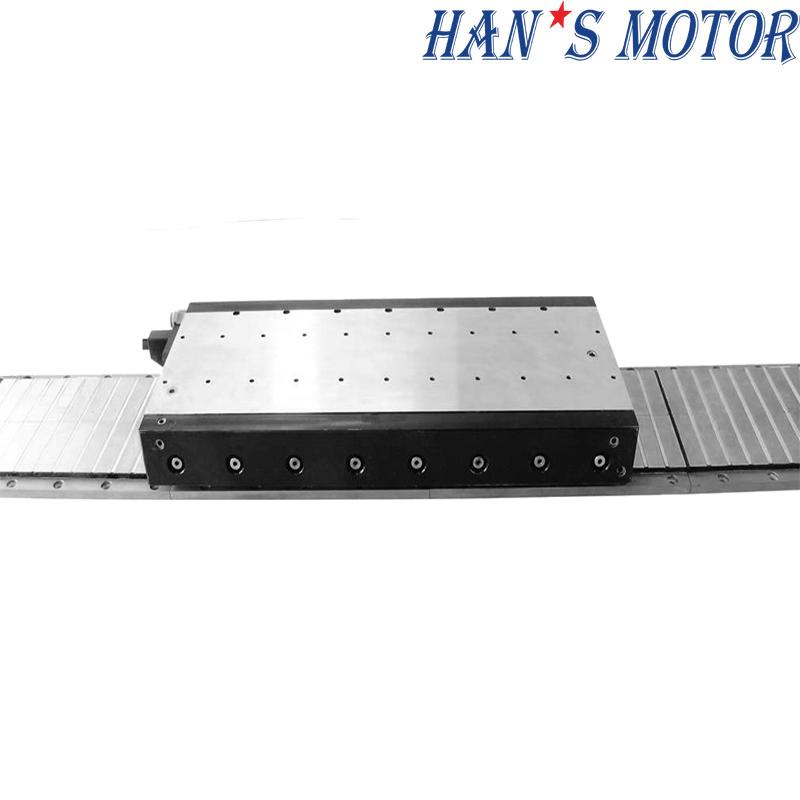

1Product name：LSMF1 series utra-thin high torque iron core linear motor
Advantages：
1. High efficiency:
the moving speed is more than 1 times higher than servo motor.
2. Isolation cooling:
Proprietary cooling structure design, low temperature rise < 3K (Celsius).
3. High protection
level: IP65 high protection level, suitable for harsh environment.
4. High precision:
ultra-high positioning accuracy, bidirectional repetitive positioning accuracy
up to 1μm.
Specifications
|
Mover Spec: LSMF110xxxx-x-H-NC |
101A-S |
203A-S |
302A-S |
302C-S | 401A-S | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Series |
Series | Series |
|
Continuous Force (Tmax） |
Fc |
N |
115 | 230 |
340 |
340 | 453 |
|
Peak Force |
Fp |
N |
230 | 460 |
680 |
680 | 900 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
19.8 | 27.7 |
33.3 |
31.9 | 38.3 |
|
Max.Continuous Power Dissipation |
Pc | W | 46 | 95 |
143 |
156 | 192 |
|
Continuous Current (Tmax） |
Ic |
Arms |
3.2 | 3.2 |
3.2 |
5.4 | 3.2 |
|
Peak Current (1S) |
Ip |
Arms |
6.4 | 6.4 |
6.4 |
11.0 | 6.4 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
36 | 71 |
107 |
62.8 | 142 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
12 | 24 |
36 |
20.9 | 47.5 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
2.2 | 4.5 |
6.8 |
2.6 | 9.1 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
20 | 40 |
60 |
35 | 80 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 |
120 |
120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
42 | 42 |
42 |
42 | 42 |
|
Magnetic Attraction |
Fa |
kN |
0.7 | 1.4 |
2.0 |
2.0 | 2.7 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 |
600 |
600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
9.3 | 4.5 |
2.8 |
4.6 | 2.0 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
7.6 | 3.5 |
2.1 |
3.1 | 1.4 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
10.4 | 5.3 |
3.5 |
5.9 | 2.6 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
16.5 | 8.1 |
5.3 |
8.3 | 3.9 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
13.7 | 6.6 |
4.2 |
5.7 | 3.0 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
18.1 | 9.2 |
6.1 |
10.4 | 4.6 |
|
Mover Mass |
Mp |
Kg |
1.5 | 3.1 |
4.4 |
4.4 | 5.7 |
|
Stator Mass within unit length |
Ms |
Kg/m |
1.3 |
6.2 |
6.2 |
6.2 | 6.2 |

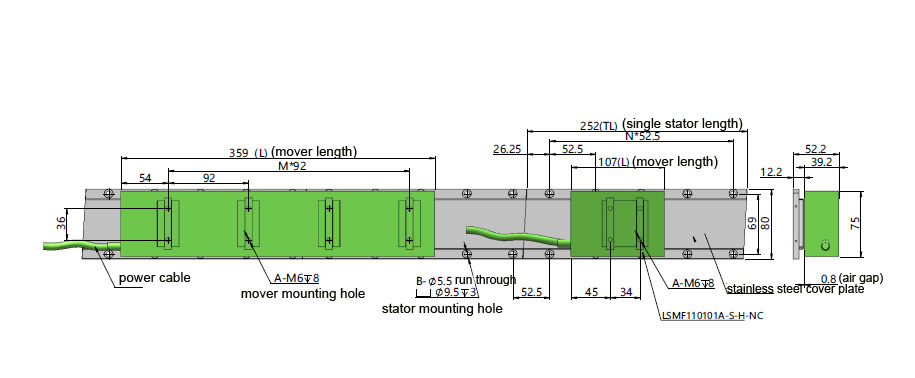

Dimension
| Mover Length | |||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
LSMF110101A-S-H-NC |
107 | / | 4 |
|
LSMF110203A-S-H-NC |
191 | 1 | 4 |
|
LSMF110203B-S-H-NC |
191 | 1 | 4 |
|
LSMF110302A-S-H-NC |
275 | 2 | 6 |
|
LSMF110302B-S-H-NC |
275 | 2 | 6 |
|
LSMF110302C-S-H-NC |
275 | 2 | 6 |
|
LSMF110401A-S-H-NC |
359 | 3 | 6 |
|
LSMF110101A-S-H-NC |
359 | 3 | 8 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*d, the moving minimum bending radius of chain is 5*d， the cable length and terminal can be customized.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMF1209A | 210 | 3 | 8 |
| LSMF1201A | 252 | 4 | 10 |
| LSMF1214A | 147 | 2 |
|
|
LSMF1215A |
105 | 1 | 6 |
Suitable for any mover of this series.

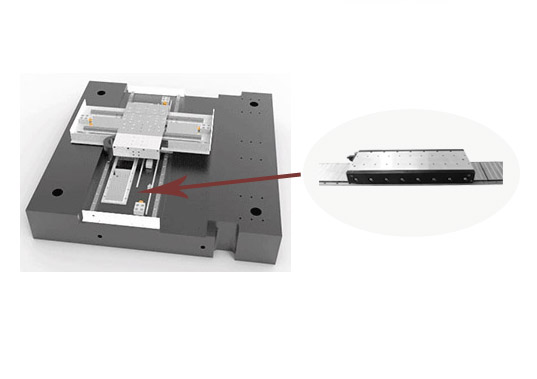

Application Cae：
Laser industry -
cutting applications
Features: Laser cutting, can match with marble, ultra-high precision, vertical height.
HAN'S LASER Group
Our Company Show
Production Line Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
