Features：
1. Core, low cogging effect
2. High thrust, high ridigity
3. Natureal cooling structure
2. Simple structure, long service life
5. Optional hall sensor
Brand:
HAN'S MOTOROrder(MOQ):

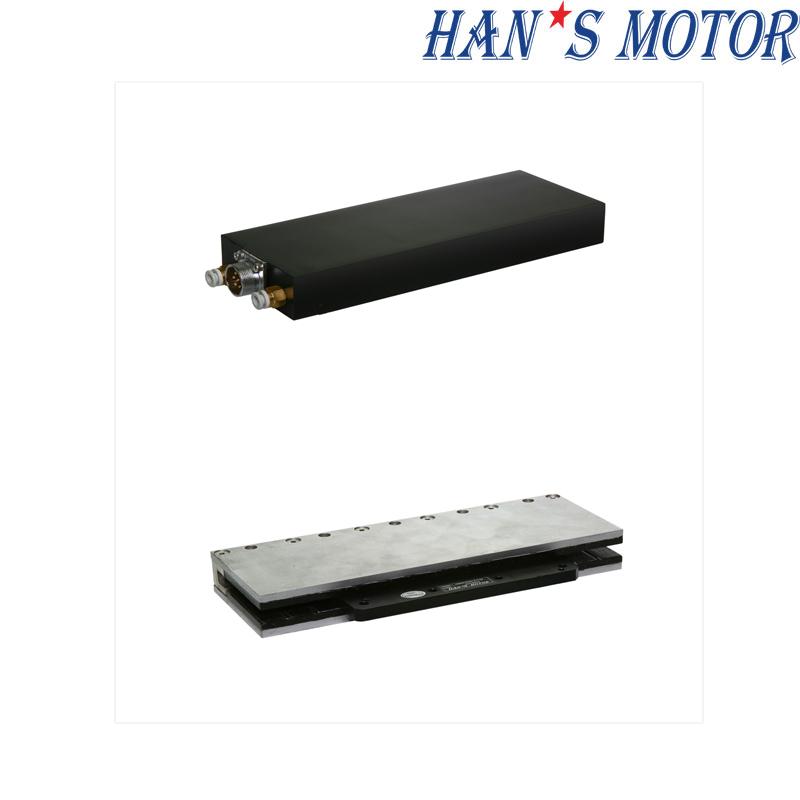

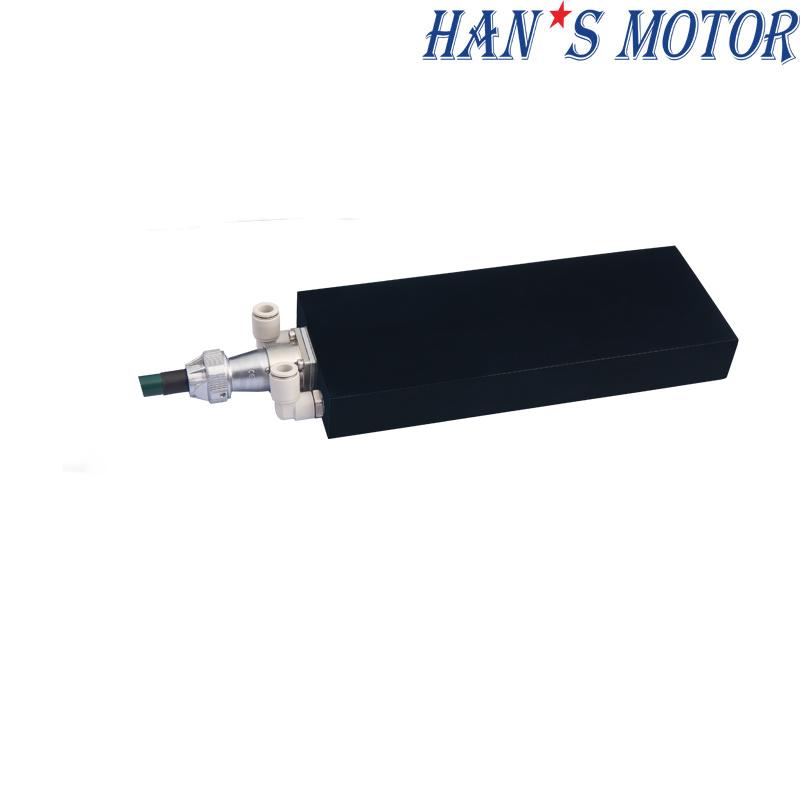

1Product name：High speed and high positioning accuracy iron core flat linear motor LSMFJ-125
Specifications
|
Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 |
104A-S | 204A-P | ||
|
Performance Parameters |
Symbol | Units | Series | Parallel |
|
Continuous Force (Tmax） |
Fc | N | 217 | 416 |
|
Peak Force |
Fp | N | 742 | 1662 |
|
Motor Constant (25℃) |
Km25 | N/Sqrt(W) | 23.9 | 33.5 |
|
Max.Continuous Power Dissipation |
Pc | W | 113 | 211 |
|
Continuous Current (Tmax） |
Ic | Arms | 2.3 | 4.4 |
|
Peak Current (1S) |
Ip | Arms | 9.0 | 18.0 |
|
Force Constant (25℃，±5%） |
Kf | N/Arms | 94.5 | 94.5 |
|
Back EMF Constant (25℃，±5%） |
Ke | Vrms/m/s | 31.5 | 31.5 |
|
Resistance(25℃，±5%）P-P |
R | Ω | 10.4 | 5.3 |
|
Inductance(25℃，±20%）P-P |
L | mH | 37.2 | 16.8 |
|
Max Coil Temperature |
Tmax | ℃ | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 20 | 20 |
|
Magnetic Attraction |
Fa | kN | 1.2 | 2.4 |
|
Max.DC Bus Voltage |
Ubus | V | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s | 3.2 | 3.2 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s | 1.2 | 1.2 |
|
Vmax,0@Vbus=310Vdc |
|
m/s | 3.9 | 3.9 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s | 5.9 | 5.9 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s | 2.8 | 2.8 |
|
Vmax,0@Vbus=537Vdc |
|
m/s | 6.9 | 6.9 |
|
Mover Mass |
Mp | Kg | 1.6 | 3.0 |
|
Stator Mass within unit length |
Ms |
Kg/m |
8.8 | 8.8 |

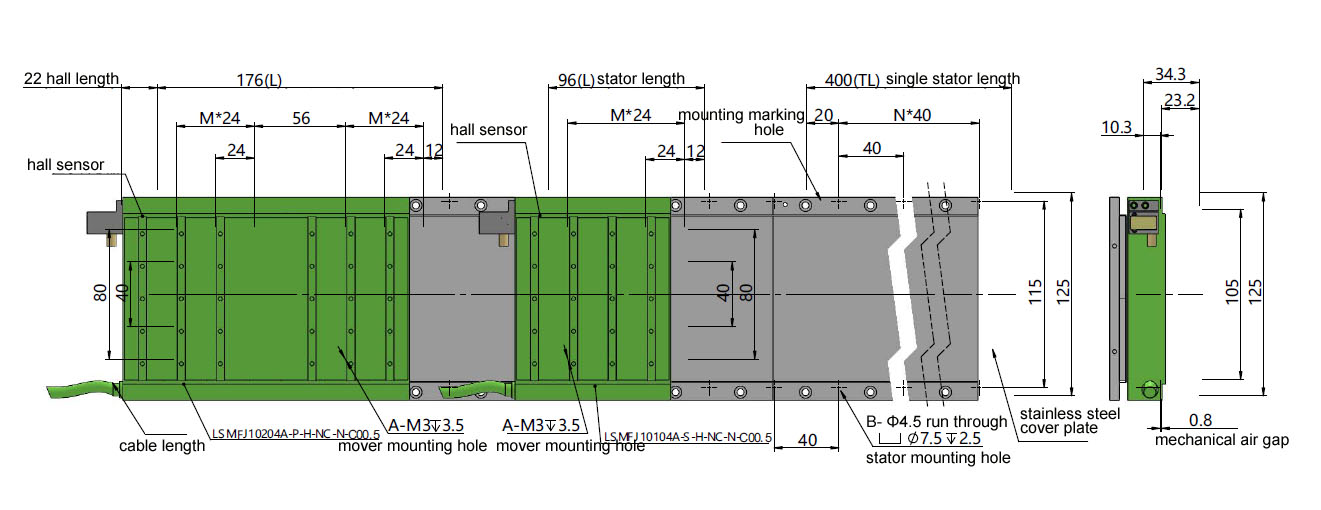

Dimension
|
Mover Length |
|||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
LSMFJ10104A-S-H-NC-N-C00.5 |
96 | 3 | 20 |
|
LSMFJ10204A-P-H-NC-N-C00.5 |
176 | 2 | 30 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
|
LSMFJ2A-W125-L40 |
40 | 0 | 2 |
|
LSMFJ2A-W125-L80 |
80 | 1 | 4 |
|
LSMFJ2A-W125-L200 |
200 | 4 | 10 |
|
LSMFJ2A-W125-L320 |
320 | 7 | 16 |
|
LSMFJ2A-W125-L400 |
400 | 9 | 20 |
Suitable for any mover of this series.
Advantages：
1. Direct drive
direct use of rigid connection between motor and the driven workpiece, without screw, gear, reducer and other intermediate links, to the greatest extent to avoid the drive screw drive system exists in reverse clearance, inertia, friction and lack of rigidity.
2. High speed
The normal peak speed can reach 5-10m/s; while the speed of ball screw is generally limited to 1m/s, the wear is also high.
3. High acceleration
Because no contact friction between mover and stator, linear motor can achieve higher acceleration. The larger linear motor has the ability to achieve acceleration of 3-5G, and the smaller linear motor can achieve more than 30-50g.
4. High precision
Due to the use of direct drive technology, the error caused by the intermediate mechanical drive system is greatly reduced. Using high-precision grating detection to position, improve the accuracy of system, can make the repeated positioning accuracy within 1um, meet the application of ultra-precision occasions.
5. Wide range of motion speed
The speed of linear motor can be realized at least 1um/s and at most 10m/s to meet the needs of various occasions.
