Features：
1. Core technology
2. Low cogging effect
3. Water cooling/Natureal cooling structure
4. Standardization, modularization, high reliability
5. Multi-series, maximum specification peak thrust 20000N
6. Optional hall sensor
7. Customizable development
Brand:
HAN'S MOTOROrder(MOQ):

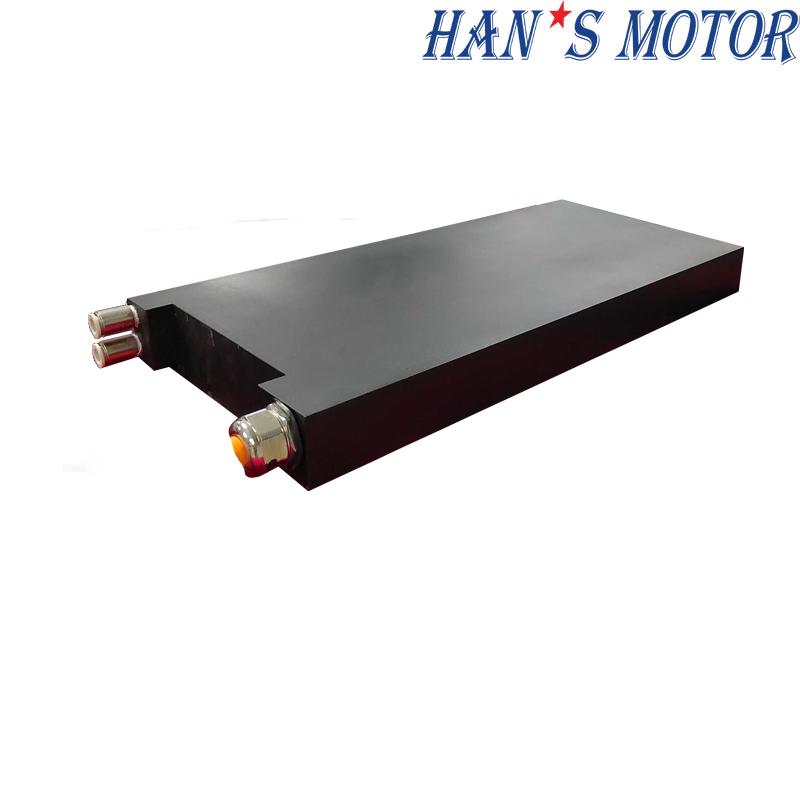

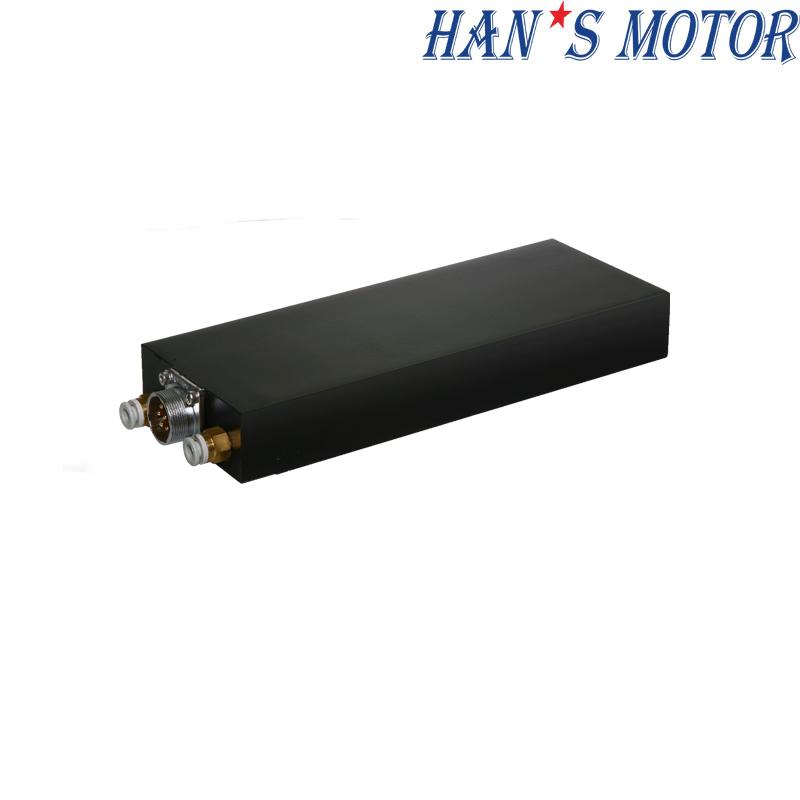

1Product name：High speed continues force 851N flat iron core linear motor LSMF6-71 for PCB industry
Specifications
|
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5 |
501A-S |
501B-S |
502A-S |
502A-P |
503A-P |
503B-P | 504A-P | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Series |
Parallel |
Parallel |
Parallel | Parallel |
|
Continuous Force (Tmax） |
Fc |
N |
195 | 192 | 404 | 404 | 8.5 | 851 | 648 |
|
Peak Force |
Fp |
N |
463 | 442 | 951 | 951 | 1953 | 1958 | 1490 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
24.2 | 24.6 | 35.5 | 35.5 | 51.9 | 51.0 | 45.6 |
|
Max.Continuous Power Dissipation |
Pc | W | 89 | 84 | 178 | 178 | 356 | 382 | 277 |
|
Continuous Current (Tmax） |
Ic |
Arms |
6.0 | 2.8 | 6.0 | 12.0 | 12.0 | 8.0 | 8.0 |
|
Peak Current (1S) |
Ip |
Arms |
18.0 | 8.4 | 18.0 | 36.0 | 36.0 | 24.0 | 24.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
32.5 | 68.6 | 67.3 | 33.7 | 69.6 | 106.4 | 81.0 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
10.8 | 22.9 | 22.4 | 11.2 | 23.2 | 35.5 | 27.0 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
1.2 | 5.2 | 2.4 | 0.6 | 1.2 | 2.9 | 2.1 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
18.0 | 80.7 | 36.0 | 9.0 | 18.0 | 42.1 | 32.4 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
42 | 42 | 42 | 42 | 42 | 42 | 42 |
|
Magnetic Attraction |
Fa |
kN |
0.9 | 0.9 | 1.8 | 1.8 | 3.6 | 3.6 | 2.7 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 | 600 | 600 | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
6.9 | 4.1 | 4.2 | 8.7 | 4.1 | 2.5 | 3.4 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
4.4 | 1.9 | 2.0 | 4.4 | 2.0 | 1.1 | 1.6 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
11.5 | 5.4 | 5.5 | 11.1 | 5.4 | 3.5 | 4.6 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
15.8 | 7.3 | 7.5 | 15.4 | 7.4 | 4.7 | 6.2 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
7.9 | 3.6 | 3.8 | 7.9 | 3.7 | 2.3 | 3.1 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
20.1 | 9.5 | 9.7 | 19.4 | 9.4 | 6.1 | 8.0 |
|
Mover Mass |
Mp |
Kg |
2.1 | 2.1 | 4.0 | 4.0 | 7.5 | 7.5 | 6.0 |
|
Stator Mass within unit length |
Ms |
Kg/m |
5.1 | 5.1 | 5.1 | 5.1 |
5.1 |
5.1 | 5.1 |

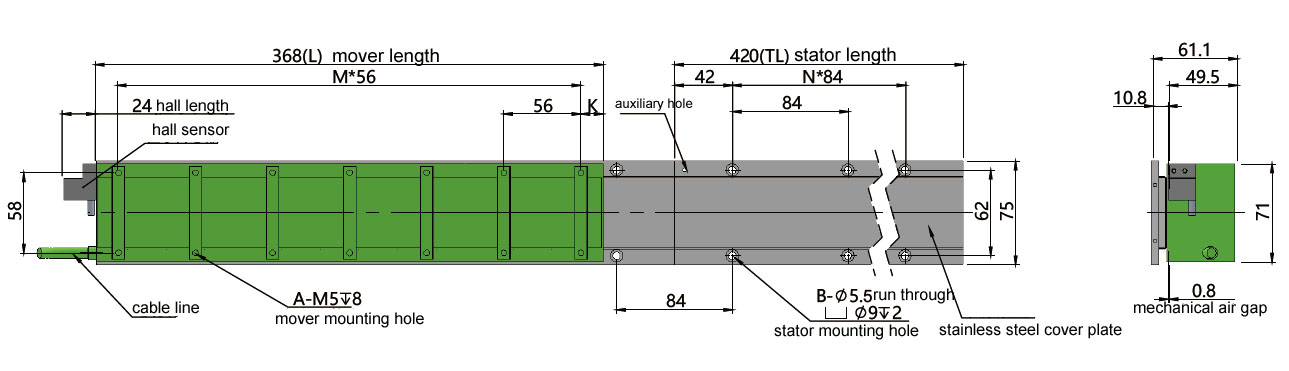

Dimension
| Mover Length | ||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
K |
|
LSMF610501A-S-H-NC-N-C00.5 |
101 | 1 | 4 | 22.5 |
|
LSMF610501B-S-H-NC-N-C00.5 |
101 | 1 | 4 | 22.5 |
|
LSMF610502A-S-H-NC-N-C00.5 |
200 | 3 | 8 | 16 |
|
LSMF610502A-P-H-NC-N-C00.5 |
200 | 3 | 12 | 16 |
|
LSMF610503A-S-H-NC-N-C00.5 |
368 | 6 | 14 | 16 |
|
LSMF610503B-P-H-NC-N-C00.5 |
368 | 6 | 14 | 16 |
|
LSMF610504A-P-H-NC-N-C00.5 |
278 | 4 | 10 | 27 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMF6201E | 168 | 1 | 4 |
| LSMF6202E | 252 | 2 | 6 |
|
LSMF6203E |
420 | 4 | 10 |
Suitable for any mover of this series.
Advantages：
1. Fast speed, high acceleration
2. Hhigh rigidity, large thrust
3. High accuracy, repeating accuracy can reach to ±1um
4. Simple structure, maintenace-free
3. No mechanical wear, long service life
5. Low noise, quiet operation
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
