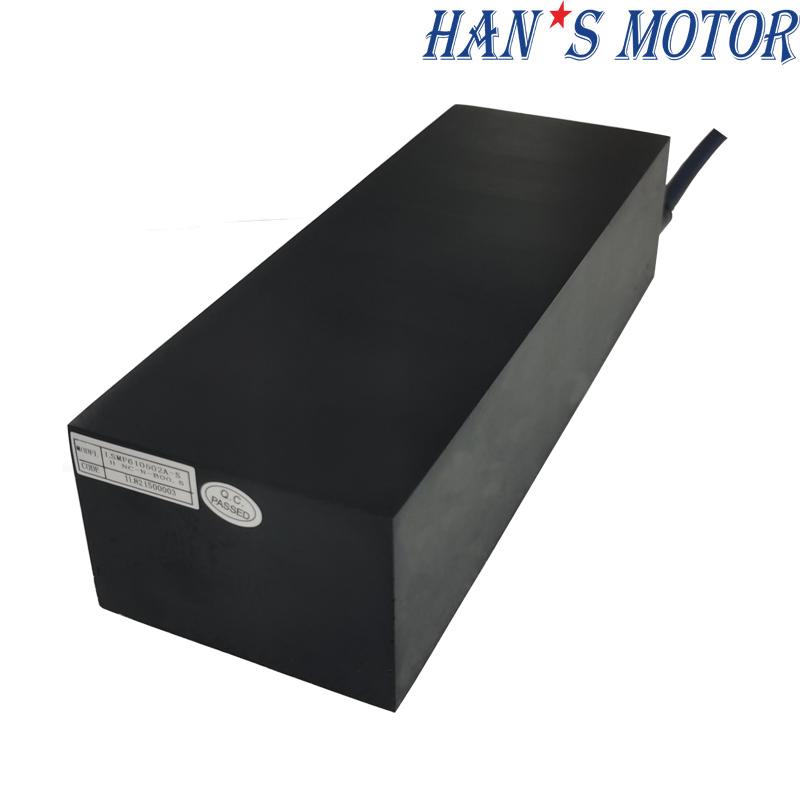

iron core motor mover and stator

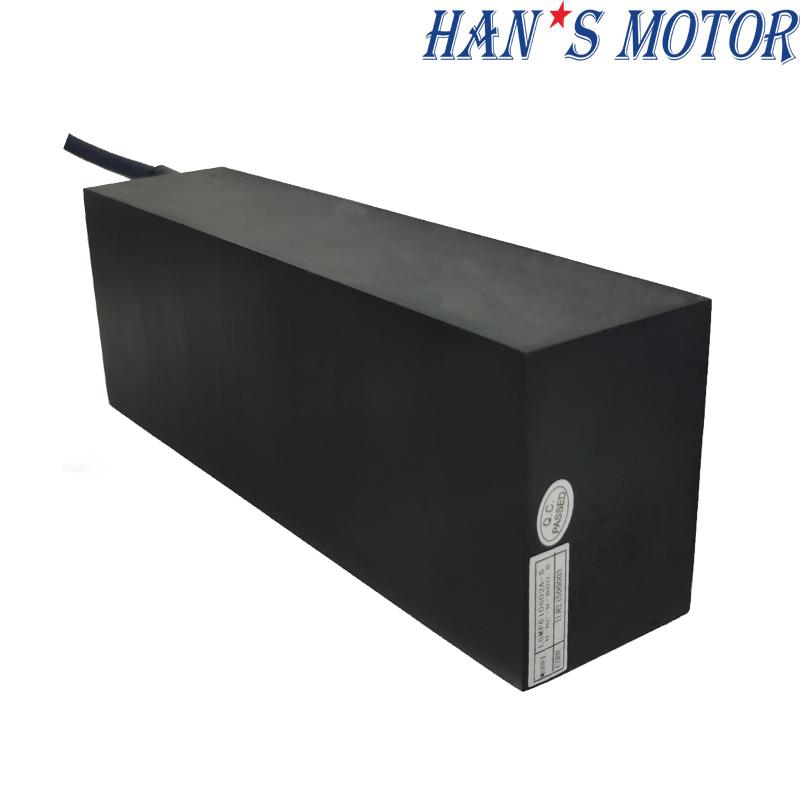

iron core motor mover and stator

Iron Core Linear Motor LSMF2 Series Iron Core Motor Forcer And Stator Used in Laser Cutting Machine

Features:

1. Continuous thrust 500~1000N

2. Peak thrust 1000~2000N

3. High rigidity, maintenance-free

4. High precision, high resolution

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:Iron Core Linear Motor LSMF2 Series Iron Core Motor Forcer And Stator Used in Laser Cutting Machine


Advantages:

1. Simple structure: Because linear motors do not need additional devices to turn rotate motion into linear motion, the structure of system itself is greatly simplified, and the weight and volume are greatly reduced.

2. High positioning accuracy: When linear motion is needed, linear motors can realize direct transmission, eliminating various positioning errors caused by intermediate links. Therefore, the positioning accuracy is very high.

3. Fast reaction speed, high sensitivity, good tracking effect. Linear motors are easy to be supported by magnetic suspension, there is always a certain air gap between the forcer and the stator without contact, eliminating the contact friction resistance between the forcer and the stator, and greatly improving the sensitivity, speed and servo performance of system.

4. Safe and reliable, long service life. Linear motors have no contact transmission power, almost zero mechanical friction loss, low failure rate, maintenance-free, safe and reliable operation, long service life.


Specifications

Mover Spec: LSMF110xxxx-x-H-NC
201A-S   201B-S
 301A-S
401A-S
Performance Parameters
 Symbol     Units

Continuous Force (Tmax)
Fc      N
500 500 750 1000
Peak Force
Fp      N
1000 1000 1500 2000
Motor Constant (25℃)
Km25 N/Sqrt(W)
47.1 46.4 58.5 67.9
Max.Continuous Power Dissipation
Pc      W 155 160 226 297
Continuous Current (Tmax)
Ic     Arms
7.6 5.0 7.6 7.6
Peak Current (1S)
Ip     Arms
15.2 10.0 15.2 15.2
Force Constant (25℃,±5%)
Kf   N/Arms
65.5 99.7 98.3 131
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
21.8 33.2 32.8 43.7
Resistance(25℃,±5%)P-P
R      Ω
1.3 3.1 1.9 2.5
Inductance(25℃,±20%)P-P
L     mH
12.2 18 17 24.4
Max Coil Temperature
Tmax     ℃
120 120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

    mm
42 42 42 42
Magnetic Attraction
Fa     kN
3.0 3.0 4.5 6.0
Max.DC Bus Voltage
Ubus      V
600 600 600 600
Vmax,Fc@Vbus=310Vdc

    m/s
5.1 3.3 3.3 2.4
Vmax,Fp@Vbus=310Vdc

    m/s
4.3 2.9 2.8 1.9
Vmax,0@Vbus=310Vdc

    m/s
5.7 3.7 3.8 2.8
Vmax,Fc@Vbus=537Vdc

    m/s
9.2 6.1 6.1 4.4
Vmax,Fp@Vbus=537Vdc

    m/s
7.9 5.5 5.2 3.7
Vmax,0@Vbus=537Vdc

    m/s
9.9 6.5 6.6 4.9
Mover Mass
Mp      Kg
5.8 5.8 8.4 11.2
Stator Mass within unit length
Ms     Kg/m
11

11

11 11

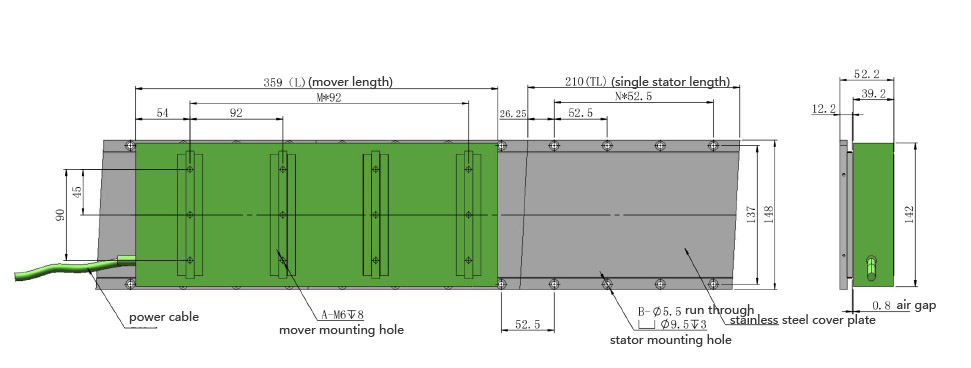

Dimension

iron core motor mover and stator


Mover Length
Mover model
 Mover length L
      M        Mover mounting hole A
LSMF210201A-S-H-NC
191 1 6
LSMF210201B-S-H-NC
191 1 6
LSMF210301A-S-H-NC
275 2 9
LSMF210401A-S-H-NC
359 3 12

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*d, the moving minimum bending radius of chain is 5*d, the cable length and terminal can be customized.

               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF2201A 210 3 8
LSMF2203A 105 1 4
LSMF2204A 420 7 16

Suitable for any mover of this series.


Application Fields:

Because linear motors can do super precision linear motion, widely applied for: robotics, mechanical arm, the maglev train, precision light carving industry, PCB industry, laser precision cutting industry, semiconductor industry, CNC machine industry, flat panel display FPD detecting industry, battery energy industry, intelligent factory key technology and the overall plan and so on.

iron core motor mover and stator


HAN'S LASER Group

linear motor with iron core

Our Company Show

linear motor with iron core

Production Line Show

linear motor with iron core


Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
