Features：
1. High accuracy
2. Large thrust, high rigid
3. Core technology, low cogging effect
4. Fast reaction speed, high sensitivity, good tracking effect
5. Customizable development
Brand:
HAN'S MOTOROrder(MOQ):

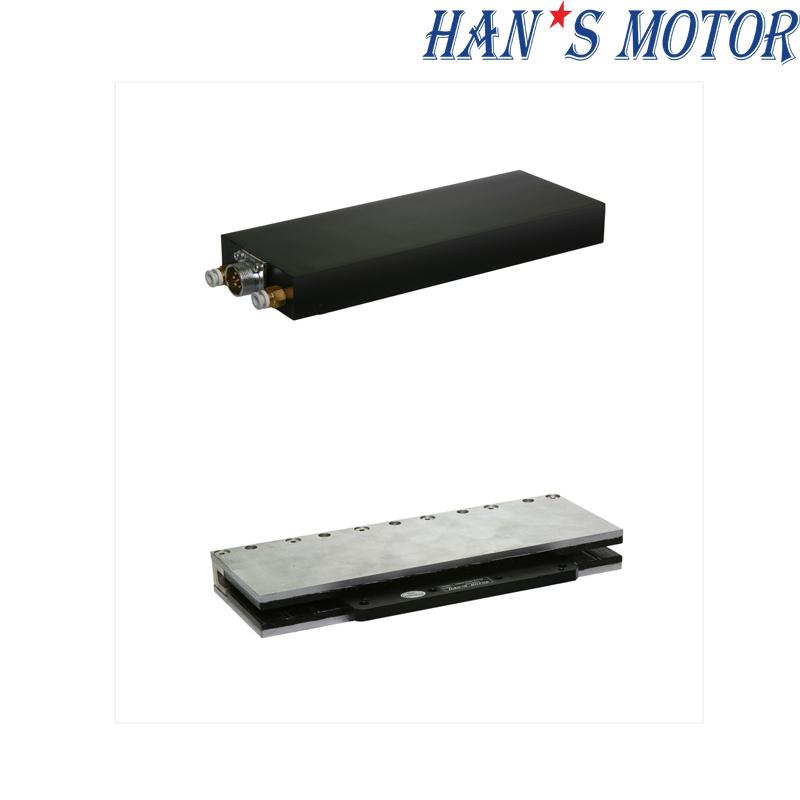

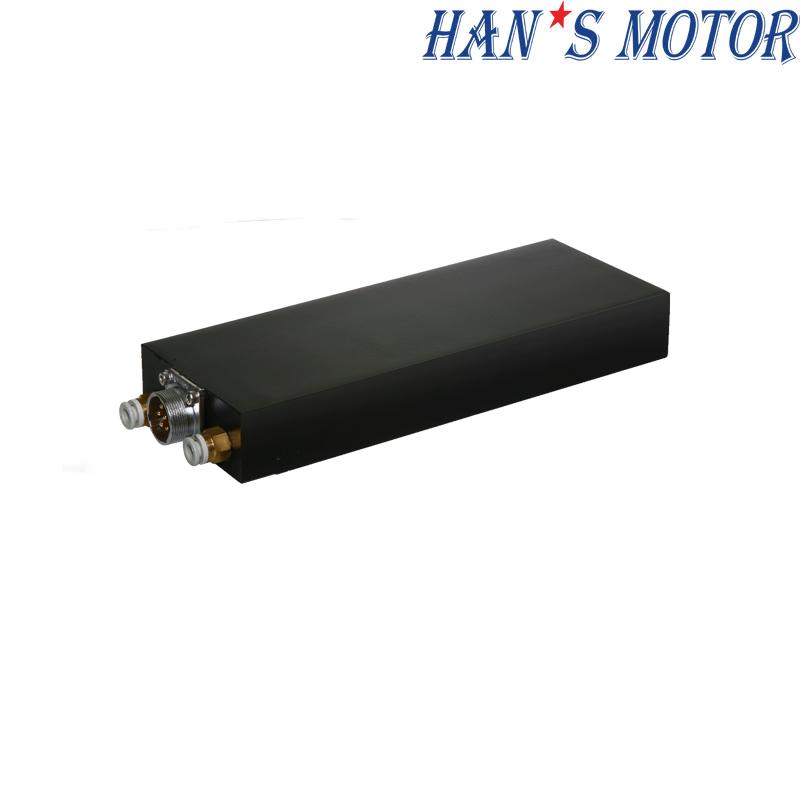

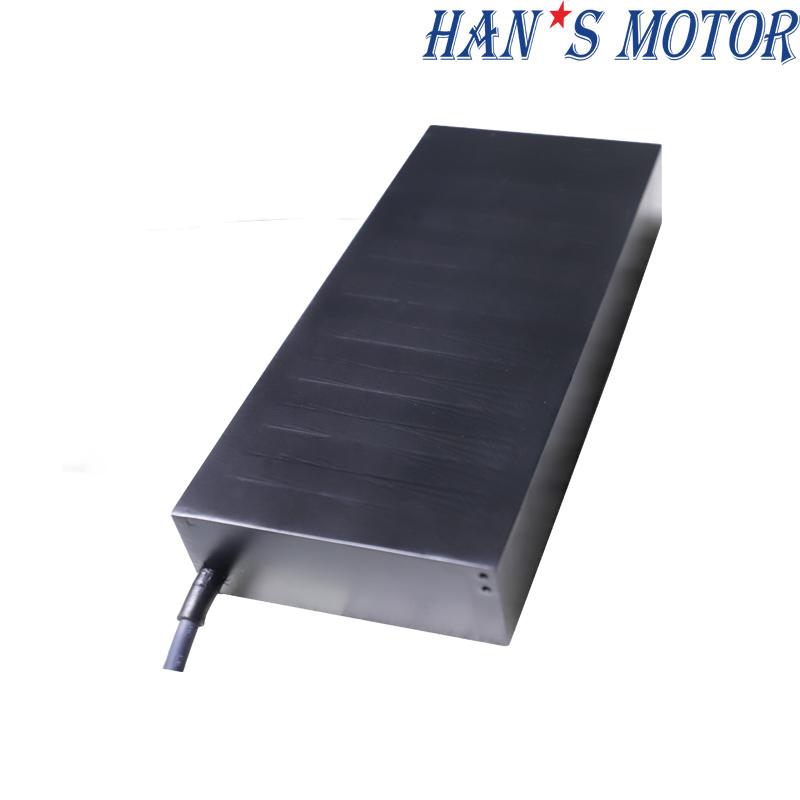

1Product name：Flat iron core peak force 1490N natureal cooling linear motor LSMF6-50
Specifications
|
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5 |
701A-S |
701B-S |
702A-S |
702B-S |
703A-S |
703A-P |
704A-S | 704A-P | ||
|
Performance Parameters |
Symbol |
Units |
Series |
Series |
Series |
Series |
Series |
Parallel |
Series | Parallel |
|
Continuous Force (Tmax） |
Fc |
N |
109 | 109 | 226 | 212 | 468 | 468 | 361 | 362 |
|
Peak Force |
Fp |
N |
259 | 259 | 532 | 500 | 1090 | 1090 | 830 | 834 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
15.6 | 16.1 | 23.6 | 23.4 | 34.5 | 35.6 | 25.4 | 30.2 |
|
Max.Continuous Power Dissipation |
Pc | W | 67 | 63 | 126 | 113 | 252 | 237 | 276 | 198 |
|
Continuous Current (Tmax） |
Ic |
Arms |
6.0 | 2.8 | 6.0 | 4.5 | 6.0 | 12.0 | 3.7 | 8.0 |
|
Peak Current (1S) |
Ip |
Arms |
18.0 | 8.4 | 18.0 | 13.5 | 18.0 | 36.0 | 11.1 | 24.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
18.3 | 38.7 | 37.5 | 47.1 | 78.0 | 39.0 | 97.5 | 75.3 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
6.1 | 12.9 | 12.5 | 15.7 | 26.0 | 13.0 | 32.5 | 15.1 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
0.9 | 3.9 | 1.7 | 2.7 | 3.4 | 0.8 | 9.8 | 1.5 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
11.8 | 53 | 23.6 | 37.4 | 47.2 | 11.8 | 85.0 | 18.2 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
|
Magnetic Attraction |
Fa |
kN |
0.5 | 0.5 | 1.0 | 1.0 | 2.0 | 2.0 | 1.5 | 1.5 |
|
Max.DC Bus Voltage |
Ubus |
V |
600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
15.1 | 7.0 | 7.3 | 5.9 | 3.4 | 7.1 | 2.5 | 6.3 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
7.1 | 3.2 | 3.4 | 2.7 | 1.4 | 3.3 | 0.9 | 3.1 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
20.5 | 9.7 | 10.0 | 7.9 | 4.8 | 9.6 | 3.8 | 8.3 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
26.6 | 12.4 | 12.9 | 10.5 | 6.1 | 12.7 | 4.9 | 11.3 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
12.5 | 5.8 | 6.1 | 5.0 | 2.8 | 6.1 | 2.2 | 5.7 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
35.7 | 16.9 | 17.4 | 13.9 | 8.3 | 16.7 | 6.7 | 14.4 |
|
Mover Mass |
Mp |
Kg |
1.3 | 1.3 | 2.6 | 2.6 | 4.9 | 4.9 | 3.8 | 3.8 |
|
Stator Mass within unit length |
Ms |
Kg/m |
3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
3.4 |
3.4 | 3.4 |

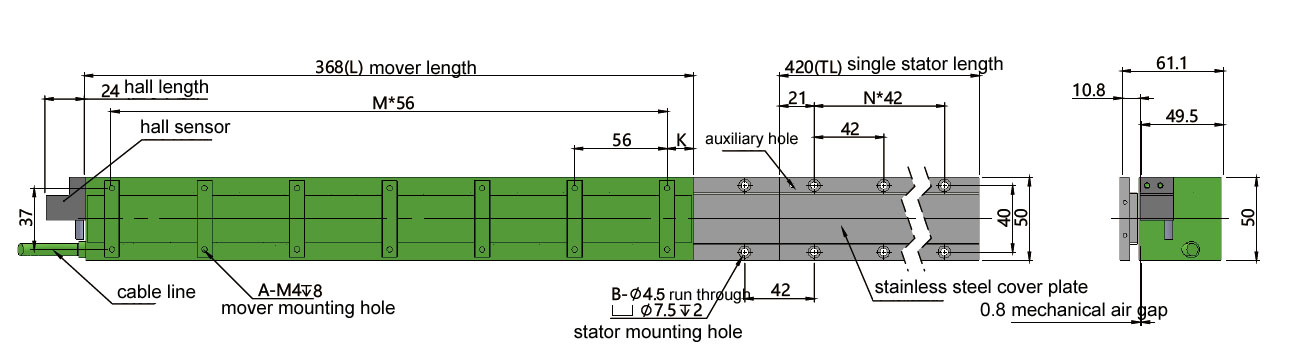

Dimension
| Mover Length | ||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
K |
|
LSMF610701A-S-H-NC-N-C00.5 |
101 | 1 | 4 | 22.5 |
|
LSMF610702A-S-H-NC-N-C00.5 |
200 | 3 | 8 | 16 |
|
LSMF610702B-S-H-NC-N-C00.5 |
200 | 3 | 12 | 16 |
|
LSMF610703A-S-H-NC-N-C00.5 |
368 | 6 | 14 | 16 |
|
LSMF610703A-P-H-NC-N-C00.5 |
368 | 6 | 14 | 16 |
|
LSMF610704A-S-H-NC-N-C00.5 |
278 | 4 | 10 | 27 |
|
LSMF610704A-P-H-NC-N-C00.5 |
278 | 4 | 10 | 27 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
| LSMF6201E | 168 | 3 | 8 |
| LSMF6202E | 252 | 5 | 12 |
|
LSMF6203E |
420 | 9 | 20 |
Suitable for any mover of this series.
Application case：New Energy Car industry
With the rapid development of linear motor technology, it has penetrated into the various processes of automobile intelligent manufacturing. The stamping equipment supported by linear motor is used for automobile body stamping, welding equipment supported by linear motor is used for auto parts welding, spraying equipment supported by linear motor is used for automobile weight painting,In addition, the laser marking equipment supported by the linear motor is widely used in the marking of automobile keys. The linear motor also has practical application cases in the lithium battery stacking process of new energy vehicles.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
