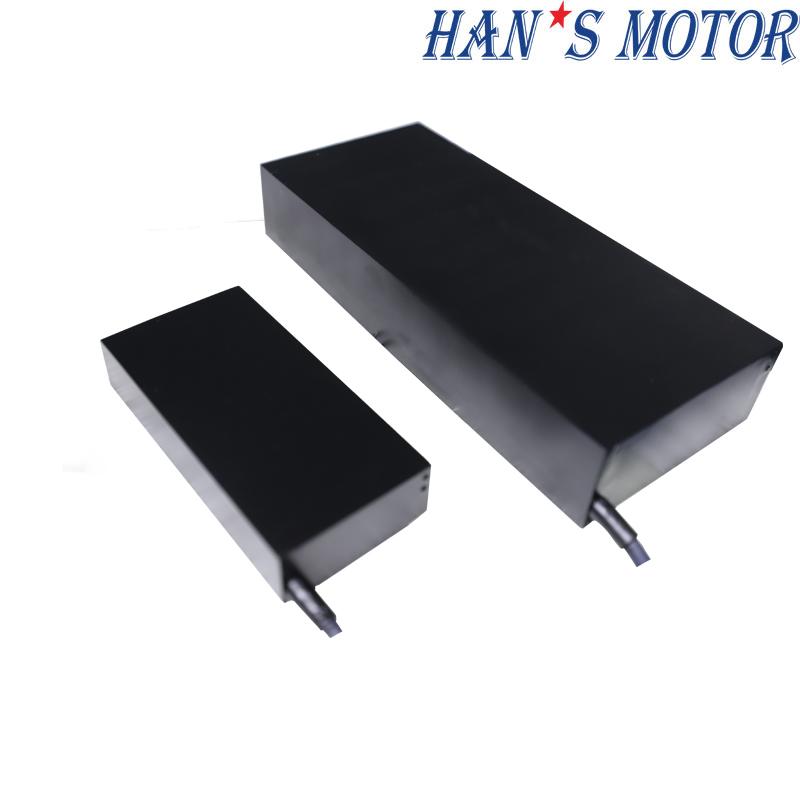

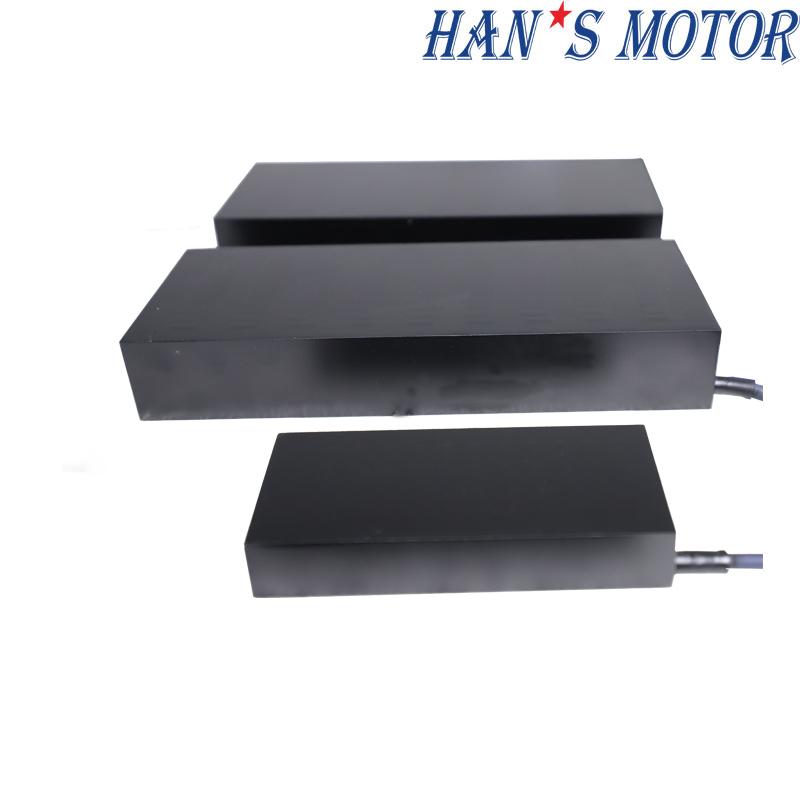

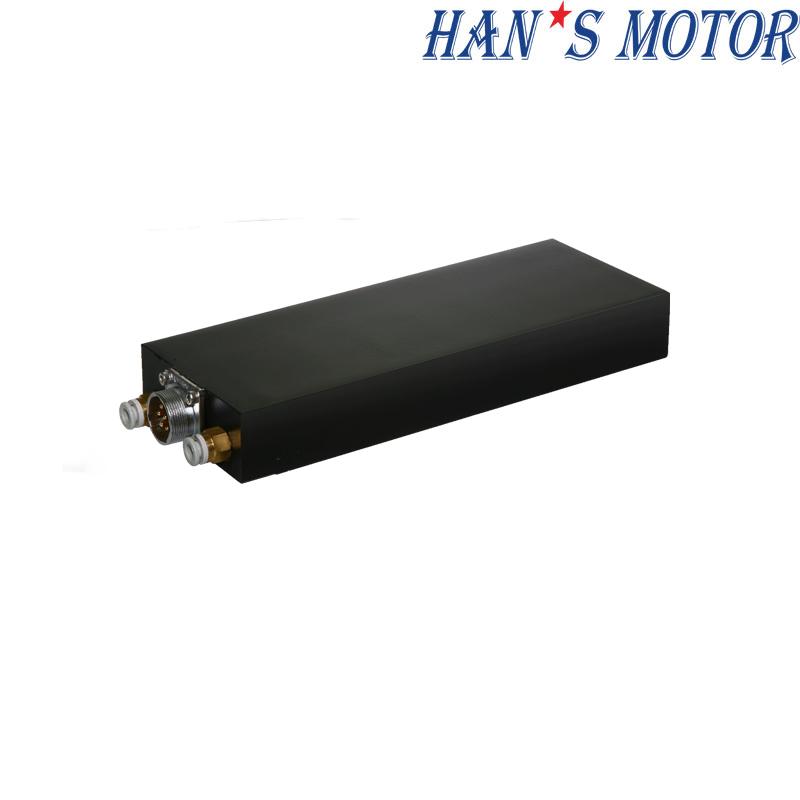

High thrust and high speed Iron core linear motor LSMFJ-50 for cnc laser machine

Features:

1. Core technology

2. Low cogging effect

3. Large thrust, high rigidity

4. Standardization, modularization, high reliability


5. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:High thrust and high speed Iron core linear motor LSMFJ-50 for cnc laser machine


Specifications

Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5
101A-S 201A-S 201A-P
Performance Parameters
     Symbol
    Units           Series
       Series
      Parallel
Continuous Force (Tmax)
Fc N 65 125 125
Peak Force
Fp N 222 498 498
Motor Constant (25℃)
Km25 N/Sqrt(W)
11.5 16.4 16.4
Max.Continuous Power Dissipation
Pc W 44 80 80
Continuous Current (Tmax)
Ic Arms 2.3 2.2 4.4
Peak Current (1S)
Ip     Arms
9.0 9.0 18.0
Force Constant (25℃,±5%)
Kf   N/Arms
28.3 56.8 28.4
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
9.4 18.8 9.4
Resistance(25℃,±5%)P-P
R
4.0 8.0 2.0
Inductance(25℃,±20%)P-P
L mH 13.0 26.0 6.5
Max Coil Temperature
Tmax
120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 20 20 20
Magnetic Attraction
Fa kN 0.4 0.8 0.8
Max.DC Bus Voltage
Ubus V 600 600 600
Vmax,Fc@Vbus=310Vdc

m/s
11.3 5.4 11.4
Vmax,Fp@Vbus=310Vdc

m/s
5.4 2.2 5.4
Vmax,0@Vbus=310Vdc

m/s
13.3 6.6 13.2
Vmax,Fc@Vbus=537Vdc

m/s
20.1 9.8 20.2
Vmax,Fp@Vbus=537Vdc

m/s
9.9 4.6 9.9
Vmax,0@Vbus=537Vdc

m/s 23.1 11.5 23.0
Mover Mass
Mp Kg 0.6 1.0 1.0
Stator Mass within unit length
Ms Kg/m

3.3

3.3 3.3

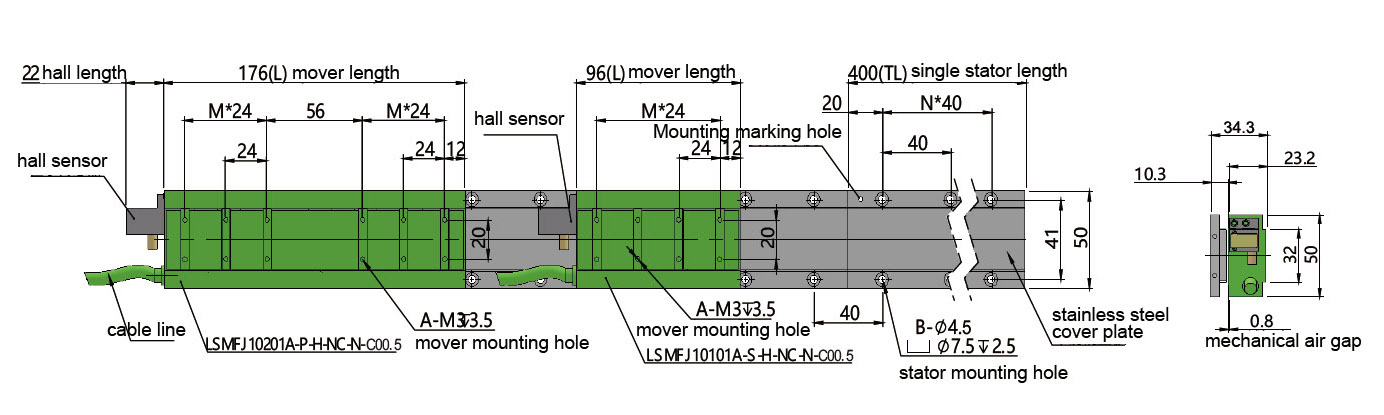

Dimension

iron core linear motor

Mover Length
Mover model
Mover length L
    M     Mover mounting hole A
LSMFJ10101A-S-H-NC-N-C00.5
96 3 8
LSMFJ10201A-S-H-NC-N-C00.5
176 2 12
LSMFJ10201A-P-H-NC-N-C00.5
176 2 12

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.

               2. Optional temperature sensor.


Stator Length
  Stator model
Stator length TL
   N    Stator mounting hole B
LSMFJ2A-W50-L40
40 0 2
LSMFJ2A-W50-L80
80 1 4
LSMFJ2A-W50-L200
200 4 10
LSMFJ2A-W50-L320
320 7 16
LSMFJ2A-W50-L400
400 9 20

Suitable for any mover of this series.


Advantages:

1. Wide range of feed speed
2. Good speed characteristics
3. High acceleration
4. High positioning accuracy
5. Simple structure, smooth movement, low noise, small friction
6. low wear of moving parts, long service life, safe and reliable



Industry Applications:

iron core linear motor


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
