CNC Industry Linear Motor Stages LMA55-25-G01-A
Features:
High reliability
Smooth operation
High rigidity
High durability
Easy
to install and maintenance
Advantages:
High precision, repeat positioning, compact structure, strong versatility.
Easy to maintain, improve accuracy, easy assemble, etc.
Simple installation and longer service life.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: CNC Industry Linear Motor Stages LMA55-25-G01-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
|
Unit |
Data |
|
Continuous Force (Tmax） |
N |
6.5 |
|
Peak Force |
N |
26 |
|
Motor Constant |
N√W |
1.65 |
|
Max.Continuous Power Dissipation |
W |
15.46 |
|
Continuous Current (Tmax） |
Arms |
0.8 |
|
Peak Current (1S) |
Arms |
3.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
8.1 |
|
Back EMF Constant (25℃，±5%） |
Vrms/m/s |
2.7 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
11.5 |
|
Inductance(25℃，±20%）P-P |
μm |
0.31 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
36 |
|
Electromagnetic Attraction |
N |
51 |
Performance
|
Stage Parameters |
||
|
|
Unit |
Data |
|
Max. Load |
kg |
2.5 |
|
Effective Stroke |
mm |
25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed (1) |
mm/s |
300 |
|
Repeat accuracy |
μm |
±0.5 |
|
Weight |
kg |
0.35 |
|
Working environment temperature and humidity |
0-40℃、20-80%RH |
|
so the specific speed should be communicated with the engineer

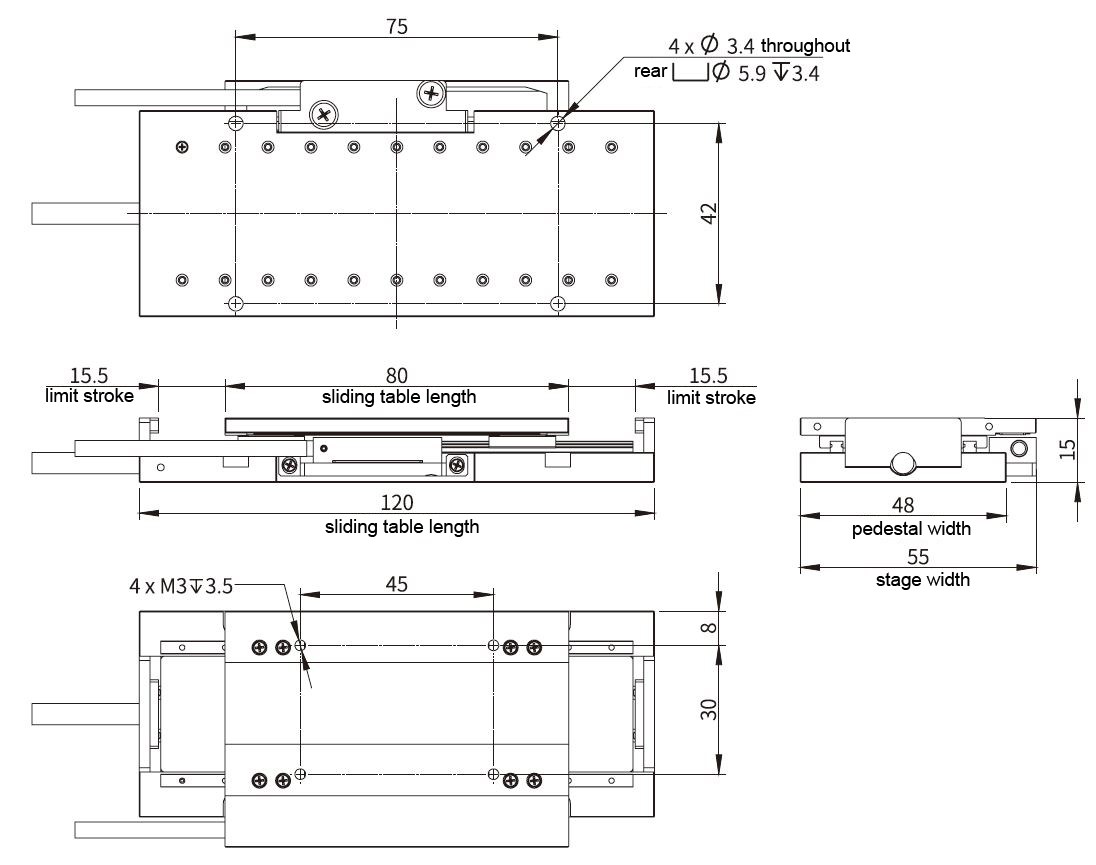

Dimension
Characteristics:
Driven by linear motor
Grating positioning or magnetic grating
positioning
High stability, high reliability, high
response speed
High precision, high acceleration, high moving speed
Smooth movement, no wear, little
maintenance, long service life
Compact modular design, easy to expand,
long service life
Why choose us?
Q: Are you a
trading company or manufacturer?
A: Shenzhen Han's Motor S&T Co.,Ltd
was established in 2005, specialized in direct drive system in the domestic
research, development, promotion, application for 16 years.
Q: What`s
the product range?
A: Our leading products including linear motors, torque motors, motor
modules, motion stages, AC servo systems, variable frequency drives and so on.
Q: What payment method do you accept?
A: T/T payment term.
Q: What is the delivery time?
A: It is according to the order quantity and our
production schedule.
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
Automatic controlling machine, semi-conductor industry, general industry machinery,
Solar energy equipment,machine tool,precision measuring instrument,
High-speed rail and aviation transportation equipment, etc.
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
