Features：
High torque direct
drive coreless motor
Compact in shape
and light in weight
Arc motion, single
or multiple circles 360° circular motion
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: Customized Linear Motor Fast And Precision Arc Coreless Motor
Introduce：

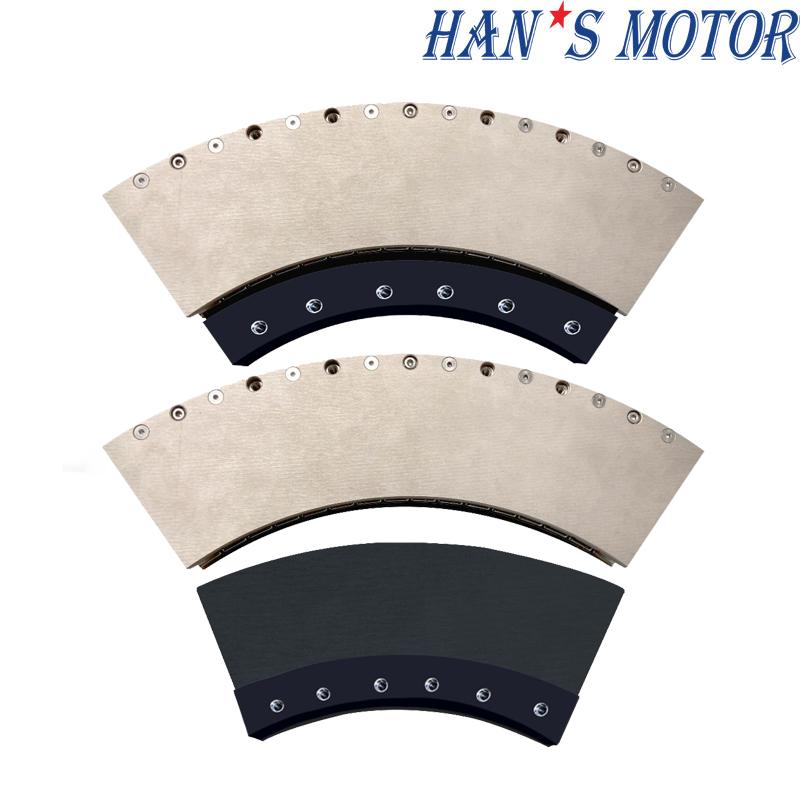

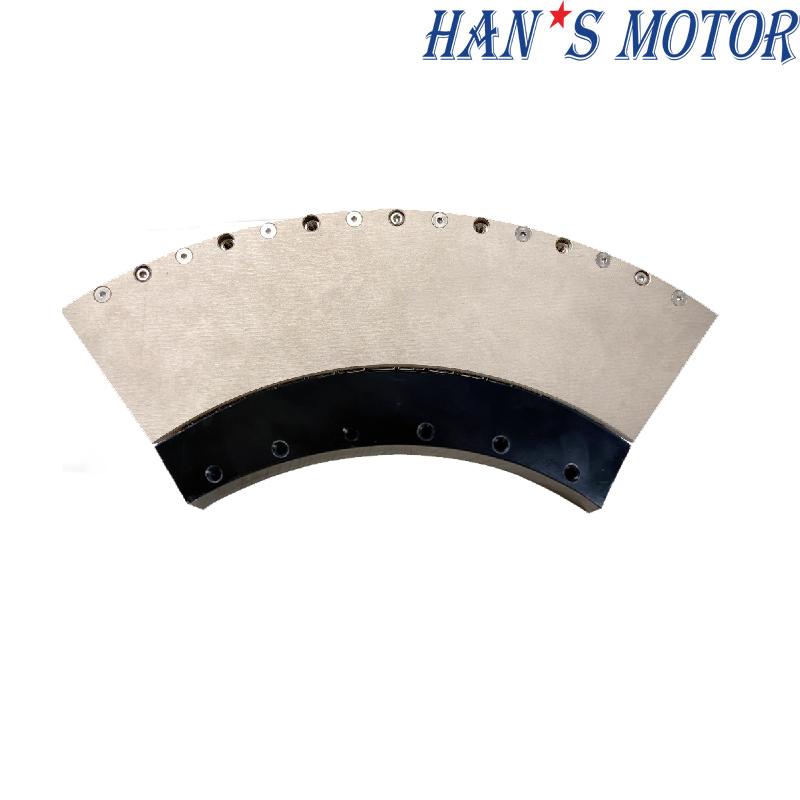

HAN’S MOTOR ASMU1
series is designed for angular motion, single or multiple turns 360° circular
motion arc motor. ASMU1 series for the "light and thin" design
philosophy, magnetic track using strong magnets, size of the premise can also
output high torque. When used with ring gratings and curved guides, ASMU1
series can achieve better positioning, repetition accuracy and more.
ASMU1 series gives
customers the flexibility to match their products according to their needs. Multiple
coils can increase the flexibility of the production process, and multiple
tracks can increase the range of motion. By connecting multiple tracks, ASMU1
series motors can achieve a complete 360 degree rotation.
High torque direct
drive coreless motor
Compact in shape
and light in weight
Hollow structure
Arc motion, single
or multiple circles 360° circular motion
Zero cogging force, zero back lash
High dynamic
response
High speed and high acceleration
Multi-forcer structure
can be realized
Easy to assemble
Specifications
|
Motor model: ASMU1-R230B-xx-S |
01 | 02 | 03 |
04 |
||
|
Performance Parameters |
Symbol |
Unit |
Series |
Series |
Series |
Series |
|
Continuous Force (Tmax） |
Fc | N | 8.7 | 17.3 | 26.0 | 34.7 |
|
Peak Force |
Fp | N | 34.8 | 69.2 | 104.0 | 138.8 |
|
Continuous Current |
Ic | Arms | 1.0 | 1.0 | 1.0 | 1.0 |
|
Peak Current (1S) |
Ip |
Arms |
4.0 |
4.0 |
4.0 |
4.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
8.7 | 17.3 | 26.0 | 34.7 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/rad/s |
2.9 | 5.8 | 8.7 | 11.6 |
|
Back EMF constant (25℃，±5%） |
Ke |
Vrms/rpm |
0.3 | 0.6 | 0.91 | 1.21 |
|
Resistance(25℃，±5%）P-P |
R |
Ω |
11.0 | 21.8 | 32.6 | 43.4 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
6.0 | 12.0 | 18.0 | 24.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
degree | 9 | 9 | 9 | 9 |
|
Magnetic Attraction |
Fa |
KN |
0 |
0 |
0 |
0 |
|
Mover Mass |
Mp | kg | 0.25 | 0.5 |
0.75 |
1.0 |
|
Stator Mass |
Ms |
Kg/m |
3.8 |
3.8 |
3.8 |
4.6 |
|
Mover Moment of Inertia |
Jm |
Kg*㎡ |
0.013 | 0.025 | 0.037 | 0.049 |
|
Rotor Moment of Inertia |
Jm |
Kg*㎡ |
0.22 | 0.22 | 0.22 | 0.22 |
|
Mover Spec. |
|
|
ASMU1-R230B-01-S-NC-N-C00.5 |
ASMU1-R230B-02-S-NC-N-C00.5 |
ASMU1-R230B-03-S-NC-N-C00.5 |
ASMU1-R230B-04-S-NC-N-C00.5 |
|
Rotor Spec. |
|
|
ASMU1-R230A-TR72 |
|||

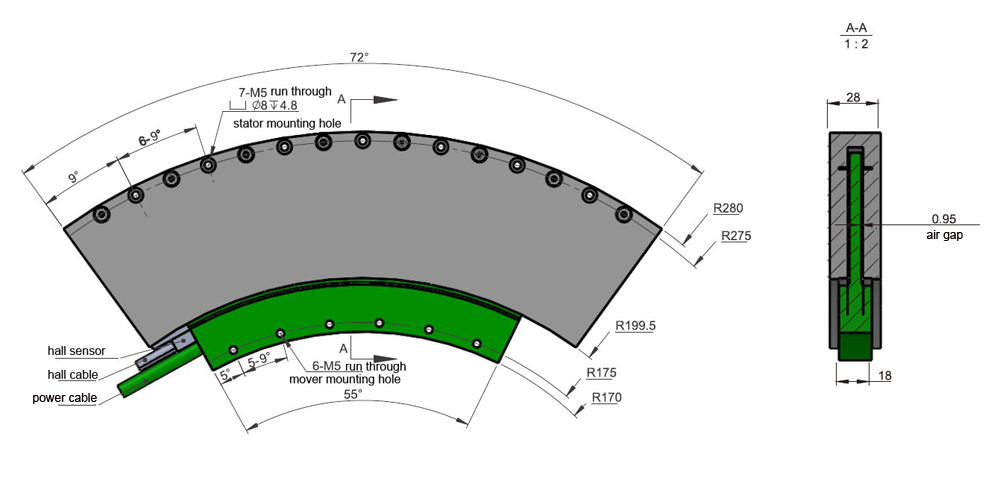

Dimension
|
Mover Size |
||
| Mover model |
Angle |
Mover mounting hole A
|
|
ASMU1-R230B-01-S-NC-N-C00.5 |
19° |
2 |
|
ASMU1-R230B-02-S-NC-N-C00.5 |
37° |
4 |
|
ASMU1-R230B-03-S-NC-N-C00.5 |
55° |
6 |
|
ASMU1-R230B-04-S-NC-N-C00.5 |
73° |
8 |
Remarks:
1. Standard cable length is 0.5m (with aviation plug), maximum outer diameter of motor cable is 7.5mm, minimum bending radius of drag chain is 37.5mm, the cable length and terminal can be customized if there are special requirements;
2. Optional temperature sensor and hall.
|
Stator Size |
||
| Stator model | Angle | Stator mounting hole B |
|
ASMU1-R230A-TR72 |
72° |
7 |
Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
