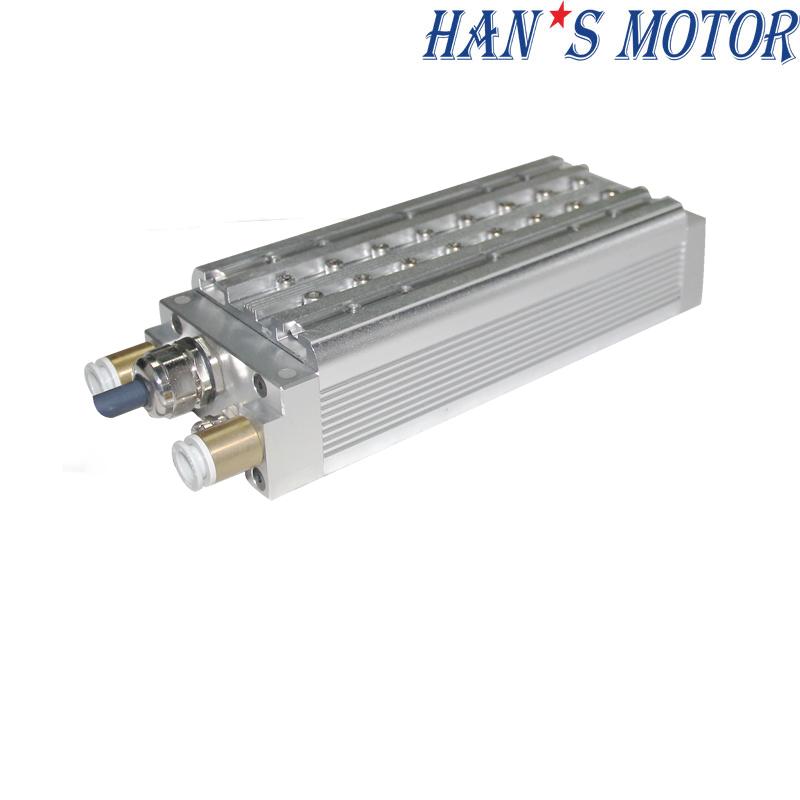

Continuous thrust 3015N iron core linear motor with water cooling type

Features:

1. Core technology

2. Low cogging effect

3. Water cooling structure

4. Safe and reliable, long service life

5. Multi-series, maximum specification peak thrust 20000N

6. Optional hall sensor

7. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:Continuous thrust 3015N iron core linear motor with water cooling type


Specifications

Mover Spec.:LSMF610603E-P-H-WC
PERFORMANCE PARAMETERS
      Symbol
       Units

Continuous Force (Tmax)
Fc N 3015
Peak Force
Fp N 6000
Motor Constant (25℃)
Km25
N/Sqrt(W)
94.3
Max.Continuous Power Dissipation
Pc W 1403
Continuous Current (Tmax)
Ic Arms
15.6
Peak Current (1S)
Ip Arms
33.0
Force Constant (25℃,±5%)
Kf N/Arms
193.3
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
64.4
Electrical Resistance(25℃,±5%)P-P
R
2.8
Inductance(25℃,±20%)P-P
L mH 25.0
Max Coil Temperature
Tmax
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 48.0
Minimum flow of cold water
Wmin
L/min
6.5
Temperature difference between inlet and outlet
△T

7.0
Pressure drop (stator loop series)
△P
Bar
3.0
Magnetic Attraction
Fa
kN 17.0
Max.DC Bus Voltage
Ubus
V 600
Vmax,Fc@Vbus=310Vdc

m/s
2.7
Vmax,Fp@Vbus=310Vdc

m/s
1.9
Vmax,0@Vbus=310Vdc

m/s
3.3
Vmax,Fc@Vbus=537Vdc

m/s
1.6
Vmax,Fp@Vbus=537Vdc

m/s
1.0
Vmax,0@Vbus=537Vdc

m/s
2.2
Mover Mass
Mp Kg 26.0
Stator Mass within unit length
Ms Kg/m 12.0

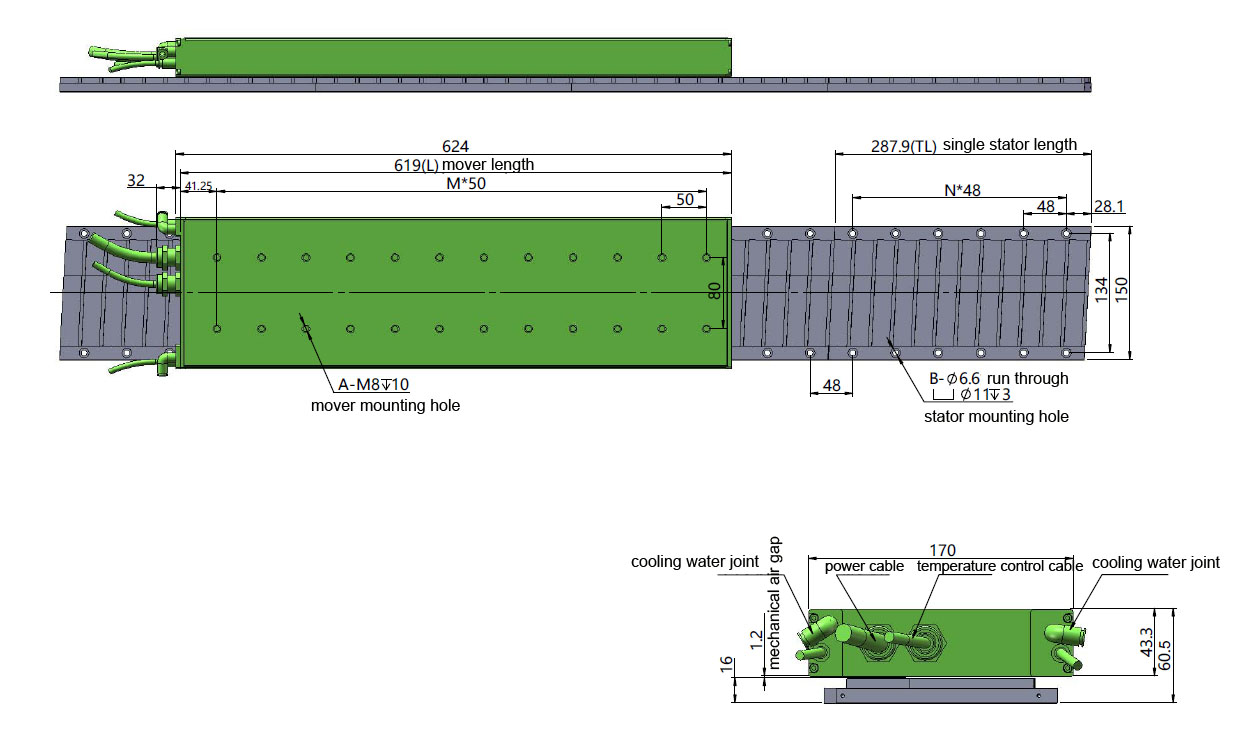

Dimension

high thrust linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMF610603E-P-H-WC
619
11 24

Remarks:  1. Standard cable length is 5m, maximum outer diameter(d) of motor cable is d= 13.5mm, minimum bending radius within chain is 101.3mm, the length can be customized if there are special requirements.
                 2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF3203A
287.9 5 12
LSMF3204A
143.9 2 6

Suitable for any mover of this series.

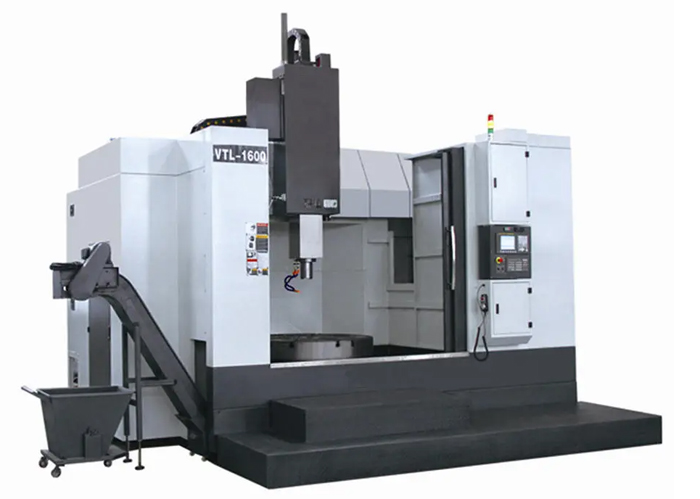

Application Case:Machine Tool

Water-cooling linear motor with its high acceleration, high spped, high prcision etc, widely applied to high precision cnc machine tool.

high thrust linear motor


Industry Applications:

HANS MOTOR applications


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
