Features:
1. Direct drive, high dynamic response;
2. The base and beam are made of marble, double-drive gantry structure, strong load capacity and good stability;
3. Adopt high-precision optical ruler feedback system and ultra-high-precision linear guide;
4. It is suitable for high-end inspection equipment, welding and micro-cutting production;
5. It can be choose different types of linear motor models according to requirements, and Z axis can be expanded;
6. Reliable performance, mature process, fast delivery;Brand:
HAN'S MOTOROrder(MOQ):

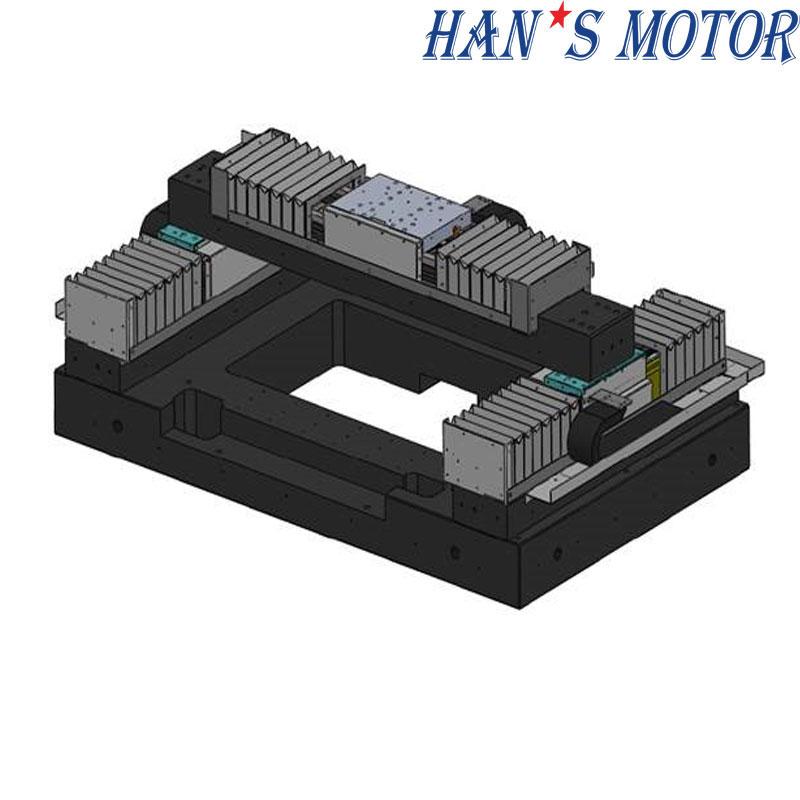

1Products Name: High Precision Custom Linear Motor Stages for UV printing industry (LMD series)
Product Specifications
|
Product code |
Stroke range |
Load (Kg) |
Velocity (m/s) |
Acceleration (g) |
Straightness (μm) |
Verticality (μm) |
Repeat accuracy(μm) |
|
X-axis (crossbeam axis) |
100-1000 |
25 |
0.5 |
0.5 |
6/400 |
5/400 |
±1.5 |
|
Y1-axis (Lower axis) |
100-1000 |
/ |
0.5 |
0.5 |
6/400 |
5/400 |
±1.5 |
|
Y2-axis (Lower axis) |
100-1000 |
/ |
0.5 |
0.5 |
6/400 |
5/400 |
±1.5 |
Characteristics:
• Adopt anRennishawincremental optical scale feedback system
• Good stable and consistent motion performance
• CE and UL quality certification
• It can be assembled to single-drive gantry stages, double-drive gantry stages, and static gantry stages
Kindly instruct us parameters（effective stroke, maximum speed, maximum acceleration, payload, accuracy) , then we can provide free manual and 3D model drawing to you.

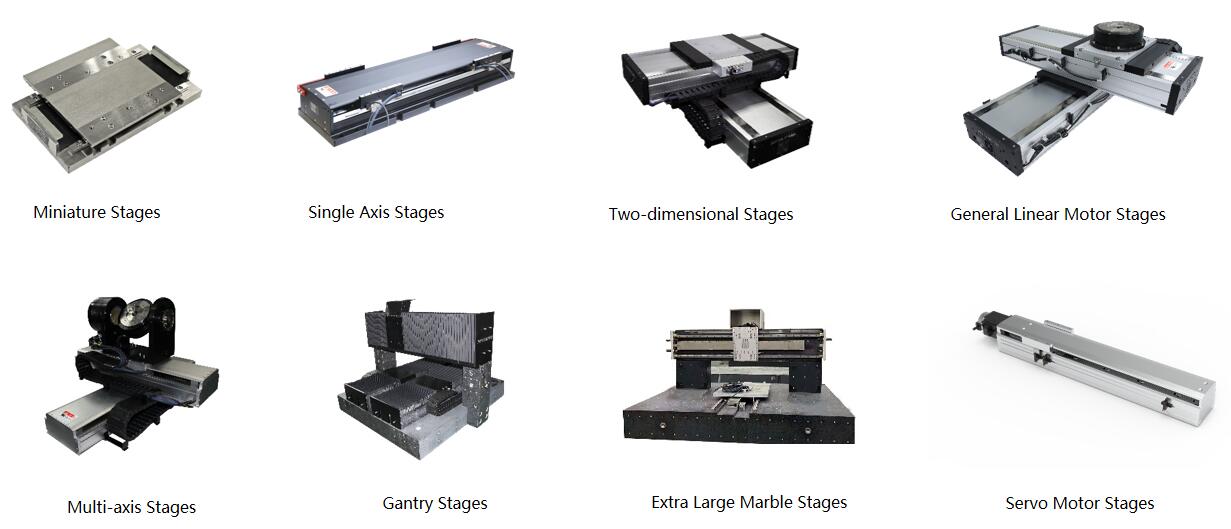

Motor module structure types:
Industry Applications:
Widely apply to wafer cutting, glass scribing, flat panel display industry, UV printing industry, and measurement system.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
