Features：
1. Large thrust
2. Excellent acceleration performance
3. Alveolar force suppression technology
4. Built-in overheat protection
5. Electromagnetic suction cancels each other out
Brand:
HAN'S MOTOROrder(MOQ):

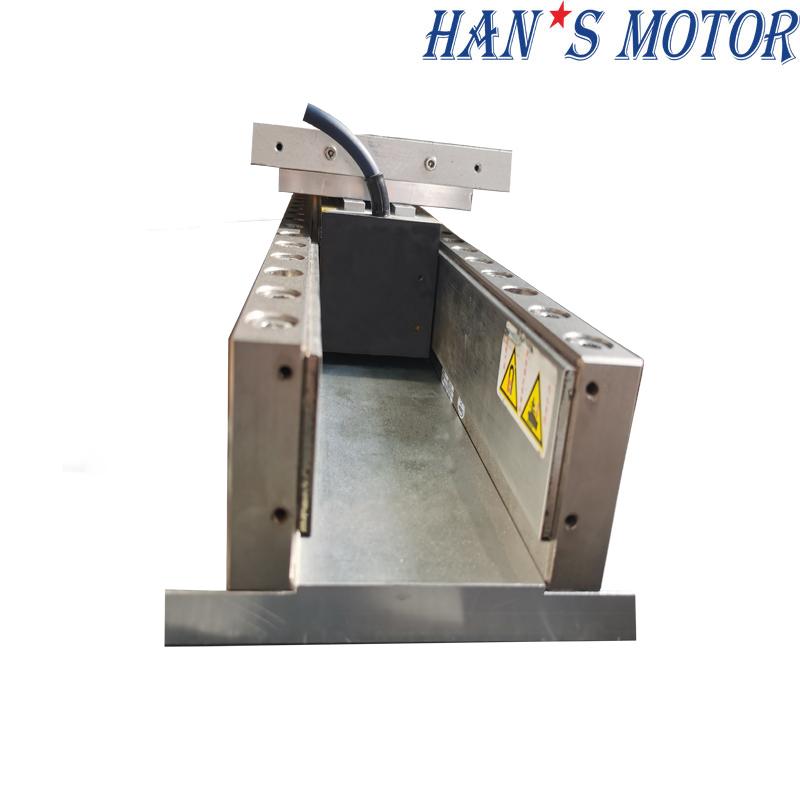

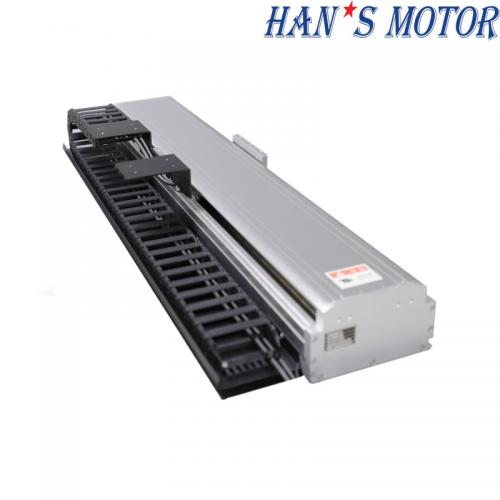

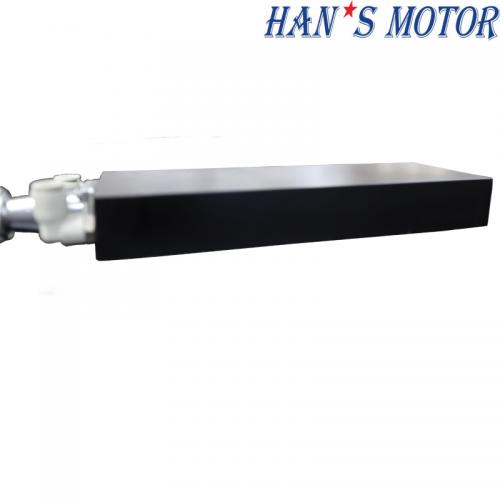

1Product name: Bilateral Forcer Iron Core Linear Motor For High Speed SMT Machine
Specifications
|
Mover Spec.：LSMD110xxxxx-x-H-NC-N-C0.05 |
201A-P | 301A-P | 301B-P | ||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
P2 | P1 | P3 |
|
Continuous Force (Tmax） |
Fc | N | 590 | 880 | 880 |
|
Peak Force |
Fp | N | 1545 | 2600 | 2318 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
52.8 | 64.4 | 65.3 |
|
Max.Continuous Power Dissipation |
Pc | W | 171 | 256 | 249 |
|
Continuous Current (Tmax） |
Ic |
Arms |
8.0 | 7.7 | 12.0 |
|
Peak Current (1S) |
Ip |
Arms |
24.0 | 23.0 | 36.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
73.6 | 114.6 | 73.6 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
24.5 | 38.2 | 24.5 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
1.3 | 2.1 | 0.8 |
|
Inductance(25℃，±20%）P-P |
L | mH | 12.9 | 21.0 | 8.6 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 32.0 | 32.0 | 32.0 |
|
Magnetic Attraction |
Fa |
kN | 0.0 | 0.0 | 0.0 |
|
Max.DC Bus Voltage |
Ubus |
V | 600 | 600 | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
4.4 | 2.7 | 4.4 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
2.8 | 1.6 | 2.8 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
5.1 | 3.2 | 5.1 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
7.2 | 4.5 | 7.1 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
4.6 | 2.8 | 4.7 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
8.0 | 5.1 | 8.0 |
|
Mover Mass |
Mp | Kg | 6.1 | 8.8 | 8.8 |
|
Stator Mass within unit length |
Ms | Kg/m | 10.1 | 10.1 | 10.1 |

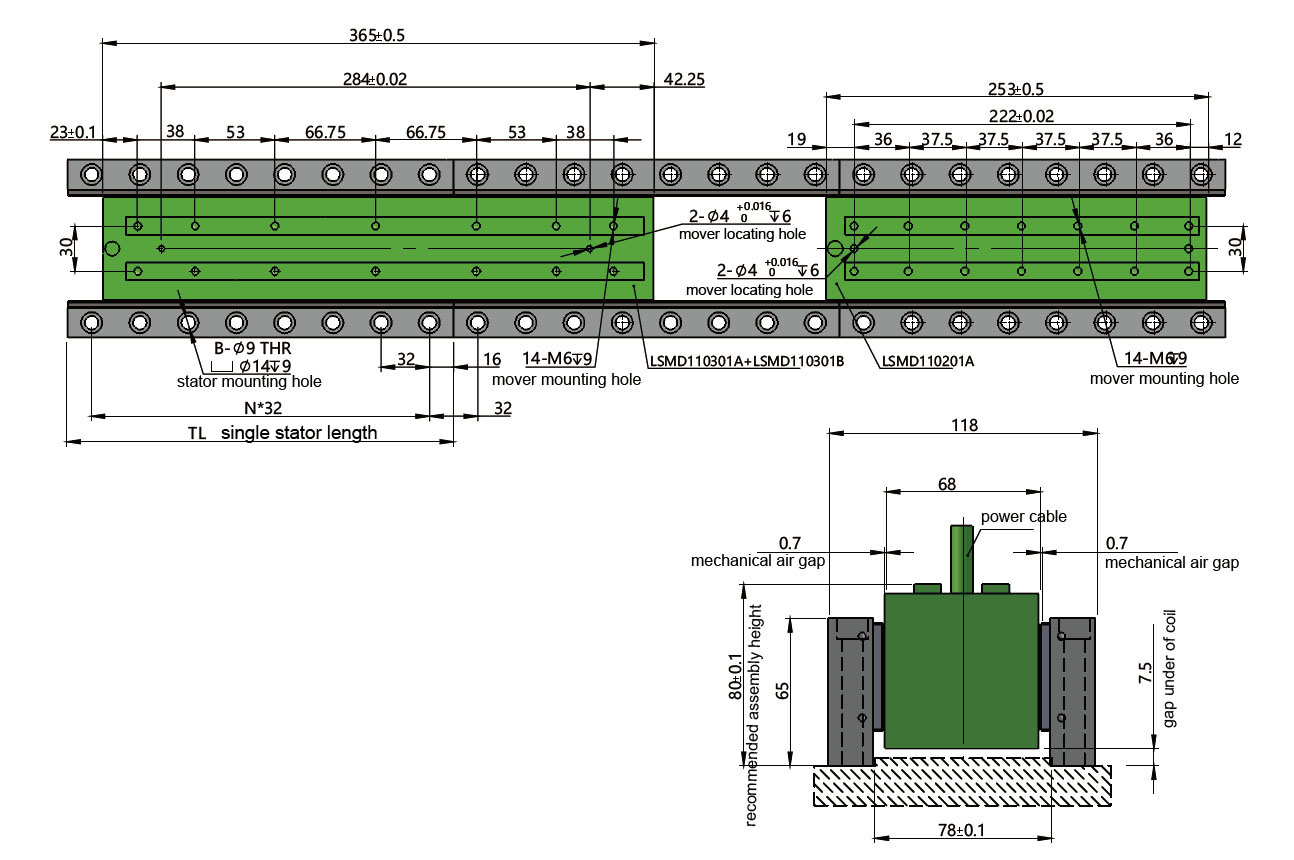

Dimension
|
Mover Length |
||
|
Mover model |
Mover length L |
Mover mounting hole A |
|
LSMD110201A-P-H-NC-N-C00.5 |
253 |
14 |
|
LSMD110301A-P-H-NC-N-C00.5 |
365 | 14 |
|
LSMD110301B-P-H-NC-N-C00.5 |
365 | 14 |
Remarks: 1. Standard cable length is 0.5m (with C-type aviation plug), Continuous Current Ic≤10A/ 10＜Ic≤12A /12＜Ic≤16A maximum outer diameter (d)of motor cable is 7.5mm/ 8.0mm/9.0mm, fixed minimum bending radius is 3*d, moving minimum bending radius within chain is 5*d; the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
|
Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
|
LSMD1201A |
64 | 1 | 2 |
|
LSMD1202A |
128 | 3 | 4 |
|
LSMD1203A |
256 | 7 | 8 |
|
LSMD1204A |
512 | 15 | 16 |
Suitable for any mover of this series.
Industry Applications:

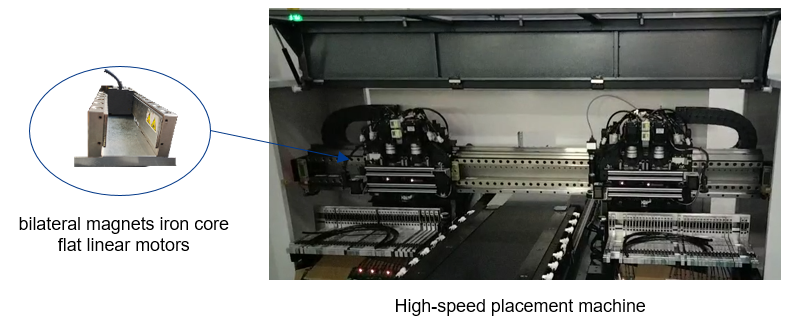

Application Case：
Requirements: high speed (3.5m/s), high acceleration (4.7G)
Advantages: Adopt bilateral magnets iron core falt linear motor, large thrust, acceleration performance, adopt cogging force suppression technology, bulit-in overheat protection, the electromagnetic attraction forces offsetting each other, reducing the wearing of guide rail.
