HANS-C Series Torque motors with frame outer rotors
Product description:
1. High torque delivery and no inertia-mismatch, torque motors do not require gearboxes or transmissions.
2. The rotor of a torque motor can be directly mounted to an axle,reducing the rotating mass and increasing mechanical efficiency, it supply high torque at low speeds, increased rigidity and greater accuracy.
3. It can be used to replace traditional gearbox-based systems in many applications.
Features:
Cost-effective optimized Solution
High Dynamic Performance
High Torque to Power Ratio
High Position Accuracy
Ease of use
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: HANS-C Series High Torque Direct Drive Motor With High precision Frame Outer Rotor DDR Torque Motor
Product Specifications
Frame Outer Rotor Torque Motor HANS-C Series
Specification
Motor Model No.：HANS-C-xxx-Dxxx-Hxxx-Txx-1-A
C-003
C-007
C-015
Performance
Parameters
Symbol
Unit
Cable Outlet
1
1
1
Outer Diameter
D1
mm
170
170
170
Center Hole
D2
mm
45
45
45
Installation Height
H
mm
95
112
132
Continuous torque (Tmax)
Tc
Nm
3
9
17
Peak torque
Tp
Nm
9.0
27.7
51.0
Vmax,Tc@Vbus=310Vdc
Nmax,Tc
Rpm
600
600
450
Vmax,Tp@Vbus=310Vdc
Nmax,Tp
Rpm
500
500
350
Vmax,0@Vbus=310Vdc
Nmax,0
Rpm
800
800
500
Encoder (BISS-C)
P/rev
23bits
23bits
23bits
Positioning Accuracy
arc sec
±10/±5
±10/±5
±10/±5
Repeat Accuracy
arc sec
±1.5
±1.5
±1.5
Maximum axial load (recommend)
Fa
N
700
700
700
Maximum torque load (recommend)
T
Nm
40
40
40
Motor outlet
M
0.3
0.3
0.3
Cable bending radius (within drag
chain）
mm
37.5
37.5
37.5
Continuous current (Tmax)
Ic
Arms
2.5
2.3
2.5
Peak Current (1s)
Ip
Arms
7.5
6.9
7.5
Torque Constant (within 25℃±5℃）
Tf
Nm/Arms
1.2
4.0
6.8
Electromotive constant (within 25℃±5℃）
Te
Vrms/rad/s
0.4
1.3
2.3
Resistance (within 25℃±5℃）
R
Ω(p-p)
2.6
4.8
6.6
Inductance (within 25℃±5℃）
L
mH(p-p)
6.0
12.5
19.0
Pole pairs
p
8
8
8
Max.coil temperature
Tmax
℃
120
120
120
Motor Mass
KG
8.4
14.5
16.5
Mover Mass
Mc
KG
2
4
6
Rotor Moment of Inertia
Jm
Kg*m2
0.012
0.021
0.027
Axial Runout
mm
0.03
0.03
0.03
Radial Runout
mm
0.03
0.03
0.03

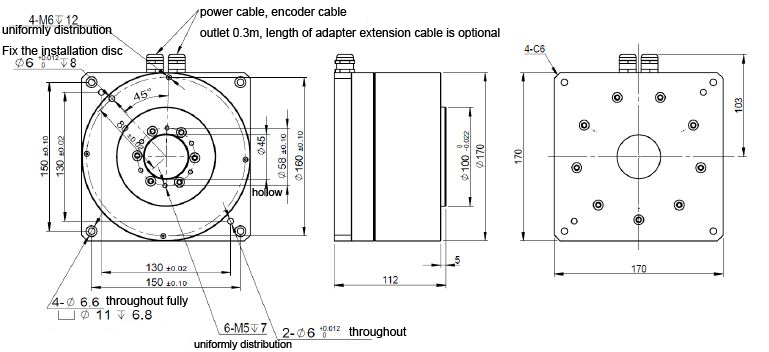

Dimension
Characteristics:
1. Direct-drive rotary DDR torque motors combine with several design features to deliver their intended function.
2. Torque motors using coreless technology, which are designed to drive loads directly without the need of any transmission mechanism, such as gears or belts.
3. They use high energy permanent magnets to generate high torque.
4. High rigidity, high precision, high speed, high acceleration and small noise etc.
Why choose us?
1. Established in 2005, it is a subsidiaries of Han's Laser (Stock Code: 002008), which is one of the global leaders which manufacture professional laser equipment. We are awarded for National High and New Tech Enterprise and National “SRDI”Enterprise.
2. Specialized in direct drive system in the domestic R&D, promotion, application.Including linear motor、Torque motor 、Motion stage 、AC servo system 、 Variable-Frequency Drive etc. And linear motor market share reached leading level in China.
3. Passed ISO 9001and ISO 14001 management system certification and CE certificate.
It can be used in a wide variety of applications, such as assembly including screw tightening of electric and electronic components or mechanical components, insertion, take-out, transfer, adhesive application, and soldering.
Exhibitions & International market
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
