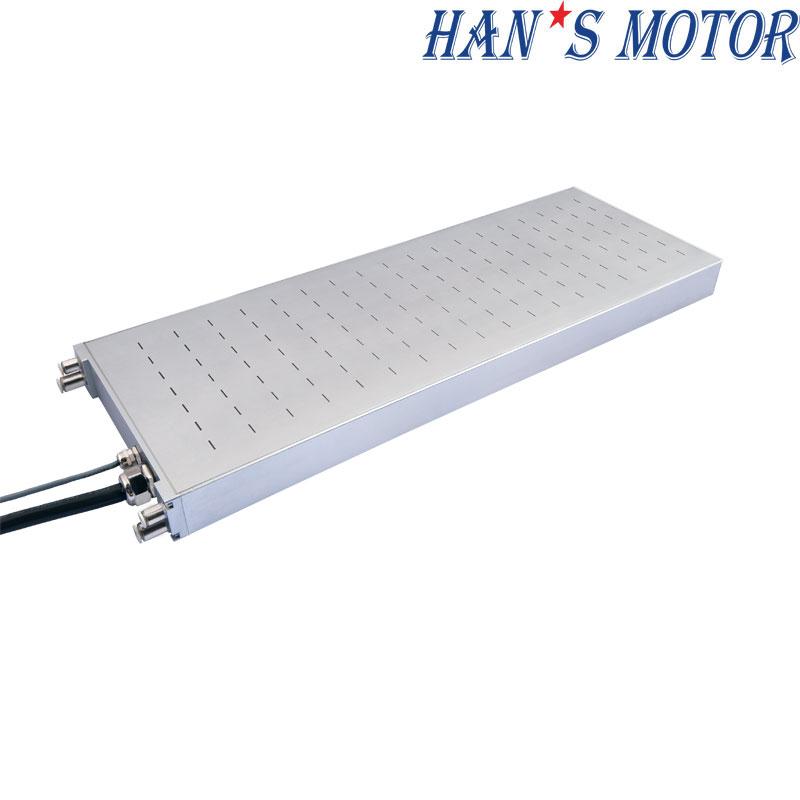

4041~7800N Large Thrust Linear Motor With Iron Core For Heavy Motion System

Features:

1. Core technology,Low cogging effect

2. High thrust, high rigidity

3.water cooling structure, thrust can be increased by 2 times

4. Optional hall sensor

5. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:4041~7800N Large Thrust Linear Motor With Iron Core For Heavy Motion System


Specifications

Mover Spec.:LSMF610602C-P-H-WC
PERFORMANCE PARAMETERS
      Symbol
       Units

Continuous Force (Tmax)
Fc N 4041
Peak Force
Fp N 7800
Motor Constant (25℃)
Km25
N/Sqrt(W)
106.0
Max.Continuous Power Dissipation
Pc W 1994
Continuous Current (Tmax)
Ic Arms
22.0
Peak Current (1S)
Ip Arms
45.0
Force Constant (25℃,±5%)
Kf N/Arms
183.7
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
61.2
Electrical Resistance(25℃,±5%)P-P
R
2.0
Inductance(25℃,±20%)P-P
L mH 17.0
Max Coil Temperature
Tmax
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 48.0
Minimum flow of cold water
Wmin
L/min
6.5
Temperature difference between inlet and outlet
△T

7.0
Pressure drop (stator loop series)
△P
Bar
3.0
Magnetic Attraction
Fa
kN 18.0
Max.DC Bus Voltage
Ubus
V 600
Vmax,Fc@Vbus=310Vdc

m/s
2.8
Vmax,Fp@Vbus=310Vdc

m/s
2.0
Vmax,0@Vbus=310Vdc

m/s
3.5
Vmax,Fc@Vbus=537Vdc

m/s
1.7
Vmax,Fp@Vbus=537Vdc

m/s
1.1
Vmax,0@Vbus=537Vdc

m/s
2.3
Mover Mass
Mp Kg 32
Stator Mass within unit length
Ms Kg/m 16.7


Dimension

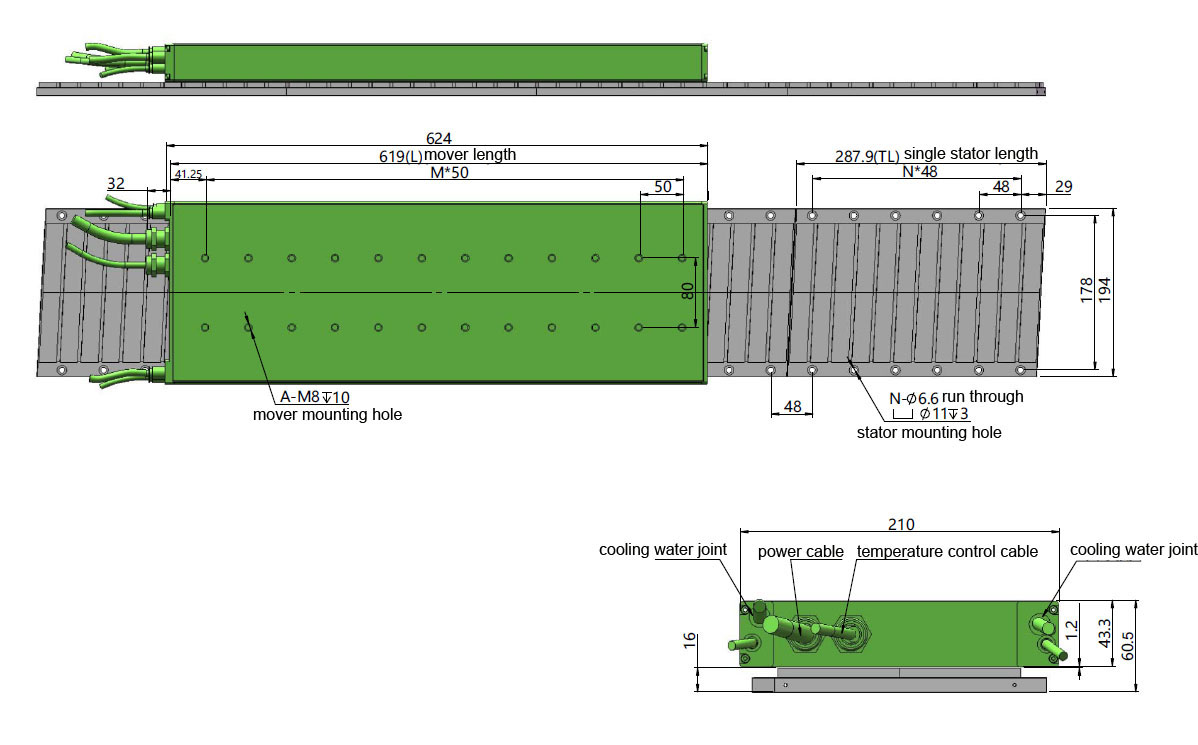

linear motor with high thrust

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMF610602C-P-H-WC
619
11 24

Remarks:  1. Standard cable length is 6m, maximum outer diameter(d) of motor cable is d= 13.5mm, minimum bending radius within chain is 101.3mm, the length can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF4210A
287.9 5 12
LSMF5411A
143.9 2 6

Suitable for any mover of this series.


Application Case:PCB Drilling Machine
