LSS65 Linear Rail Slide 800mm Effective Itinerary Ball Screw Linear Motion Module

HAN'S Ball screw linear motion module

LSS65 Linear Rail Slide 800mm Effective Itinerary Ball Screw Linear Motion Module

HAN'S Motor Servo module stages LSS65 Max. Stroke 800mm


Product details:

Standard stroke.:100-800mm, max.velocity 1000mm/s,

motor power 100W, ballscrew Φ12mm,

linear slide 42*9.5 per piece


Features:

Durable and strong load capacity

Adapt to a variety of motors

Precision ball screw


  • Brand:

    HAN'S MOTOR

  • Order(MOQ):

    1
Inquiry now
Product Detail

Products Name:     HAN'S-LSS65 Linear Rail Slide 800mm Effective Itinerary Ball Screw Linear Motion Module



Product Specifications





Performance

Repeat positioning accuracy (mm)

±0.01

Screw lead (mm)

25

 

10

20

Max.velocity (mm/s)

100

250

500

1000

Max.conveyable weight

horizontal (kg)

30

30

15

10

Vertical (kg)

15

10

5

2

Ratedthrust (N)

122

490

245

85

Standard stroke (mm)

100-800mm




Parts

AC servo motor power (W)

100

Ballscrew O.D （mm)

C7 Φ12

Linear slide

W42*H9.5

Coupling

Motor Φ8 * screwΦ7

Original sensor

external hanging

EE-SX670 (NPN)

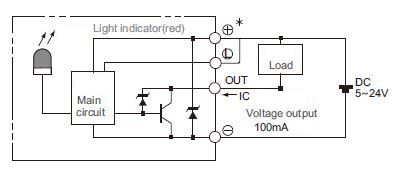

Sensor Connection Diagram <Origin and End Points>

servo linear module sensor connection diagram

Allowable load torque table N.m

servo linear module load torque



Installation method:

                                                                                        (Unit.: mm)

Horizontal installation

A

B

C

Lead 2

10kg

600

55

147

30kg

160

13

36

 -

 -

 -

 -

Lead 5

10kg

500

43

107

30kg

125

10

24

 -

 -

 -

 -

Lead 10

3kg

790

145

310

8kg

280

49

107

15kg

135

23

50

Lead 20

3kg

325

119

198

6kg

156

55

93

10kg

87

30

52



                                                                                      (Unit.: mm)

Hanging installation

A

B

C

Lead 2

10kg

90

34

580

30kg

35

13

160

 -

 -

 -

 -

Lead 5

15kg

63

25

304

30kg

22

9

119

 -

 -

 -

 -

Lead 10

3kg

304

140

776

8kg

104

48

273

15kg

48

22

131

Lead 20

3kg

193

116

321

6kg

91

54

153

10kg

50

30

86



                                                       (Unit.: mm)

Vertical installation

A

C

Lead 2

5kg

125

125

15kg

42

42

 -

 -

 -

Lead 5

2kg

250

250

4kg

125

125

10kg

50

50

Lead 10

1kg

446

446

2kg

223

223

5kg

89

89

Lead 20

1kg

353

353

2kg

177

177

 -

 

 



Static allowable load inertia

servo linear module load inertia

                                   (Unit.: mm)

MY

70

MP

80

MR

75



Matching with Servo Motor List

Brand

Motor Model

Brake or without brake

Power

Voltage

Servo motor Model

Servo driver model

Han's

H

without brake (Horizontal )

100

200

HSAL-A01FK-B0.2

HANS-A-00323-P

Brake (Vertical )

100

200

HSAL-A01BK-B0.2

HANS-A-00323-P

International

P

without brake (Horizontal )

100

200

MSMF012L1U2M

MADLN05SE

Brake (Vertical )

100

200

MSMF012L1V2M

MADLN05SE

Mitsubishi

M

without brake (Horizontal )

100

200

HF-KP13

MR-J3-10A

Brake (Vertical )

100

200

HF-KP13B

MR-J3-10A


Dimension

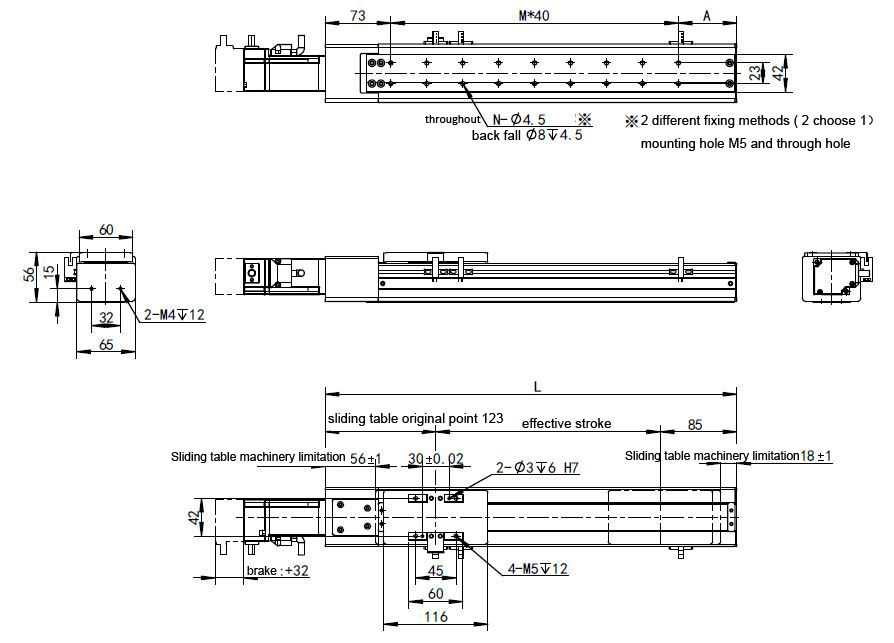

Motor Exposed

servo linear module motor

Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

L

308

358

408

458

508

558

608

658

708

758

808

858

908

958

1008

A

35

45

55

65

35

45

55

65

35

45

55

65

35

45

55

M

5

6

7

8

10

11

12

13

15

16

17

18

20

21

22

N

12

14

16

18

22

24

26

28

35

34

36

38

42

44

46

KG

2.82

3.05

3.27

3.5

3.72

3.94

4.17

4.39

4.62

4.84

5.06

5.29

5.51

5.74

5.94

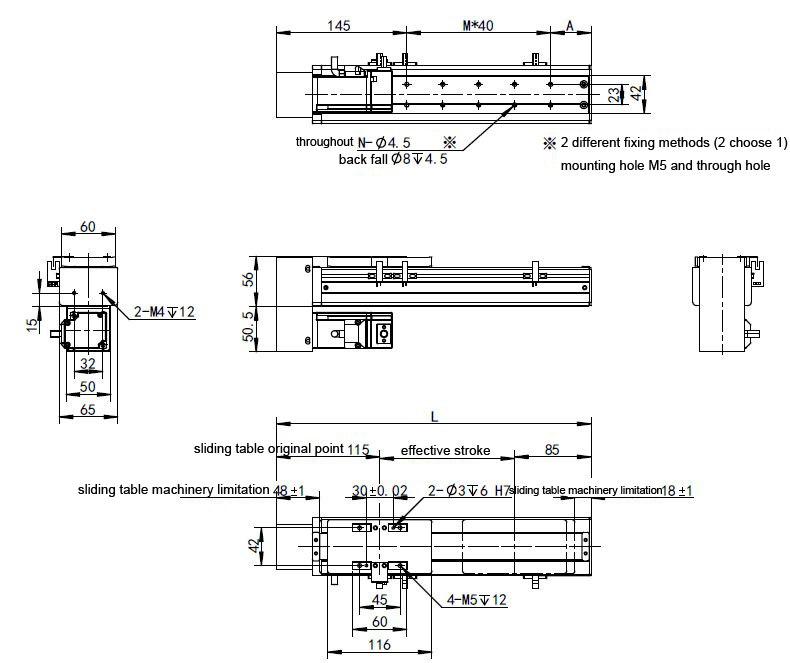

Motor fold down

servo linear module motor

Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

L

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

A

35

45

55

65

35

45

55

65

35

45

55

65

35

45

55

M

3

4

5

6

8

9

10

11

13

14

15

16

18

19

20

N

8

10

12

14

18

20

22

24

28

30

32

34

38

40

42

KG

2.86

3.09

3.31

3.54

3.77

3.99

4.22

4.44

4.67

4.9

5.12

5.35

5.57

5.8

5.99

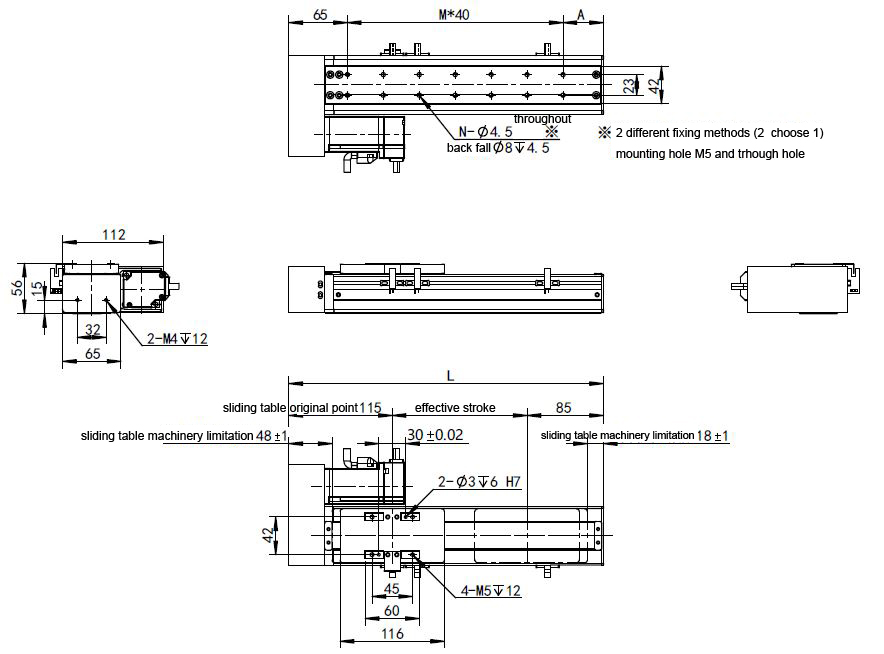

Motor fold left

servo linear module motor

Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

L

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

A

55

65

35

45

55

65

35

45

55

65

35

45

55

65

35

M

5

6

7

8

10

11

12

13

15

16

17

18

20

21

22

N

12

14

16

18

22

24

26

28

32

34

36

38

42

44

46

KG

2.86

3.09

3.31

3.54

3.77

3.99

4.22

4.44

4.67

4.9

5.12

5.35

5.57

5.8

5.99

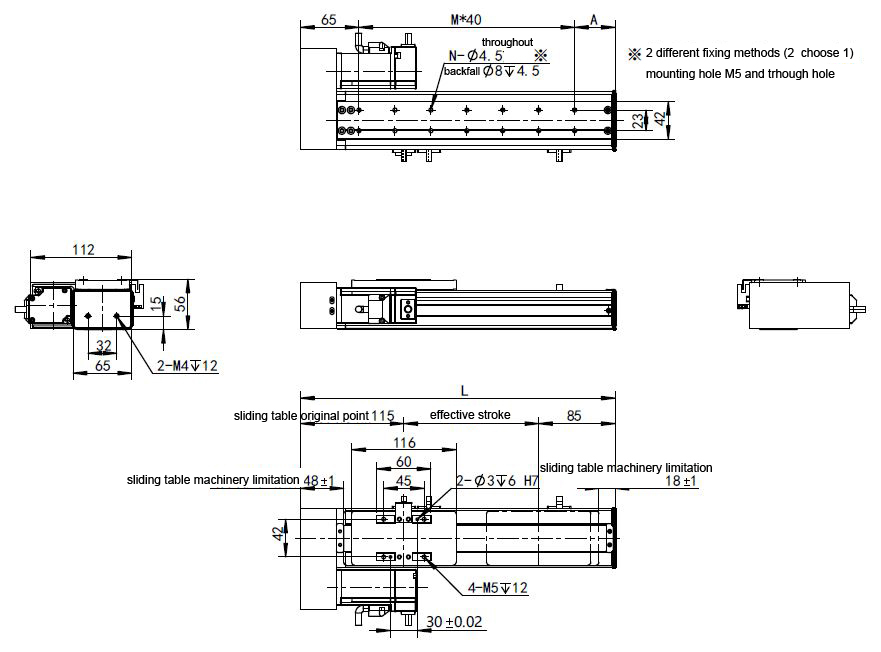

Motor fold right

servo linear module motor

Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

L

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

A

55

65

35

45

55

65

35

45

55

65

35

45

55

65

35

M

5

6

7

8

10

11

12

13

15

16

17

18

20

21

22

N

12

14

16

18

22

24

26

28

32

34

36

38

42

44

46

KG

2.86

3.09

3.31

3.54

3.77

3.99

4.22

4.44

4.67

4.9

5.12

5.35

5.57

5.8

5.99


Characteristics:

Fully sealed effective dust prevention to prevent dusteffectively even in harsh environment.

Enlarge the slider to increase the load capacity.

Fast and easy installation.



Specialities:

Our Advantages:

High quality with competitive price

Professional service ability

Experienced R&D team

24 hours online customer service

Timely and effective aftersales-service



Why choose us?

High quality, competitive price, professional team

Precision ball screw precision wire guide

Aviation aluminum-magnesium alloy profile

High precision integrated processing forming



Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
