CNC Linear Guide Stage Rail Motion Slide Ballscrew Actuator Module

Linear module Long Stroke High Speed Ball Screws Guide Rail For CNC Machine LSS170

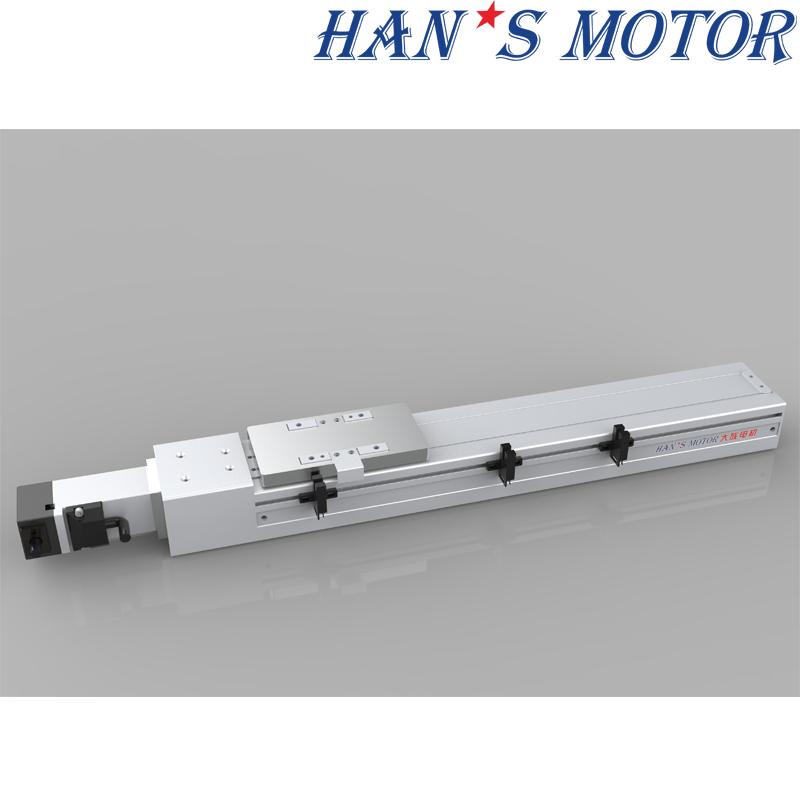

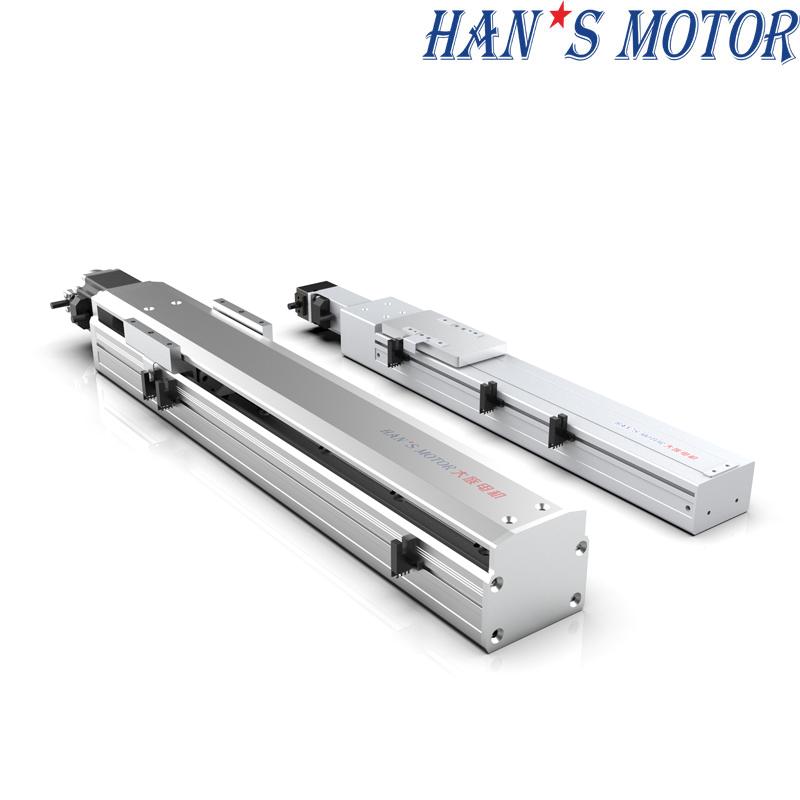

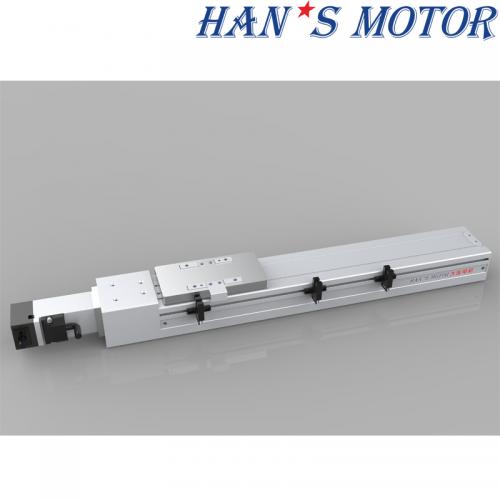

High Precision Linear Slide Module Single Axis Motion Unit Linear Module LSS170

Product description:

Effective Length:100-1250mm

Max. itinerary: 1250mm

Max. speed: 2000mm/s

Motor capacity: 750W

Balls crew: Φ20mm

Linear slide: W20*H15.5--two pieces

Features:

1. Linear motor is used for control system of high-speed motion platform motor, motion module providing huge direct kinetic.

2. Metal steel slider, one side of sliding table is sealed with stainless steel, oxidized waterproof surface, high temperature and no deformation.

3. Stable and reliable, low noise and smooth

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: High Precision Linear Slide Module Single Axis Motion Unit Linear Module LSS170

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	40
	Max.velocity (mm/s)		250	500	1000	2000
	Max.conveyable weight	horizontal (kg)	120	120	83	43
		Vertical (kg)	50	40	25	12
	Ratedthrust (N)		2563	1281	640	320
	Standard stroke (mm)		100-1250mm
Parts	AC servo motor power (W)		750
	Ballscrew O.D （mm)		C7 Φ20
	Linear slide		W20*H15.5
	Coupling		Motor Φ19 * screwΦ12
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

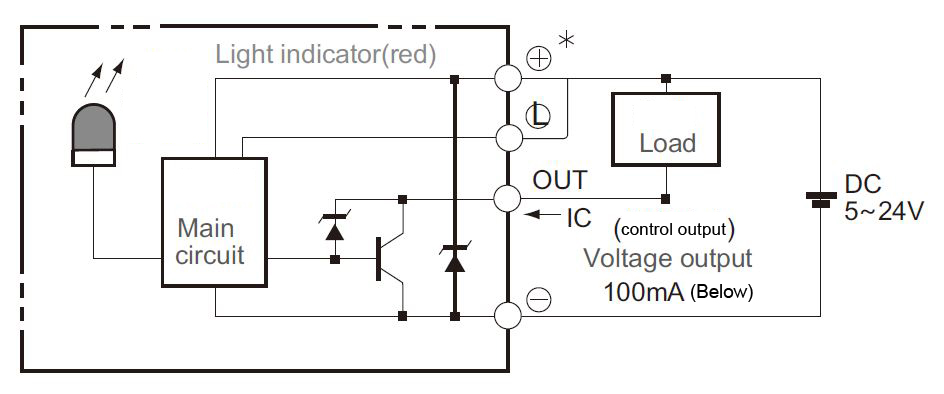

Sensor Connection Diagram <Origin and End Points>

CNC Industry Linear Motor Stages

Allowable load torque table N.m

CNC Industry Linear Motor Stages

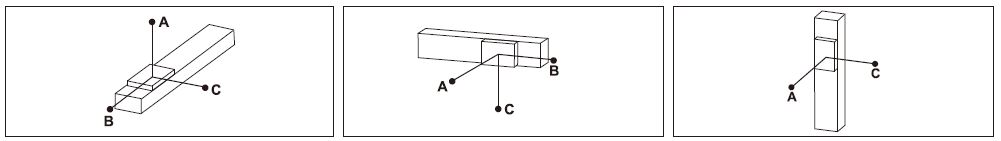

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	70kg	3235	349	408
	90kg	2482	263	306
	120kg	1861	187	218
Lead 10	65kg	1911	338	373
	85kg	1445	248	276
	120kg	1000	164	182
Lead 20	35kg	1666	547	538
	55kg	1030	331	328
	83kg	654	206	204
Lead 40	15kg	1126	740	577
	22kg	755	491	384
	43kg	366	231	183

(Unit: mm)

Hanging installation		A	B	C
Lead 5	75kg	377	322	2988
	95kg	288	246	2333
	120kg	218	187	1850
Lead 10	60kg	408	368	2092
	80kg	296	266	1554
	120kg	182	164	1002
Lead 20	30kg	633	644	1961
	50kg	365	369	1143
	83kg	204	206	656
Lead 40	12kg	729	936	1417
	22kg	384	491	755
	43kg	183	231	366

(Unit: mm)

Vertical installation		A	C
Lead 5	20kg	1368	1368
	30kg	911	911
	50kg	546	546
Lead 10	15kg	1618	1618
	25kg	970	970
	40kg	607	607
Lead 20	10kg	1922	1922
	14kg	1377	1377
	25kg	769	769
Lead 40	7kg	1356	1356
	12kg	790	790
	-	-	-

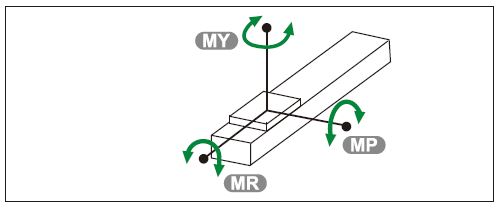

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	1032
MP	1034
MR	908

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	750	200	HSAL-A08FL-B0.2	HANS-A-00623-P
Han's	H	Brake (Vertical )	750	200	HSAL-A08BL-B0.2	HANS-A-00623-P
International	P	without brake (Horizontal )	750	200	MHMF082L1U2M	MCDLN35SE
International	P	Brake (Vertical )	750	200	MHMF082L1V2M	MCDLN35SE
Mitsubishi	M	without brake (Horizontal )	750	200	HF-KP73	MR-J3-70A
Mitsubishi	M	Brake (Vertical )	750	200	HF-KP73B	MR-J3-70A

Dimension

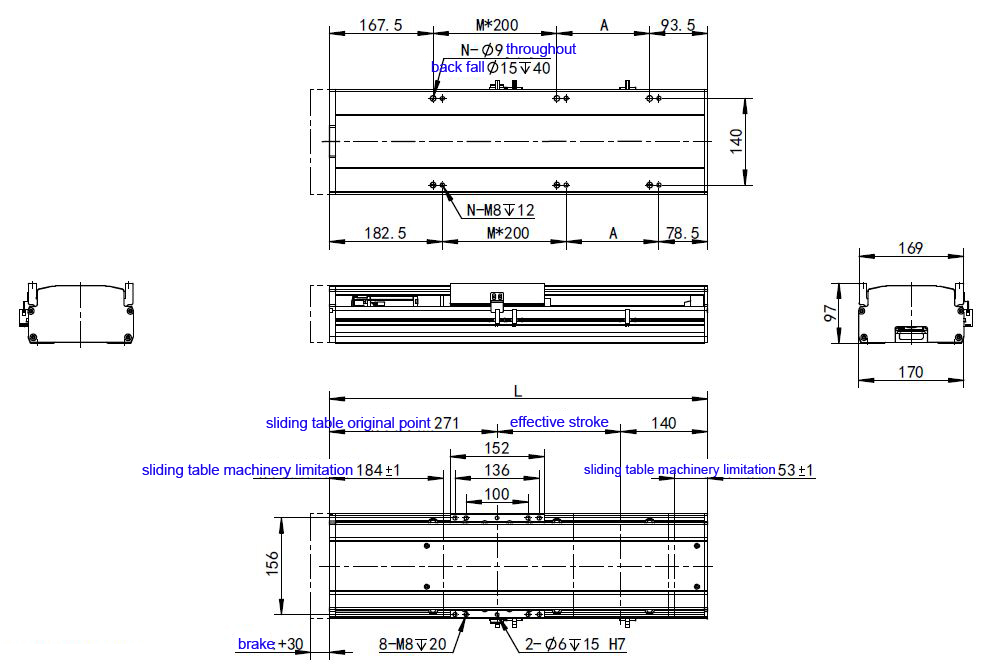

Motor Built-in

HAN'S LASER linear motion guide rail module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
L	511	561	611	661	711	761	811	861	911	961	1011	1061	1111	1161	1211	1261	1311	1361	1411	1461	1511	1561	1611	1661
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16
KG	10.89	11.67	12.45	13.22	13.99	14.76	15.53	16.3	17.07	17.84	18.61	19.38	20.15	10.92	21.69	22.46	23.23	24	24.77	25.54	26.31	27.08	27.85	28.62

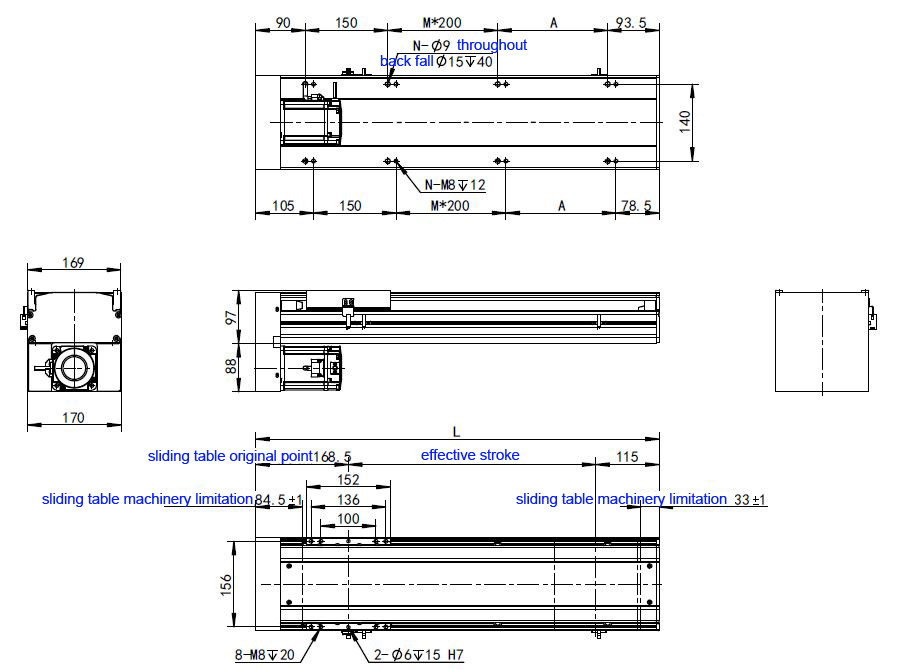

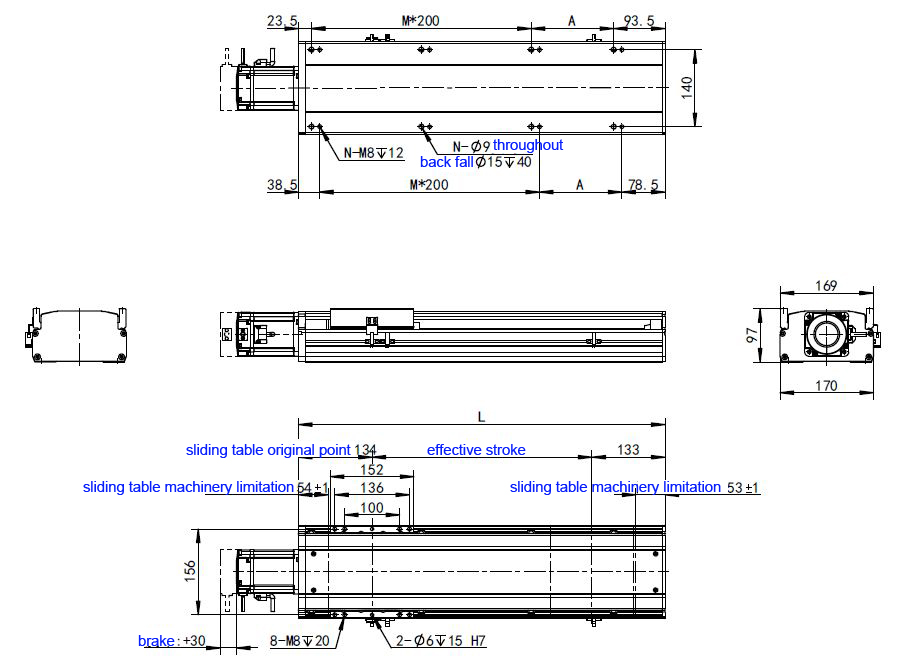

Motor Exposed

HAN'S LASER linear motion guide rail module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
L	367	417	467	517	567	617	667	717	767	817	867	917	967	1017	1067	1117	1167	1217	1267	1317	1367	1417	1467	1517
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5	6	6	6	6
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16
KG	10.02	10.79	11.56	12.33	13.1	13.87	14.64	15.41	16.18	16.95	17.72	18.49	20.03	20.03	20.8	21.57	22.34	23.11	23.88	24.65	25.42	26.19	26.96	27.73

Motor Fold Down

linear motion guide rail module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
L	383.5	433.5	483.5	533.5	583.5	633.5	683.5	733.5	783.5	833.5	833.5	933.5	983.5	1033.5	1083.5	1133.5	1183.5	1233.5	1283.5	1333.5	1383.5	1433.5	1483.5	1533.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	0	0	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16
KG	10.3	11.07	11.84	11.84	13.38	14.15	14.92	15.69	16.46	17.23	18	18.77	19.54	20.31	20.08	21.85	22.62	23.39	24.16	24.93	25.7	26.47	27.24	28.01

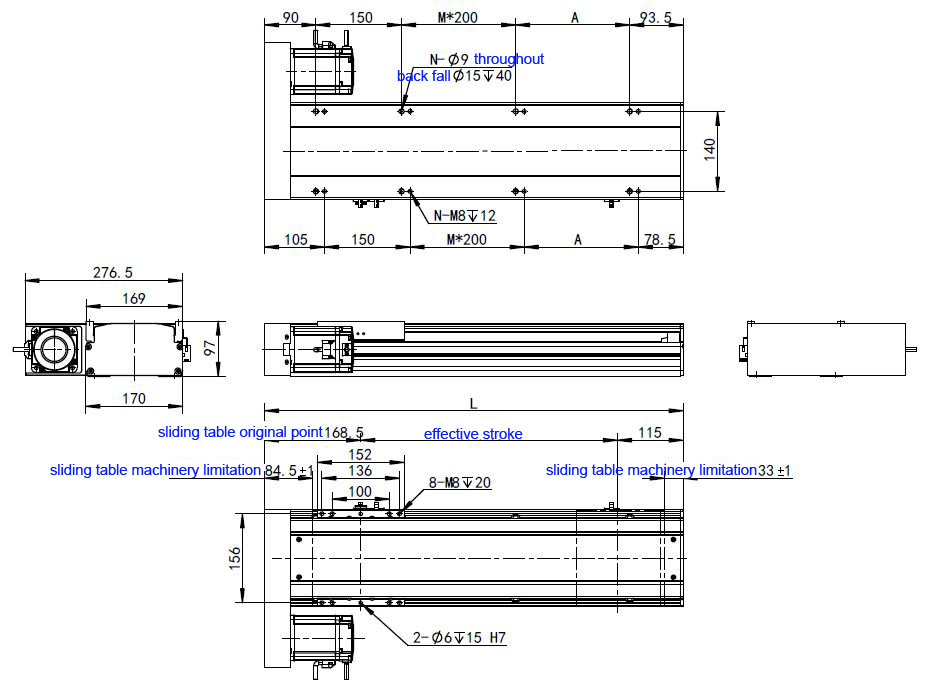

Motor Left Fold

linear motion gantry module for CNC laser 3D printer

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
L	383.5	433.5	483.5	533.5	583.5	633.5	683.5	733.5	783.5	833.5	833.5	933.5	983.5	1033.5	1083.5	1133.5	1183.5	1233.5	1283.5	1333.5	1383.5	1433.5	1483.5	1533.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	0	0	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16
KG	10.3	11.07	11.84	11.84	13.38	14.15	14.92	15.69	16.46	17.23	18	18.77	19.54	20.31	20.08	21.85	22.62	23.39	24.16	24.93	25.7	26.47	27.24	28.01

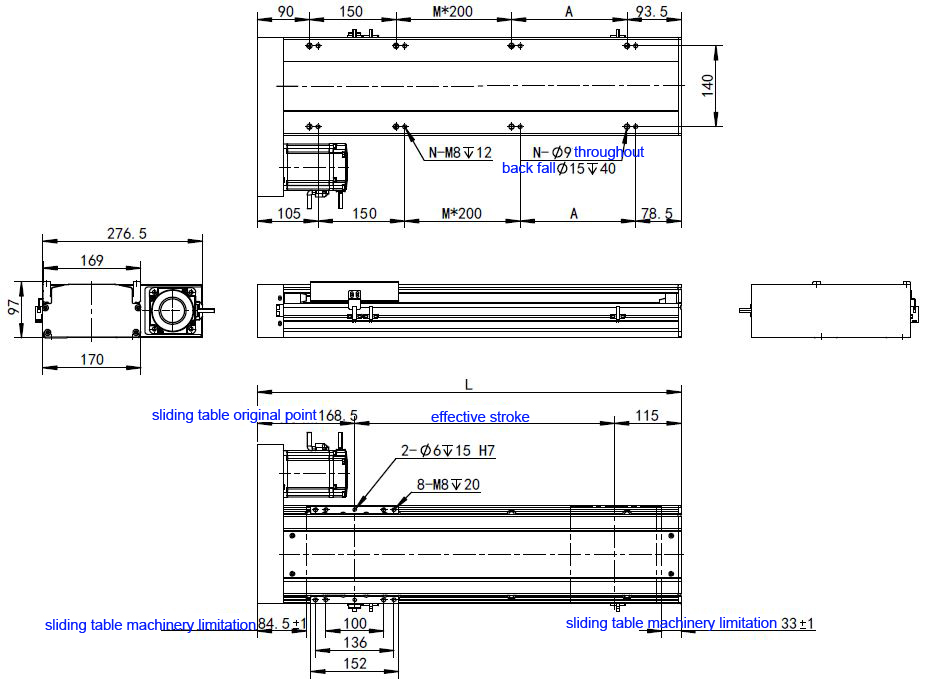

Motor Right Fold

linear motion gantry module for CNC laser 3D printer

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250
L	383.5	433.5	483.5	533.5	583.5	633.5	683.5	733.5	783.5	833.5	833.5	933.5	983.5	1033.5	1083.5	1133.5	1183.5	1233.5	1283.5	1333.5	1383.5	1433.5	1483.5	1533.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	0	0	0	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14	16	16	16	16
KG	10.3	11.07	11.84	11.84	13.38	14.15	14.92	15.69	16.46	17.23	18	18.77	19.54	20.31	20.08	21.85	22.62	23.39	24.16	24.93	25.7	26.47	27.24	28.01

Characteristics:

1. Fully sealed effective dust prevention, durable and strong load capacity

2. It can effectively prevent dust even in harsh environment

3. Enlarge the slider to increase the load capacity, adapt to a variety of motors

4. Precision ball screw, fast and easy installation

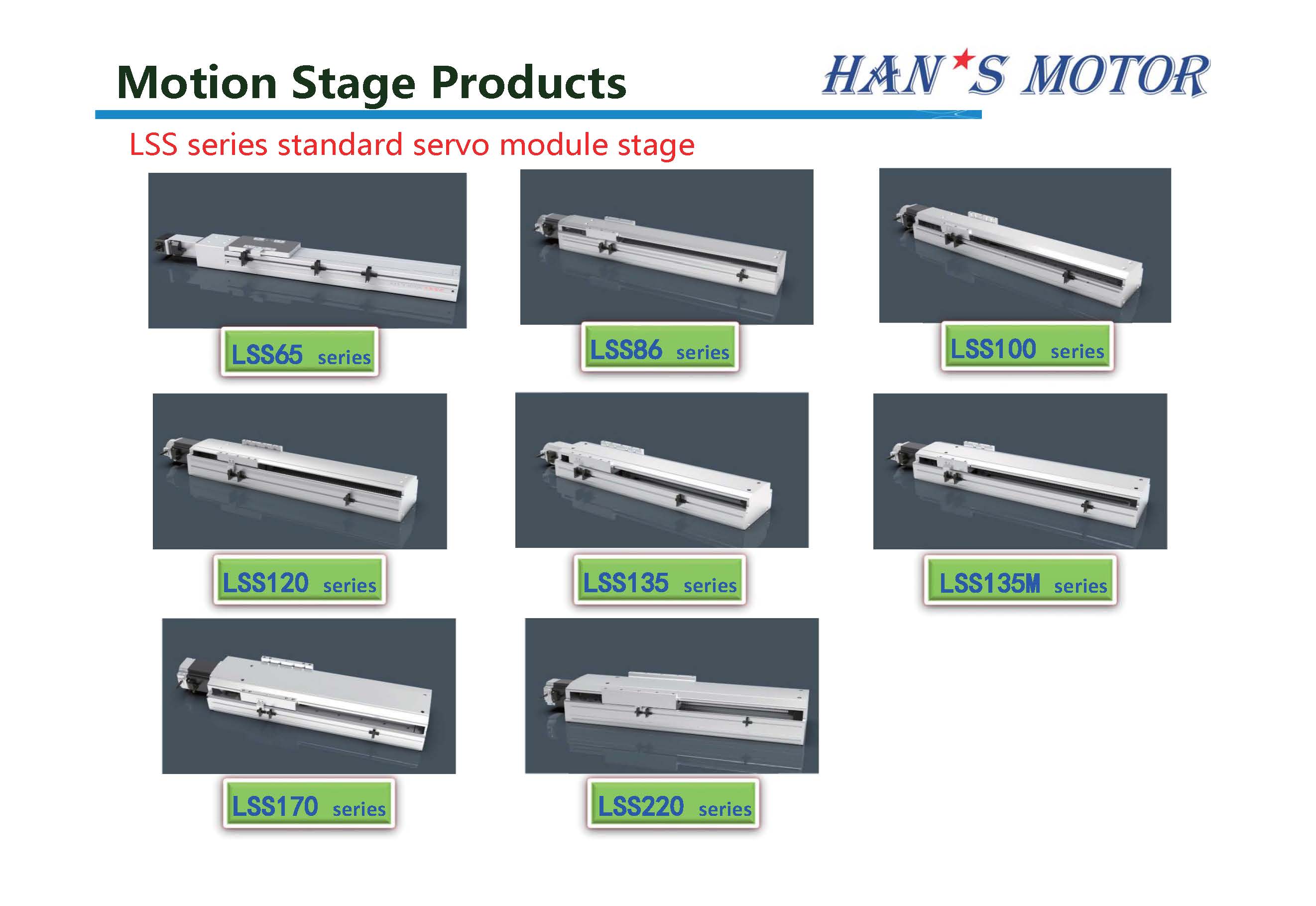

HAN'S MOTOR Linear Motor Module Related Products.:

China Best DDR Motor Supplier

Why choose us?

1. High quality, competitive price, professional team

2. Precise ball screw and precise wire guide

3. High precision CNC integrated processing forming

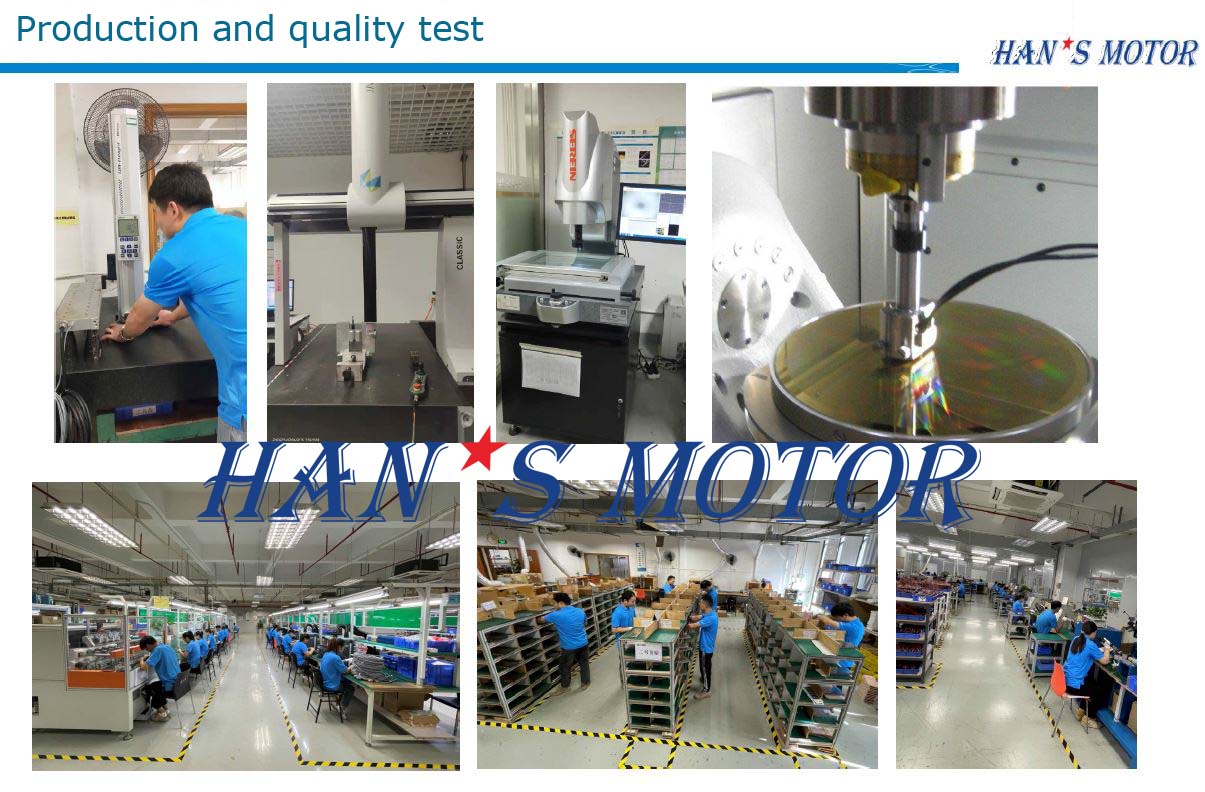

Production advantages:

Self-owned plant, production process is perfect, stable labor force and completed quality control to ensure quality management and competitive price.

Service advantage:

Direct-sales as primary channel, optimized localization service is realized for technical engineer with high-level

service and fast response.

Our services.

1. We can supply prompt technical support to you

2. We can provide drawings to you as per your request

3. We have strict quality control teams to ensure production standard

HAN'S LASER China Best DDR motor Supplier

Applications:

Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc.

CNC Ball Screw Module Linear Slide Module

Exhibitions & Global Market Mapping:

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 15 days and customized model will be delivered within 30 days.
