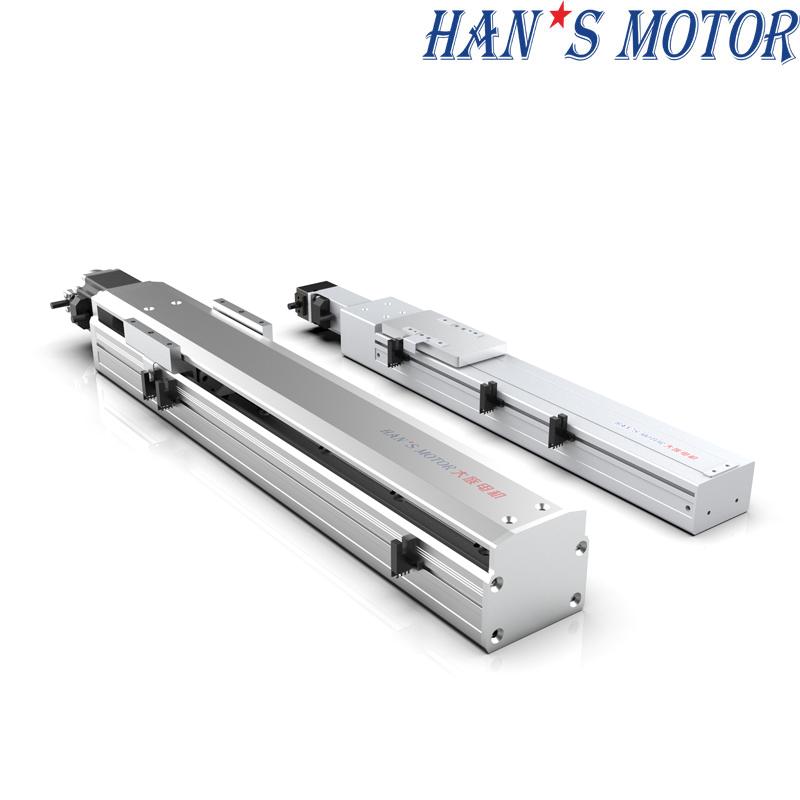

LSS86 Linear Motion System High Precision Ball Screw Linear Actuator 1000mm Stroke

HAN'S Motor Servo module stages LSS86 Max. Stroke 1000mm

Product details:

Effective Length:100-1000mm

Max. itinerary: 1000mm

Max. speed: 1600mm/s

Motor capacity: 200W

Balls crew: C7 Φ16mm

Linear slide: W15*H12.5--one piece

Features:

1. High precision lead show, high positioning accuracy.

2. High quality slide block, stable and durable.

3. High quality and high precision linear module for longer service life.

4. High speed and low noise in steady movement, good synchronization, long durability, easy to install

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: HAN'S-LSS86 Linear Rail Slide Ball Screw Linear Motion Module 1000mm Effective Itinerary

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Max. velocity (mm/s)		250	500	1000	1600
	Max. conveyable weight	horizontal (kg)	40	32	18	4
		Vertical (kg)	16	8	5	3
	Rated thrust (N)		339	168	123	85
	Standard stroke (mm)		100-1000mm
Parts	AC servo motor power (W)		200
	Ball screw O.D （mm)		C7 Φ16
	Linear slide		W15*H12.5
	Coupling		Motor Φ11 * screwΦ10
	Original sensor	external hanging	EE-SX672 (NPN)

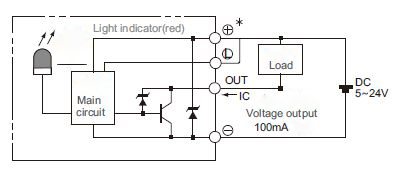

Sensor Connection Diagram <Origin and End Points>

Sensor Connection Diagram

Allowable load torque table N.m

servo linear module load torque

Installation method:

(Unit.: mm)

Horizontal installation		A	B	C
Lead 5	30kg	424	24	25
	50kg	0	0	0
	-	-	-	-
Lead 10	15kg	394	76	79
	25kg	184	22	25
	30kg	111	-	-
Lead 20	5kg	937	282	259
	10kg	487	121	116
	22kg	236	40	44
Lead 32	5kg	940	285	264
	10kg	490	125	120
	15kg	240	45	48

(Unit.: mm)

Hanging installation		A	B	C
Lead 5	10kg	105	50	1400
	20kg	22	0	538
	30kg	0	0	0
Lead 10	10kg	100	50	545
	20kg	20	0	221
	30kg	0	0	0
Lead 20	5kg	116	58	605
	10kg	24	0	253
	22kg	0	0	0
Lead 32	5kg	251	211	903
	10kg	97	49	436
	15kg	0	0	153

(Unit.: mm)

Vertical installation		A	C
Lead 5	5kg	100	145
	10kg	50	90
	12kg	23	63
Lead 10	4kg	335	375
	6kg	140	180
	8kg	100	140
Lead 20	1kg	620	620
	2kg	680	680
	5kg	310	350
Lead 32	1kg	580	580
	2kg	645	645
	3kg	310	350

Static allowable load inertia

servo linear module load inertia

(Unit.: mm)

MY	110
MP	110
MR	120

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	200	200	HSAL-A02FK-B0.2	HANS-A-00323-P
Han's	H	Brake (Vertical )	200	200	HSAL-A02BK-B0.2	HANS-A-00323-P
International	P	without brake (Horizontal )	200	200	MSMF022L1U2M	MADLN15SE
International	P	Brake (Vertical )	200	200	MSMF022L1V2M	MADLN15SE
Mitsubishi	M	without brake (Horizontal )	200	200	HF-KP23	MR-J3-20A
Mitsubishi	M	Brake (Vertical )	200	200	HF-KP23B	MR-J3-20A

Dimension

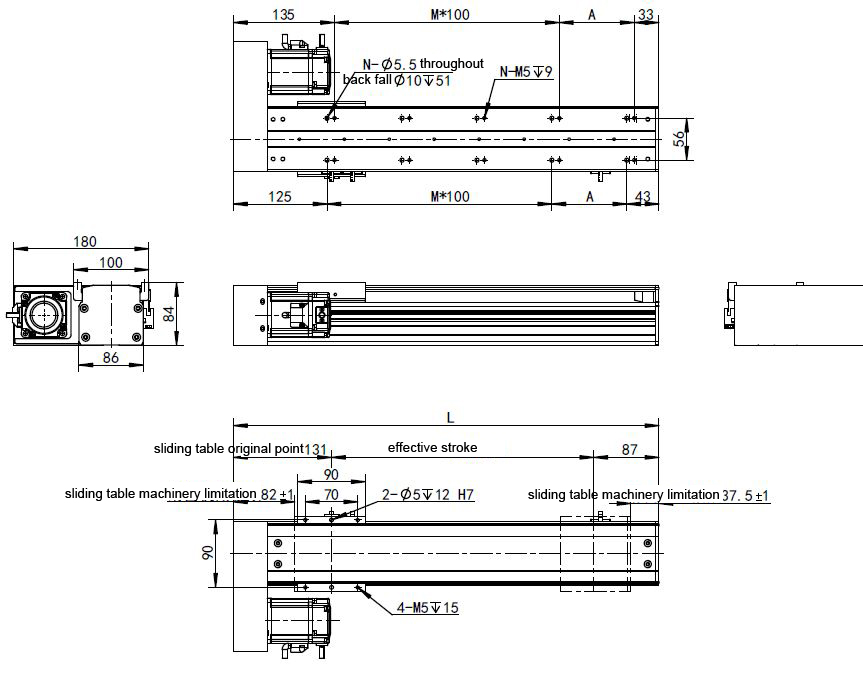

Motor Exposed

HAN'S Servo motion stage

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
L	338	388	438	488	538	588	638	688	738	788	838	888	938	988	1038	1088	1138	1188	1238
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100
M	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10
N	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24
KG	2.87	3.1	3.32	3.55	3.77	3.99	4.1	4.45	4.7	4.93	5.14	5.37	5.59	5.83	6.06	6.29	6.52	6.75	6.98

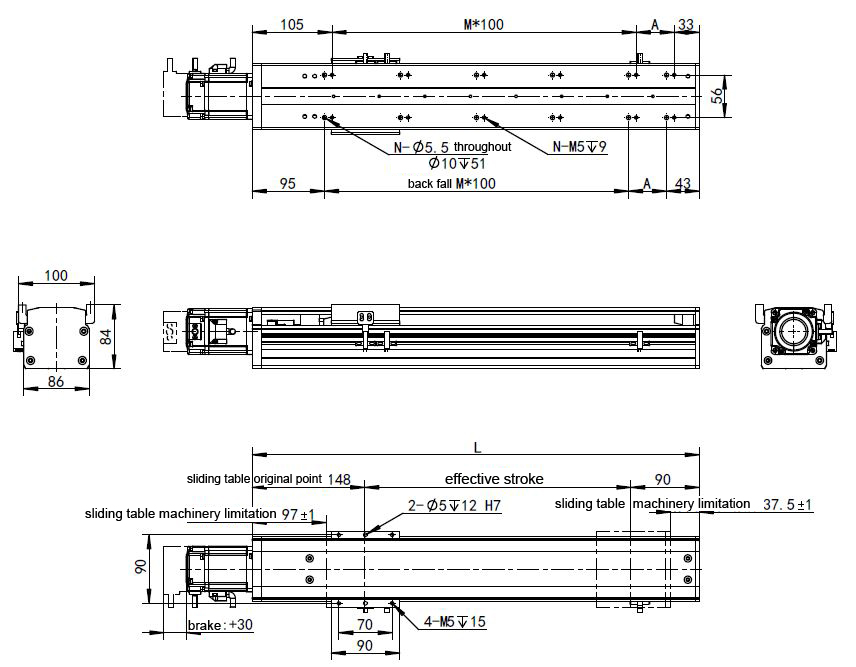

Motor fold down

HAN'S Servo motion stage

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
L	318	368	418	468	518	568	618	668	718	768	818	868	918	968	1018	1068	1118	1168	1218
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	20	24
KG	2.87	3.1	3.32	3.55	4.01	4.01	4.23	4.47	4.7	4.93	5.17	5.39	5.62	5.85	6.09	6.31	6.54	6.77	6.99

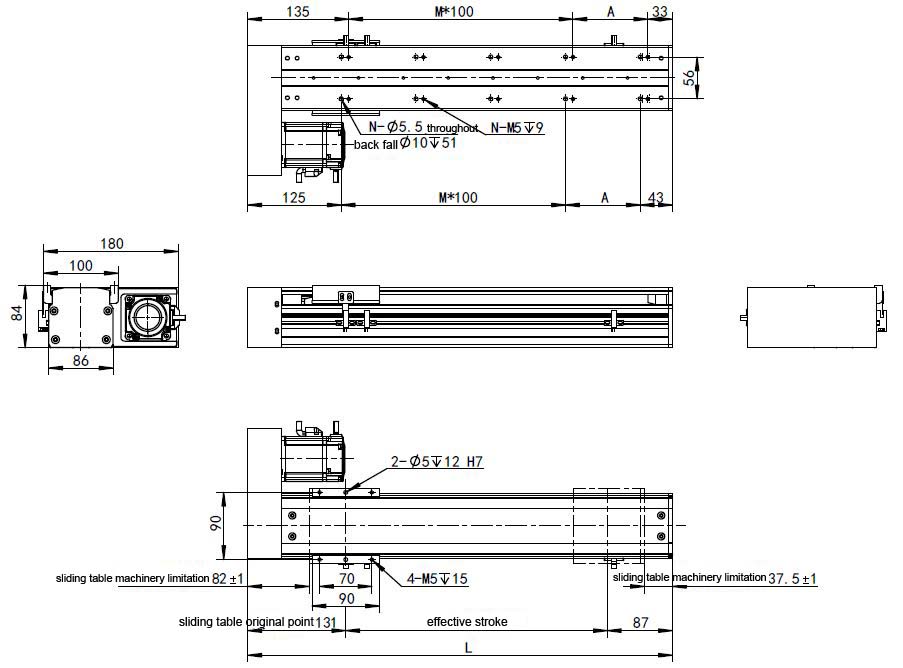

Motor fold left

HAN'S Servo motion stage

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
L	318	368	418	468	518	568	618	668	718	768	818	868	918	968	1018	1068	1118	1168	1218
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	20	24
KG	2.87	3.1	3.32	3.55	4.01	4.01	4.23	4.47	4.7	4.93	5.17	5.39	5.62	5.85	6.09	6.31	6.54	6.77	6.99

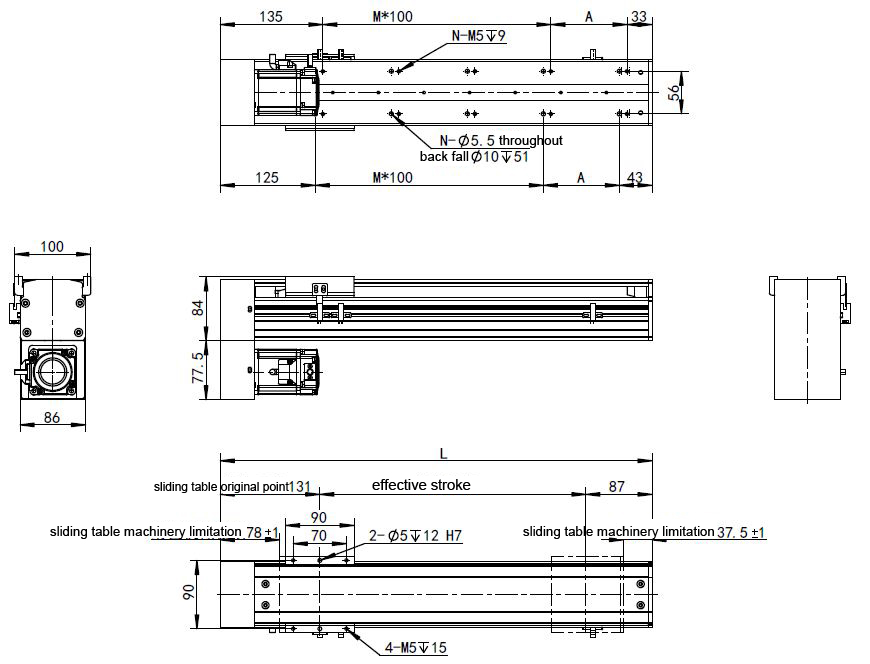

Motor fold right

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
L	318	368	418	468	518	568	618	668	718	768	818	868	918	968	1018	1068	1118	1168	1218
A	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	20	24
KG	2.87	3.1	3.32	3.55	4.01	4.01	4.23	4.47	4.7	4.93	5.17	5.39	5.62	5.85	6.09	6.31	6.54	6.77	6.99

Characteristics:

Fully sealed effective dust prevention to prevent dusteffectively even in harsh environment.

Enlarge the slider to increase the load capacity.

Fast and easy installation.

Specialities:

Our Advantages:

High quality with competitive price

Professional service ability

Experienced R&D team

24 hours online customer service

Timely and effective aftersales-service

Why choose us?

Direct supplier with low price.

Excellent quality guaranteed and strict production process.

On-time delivery, over 17 years R&D and manufacturing experience.

High security of payment and order for export experience and one-stop service.

Approved customization according to customers’ demand with expert engineering team.

Industry Applications:

Mainly used on automatic devices such as position working, clamping, carrying, including electronic assembly,

liquid injection and filling device, spot fusion welding device.

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 10 days and customized model will be delivered within 30 days.

Related Tags :

Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Submit

Related Products

LSS65 Linear Rail Slide 800mm Effective Itinerary Ball Screw Linear Motion Module

HAN'S Motor Servo module stages LSS65 Max. Stroke 800mm Product details: Standard stroke.:100-800mm, max.velocity 1000mm/s, motor power 100W, ballscrew Φ12mm, linear slide 42*9.5 per piece Features: Durable and strong load capacity Adapt to a variety of motors Precision ball screw

details

CNC Ball Screw Module Linear Slide Module

100mm Effective Length CNC Linear Guide Stage Rail Motion Slide LSS100 Ballscrew Actuator Module

100mm Effective Length Rail way CNC Ball Screw Slide Linear Guide Motion Module For Engraving machine Product description: Effective Length:100-1050mm Max. itinerary: 1050mm Max. speed: 1600mm/s Motor capacity: 200W Balls crew: C7 Φ16mm Linear slide: W20*H18--one piece Features: 1. Stable setting of positioning. 2. Excellent heat dissipation and lighter weight. 3. higher accuracy and repeatability. 4. High continuous forces and good heat dissipation, it’s ideal for pressing, molding, and machining applications.

details

Ball Screw High Precision Linear Guide For CNC Motion

Linear Guide Slide Table Ball Screw Motion Rail CNC Linear Guide Stage LSS120

High Precision Linear Motion Guide Module For 3D Printer Router Machine Product description: Effective Length:100-1050mm Max. itinerary: 1050mm Max. speed: 1600mm/s Motor capacity: 400W Balls crew: C7 Φ16mm Linear slide: W15*H12.5--two pieces Features: 1. Integrated design, high rigidity, durable, stable operation, quality assurance; 2. Fully enclosed dust-proof, convenient installation, stable performance; 3. Longer service life, high precision and high work efficiency.

details

Industrial Automation Precision Linear Actuator

China Best Arc Motor Supplier High Precision Slide Table Smooth Operated CNC Guide Motor Ball Screw Linear Module LSS135M

Ball Screw Linear Module Guide Rail Linear Motion CNC Linear Guide Rail With 400W Motor Product description: Effective Length:100-1050mm Max. itinerary: 1050mm Max. speed: 1600mm/s Motor capacity: 400W Balls crew: Φ16mm Linear slide: W15*H12.5--two pieces Features: 1. Semi-sealer structure, high stability, compact and versatility, suitable for normal working environment 2. It is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries. 3. Drive method: ball screw/ synchronous belt 4. High speed mute, high positioning accuracy with long service life

details

High Precision Guide Slide Table Linear Motor Module

China Best Arc Motor Supplier Linear Motion Guide Rail Module For 3D Printer LSS135

Aluminum Durable Linear Module Linear Guides Slide 100MM-1050MM Effective Linear Stage LSS135 Product description: Effective Length:100-1050mm Max. itinerary: 1050mm Max. speed: 1600mm/s Motor capacity: 400W Balls crew: Φ16mm Linear slide: W15*H12.5--two pieces Features: 1. Low cost automation solution, easy to install and disassemble 2. Long stroke solid aluminum profile structure 3. Smooth ballscrew and good lubrication design 4. Aluminum extrusion molding and integrated pedestal 5. Dust proof in hard environment and easy for maintenance 6. High positioning accuracy with long service life

details

CNC Linear Guide Stage Rail Motion Slide Ballscrew Actuator Module

Linear module Long Stroke High Speed Ball Screws Guide Rail For CNC Machine LSS170

High Precision Linear Slide Module Single Axis Motion Unit Linear Module LSS170 Product description: Effective Length:100-1250mm Max. itinerary: 1250mm Max. speed: 2000mm/s Motor capacity: 750W Balls crew: Φ20mm Linear slide: W20*H15.5--two pieces Features: 1. Linear motor is used for control system of high-speed motion platform motor, motion module providing huge direct kinetic. 2. Metal steel slider, one side of sliding table is sealed with stainless steel, oxidized waterproof surface, high temperature and no deformation. 3. Stable and reliable, low noise and smooth

details

CNC Linear Actuator Linear Motion Guide Linear Module

Wholesale Economic Motorized CNC Electrical Ball Screw Linear Motion Guide Rail Module LSS220

CNC Linear Actuator Linear Motion Guide Servo Module LSS220 Product description: Belt Drive Linear Guide Rails Series The belt drive linear guide rails are driven by synchronous belt, can easily realize the long stroke and large range of motion. Using aluminum structure, the max stroke can reach 1500mm, max speed up to 2000mm/s. Linear motor is used for control system of high-speed motion platform motor, motion module providing huge direct kinetic. Features: 1. Double linear guides, small moving mass and high thrust. 2. Linear encoder with high resolution. 3. High acceleration speed (up to 2000mm/s). 4. Stabilizing vibration strengthens low-speed stability and ultra-short setting time.

details

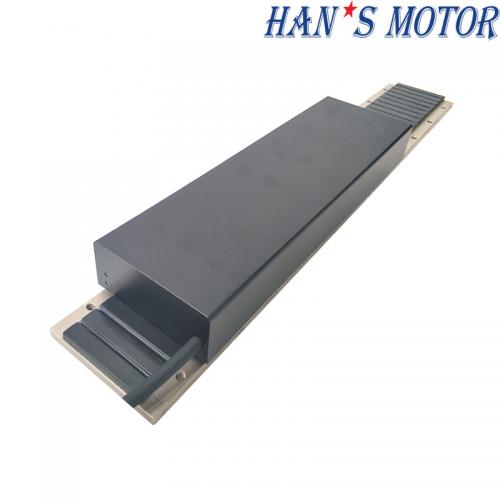

Stages with Magnetic Direct-Drive Linear Motor
