100mm Effective Length CNC Linear Guide Stage Rail Motion Slide LSS100 Ballscrew Actuator Module

100mm Effective Length Rail way CNC Ball Screw Slide Linear Guide Motion Module For Engraving machine

Product description:

Effective Length:100-1050mm

Max. itinerary: 1050mm

Max. speed: 1600mm/s

Motor capacity: 200W

Balls crew: C7 Φ16mm

Linear slide: W20*H18--one piece

Features:

1. Stable setting of positioning.

2. Excellent heat dissipation and lighter weight.

3. higher accuracy and repeatability.

4. High continuous forces and good heat dissipation, it’s ideal for pressing, molding, and machining applications.

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

Products Name: 100-1050mm Effective Length Rail way CNC Ball Screw Slide Linear Guide Motion Module For Engraving machine

Product Specifications

Performance	Repeat positioning accuracy (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Max.velocity (mm/s)		250	500	1000	1600
	Max.conveyable weight	horizontal (kg)	50	30	18	5
		Vertical (kg)	12	8	3	-
	Ratedthrust (N)		683	341	174	107
	Standard stroke (mm)		100-1000mm
Parts	AC servo motor power (W)		200
	Ballscrew O.D （mm)		C7 Φ16
	Linear slide		W20*H18
	Coupling		Motor Φ11 * screwΦ10
	Original sensor	external hanging	EE-SX672 (NPN)
		build-in	EE-SX674 (NPN)

Sensor Connection Diagram <Origin and End Points>

CNC Ball Screw Module Linear Slide Module

Allowable load torque table N.m

CNC Ball Screw Module Linear Slide Module

Installation method:

(Unit: mm)

Horizontal installation		A	B	C
Lead 5	30kg	547	42	42
	40kg	391	29	29
	50kg	298	22	21
Lead 10	15kg	521	84	80
	25kg	298	47	44
	30kg	242	37	35
Lead 20	5kg	675	224	193
	10kg	330	107	93
	18kg	175	55	48
Lead 32	3kg	486	259	198
	5kg	288	152	116
	-	-	-	-

(Unit: mm)

Hanging installation		A	B	C
Lead 5	25kg	52	53	670
	35kg	35	35	455
	50kg	21	22	298
Lead 10	10kg	124	131	770
	20kg	58	61	382
	30kg	35	37	242
Lead 20	6kg	160	185	562
	12kg	76	88	272
	18kg	48	55	175
Lead 32	2kg	300	393	733
	5kg	116	152	288
	-	-	-	-

(Unit: mm)

Vertical installation		A	C
Lead 5	5kg	310	310
	8kg	192	192
	12kg	129	129
Lead 10	4kg	344	344
	8kg	172	172
	-	-	-
Lead 20	2kg	546	546
	3kg	364	364
	-	-	-

Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

(Unit: mm)

MY	110
MP	110
MR	120

Matching with Servo Motor List

Brand	Motor Model	Brake or without brake	Power	Voltage	Servo motor Model	Servo driver model
Han's	H	without brake (Horizontal )	200	200	HSAL-A02FL-B0.2	HANS-A-00323-P
Han's	H	Brake (Vertical )	200	200	HSAL-A02BL-B0.2	HANS-A-00323-P
International	P	without brake (Horizontal )	200	200	MSMF022L1U2M	MADLN15SE
International	P	Brake (Vertical )	200	200	MSMF022L1V2M	MADLN15SE
Mitsubishi	M	without brake (Horizontal )	200	200	HF-KP23	MR-J4-20A
Mitsubishi	M	Brake (Vertical )	200	200	HF-KP23B	MR-J4-20A

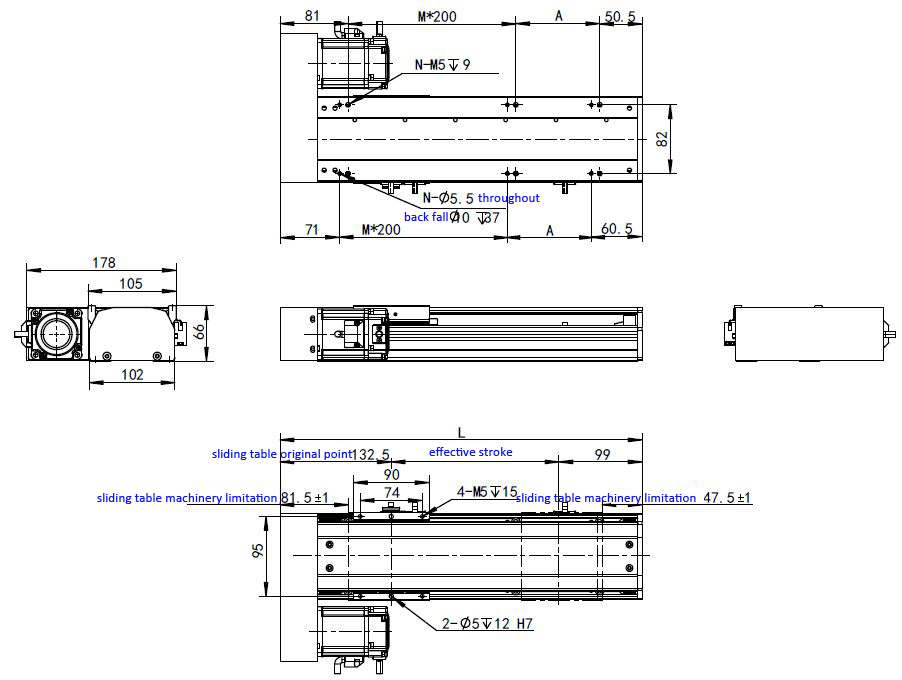

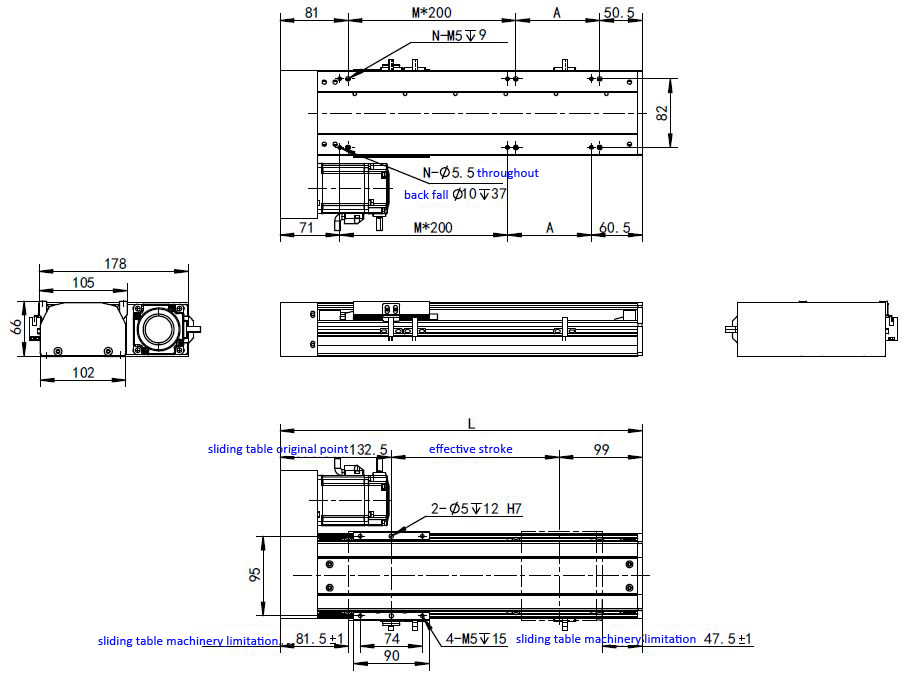

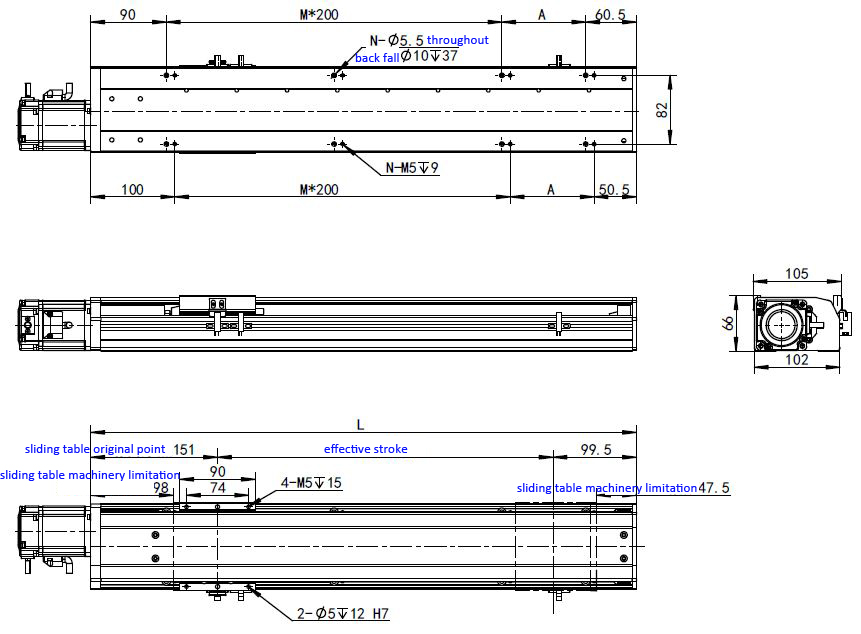

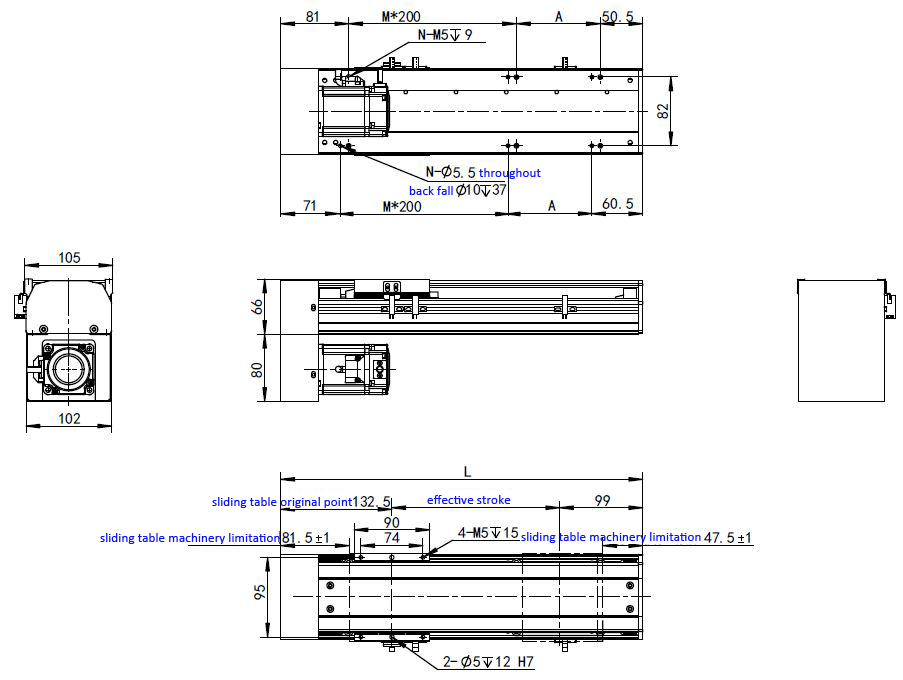

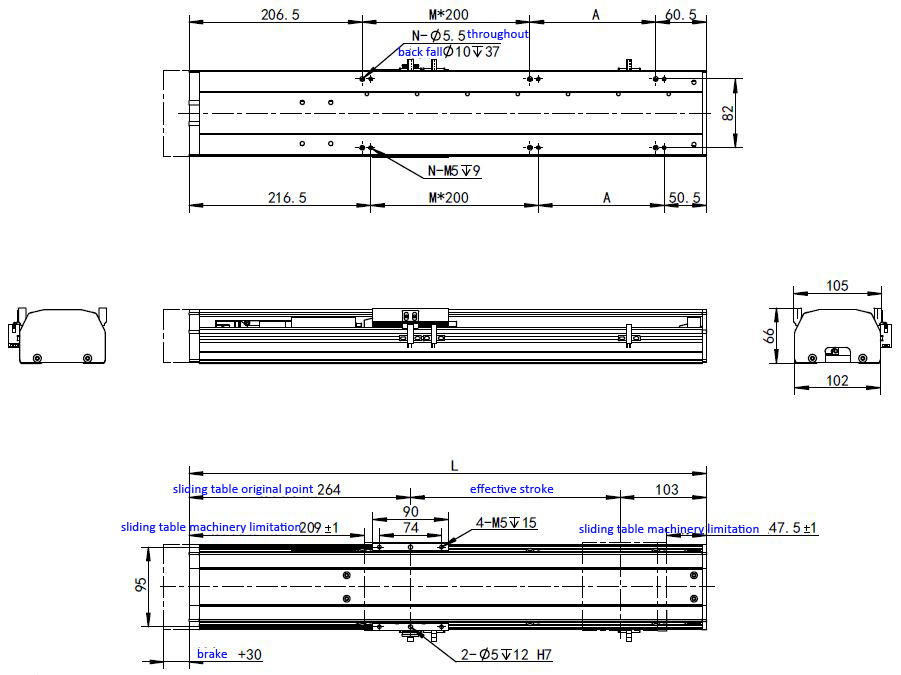

Dimension

Motor Built-in

CNC Ball Screw Module Linear Slide Module

Motor built-in only suitable for 100W motor

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	467	517	567	617	667	717	767	817	867	917	967	1017	1067	1117	1167	1217	1267	1317	1367	1417
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	4.98	5.36	5.74	6.12	6.5	6.88	7.26	7.64	8.02	8.4	8.78	9.16	9.54	9.92	10.3	10.68	11.06	11.44	11.82	12.2

Motor Exposed

CNC Ball Screw Module Linear Slide Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	350.5	400.5	450.5	500.5	550.5	600.5	650.5	700.5	750.5	800.5	850.5	900.5	950.5	1000.5	1050.5	1100.5	1150.5	1200.5	1250.5	1300.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.32	5.7	6.08	6.46	6.84	7.22	7.6	7.98	8.36	8.74	9.12	9.5	9.88	10.26	10.64	11.02	11.4	11.78	12.16	12.54

Motor Fold Down

CNC Ball Screw Module Linear Slide Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	1031.5	1081.5	1131.5	1181.5	1231.5	1281.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.52	5.93	6.34	6.75	7.16	7.57	7.98	8.39	8.8	9.21	9.62	10.03	10.44	10.85	11.26	11.67	12.08	12.49	12.9	13.31

Motor Left Fold

CNC Ball Screw Module Linear Slide Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	1031.5	1081.5	1131.5	1181.5	1231.5	1281.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.52	5.93	6.34	6.75	7.16	7.57	7.98	8.39	8.8	9.21	9.62	10.03	10.44	10.85	11.26	11.67	12.08	12.49	12.9	13.31

Motor Right Fold

CNC Ball Screw Module Linear Slide Module

Effective stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	331.5	381.5	431.5	481.5	531.5	581.5	631.5	681.5	731.5	781.5	831.5	881.5	931.5	981.5	1031.5	1081.5	1131.5	1181.5	1231.5	1281.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.52	5.93	6.34	6.75	7.16	7.57	7.98	8.39	8.8	9.21	9.62	10.03	10.44	10.85	11.26	11.67	12.08	12.49	12.9	13.31

Characteristics:

Stabilizing bearing plate.: The end of the motor is strengthened with bearing places to improve the overall stability effectively;

High precision and low noise;

Providing huge direct kinetic,and good for control system of high-speed motion platform motor, motion module;

Products are mainly used in precision positioning, glue dispensing, rubber coating, painting, oil-spraying, handling & palletizing ,grasping& moving, cutting & welding, visual inspection, automatic assembly, cleaning equipment etc.

HAN'S MOTOR Motion Stages Products Series.:

China Best arc motor Supplier

Why choose us?

Q1: What’s property of your company?

A: SHENZHEN HAN’S MOTOR S&T CO.,LTD. is manufacturer with own R&D, production and sales, a subsidiary of Han’s Laser (Stock Code: 002008), it becomes the world's famous laser equipment manufacturer and the ﬂagship of Chinese national laser industry.

Q2: How long is your delivery time?

A: 10-15 working days for general production, shipment would be arranged immediately once payment is received.

Q3: What's your warranty terms?

A: 12 months on the parts of product, please contact us for more details.

E-mail.: zhangk141204@hanslaser.com

Applications:

Engraving machine, laser welding, woodworking machinery, 3D printer, testing equipment, glue dispensing machine, glue filling machine, glue coating machine, spraying equipment, semiconductor equipment,

SMT equipment, packaging equipment, CNC machine tools, lithium battery equipment, glass machinery

and other automation equipment, traditional machinery industry.

CNC Ball Screw Module Linear Slide Module

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 15 days and customized model will be delivered within 30 days.
