Features：
1. Excellent performance, positioning accuracy and operation efficiency.
2. Low noise, no maintenance and smooth operation
3. Good heat dissipation compared with no iron core
4. Large thrust and high rigidity
5. Unlimited travel length
Brand:
HAN'S MOTOROrder(MOQ):

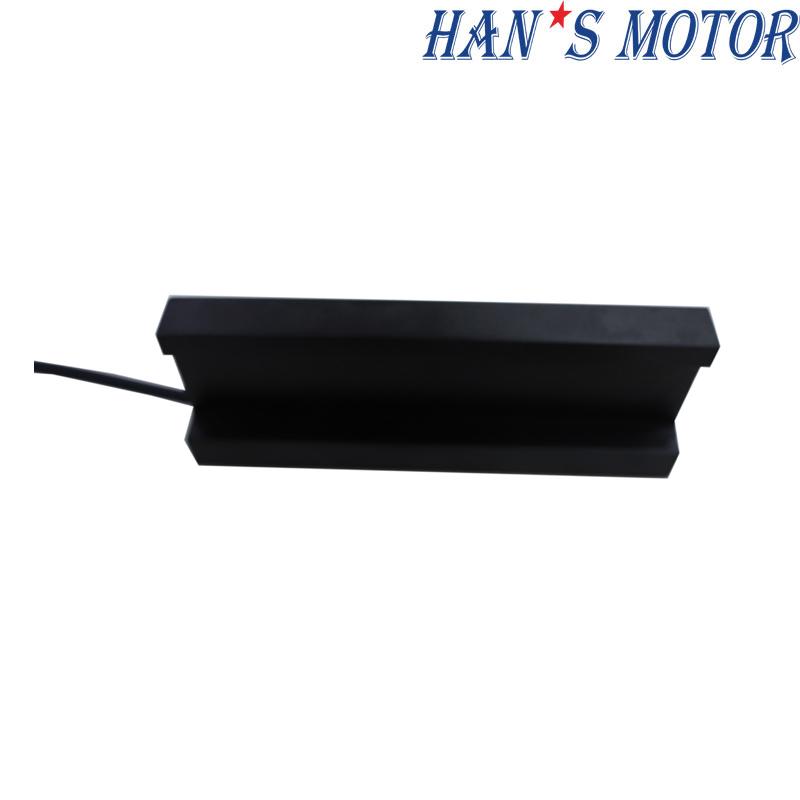

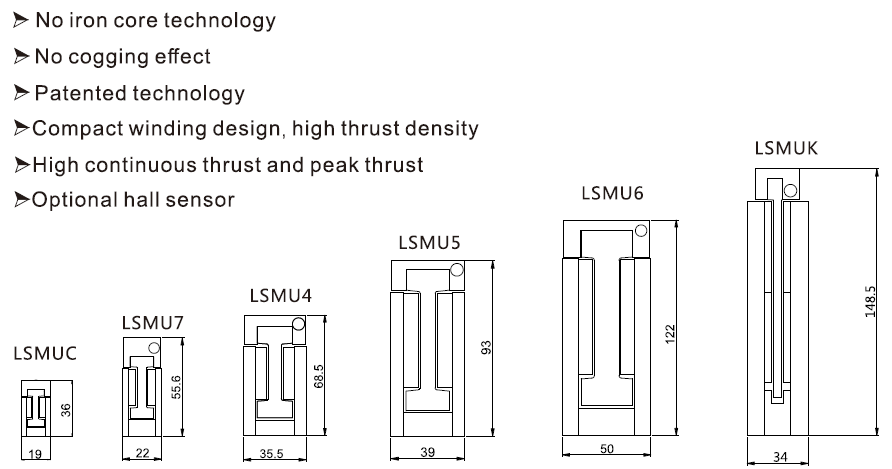

1Product name：LSMU Series ironless linear motor with thickness 35.5mm and width 68.5mm
Ironless Linear Motor LSMU Series
Specifications
|
Mover Spec: LSMU410xxxx-x-H-NC-N-D00.5 |
101A-S | 201A-S | 201A- P | 301A-S | 301A- P | 401A-S | 401A- P |
601A-S |
601B- P | ||
|
Performance Parameters |
Symbol |
Unit | Series |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
Series |
Parallel |
|
Continuous Force (Tmax） |
Fc | N | 36 | 72 | 72 | 108 | 108 | 144 | 144 | 216 | 216 |
|
Peak Force |
Fp | N | 144 | 288 | 288 | 432 | 432 | 576 | 576 | 864 | 864 |
|
Motor Constant |
Km25 |
N//Sqrt (W) |
7.8 | 11.0 | 10.8 | 13.5 | 13.2 | 15.6 | 15.6 | 19.2 | 18.9 |
|
Max.Continuous Power Dissipation |
Pc | W | 29.4 | 58.8 | 61.0 | 88.2 | 91.5 | 116.6 | 117.7 | 174.3 | 178.7 |
|
Continuous Current (Tmax） |
Ic | Arms | 2.3 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 |
|
Peak Current (1S) |
Ip | Arms | 9.2 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
15.7 | 31.4 | 15.7 | 47.1 | 23.6 | 62.8 | 31.4 | 94.2 | 47.1 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrm/rad /s |
5.2 | 10.5 | 5.2 | 15.7 | 7.9 | 20.9 | 10.5 | 31.3 | 15.7 |
|
Electrical Resistance (25℃，±5%）P-P |
R |
Ω |
2.7 | 5.4 | 1.4 | 8.1 | 2.1 | 10.7 | 2.7 | 16.0 | 4.1 |
|
Inductance (25℃，±20%）P-P |
L | mH | 2.0 | 4.0 | 1.0 | 6.0 | 1.5 | 8.0 | 2.0 | 12.0 | 3.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 60 |
60 |
60 |
60 |
60 | 60 | 60 |
60 |
60 |
|
Magnetic Attraction |
Fa | kN | 0.0 |
0.0 |
0.0 |
0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
|
Max.DC Bus Voltage |
Ubus | V | 330 |
330 |
330 |
330 |
330 |
330 |
330 |
330 |
330 |
|
Vmax,Fc@Vbus=310Vdc |
Vmax,Fc |
m/s | 23.1 | 11.1 | 23.1 | 7.1 | 15.0 | 5.1 | 11.1 | 3.1 | 7.1 |
|
Vmax,Fp@Vbus=310Vdc |
Vmax,Fp |
m/s |
20.3 | 8.5 | 20.2 | 4.6 | 12.3 | 2.6 | 8.5 | 0.7 | 4.5 |
|
Vmax,0@Vbus=310Vdc |
Vmax,0 |
m/s |
23.9 | 11.9 | 23.9 | 7.9 | 15.9 | 5.9 | 11.9 | 3.9 | 7.9 |
|
Mover Mass |
Mp | Kg | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 1.2 | 1.2 | 1.8 | 1.8 |
|
Stator Mass within unit length |
Ms | Kg/m | 9.0 |
9.0 |
9.0 |
9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
Dimension
|
Mover Length |
|||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
LSMU410101A-S-H-NC-N-D00.5 |
61 | 1 | 3 |
|
LSMU410201A-S-H-NC-N-D00.5 |
121 |
3 |
7 |
|
LSMU410201A-P-H-NC-N-D00.5 |
7 | ||
|
LSMU410301A-S-H-NC-N-D00.5 |
181 |
5 |
11 |
|
LSMU410301A-P-H-NC-N-D00.5 |
11 | ||
|
LSMU410401A-S-H-NC-N-D00.5 |
241 |
7 |
15 |
|
LSMU410401A-P-H-NC-N-D00.5 |
15 | ||
|
LSMU710601A-S-H-NC-N-D00.5 |
361 |
11 |
23 |
|
LSMU710601A-P-H-NC-N-D00.5 |
23 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter d of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
|
Stator Length |
||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMU4202A | 119.5 | 1 | 2 | 2 |
|
LSMU4203A |
179.5 | 2 | 3 | 3 |
|
LSMU4204A |
239.5 | 3 | 4 | 4 |
|
LSMU4205A |
299.5 | 4 | 5 | 5 |
|
LSMU4206A |
599.5 | 9 | 10 | 10 |

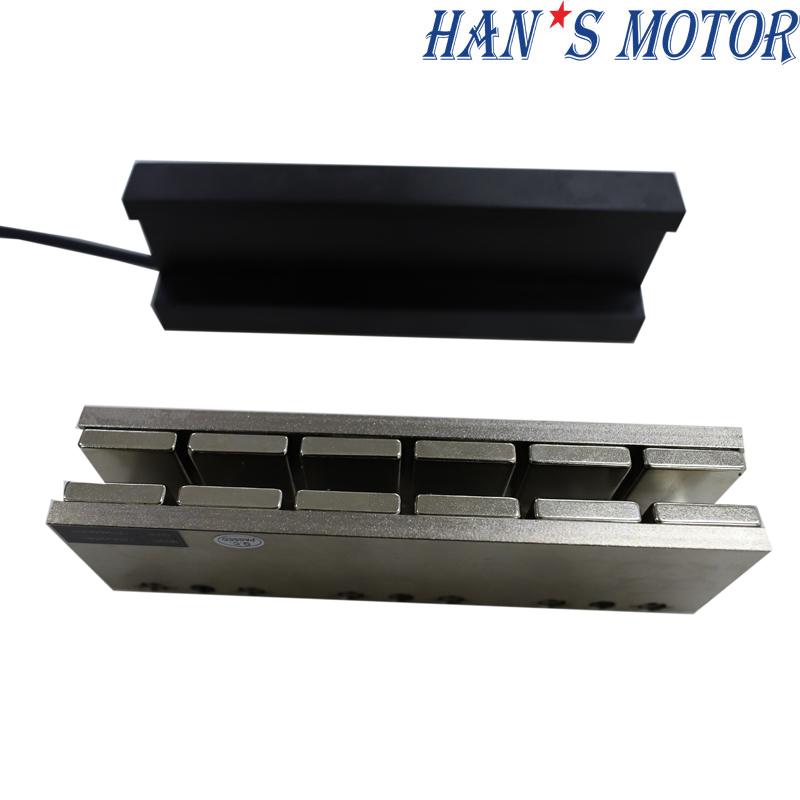

Suitable for any mover of series mover, stator installation mode can be selected.
