Features:
1. Coreless technology
2. Zero cogging effect
3. High continuous force and Peak force
4. Winding compact design, High thrust density
5. Optional hall sensor
Brand:
HAN'S MOTOROrder(MOQ):

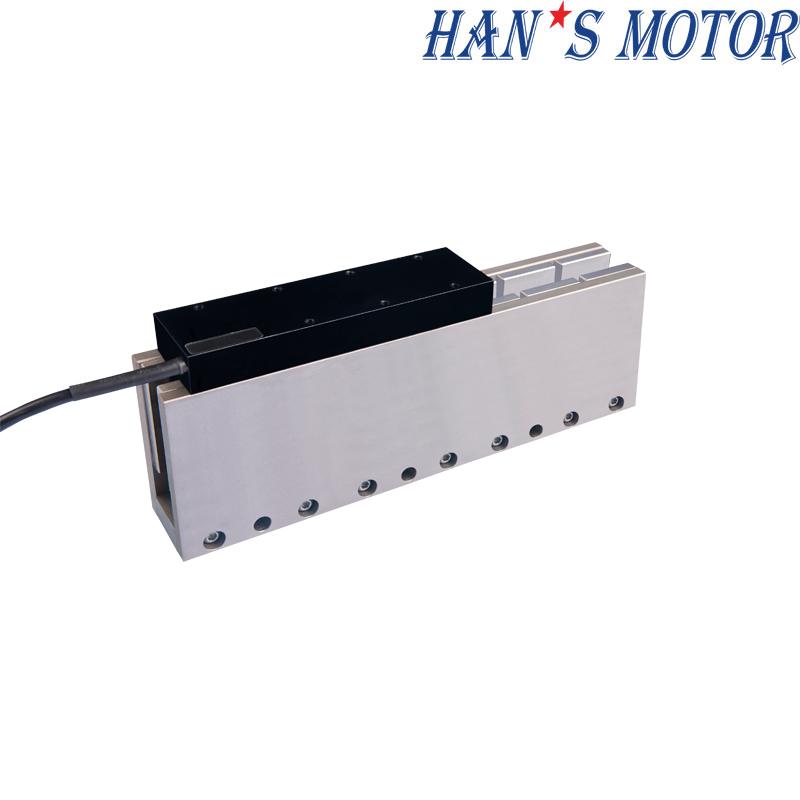

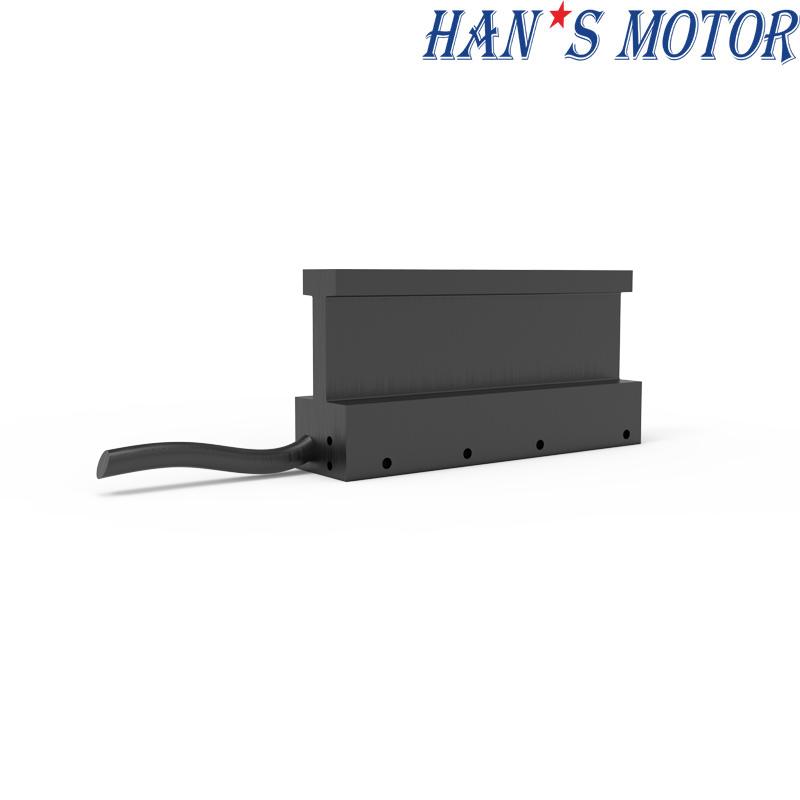

1Product name：High thrust coreless linear motor LSMUC for linear motion system
Specifications
|
Mover Spec.: LSMUC10xxxx-x-H-NC-N-D00.5 |
101A-S | 201A-S | 301A-S |
401A-S |
501A-S | ||
|
Performance Parameters |
Symbol |
Unit |
Series |
Series |
Series |
Series |
Series |
|
Continuous Force (Tmax） |
Fc | N | 3 | 6 | 9 | 12 | 15 |
|
Peak Force |
Fp | N | 12 | 24 | 36 | 48 | 60 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
1.5 | 2.2 | 2.8 | 3.2 | 3.6 |
|
Max.Continuous Power Dissipation |
Pc | W | 5.4 | 9.9 | 14.5 | 19.1 | 23.7 |
|
Continuous Current (Tmax） |
Ic | Arms | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
|
Peak Current (1S) |
Ip |
Arms |
6.8 |
6.8 |
6.8 |
6.8 |
6.8 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
1.8 | 3.5 | 5.3 | 7.0 | 8.8 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/rad/s |
0.6 | 1.2 | 1.7 | 2.2 | 2.9 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
0.9 | 1.7 | 2.4 | 3.2 | 4.0 |
|
Inductance(25℃，±20%）P-P |
L |
mH |
0.1 | 0.2 | 0.3 | 0.4 | 0.5 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 | 120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm |
21 | 21 | 21 | 21 | 21 |
|
Magnetic Attraction |
Fa |
KN |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
|
Max.DC Bus Voltage |
Ubus |
V |
60 |
60 |
60 |
60 |
60 |
|
Vmax,Fc@Vbus=310Vdc |
Vmax,Fc |
m/s |
29.2 | 14.2 | 8.9 | 6.3 | 4.7 |
|
Vmax,Fp@Vbus=310Vdc |
Vmax,Fp |
m/s |
23.6 | 8.9 | 4.0 | 1.4 | 0.0 |
|
Vmax,0@Vbus=310Vdc |
Vmax,0 |
m/s |
31.0 | 15.9 | 10.6 | 7.9 | 6.3 |
|
Mover Mass |
Mp | kg | 0.04 | 0.06 |
0.08 |
0.10 |
0.12 |
|
Stator Mass within unit length |
Ms |
Kg/m |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |

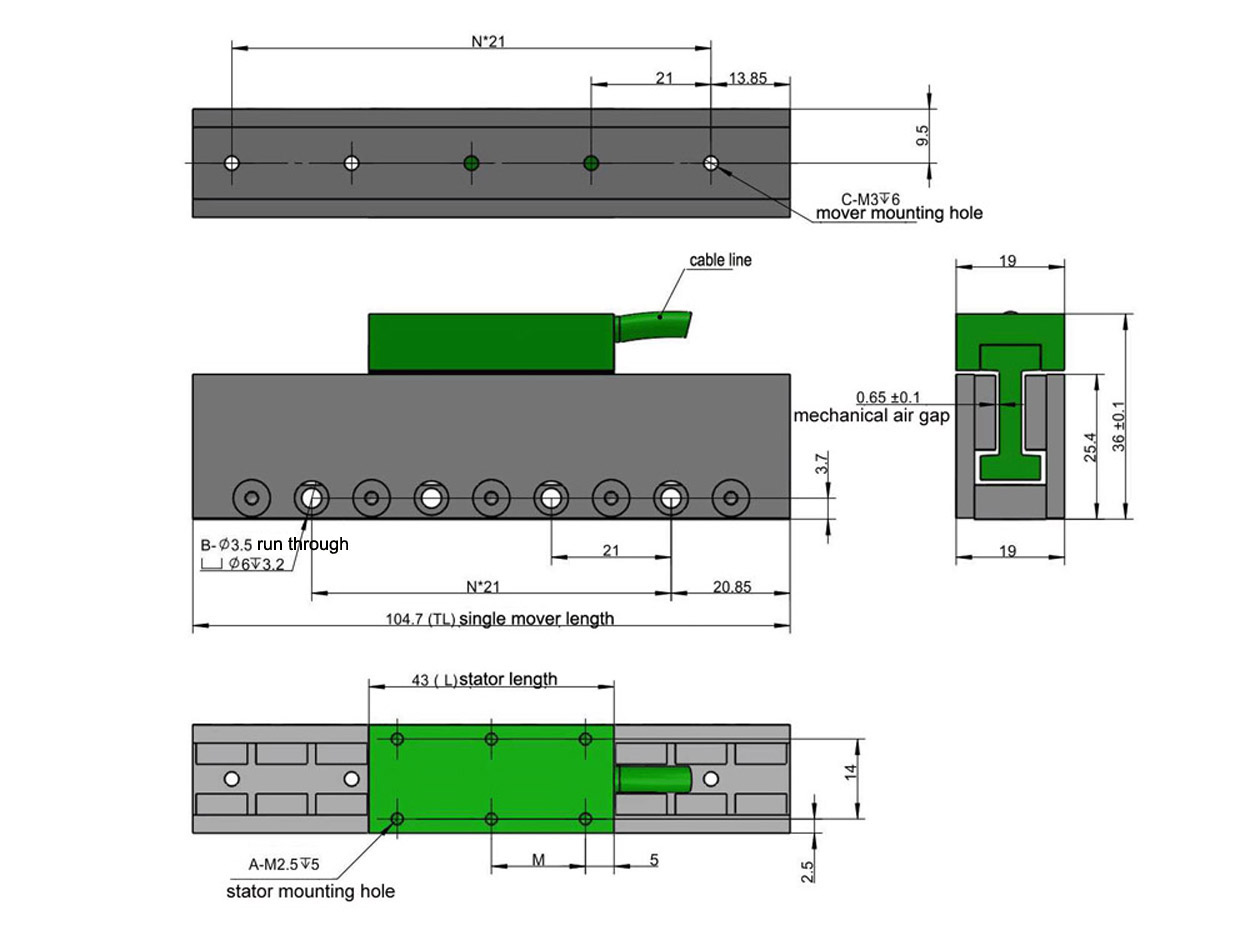

Dimension
Mover Size
Mover model
Mover length
M
Mover mounting hole
LSMUC10101A-S-H-NC-D00.5
22
12
4
LSMUC10201A-S-H-NC-D00.5
43
16.5
6
LSMUC10301A-S-H-NC-D00.5
64
18
8
LSMUC10401A-S-H-NC-D00.5
85
28
8
LSMUC10501A-S-H-NC-D00.5
106
32
8
2. optional temperature sensor.

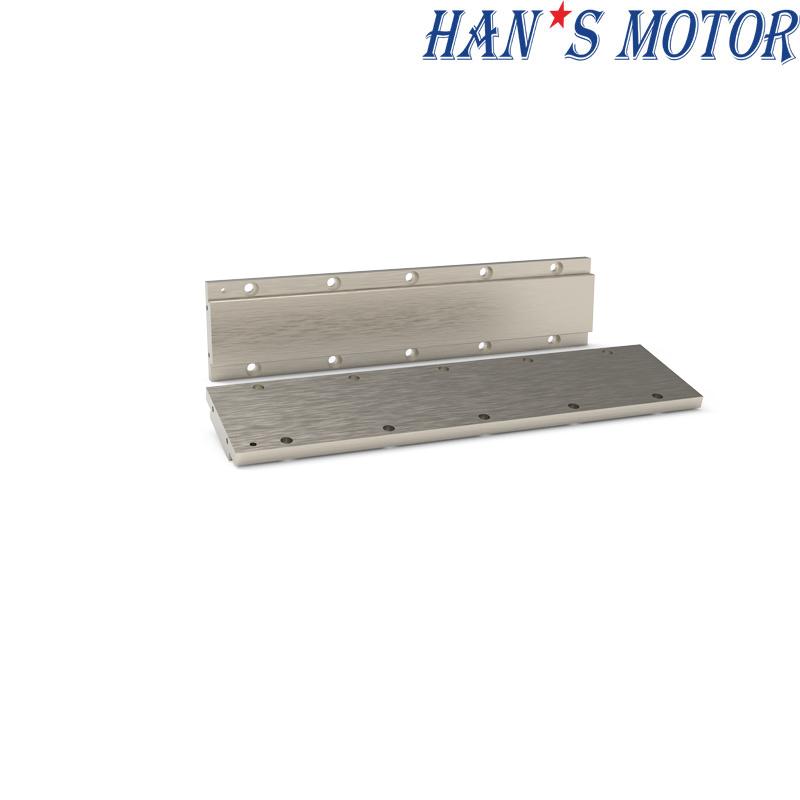

Stator Length
Stator model
Stator length TL
N
Stator mounting hole B
Stator mounting hole C
LSMUC2063A
62.7
1
2
3
LSMUC2084A
83.7
2
3
4
LSMUC2105A
104.7
3
4
5
Advantages:
1. High responsiveness, high precision
2. High transmission stiffness, thrust smoothly
3. High speed, short acceleration and deceleration process
4. Unlimited stroke length
5. Low noise during operation

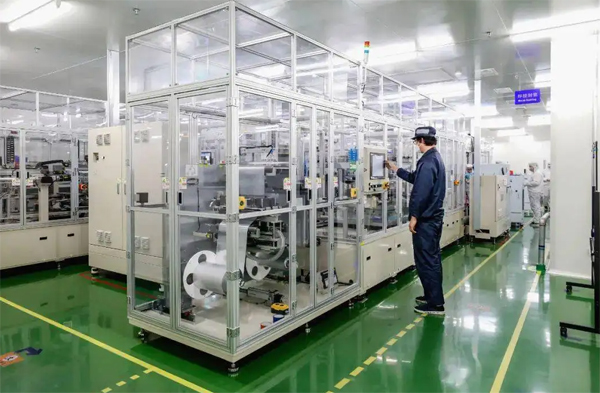

Application Case：New Energy Lithium Industry
In the lithium industry, the production efficiency is becoming higher and higher.Linear motor is widely used in lithium electric equipment because of its high speed, high precision and high response.
