Features：
1. Core technology
2. Low cogging effect
3. Water cooling structure
4. Simple structure, maintenance free, long service life
5. Multi-series, maximum specification peak thrust 20000N
6. Optional hall sensor
7. Customizable development
Brand:
HAN'S MOTOROrder(MOQ):

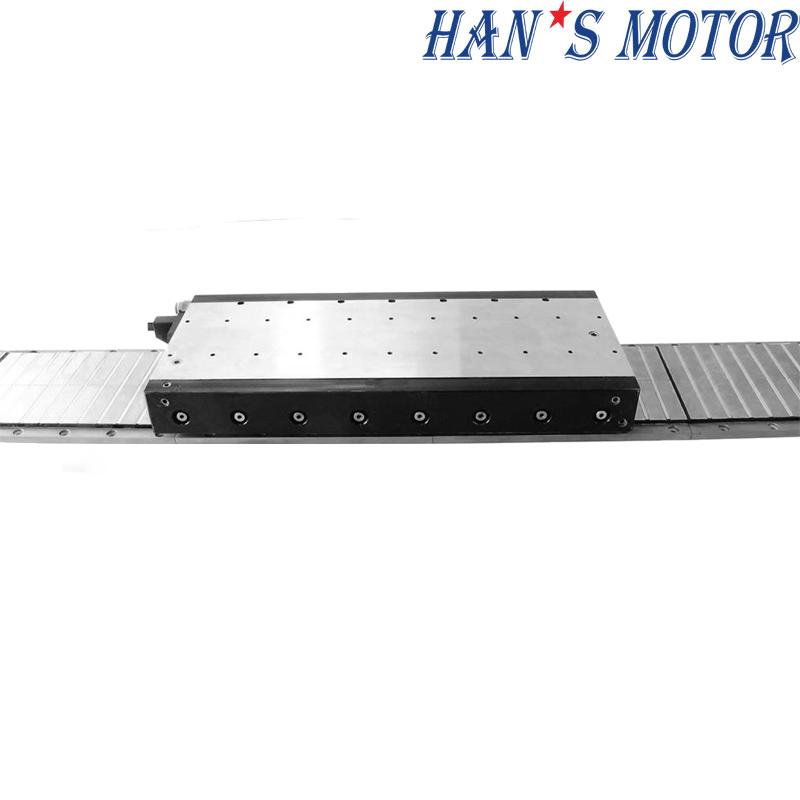

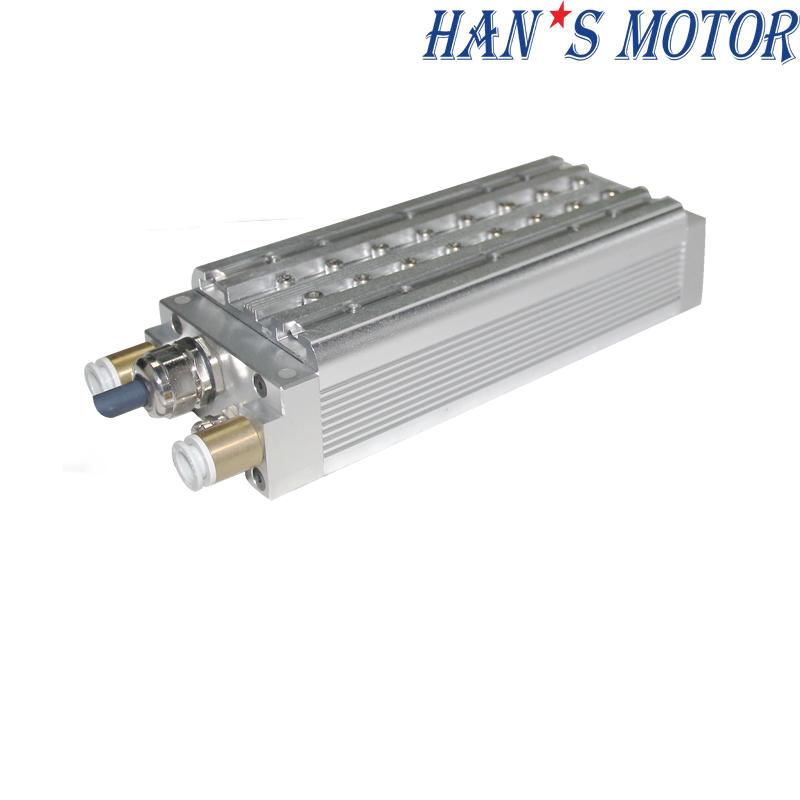

1Product name：Iron core linear motor with water cooling can be customized applied to machine tool
Specifications
|
Mover Spec.：LSMF110205C |
|||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
|
|
Continuous Force (Tmax） |
Fc | N | 340 |
|
Peak Force |
Fp | N | 680 |
|
Motor Constant (25℃) |
Km25 |
N/Sqrt(W) |
30.6 |
|
Max.Continuous Power Dissipation |
Pc | W | 170 |
|
Continuous Current (Tmax） |
Ic |
Arms |
5.0 |
|
Peak Current (1S) |
Ip |
Arms |
10.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
68.0 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
22.0 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
3.3 |
|
Inductance(25℃，±20%）P-P |
L | mH | 15.0 |
|
Max Coil Temperature |
Tmax |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
2τ |
mm | 48.0 |
|
Minimum flow of cold water |
Wmin |
L/min |
3.0 |
|
Temperature difference between inlet and outlet |
△T |
℃ |
7.0 |
|
Pressure drop (stator loop series) |
△P |
Bar |
3.0 |
|
Magnetic Attraction |
Fa |
kN | 2.2 |
|
Max.DC Bus Voltage |
Ubus |
V | 600 |
|
Vmax,Fc@Vbus=310Vdc |
|
m/s |
8.9 |
|
Vmax,Fp@Vbus=310Vdc |
|
m/s |
7.9 |
|
Vmax,0@Vbus=310Vdc |
|
m/s |
9.6 |
|
Vmax,Fc@Vbus=537Vdc |
|
m/s |
5.6 |
|
Vmax,Fp@Vbus=537Vdc |
|
m/s |
4.8 |
|
Vmax,0@Vbus=537Vdc |
|
m/s |
6.2 |
|
Mover Mass |
Mp | Kg | 2.8 |
|
Stator Mass within unit length |
Ms | Kg/m | 5.6 |

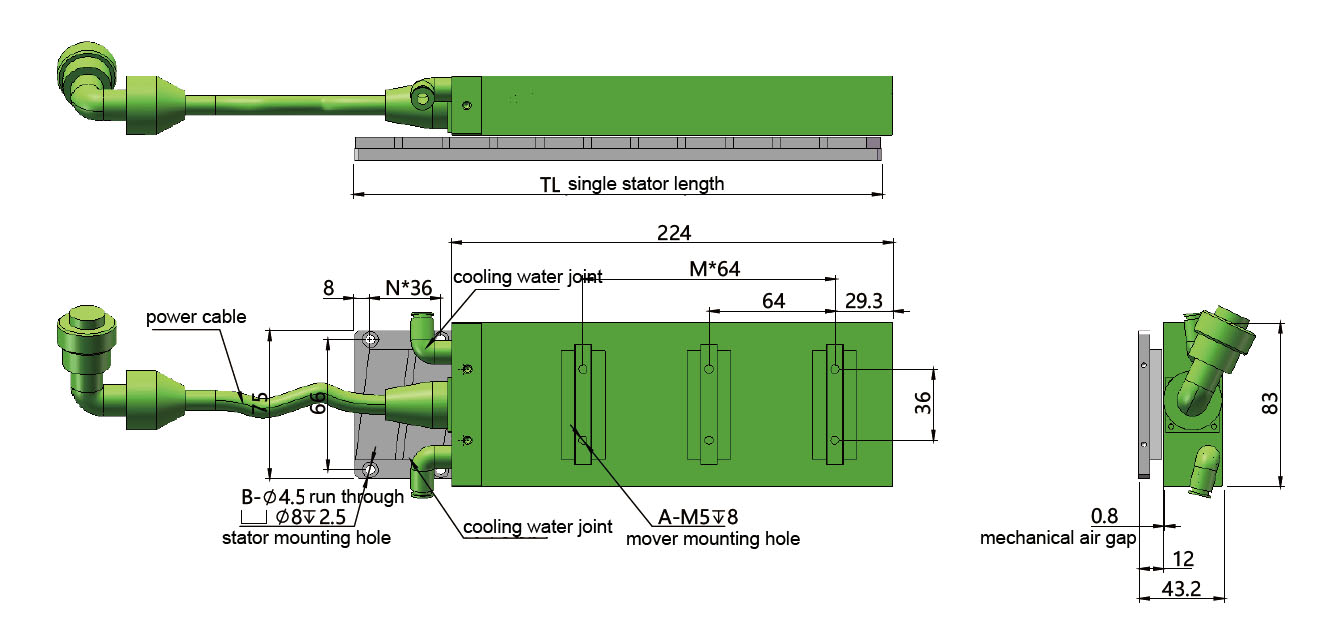

Dimension
|
Mover Length |
||||
|
Mover model |
Mover length L |
M |
Mover mounting hole A |
|
|
LSMF110205C |
224 | 2 | 6 | |
Remarks: 1. Standard cable length is 6m, maximum outer diameter(d) of motor cable is d= 11.5mm, minimum bending radius within chain is 86.3mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
|

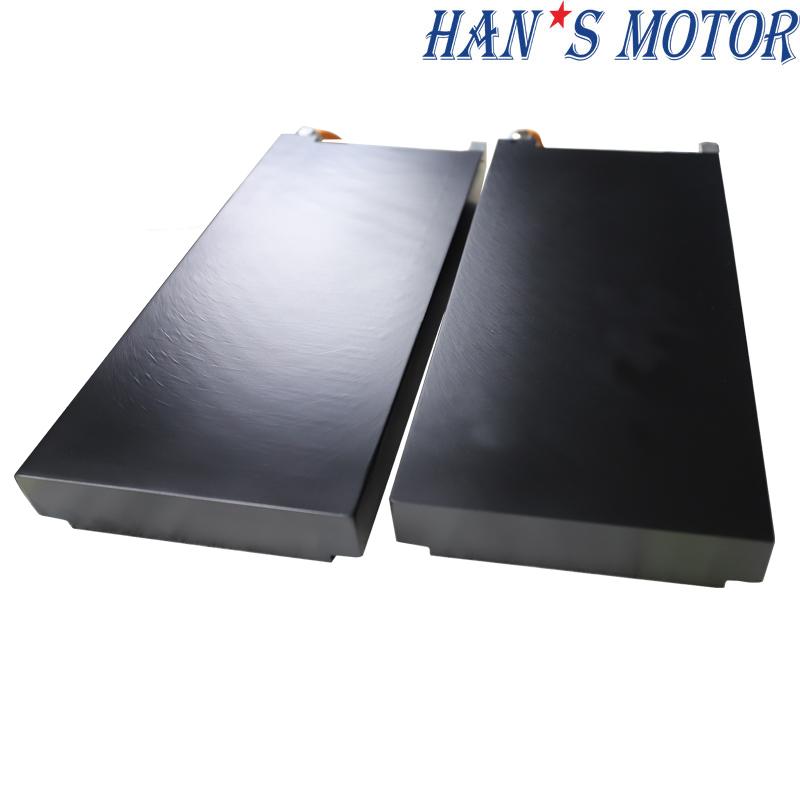

Stator Length |
|||
|
Stator model |
Stator length TL |
N |
Stator mounting hole B |
|
LSMF1218A |
268 | 7 | 16 |
Suitable for any mover of this series.

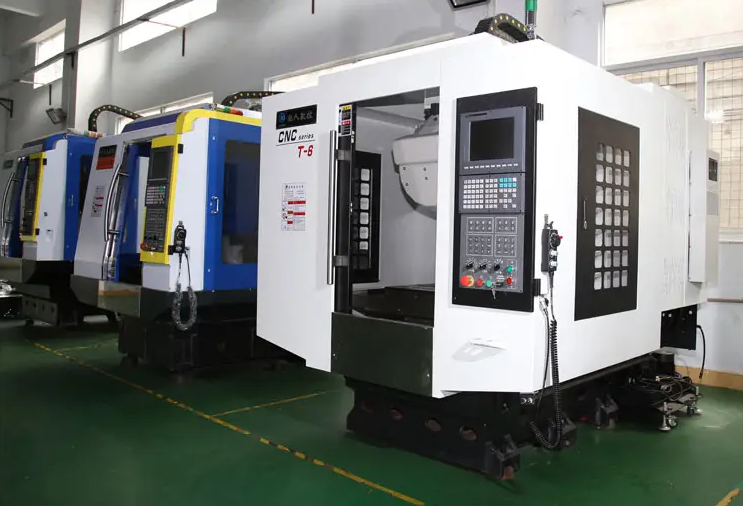

Application Case：CNC Machine Tool
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
