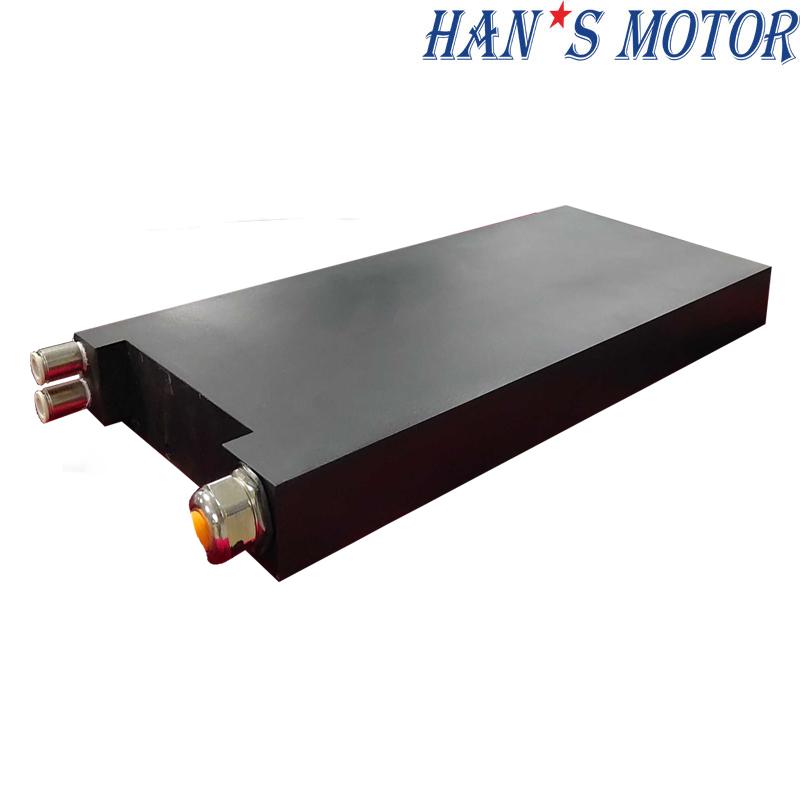

water cooling structure linear motor

Big thrust water cooling iron core linear motor special purpose for high precision CNC machine tools

Features:

1. 3 phase

2. Big thrust

4. High acceleration

5. Unlimited travel distance

6. Unique water cooling design




  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:Big thrust water cooling iron core linear motor special purpose for high precision CNC machine tools


Specifications

Mover Spec.:LSMH10301A-P-H-WC
PERFORMANCE PARAMETERS
      Symbol
       Units

Continuous Force (Tmax)
Fc N 3092
Peak Force
Fp N 6970
Motor Constant (25℃)
Km25
N/Sqrt(W)
74.9
Max.Continuous Power Dissipation
Pc W 2341
Continuous Current (Tmax)
Ic Arms
19.8
Peak Current (1S)
Ip Arms
56.0
Force Constant (25℃,±5%)
Kf N/Arms
156.2
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
52.0
Electrical Resistance(25℃,±5%)P-P
R
2.9
Inductance(25℃,±20%)P-P
L mH 16.0
Max Coil Temperature
Tmax
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 32.0
Minimum flow of cold water
Wmin
L/min
6.5
Temperature difference between inlet and outlet
△T

7.0
Pressure drop (stator loop series)
△P
Bar
3.0
Magnetic Attraction
Fa
kN 12.0
Max.DC Bus Voltage
Ubus
V 600
Vmax,Fc@Vbus=310Vdc

m/s
3.0
Vmax,Fp@Vbus=310Vdc

m/s
1.3
Vmax,0@Vbus=310Vdc

m/s
4.1
Vmax,Fc@Vbus=537Vdc

m/s
1.7
Vmax,Fp@Vbus=537Vdc

m/s
0.4
Vmax,0@Vbus=537Vdc

m/s
2.7
Mover Mass
Mp Kg 22.0
Stator Mass within unit length
Ms Kg/m 12.0

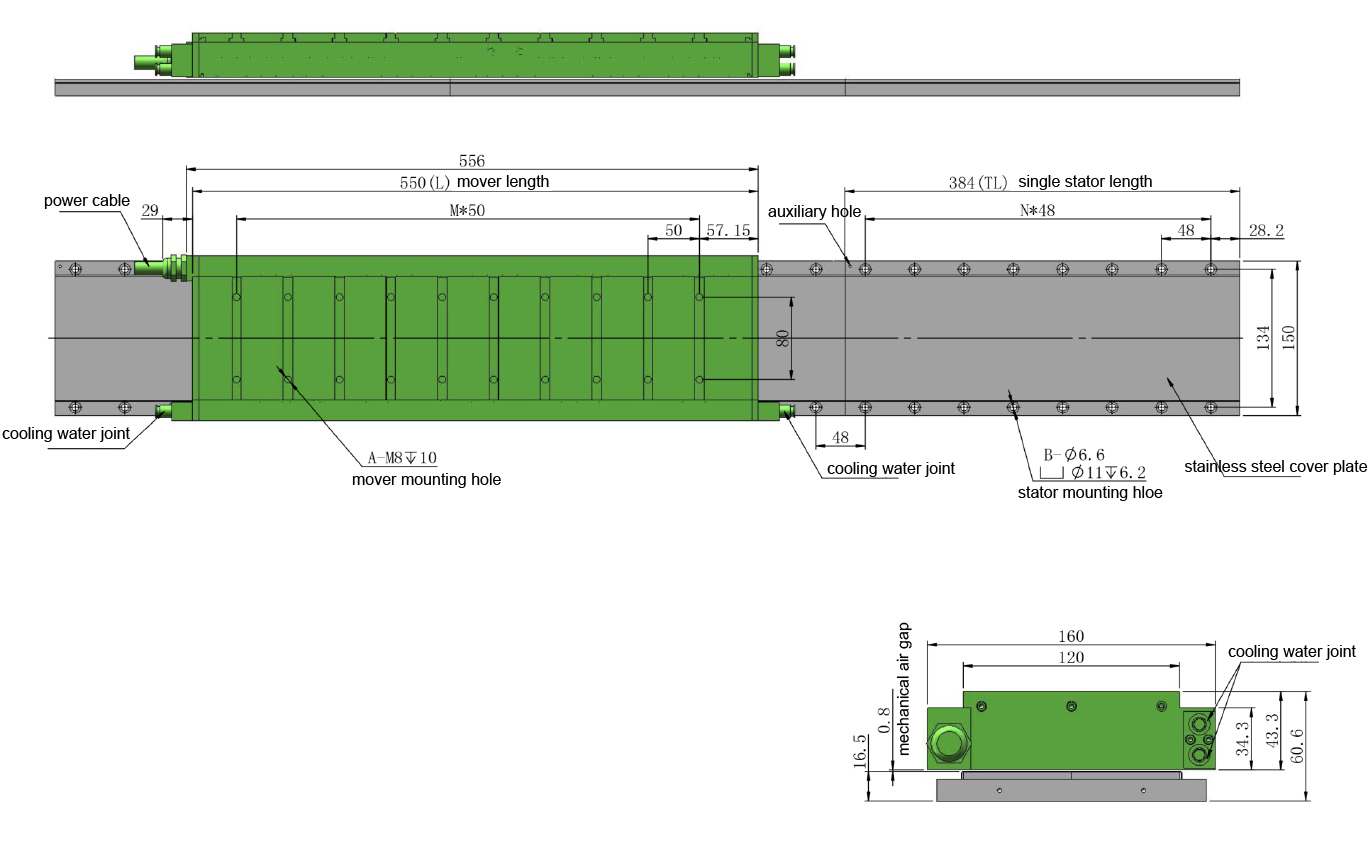

Dimension

water cooling structure linear motor

Mover Length
Mover model
Mover length L
      M       Mover mounting hole A
LSMFH10301A-P-H-WC
550 9 20

Remarks:  1. Standard cable length is 7m, maximum outer diameter of motor cable is 14mm, minimum bending radius within chain is 140mm, the length can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMH206A
144 2 6
LSMH207A 384 7 16

Suitable for any mover of this series.

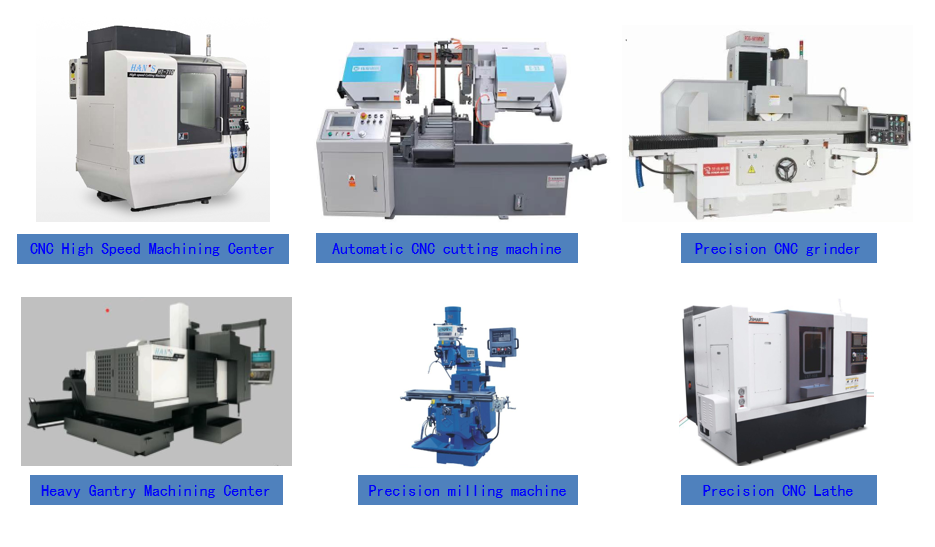

Application Case:high precision CNC machine tools

water cooling structure linear motor

 Laser Group Show

water cooling structure linear motor

Our Company Show

water cooling structure linear motor


Production Center Show

water cooling structure linear motor


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
