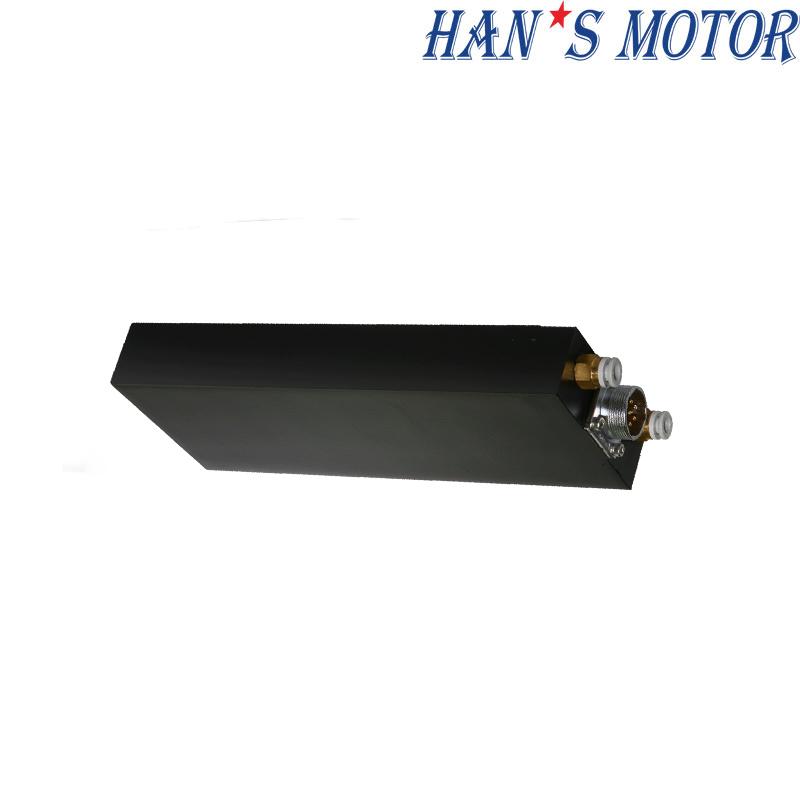

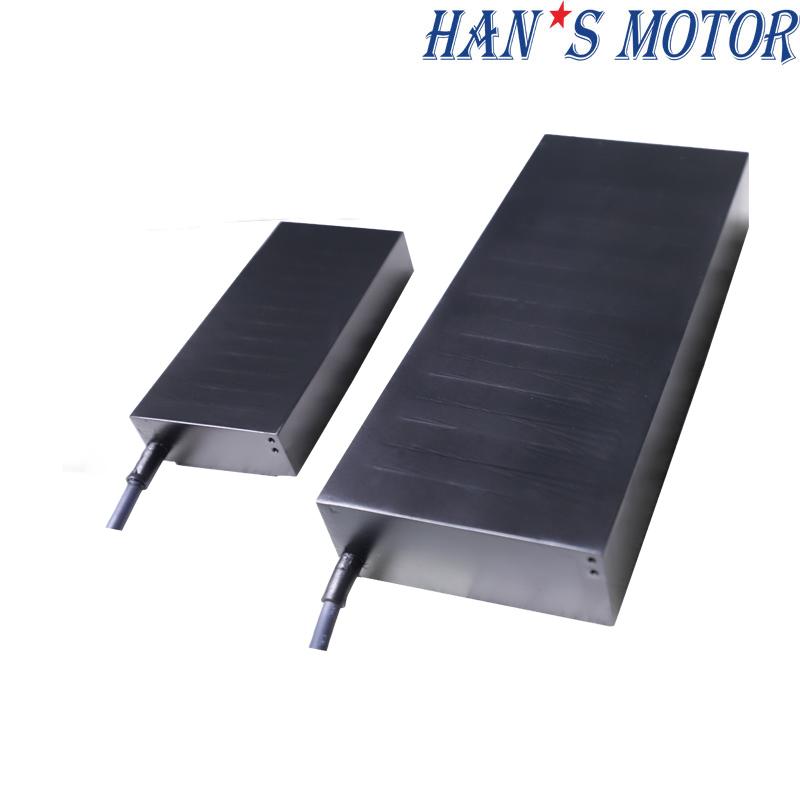

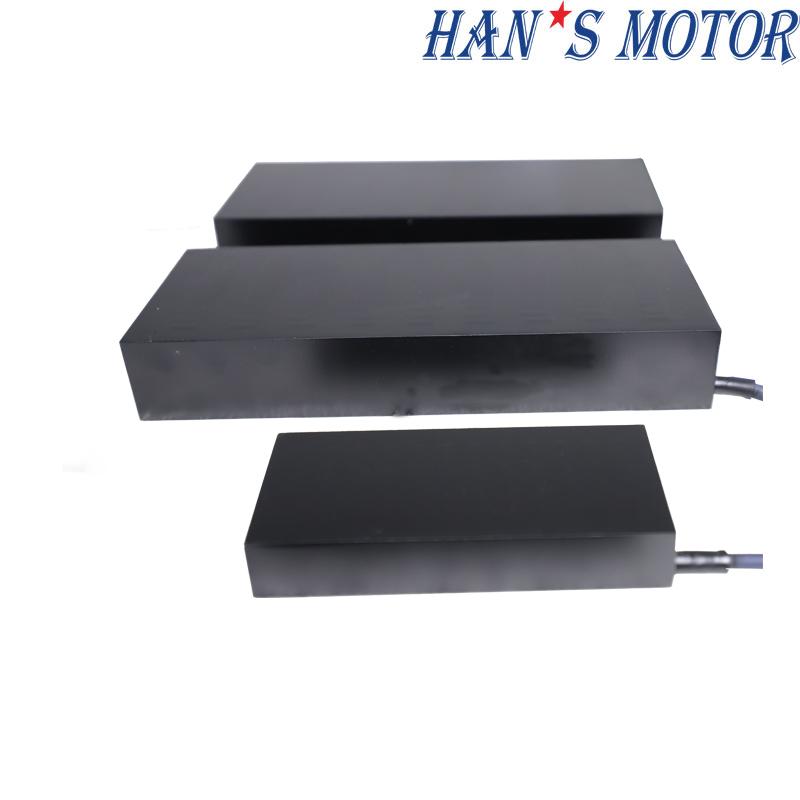

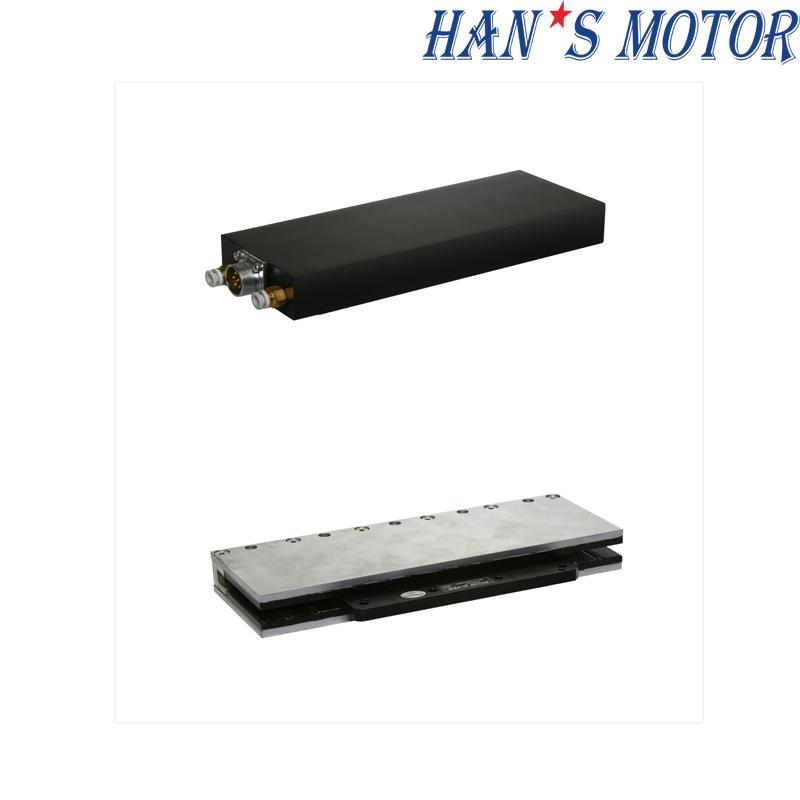

Customized linear motor LSMFL-75 with iron core applied to UV printing equipment

Features:

1. Core technology

2. Low cogging effect

3. High thrust, high rigidity

4. Standardization, modularization, high reliability

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:Customized linear motor LSMFL-75 with iron core applied to UV printing equipment


Specifications

Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5
102A-S  102B-S
202A-S
202B-S
302A-S
402A-S
Performance Parameters
 Symbol     Units
Series
Series
Series
Series
Series Series
Continuous Force (Tmax)
Fc      N
98 98 196 196 294 392
Peak Force
Fp      N
259 259 517 517 776 1035
Motor Constant (25℃)
Km25 N/Sqrt(W)
16.2 16.2 23.0 23.0 28.1 32.5
Max.Continuous Power Dissipation
Pc      W 50 50 100 100 150 200
Continuous Current (Tmax)
Ic     Arms
4.0 2.6 4.0 2.6 4.0 4.0
Peak Current (1S)
Ip     Arms
12.0 7.8 12.0 7.8 12.0 12.0
Force Constant (25℃,±5%)
Kf   N/Arms
24.5 37.7 49.0 75.4 73.5 98.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
8.2 12.6 16.3 25.2 24.5 32.7
Resistance(25℃,±5%)P-P
R      Ω
1.5 3.6 3.0 7.2 4.5 6.0
Inductance(25℃,±20%)P-P
L     mH
7.5 19.0 15.0 37.0 22.5 30.0
Max Coil Temperature
Tmax     ℃
120 120 120 120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

    mm
20 20 20 20 20 20
Magnetic Attraction
Fa     kN
0.6 0.6 1.1 1.1 1.6 2.1
Max.DC Bus Voltage
Ubus      V
600 600 600 600 600 600
Vmax,Fc@Vbus=310Vdc

    m/s
12.9 8.1 6.2 3.8 4.0 2.9
Vmax,Fp@Vbus=310Vdc

    m/s
7.2 4.3 3.4 1.9 2.0 1.4
Vmax,0@Vbus=310Vdc

    m/s
15.3 9.9 7.6 4.9 5.1 3.8
Vmax,Fc@Vbus=537Vdc

    m/s
22.7 14.3 11.1 7.0 7.3 5.3
Vmax,Fp@Vbus=537Vdc

    m/s
12.9 7.8 6.2 3.7 4.0 2.8
Vmax,0@Vbus=537Vdc

    m/s
26.7 17.3 13.3 8.6 8.9 6.6
Mover Mass
Mp      Kg
1.4 1.4 2.5 2.5 3.7 4.9
Stator Mass within unit length
Ms     Kg/m
5.0 5.0 5.0 5.0 5.0 5.0

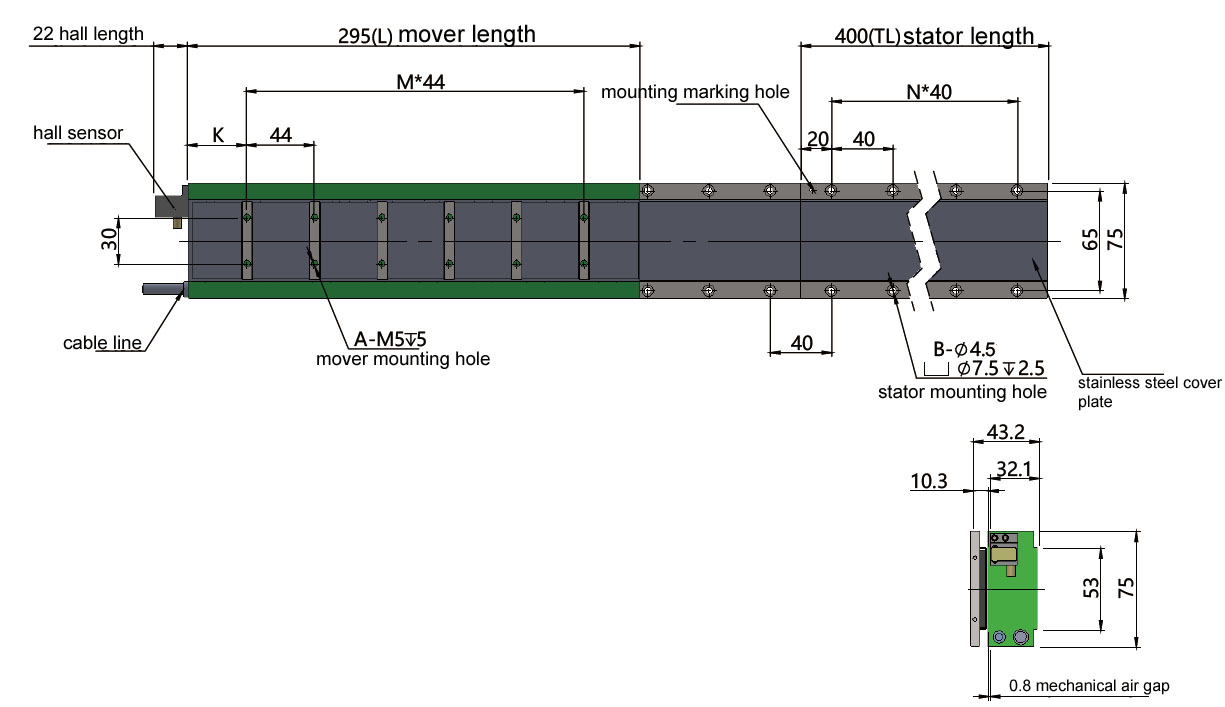

Dimension

3 phase linear motor

Mover Length
Mover model
 Mover length L
       M         Mover mounting hole A
        k
LSMFL10201A-S-H-NC-N-C00.5
85 1 4 21.5
LSMFL10102B-S-H-NC-N-C00.5
85 1 4 21.5
LSMFL10202A-S-H-NC-N-C00.5
155 2 6 34.5
LSMFL10202B-S-H-NC-N-C00.5
155 2 6 34.5
LSMFL10302A-S-H-NC-N-C00.5 255 4 10 25.5
LSMFL10402A-S-H-NC-N-C00.5
295 5 12 38.5

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMFJ2A-W75-L40 40 0 2
LSMFJ2A-W75-L80 80 1 4
LSMFJ2A-W75-L200
200 4 10
LSMFJ2A-W75-L320
320 7 16
LSMFJ2A-W75-L400
400 9 20

Suitable for any mover of this series.

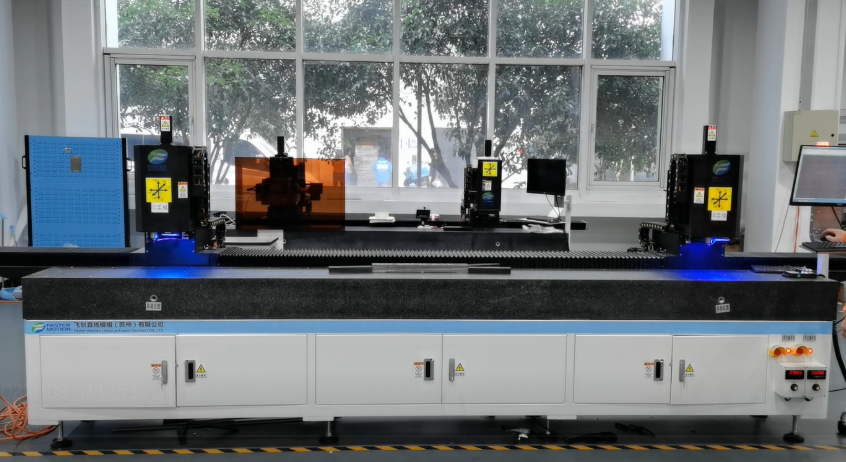

Application Case:

High precision micro hole processing equipment

3 phase linear motor



Industry Applications:

linear motor controller


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
