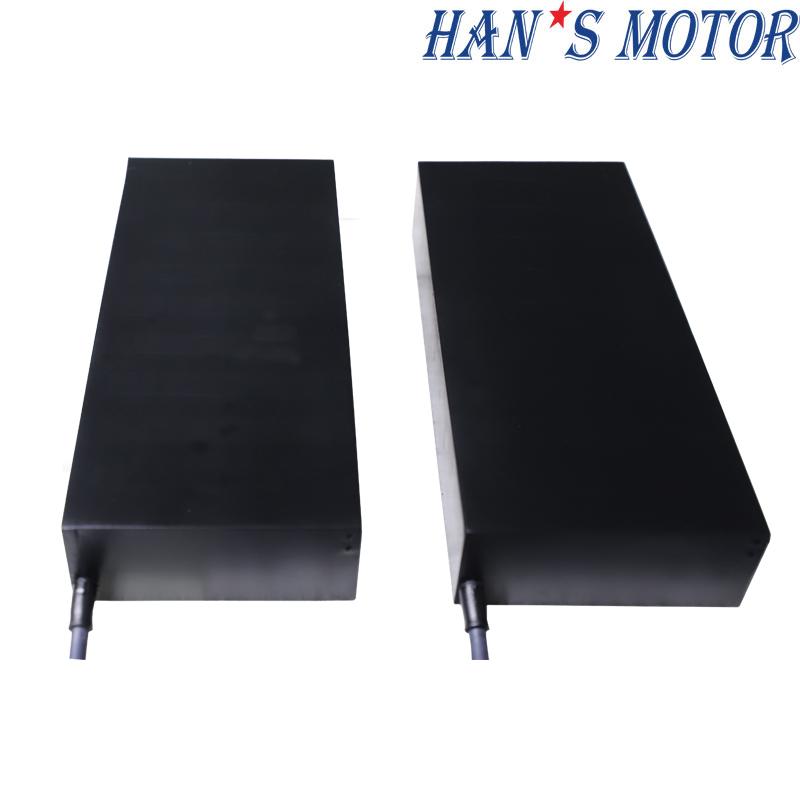

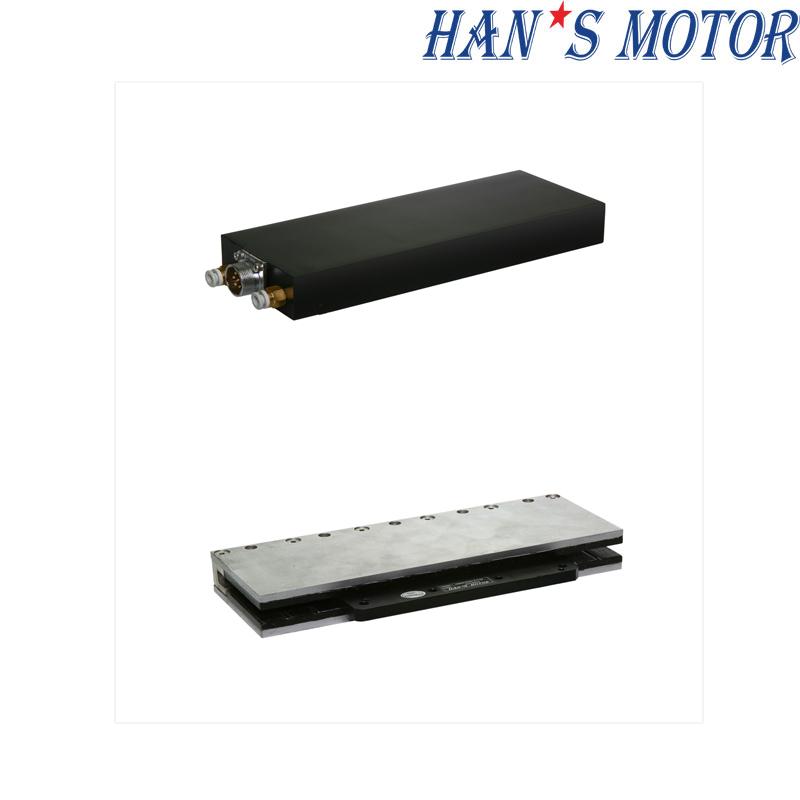

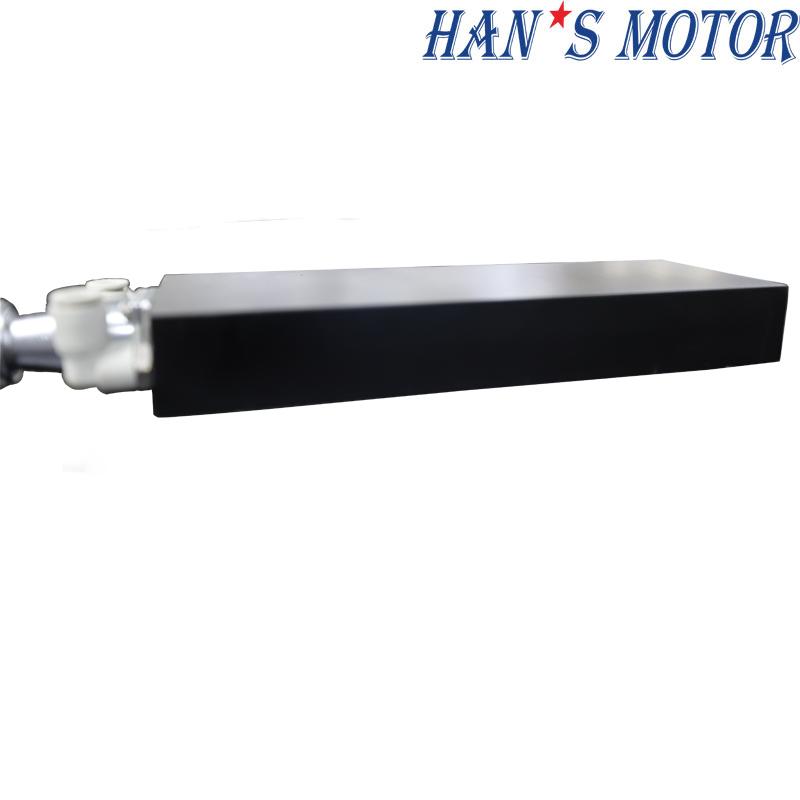

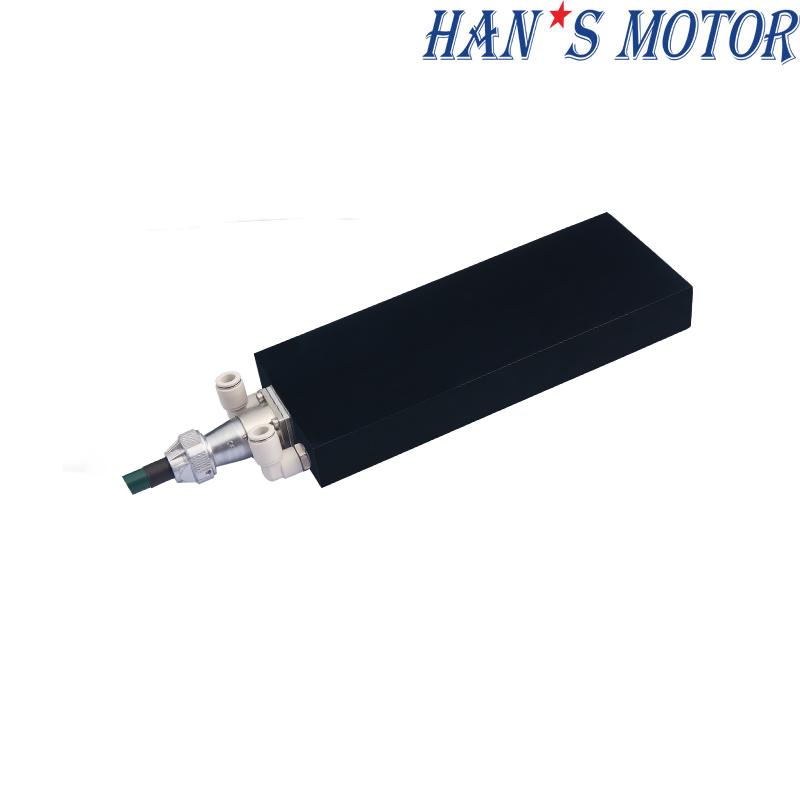

High thrust and high acceleration iron core direct drive linear motor LSMFL-125

Features:

1. Core technology

2. Low cogging effect

3. Water cooling/Natureal cooling structure

4. Multi-series, maximum specification peak thrust 20000N

5. Optional hall sensor

6. Customizable development

  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Product name:High thrust and high acceleration iron core direct drive linear motor LSMFL-125


Specifications

Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5
104A-S  104B-S
204A-S
304A-S
404A-S
404A-P
Performance Parameters
 Symbol     Units
Series
Series
Series
Series
Series Parallel
Continuous Force (Tmax)
Fc      N
196 196 393 589 785 785
Peak Force
Fp      N
518 518 1035 1553 2070 2070
Motor Constant (25℃)
Km25 N/Sqrt(W)
24.3 24.3 34.8 42.8 49.5 48.8
Max.Continuous Power Dissipation
Pc      W 89 89 175 260 346 356
Continuous Current (Tmax)
Ic     Arms
4.0 2.6 4.0 4.0 4.0 8.0
Peak Current (1S)
Ip     Arms
12.0 7.8 12.0 12.0 12.0 24.0
Force Constant (25℃,±5%)
Kf   N/Arms
49.0 75.4 98.3 147.0 196.3 98.1
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
16.3 25.4 32.8 49.0 65.4 32.7
Resistance(25℃,±5%)P-P
R      Ω
2.7 6.4 5.3 7.9 10.5 2.7
Inductance(25℃,±20%)P-P
L     mH
15.0 36.0 30.0 45.0 60.0 15.0
Max Coil Temperature
Tmax     ℃
120 120 120 120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

    mm
20 20 20 20 20 20
Magnetic Attraction
Fa     kN
1.1 1.1 2.2 3.3 4.4 4.4
Max.DC Bus Voltage
Ubus      V
600 600 600 600 600 600
Vmax,Fc@Vbus=310Vdc

    m/s
6.3 3.9 2.9 1.8 1.3 2.9
Vmax,Fp@Vbus=310Vdc

    m/s
3.4 2.0 1.4 0.8 0.4 1.4
Vmax,0@Vbus=310Vdc

    m/s
7.6 4.9 3.8 2.5 1.9 3.8
Vmax,Fc@Vbus=537Vdc

    m/s
11.2 7.1 5.4 3.5 2.5 5.4
Vmax,Fp@Vbus=537Vdc

    m/s
6.3 3.9 2.9 1.8 1.2 2.9
Vmax,0@Vbus=537Vdc

    m/s
13.3 8.6 6.6 4.4 3.3 6.6
Mover Mass
Mp      Kg
2.5 2.5 4.7 6.9 9.0 9.0
Stator Mass within unit length
Ms     Kg/m
8.8 8.8 8.8 8.8 8.8 8.8

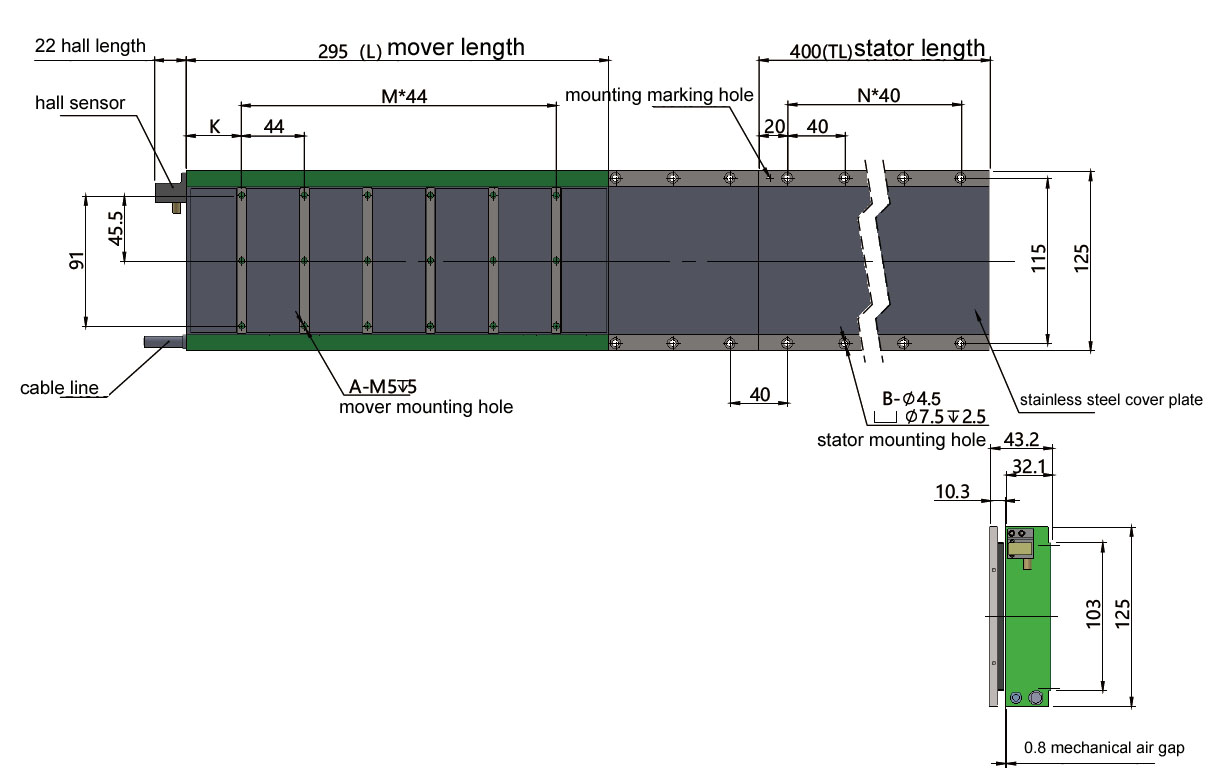

Dimension

linear motor controller

Mover Length
Mover model
 Mover length L
       M         Mover mounting hole A
        k
LSMFL10104A-S-H-NC-N-C00.5
85 1 6 21.5
LSMFL10104B-S-H-NC-N-C00.5
85 1 6 21.5
LSMFL10204A-S-H-NC-N-C00.5
155 2 9 34.5
LSMFL10304A-S-H-NC-N-C00.5
225 4 15 25.5
LSMFL10404A-S-H-NC-N-C00.5 295 5 18 38.5
LSMFL10404A-P-H-NC-N-C00.5
295 5 18 38.5

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMFJ2A-W125-L40 40 0 2
LSMFJ2A-W125-L80 80 1 4
LSMFJ2A-W125-L200
200 4 10
LSMFJ2A-W125-L320
320 7 16
LSMFJ2A-W125-L400
400 9 20

Suitable for any mover of this series.


Application case:

PCB industry: Smooth thrust, small inertia, large acceleration, strong overload capacity etc.
