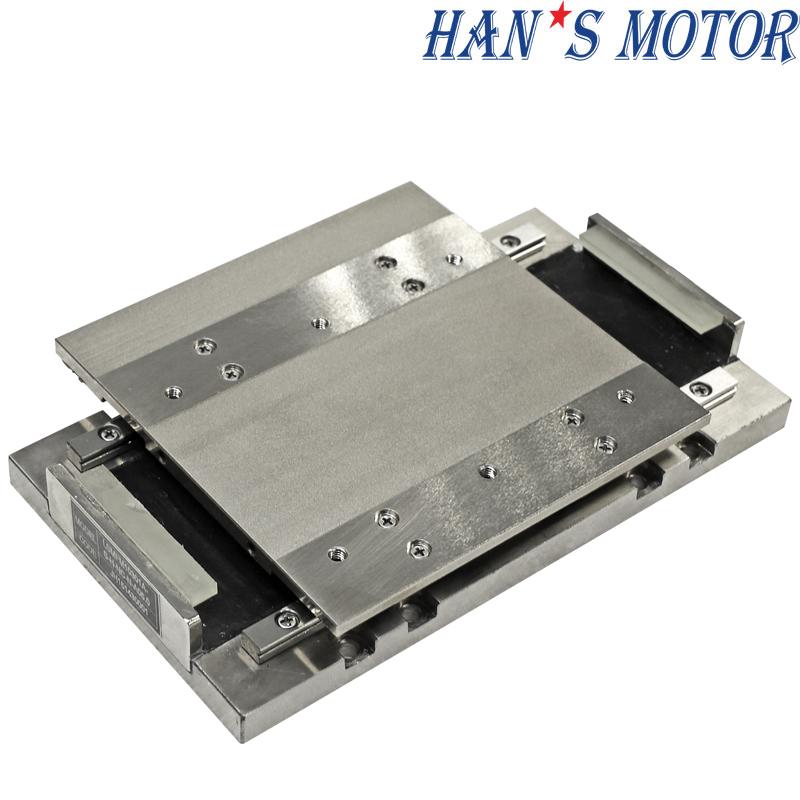

Linear Motor Direct Drive Smooth Motion Stage LMB130 Han's Series
Features:
1. Integrated pedestal
2. Repeated positioning accuracy±0.01M
3. High speed, compact design
4. Easy to install and disassemble
Advantages:
Easy installation and maintenance;
High precision,good stability, low noise;
high reliability,smooth operation,high durability;
Customized designs available for different application.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: High Load Linear Module Motorized Linear Stage LMB130-200-G01-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
100-2200 |
|
Resolution |
μm |
0.5 |
|
Max.Speed (1) |
mm/s |
1500 |
|
Repeat accuracy |
μm |
±1 |
|
Weight |
kg |
1.8 |
|
Working environment
temperature |
0-40℃、20-80%RH |
|
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
8 |
10 |
12 |
14 |
14 |
16 |
26 |
18 |
20 |
24 |
24 |
|
N |
2 |
3 |
5 |
5 |
6 |
6 |
7 |
5 |
8 |
9 |
11 |
11 |
|
Stage Total Length (mm) |
380 |
480 |
580 |
680 |
780 |
880 |
980 |
1080 |
1180 |
1280 |
1380 |
1480 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

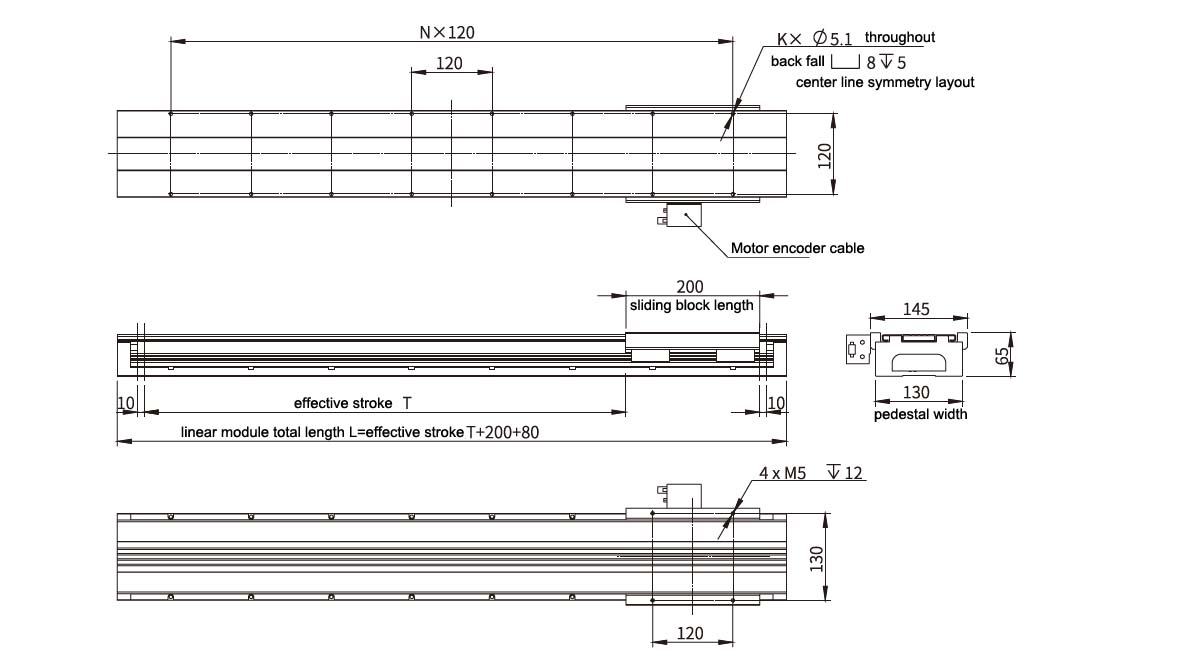

Dimension
Characteristics:
1. High rigidity,high accuracy,saving space linear motion stage;
2. Smooth running, low noise and non-pollution,high speed;
3. High accurancy and easy setting up;
4. Low friction, smooth, accurate motion for normal loading condition.
Why choose us?
Q1: What’s
property of your company?
A: We are an integrated company specializing in manufacturing linear motors,
DDR torque motors,
motor modules, motion stages, AC servo systems, variable frequency drives and so on.
Q2: How long is your delivery time and shipment?
Sample leading-time: Generally 10 workdays
Delivery time: 20 days after confirmed order according to production season and order quantity.
Q3: How about your
company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production
capabilities and excellent service team based on Quality Management System
Certification.: ISO9001:2000
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
Machining center, machine tools, precision processing, marble cutting machine, injection machine, punching machine, automation devices
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
