High Precision Motorized Linear Stages Linear Motion Modules
Features:
Ball screw high speed low noise;
Durable linear guide rail;
Adopts an open structure, which is convenient for disassembly and maintenance;
Built-in grating or magnetic grating feedback system;
Repeatability accuracy up to ±1um;
Small size and simple structure, which is suitable for light load and high precision CNC machines;
Advantages:
1. Multitask design:
This stage integrates the features of driven ball screw with guiding U-rail.
2. Compact size and lightweight:
The smooth positioning motion with low inertia can reduce the energy
consumption.
3. High precision and high stiffness:
Linear stage shows its specialty on high precision and stiffness.
4. Easy to measure:
Easy to measure the function of positioning accuracy, positioning repeatability
and moving parallelism.
5. Easy maintenance:
This stage is on dust-proof and moisture which make the maintenance easily.
Order(MOQ):
1
Products Name: HAN'S MOTOR High Precision Heavy Duty Stainless Steel Linear Guide Rail Module Miniature Stages(LMA80
Series) LMA80-25-G01-A
Product Specifications
Motor Model/Parameter
|
Motor Parameters |
||
|
|
Unit |
Data |
|
Continuous Force (Tmax） |
N |
8 |
|
Peak Force |
N |
32 |
|
Motor Constant |
N√W |
1.74 |
|
Max.Continuous Power Dissipation |
W |
21.1 |
|
Continuous Current (Tmax） |
Arms |
0.8 |
|
Peak Current (1S) |
Arms |
3.2 |
|
Force Constant (25℃，±5%） |
N/Arms |
10 |
|
Back EMF Constant (25℃，±5%） |
Vrms/m/s |
3.3 |
|
Electrical Resistance(25℃，±5%）P-P |
Ω |
15.7 |
|
Inductance(25℃，±20%）P-P |
μm |
0.43 |
|
Max Coil Temperature |
℃ |
120 |
|
Polar Distance (N-N) (360℃ Electrical cycle) |
mm |
36 |
|
Magnetic Attraction |
N |
84 |
|
Stator Mass (glue+solder-covered wire) |
kg |
0.14 |
|
Mover Mass (magnetic) |
kg/M |
0.9 |
|
Stage Parameters |
||
|
|
Unit |
Data |
|
Max. Load |
kg |
3.5 |
|
Effective Stroke |
mm |
25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed (1) |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.5 |
|
Weight |
kg |
0.5 |
|
Working environment temperature and humidity |
0-40℃、20-80%RH |
|
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

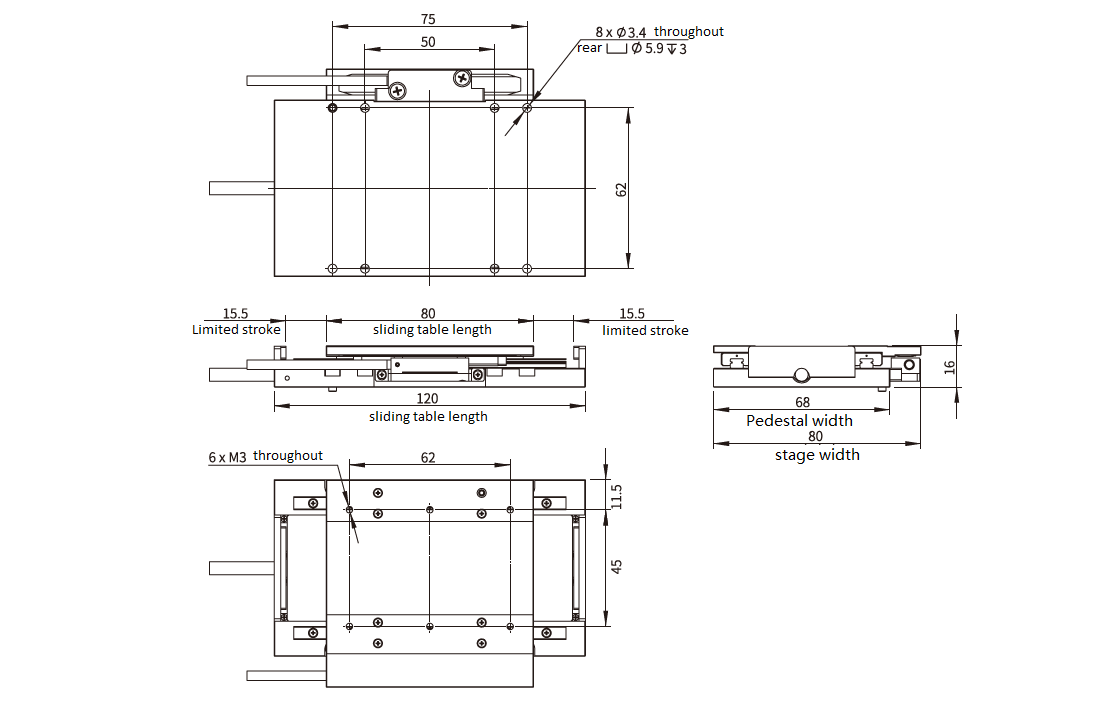

Dimension
Characteristics:
1. Provide controlled horizontal motion for automated machines.
2. Typically mounted on ball bearings or roller slides and are available with a variety of linear bases.
3. Dynamic and static friction resistance, which is helpful to improve the response speed and sensitivity of CNC system.
4. The driving power is small which reduces the energy consumption.
5. Lightweight, easy to use, easy for maintenance.
Why choose us?
Q1: Are you trading company or manufacturer?
A: We’re integrated company with R&D and production base.
Q2: How long is your delivery time and shipment?
Sample leading-time: Generally 10 workdays
Production leading-time: 26 workdays
Delivery time: 15-20 days after confirmed order according to production season and order quantity.
Q3: What is your advantage?
Competitive price and high quality with technical engineers for aftersales service and quick delivery.
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Warranty Statement:
Integration of production and marketing that provided you with affordable price.
The warranty period is 12 months since you receive the goods.
Standard samples will be delivered within 15 days and customized samples will be delivered within 31 days.
Delivery date for bulk order depends on order quantity.
Applications:
1. Laser industry: laser cutting machine, laser engraving machine, laser machine and so on;
2. Electronic machinery: semiconductor machinery, mechanical arm, sliding platform, measuring machine, SMT equipment, etc.3. Industrial machinery: plastic machinery, printing machinery, paper machinery, textile machinery, food machinery, etc.
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
