Features：
1. Simple structure, small size
2. high speed, high acceleration, quick response
3. Stroke can be customized
4. Semiconductor Packaging Equipment Special Motor
Brand:
HAN'S MOTOROrder(MOQ):

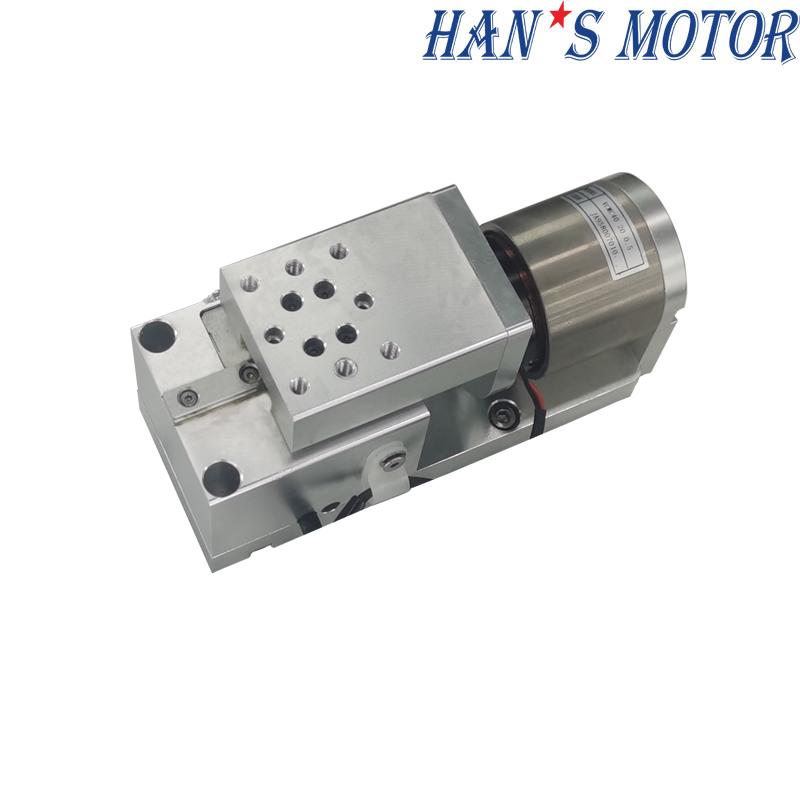

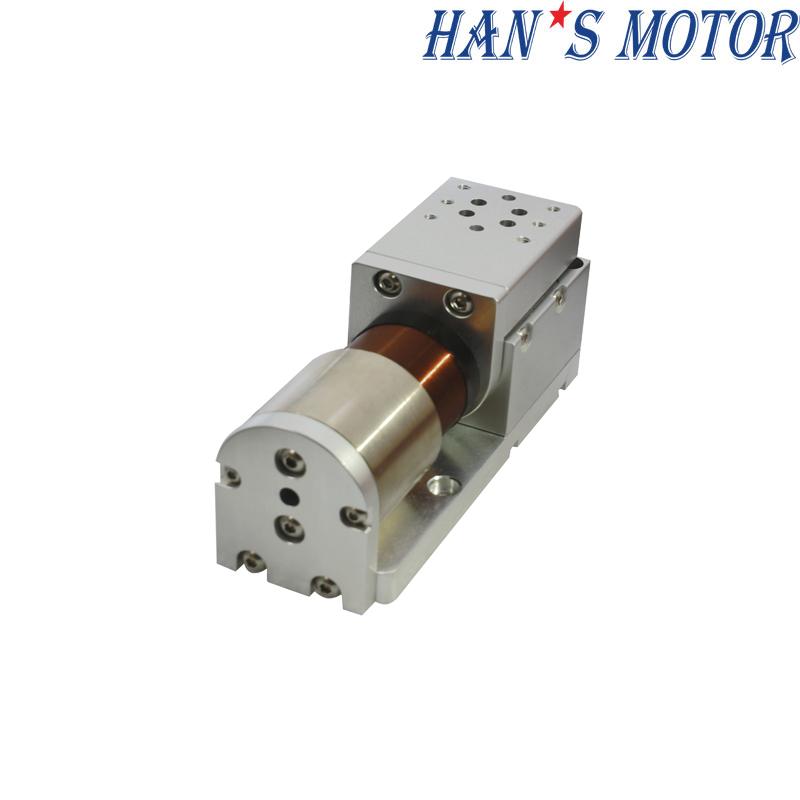

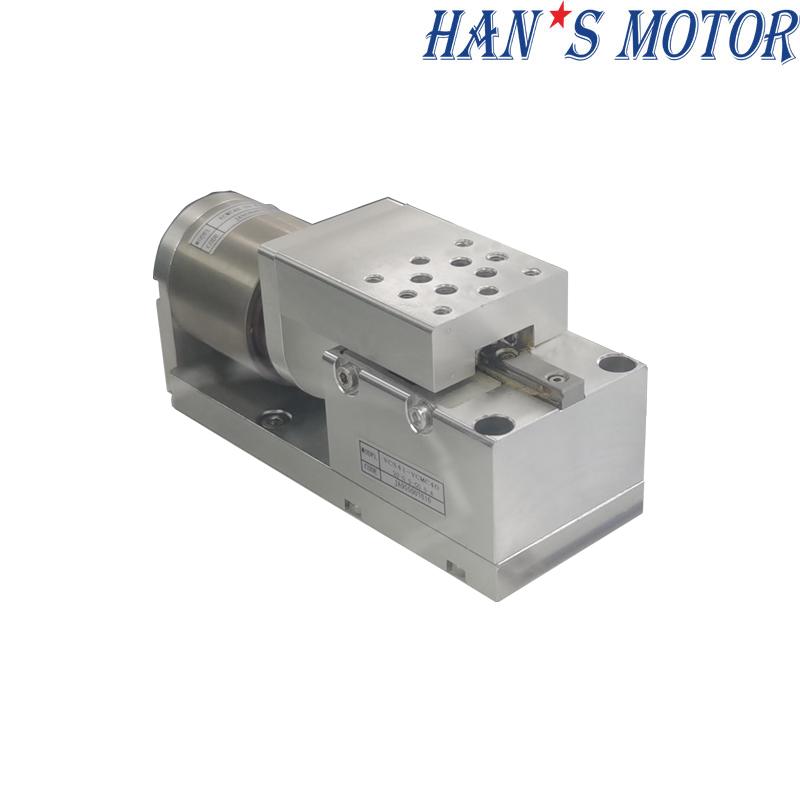

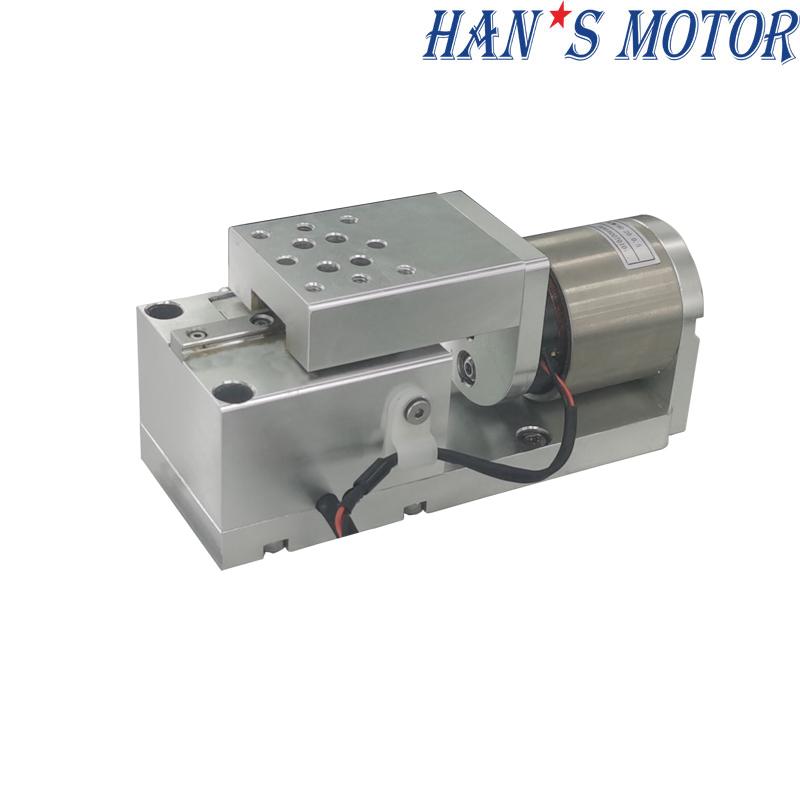

1Product name：High Precision Voice Coil Linear Motor Stage For Vibration System
Specifications
|
Motor model |
VCS41-VCMC40-20-0.5-G0.5-A | ||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
|
|
Stroke |
S | mm | 20 |
|
Continuous Force (Tmax） |
Fc | N | 10 |
|
Peak Force |
Fp | N | 58 |
|
Motor Constant |
Km25 |
N/Sqrt(W) |
4 |
|
Max.Continuous Power Dissipation |
Pc | W | 7.3 |
|
Continuous Current |
Ic |
Arms |
0.8 |
|
Peak Current (1S) |
Ip |
Arms |
4.5 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
12.9 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
12.9 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
12.3 |
|
Inductance(25℃，±20%）P-P |
L | mH | 5 |
|
Max Coil Temperature |
Tmax |
℃ |
120 |
|
Mover Mass |
Mp | Kg | 0.2 |
|
Total Weight |
M | Kg | 1 |
|
Mechanical air gap |
δ |
mm | 1 |
|
Straightness |
|
μm |
±3μm/25mm |
|
Flatness |
|
μm |
±3μm/25mm |
|
both-way Repeat positioning accuracy |
|
μm |
±1.5μm |

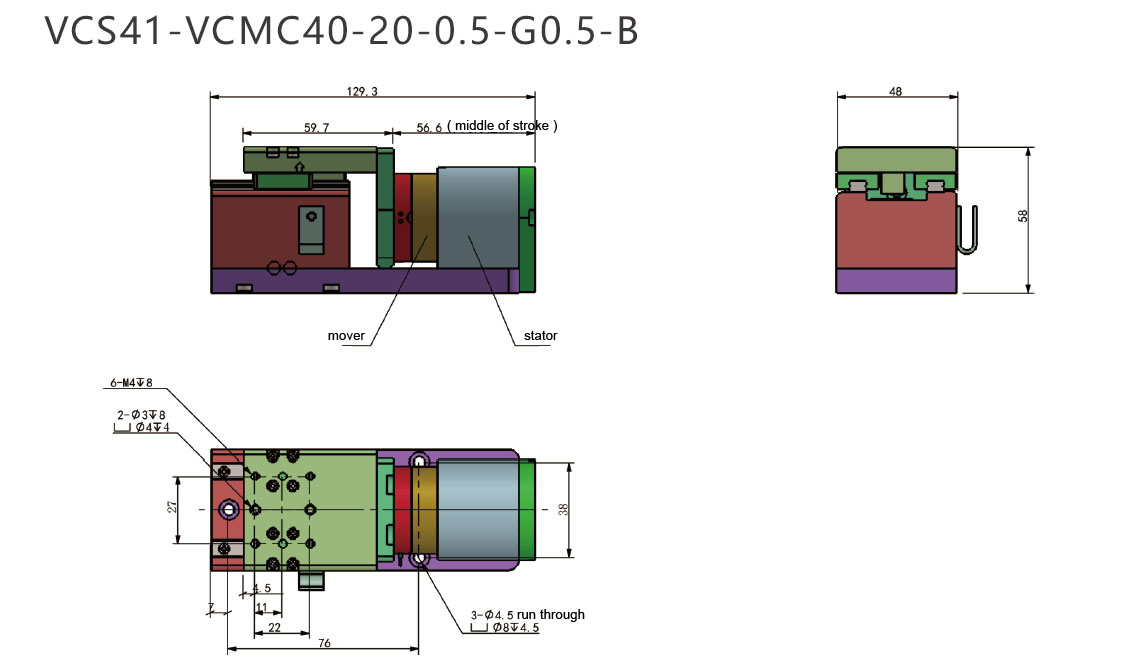

Dimension
The main application of voice coil motor stage:
1. Semiconductor industry: Wiring, cutting, drilling, welding etc.
2. Vibration System: Shaking table, vibration platform.
3. Micro Machine industry: Feed systems, micro drilling, precision stamping.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Control valve field: Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
